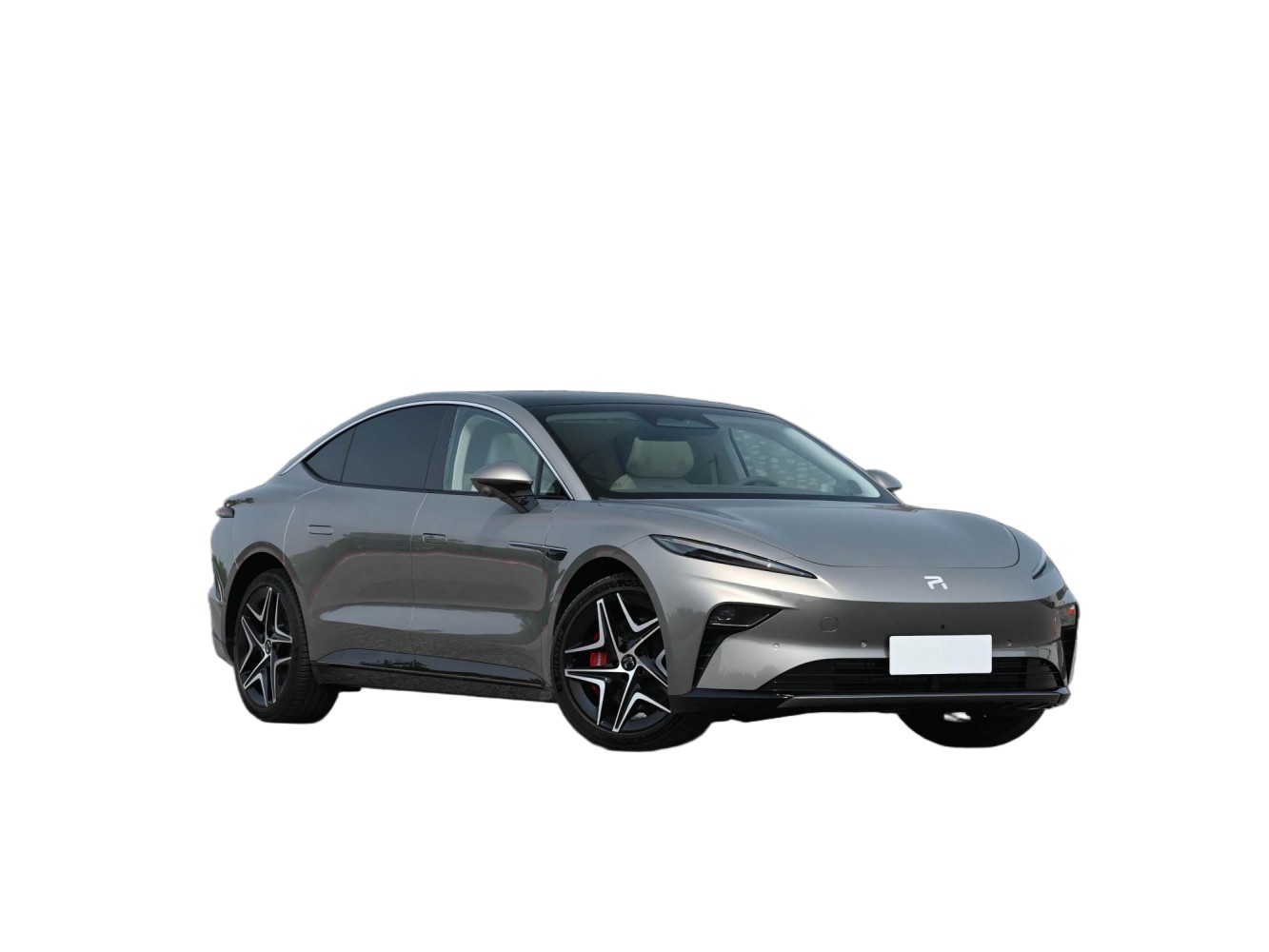

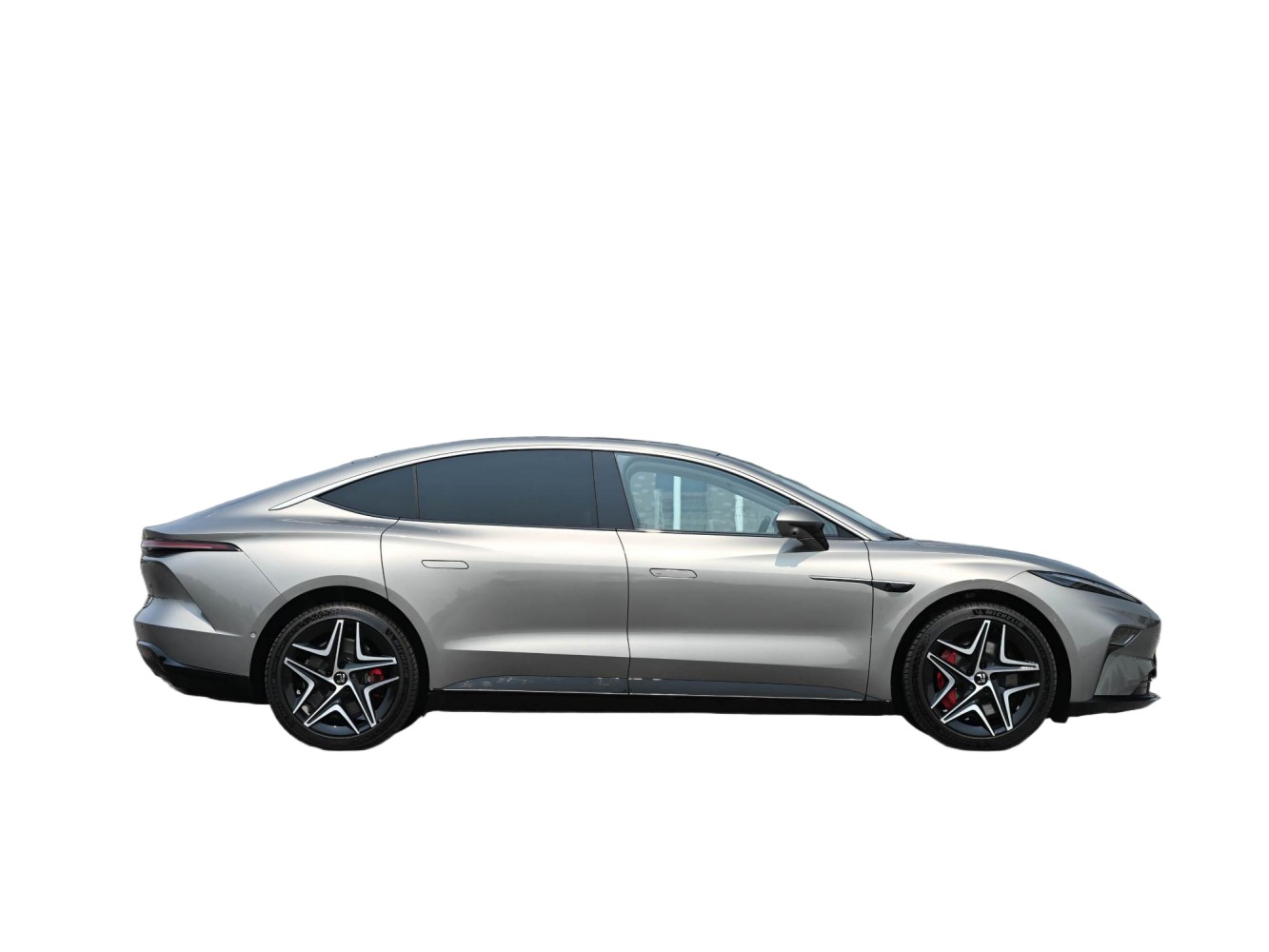

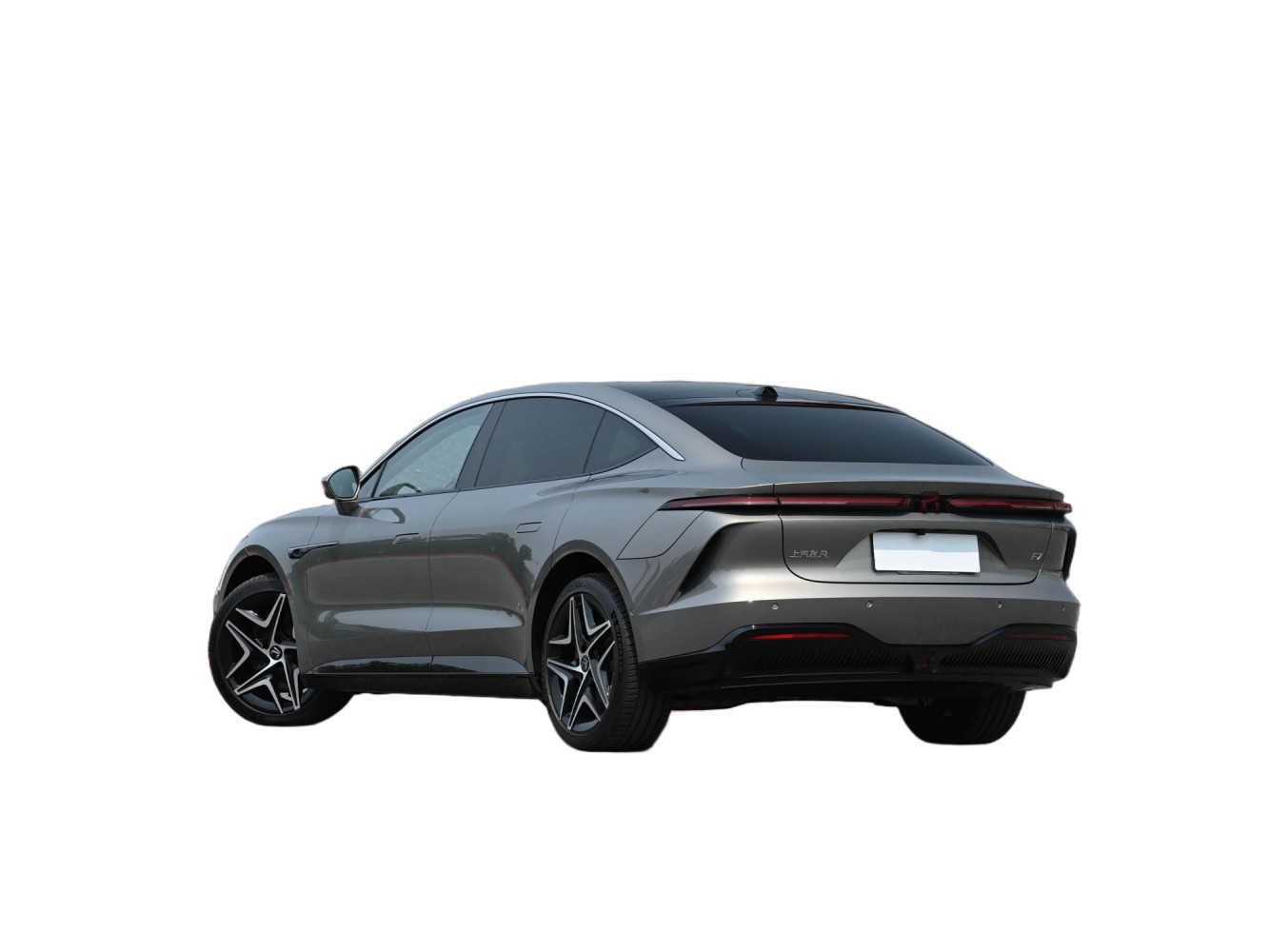

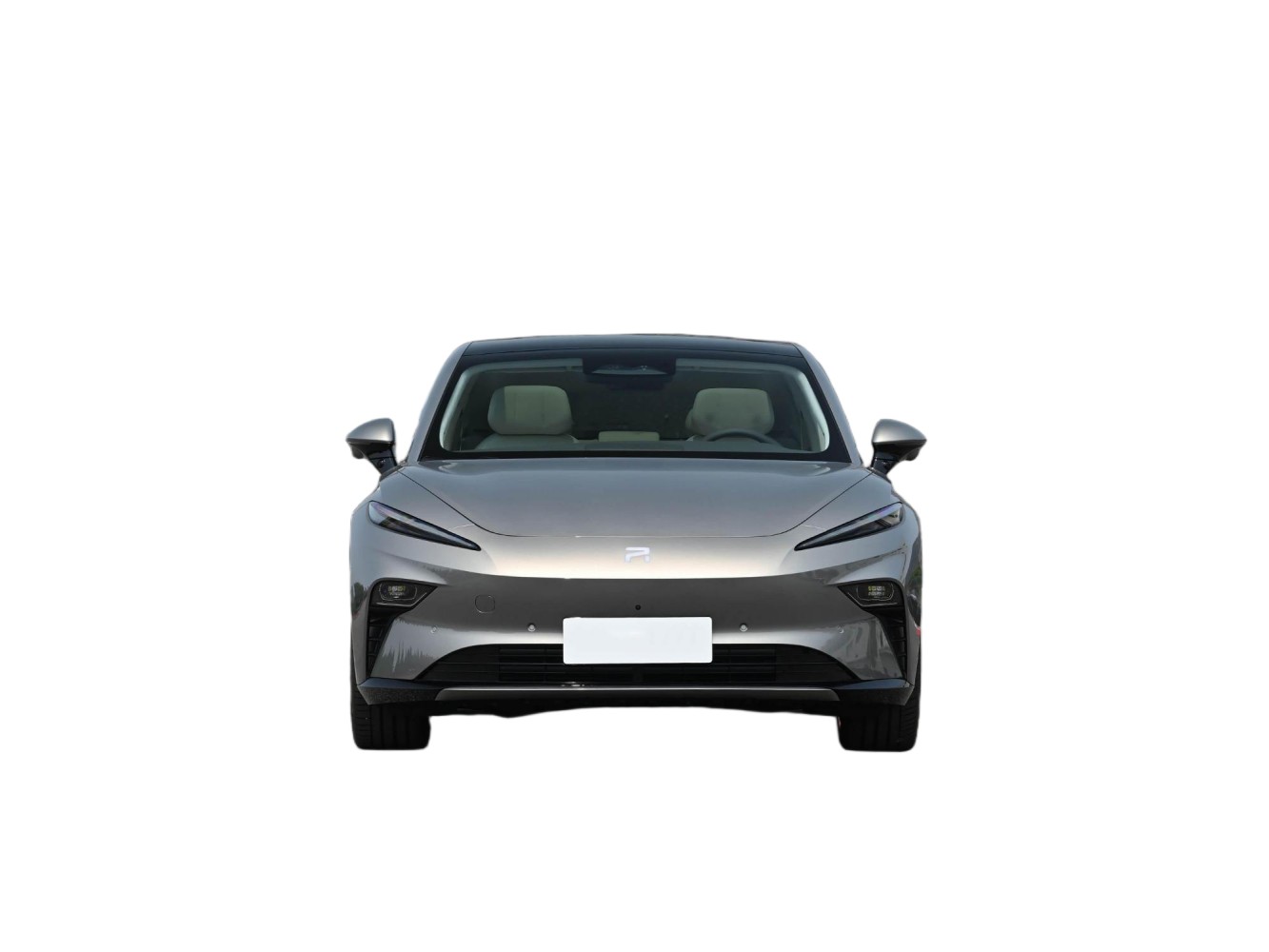

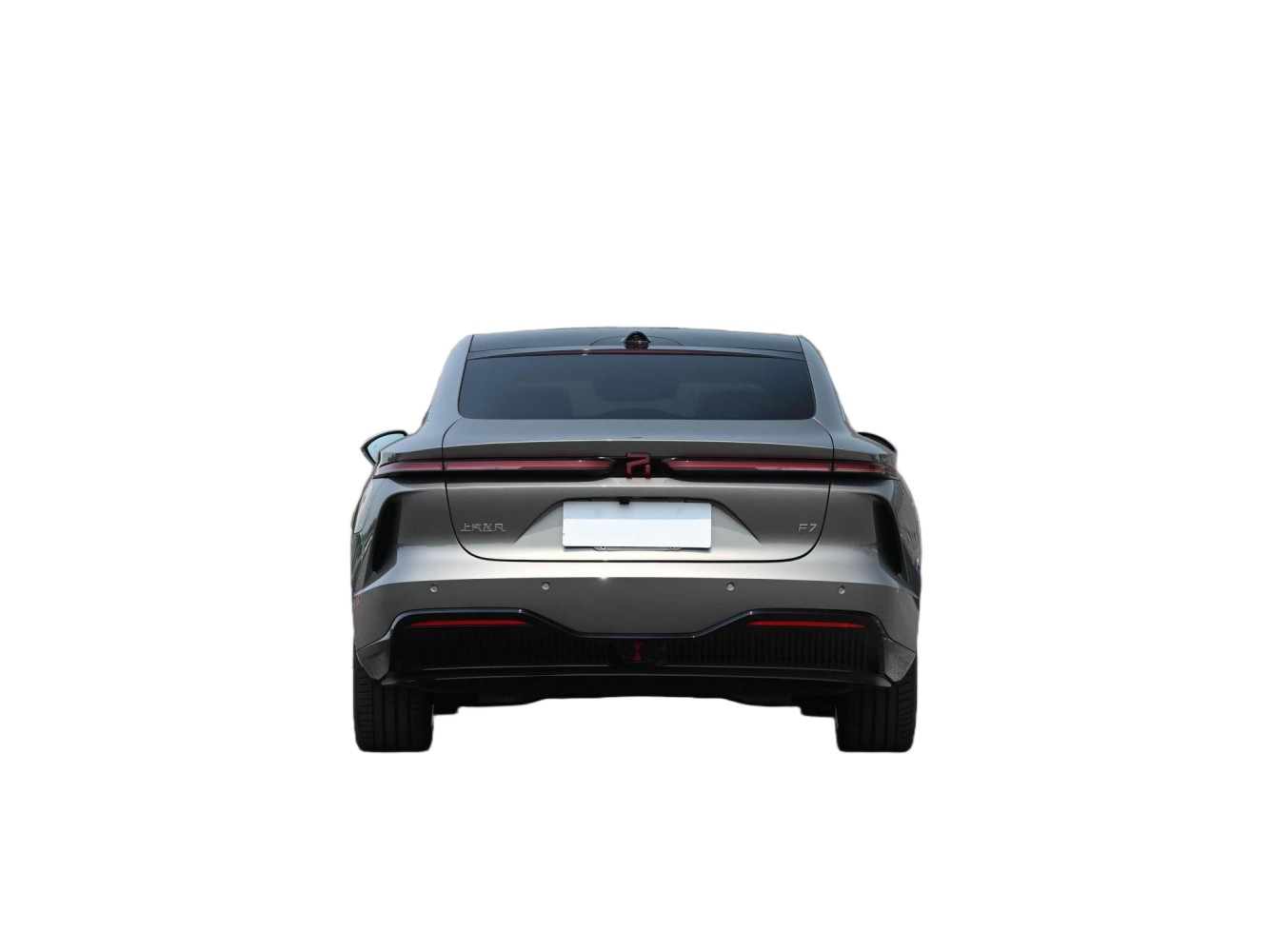

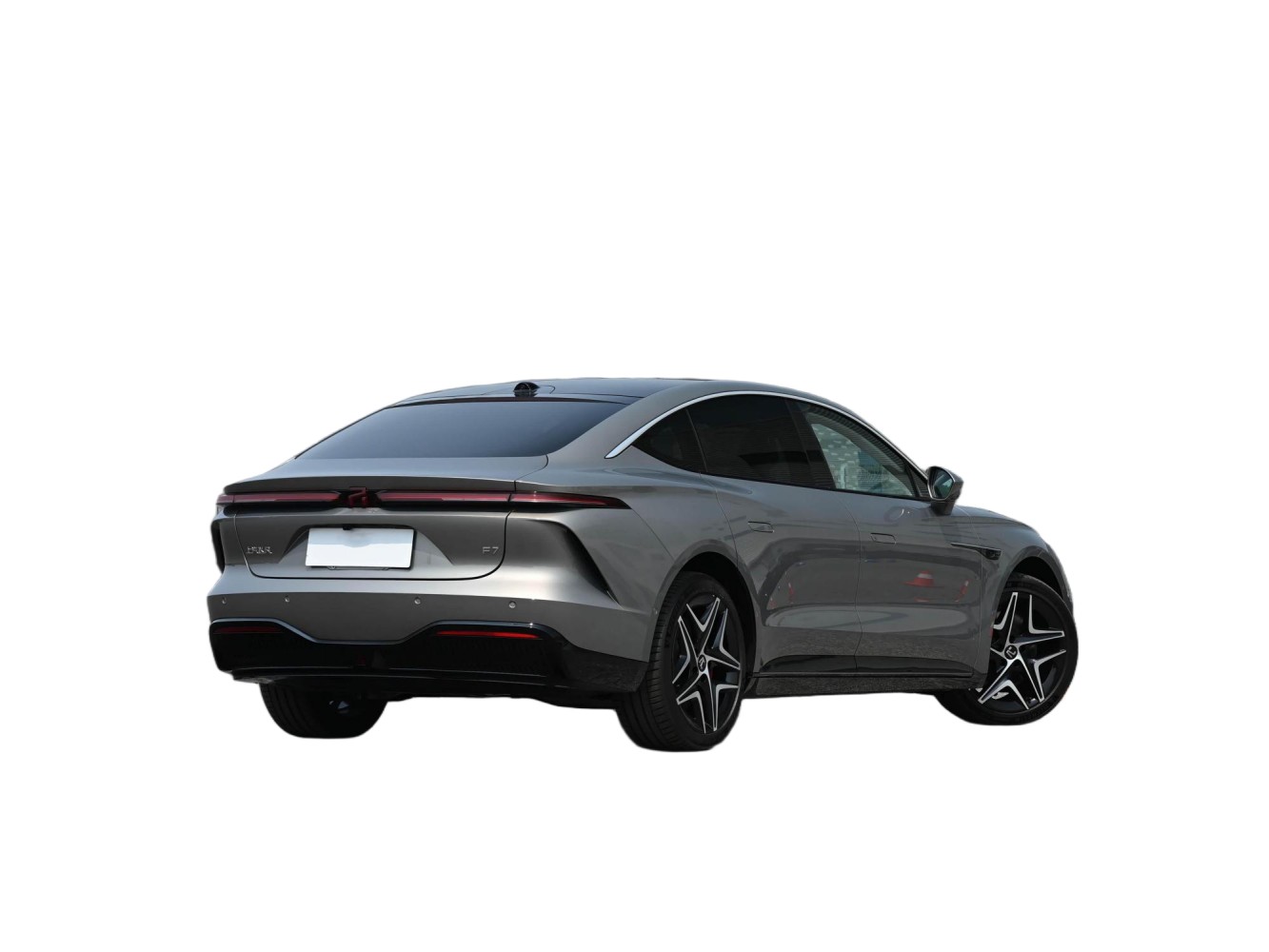

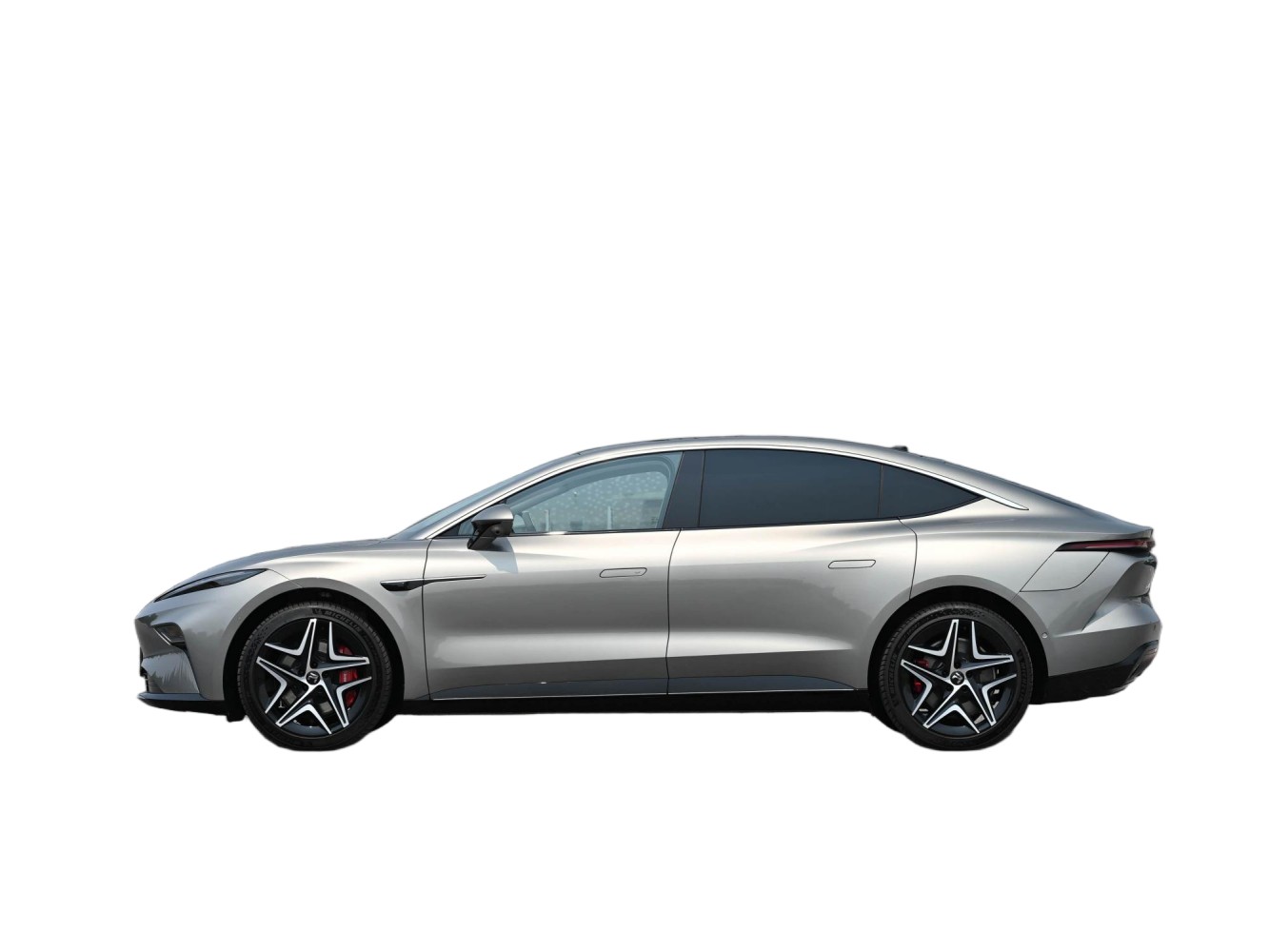

Exterior Design
The RISING F7 adopts a streamlined fastback body design with a closed front grille and split matrix LED headlight sets. It is equipped with integrated daytime running lights and a through-type taillight assembly with an illuminated brand logo. The vehicle features frameless doors and an electric liftgate. Available exterior body colors include Amber Gray, Cloud White, Latte and Obsidian Black.
In terms of dimensions, the vehicle measures 5,000 mm in length, 1,953 mm in width, and 1,494 mm in height, with a wheelbase of 3,000 mm. The car is equipped with 19-inch alloy wheels as standard, with optional 20-inch alloy wheels. Standard exterior configurations include automatic headlights and a panoramic glass roof.
Interior Design
The RISING F7 features a 10.25-inch digital instrument cluster, a 15.05-inch central touchscreen, a 12.3-inch co-pilot screen and an optional 8-inch rear touch screen. The interior is equipped with sustainable upholstery materials, with optional interior color schemes in multiple neutral tones. Standard configurations include front and side airbags, front and rear parking sensors, a 360-degree panoramic camera system, and cruise control.
Higher-spec versions are equipped with L2-level RISING PILOT driver-assistance systems, active braking, lane keeping assist and traffic sign recognition. Additional practical configurations include power-adjustable seats with heating and ventilation functions, dual-zone automatic climate control and interior ambient lighting.
Powertrain
The RISING F7 offers three powertrain versions: standard-range single motor, long-range single motor and high-performance dual motor. The standard-range single-motor rear-wheel-drive model has a maximum power of 150 kW and a peak torque of 325 Nm. The long-range single-motor rear-wheel-drive model delivers a maximum power of 250 kW and a peak torque of 450 Nm. The high-performance dual-motor all-wheel-drive model outputs a maximum power of 400 kW and a peak torque of 700 Nm.
Standard-range models are equipped with a 64 kWh lithium iron phosphate battery pack, while long-range and high-performance models adopt 77 kWh and 90 kWh ternary lithium battery packs respectively. The CLTC cruising range reaches 520 km for the standard-range version, 640 km to 702 km for the long-range version, and 632 km for the high-performance dual-motor version. It supports DC fast charging, enabling charging from 30% to 80% in approximately 30 minutes.
| 2023 Rising F7 Urban | 2023 Rising F7 Modified Advanced | 2023 Rising F7 Modified Advance Pro | 2023 Rising F7 Modified Long Range Pro | 2023 Rising F7 Modified Performance Pro Edition | |
|---|---|---|---|---|---|
| Basic Information | |||||
| Availability | 2023.11 | 2023.11 | 2023.11 | 2023.11 | 2023.11 |
| vehicle class | Mid-size hatchback | Mid-size hatchback | Mid-size hatchback | Mid-size hatchback | Mid-size hatchback |
| Length*Width*Height(mm) | 5000*1953*1494 | 5000*1953*1494 | 5000*1953*1494 | 5000*1953*1494 | 5000*1953*1494 |
| Type of energy | all-electric | all-electric | all-electric | all-electric | all-electric |
| CLTC pure electric range (km) | 500 | 602 | 602 | 702 | 632 |
| Total motor power (kW) | 216 | 250 | 250 | 250 | 400 |
| Total motor torque (N-m) | 450 | 450 | 450 | 450 | 700 |
| Maximum speed (km/h) | 200 | 200 | 200 | 200 | 200 |
| 0-100km/h acceleration(s) | 6.7 | 5.7 | 5.7 | 5.7 | 3.7 |
| Battery Type | lithium iron phosphate battery | Ternary lithium battery | Ternary lithium battery | Ternary lithium battery | Ternary lithium battery |
| Battery capacity (kWh) | 64 | 77 | 77 | 90 | 90 |
| Fast charging time (h) | 0.5 | - | 0.5 | 0.5 | 0.5 |
| Fast charging capacity (%) | 30-80 | 30-80 | 30-80 | 30-80 | 30-80 |
| Warranty Policy | Five years or 120,000 kilometers | Five years or 120,000 kilometers | Five years or 120,000 kilometers | Five years or 120,000 kilometers | Five years or 120,000 kilometers |
| body of automobile | |||||
| Length (mm) | 5000 | 5000 | 5000 | 5000 | 5000 |
| Width (mm) | 1953 | 1953 | 1953 | 1953 | 1953 |
| Height (mm) | 1494 | 1494 | 1494 | 1494 | 1494 |
| Wheelbase (mm) | 3000 | 3000 | 3000 | 3000 | 3000 |
| Front wheelbase(mm) | 1660 | 1660 | 1660 | 1660 | 1660 |
| Rear wheelbase(mm) | 1660 | 1660 | 1660 | 1660 | 1660 |
| Weight (kg) | 2162 | 2162 | 2162 | 2162 | 2162 |
| Luggage compartment volume (L) | 466 | 466 | 466 | 466 | 466 |
| Number of doors (pcs) | 5 | 5 | 5 | 5 | 5 |
| Number of seats (pcs) | 5 | 5 | 5 | 5 | 5 |
| electric motor | |||||
| Total motor power (kW) | 216 | 250 | 250 | 250 | 400 |
| Total motor torque (N-m) | 450 | 450 | 450 | 450 | 700 |
| Maximum power of front electric motor (kW) | - | - | - | - | 150 |
| Maximum torque of front motor (N-m) | - | - | - | - | 250 |
| Maximum power of rear electric motor (kW) | 216 | 250 | 250 | 250 | 250 |
| Rear motor maximum torque (N-m) | 450 | 450 | 450 | 450 | 450 |
| CLTC pure electric range (km) | 500 | 602 | 602 | 702 | 632 |
| Battery capacity (kWh) | 64 | 77 | 77 | 90 | 90 |
| 100km power consumption (kWh/100km) | - | 15.4 | 15.4 | 15.6 | 16.2 |
| Slow charging time (h) | 10.5 | - | 12 | 14 | 14 |
| Fast charging time (h) | 0.5 | - | 0.5 | 0.5 | 0.5 |
| Motor structure | permanent magnetism | permanent magnetism | permanent magnetism | permanent magnetism | permanent magnetism |
| Principle of motor operation | synchronization | synchronization | synchronization | synchronization | synchronization |
| Number of drive motors | single motor | single motor | single motor | single motor | Dual Motor |
| Motor Layout | place after (e.g. in grammar) | place after (e.g. in grammar) | place after (e.g. in grammar) | place after (e.g. in grammar) | front and rear |
| Battery Type | lithium iron phosphate battery | Ternary lithium battery | Ternary lithium battery | Ternary lithium battery | Ternary lithium battery |
| Battery Cell Brands | - | Shanghai Automobile Works (SAIC) era | Shanghai Automobile Works (SAIC) era | Shanghai Automobile Works (SAIC) era | Shanghai Automobile Works (SAIC) era |
| Battery cooling method | liquid cooling | liquid cooling | liquid cooling | liquid cooling | liquid cooling |
| power exchange | - | be in favor of | be in favor of | be in favor of | be in favor of |
| Battery Energy Density(Wh/kg) | - | 180 | 180 | 185 | 185 |
| fast charging function | be in favor of | - | be in favor of | be in favor of | be in favor of |
| Fast charging capacity (%) | 30-80 | 30-80 | 30-80 | 30-80 | 30-80 |
| Battery Pack Warranty | Eight years or 150,000 kilometers | Eight years or 150,000 kilometers | Eight years or 150,000 kilometers | Eight years or 150,000 kilometers | Eight years or 150,000 kilometers |
| Battery preheating | ● | ● | ● | ● | ● |
| external discharge | ● | ● | ● | ● | ● |
| Chassis/steering | |||||
| Driving form | rear drive | rear drive | rear drive | rear drive | four-wheel drive |
| Front suspension type | double wishbone independent suspension | double wishbone independent suspension | double wishbone independent suspension | double wishbone independent suspension | double wishbone independent suspension |
| Rear suspension type | Five-link independent suspension | Five-link independent suspension | Five-link independent suspension | Five-link independent suspension | Five-link independent suspension |
| Steering assist form | electric power assist | electric power assist | electric power assist | electric power assist | electric power assist |
| Wheels/Brakes | |||||
| Front/Rear Brake Type | Ventilated tray type | Ventilated tray type | Ventilated tray type | Ventilated tray type | Ventilated tray type |
| Parking brake type | electronic parking | electronic parking | electronic parking | electronic parking | electronic parking |
| Front Tire Specification | 255/45 R19 | 255/45 R19 | 255/45 R19 | 255/45 R19 | 255/40 R20 |
| Rear Tire Specification | 255/45 R19 | 255/45 R19 | 255/45 R19 | 255/45 R19 | 255/40 R20 |
| Wheel Material | aluminum | aluminum | aluminum | aluminum | aluminum |
| Active/passive safety features | |||||
| ABS anti-lock | ● | ● | ● | ● | ● |
| Brake force distribution (EBD/CBC etc.) | ● | ● | ● | ● | ● |
| Brake Assist (BA/EBA/BAS etc.) | ● | ● | ● | ● | ● |
| Traction control (ASR/TCS/TRC etc.) | ● | ● | ● | ● | ● |
| Stability Control (ESC/ESP/DSC etc.) | ● | ● | ● | ● | ● |
| Active braking/safety systems | ● | ● | ● | ● | ● |
| merging aid | ● | ● | ● | ● | ● |
| lane keeping assist system | ● | ● | ● | ● | ● |
| lane departure warning | ● | ● | ● | ● | ● |
| Road traffic signage recognition | ● | ● | ● | ● | ● |
| Fatigue Driving Alerts | - | - | ● | ● | ● |
| DOW Open Door Alert | ● | ● | ● | ● | ● |
| front exhaust airbag | :: Driver's airbag | :: Driver's airbag | :: Driver's airbag | :: Driver's airbag | :: Driver's airbag |
| ●Passenger airbag | ●Passenger airbag | ●Passenger airbag | ●Passenger airbag | ●Passenger airbag | |
| ●Side airbags | ●Side airbags | ●Side airbags | ●Side airbags | ●Side airbags | |
| ●Head airbags (air curtains) | ●Head airbags (air curtains) | ●Head airbags (air curtains) | ●Head airbags (air curtains) | ●Head airbags (air curtains) | |
| Rear airbags | ●Head airbags (air curtains) | ●Head airbags (air curtains) | ●Head airbags (air curtains) | ●Head airbags (air curtains) | ●Head airbags (air curtains) |
| Tire Pressure Detection Device | ●Display | ●Display | ●Display | ●Display | ●Display |
| Seat Belt Reminder | ● Full vehicle | ● Full vehicle | ● Full vehicle | ● Full vehicle | ● Full vehicle |
| ISOFIX child fixed seats | ● | ● | ● | ● | ● |
| Passive pedestrian protection | ● | ● | ● | - | ● |
| Forward Collision Warning | ● | ● | ● | ● | ● |
| Rear Collision Warning | ● | ● | ● | ● | ● |
| Auxiliary/Manipulation Configurations | |||||
| parking radar | ● Post | ● Post | ●Forward | ●Forward | ●Forward |
| ● Post | ● Post | ● Post | |||
| Driver Assistance Video | ●360-degree panoramic image | ●360-degree panoramic image | ●360-degree panoramic image | ●360-degree panoramic image | ●360-degree panoramic image |
| cruise control | ●Adaptive cruise at all speeds | ●Adaptive cruise at all speeds | ●Adaptive cruise at all speeds | ●Adaptive cruise at all speeds | ●Adaptive cruise at all speeds |
| Driving Mode Switching | :: Economy | :: Economy | :: Economy | :: Economy | :: Economy |
| :: Standard/comfort | :: Standard/comfort | :: Standard/comfort | :: Standard/comfort | :: Standard/comfort | |
| :: Snow | :: Snow | :: Snow | :: Snow | :: Snow | |
| steep incline and slow descent | ● | ● | ● | ● | ● |
| hill-holding aid | ● | ● | ● | ● | ● |
| automatic parking | ● | ● | ● | ● | ● |
| automatic parking | - | - | ● | ● | ● |
| remote control | - | - | ● | ● | ● |
| Assisted driving level | ●L2 | ●L2 | ●L2 | ●L2 | ●L2 |
| Driver Assistance System | ●RISING PILOT | ●RISING PILOT | ●RISING PILOT | ●RISING PILOT | ●RISING PILOT |
| External/anti-theft configurations | |||||
| skylights | ● Non-opening panoramic sunroof | ● Non-opening panoramic sunroof | ● Non-opening panoramic sunroof | ● Non-opening panoramic sunroof | ● Non-opening panoramic sunroof |
| Active Closed Grille | ● | ● | ● | ● | ● |
| Electric Suction Door | - | - | o | o | ● |
| Concealed power door handles | ● | ● | ● | ● | ● |
| Trunk opening method | ● Electric | ● Electric | ● Electric | ● Electric | ● Electric |
| Power trunk position memory | ● | ● | ● | ● | ● |
| Key Type | ●Remote key | ●Remote key | ●Remote key | ●Remote key | ●Remote key |
| ● Bluetooth key | ● Bluetooth key | ● Bluetooth key | ● Bluetooth key | ● Bluetooth key | |
| ●NFC/RFID key | ●NFC/RFID key | ●NFC/RFID key | ●NFC/RFID key | ●NFC/RFID key | |
| Keyless entry | ● | ● | ● | ● | ● |
| Keyless Start System | ● | ● | ● | ● | ● |
| Remote start function | ● | ● | ● | ● | ● |
| Central locking in the car | ● | ● | ● | ● | ● |
| Internal Configuration | |||||
| Steering wheel material | ● Leather | ● Leather | ● Leather | ● Leather | ● Leather |
| Steering Wheel Adjustment | ● Manual | ● Manual | ● Manual | ● Manual | ● Manual |
| Adjustable up and down | Adjustable up and down | Adjustable up and down | Adjustable up and down | Adjustable up and down | |
| Adjustable front and rear | Adjustable front and rear | Adjustable front and rear | Adjustable front and rear | Adjustable front and rear | |
| Steering wheel functions | :: Multifunctionality | :: Multifunctionality | ●Heating | ●Heating | ●Heating |
| :: Multifunctionality | :: Multifunctionality | :: Multifunctionality | |||
| center armrest | ●Forward | ●Forward | ●Forward | ●Forward | ●Forward |
| ● Post | ● Post | ● Post | ● Post | ● Post | |
| Sun visor vanity mirror | ● | ● | ● | ● | ● |
| Liquid crystal instrument size | 10.25 in. | 10.25 in. | 10.25 in. | 10.25 in. | 10.25 in. |
| Built-in car recorder | - | - | ● | ● | ● |
| Wireless charging function for cell phones | ● Front row | ● Front row | ● Front row | ● Front row | ● Front row |
| Intelligent Hardware | |||||
| Assisted Driving Chips | ● Mobileye EyeQ4H | ● Mobileye EyeQ4H | ● NVIDIA Drive Orin | ● NVIDIA Drive Orin | ● NVIDIA Drive Orin |
| Number of cameras | ● 5 | ● 5 | :: 12 | :: 12 | :: 12 |
| Number of ultrasonic radars | :: 4 | :: 4 | :: 12 | :: 12 | :: 12 |
| Number of millimeter-wave radars | :: 2 | :: 2 | ● 5 | ● 5 | ● 5 |
| seating | |||||
| Seat Material | :: Imitation leather | :: Imitation leather | Leather | Leather | ● Leather |
| :: Imitation leather | :: Imitation leather | ||||
| Main Driver's Seat Function | :: Memory | :: Memory | :: Memory | :: Memory | :: Memory |
| :: Ventilation | :: Ventilation | :: Ventilation | :: Ventilation | :: Ventilation | |
| ●Heating | ○Massage | ○Massage | ○Massage | :: Massage | |
| ●Heating | ●Heating | ●Heating | ●Heating | ||
| Passenger seat function | :: Ventilation | ○Ventilation | ○Ventilation | ○Ventilation | :: Ventilation |
| ●Heating | ○Massage | ○Massage | ○Massage | :: Massage | |
| ●Heating | ●Heating | ●Heating | ●Heating | ||
| Seat electric adjustment | ●Principal Driver | ●Principal Driver | ●Principal Driver | ●Principal Driver | ●Principal Driver |
| ●Passenger | ●Passenger | ●Passenger | ●Passenger | ●Passenger | |
| Integral adjustment of the main driver's seat | ●Before and after | ●Before and after | ●Before and after | ●Before and after | ●Before and after |
| ●Backrests | ●Backrests | ●Backrests | ●Backrests | ●Backrests | |
| ●High/Low (4-way) | ●High/Low (4-way) | ●High/Low (4-way) | ●High/Low (4-way) | ●High/Low (4-way) | |
| Partial adjustment of the main driver's seat | ●Leg rests | ●Leg rests | ●Leg rests | ●Leg rests | ●Leg rests |
| :: Waist (4-way) | :: Waist (4-way) | :: Waist (4-way) | :: Waist (4-way) | :: Waist (4-way) | |
| Passenger seat overall adjustment | ●Before and after | ●Before and after | ●Before and after | ●Before and after | ●Before and after |
| ●Backrests | ●Backrests | ●Backrests | ●Backrests | ●Backrests | |
| :: High and low (2-way) | ●High/Low (4-way) | ●High/Low (4-way) | ●High/Low (4-way) | ●High/Low (4-way) | |
| Partial adjustment of the passenger seat | - | ○Waist (4-way) | ○Waist (4-way) | ○Waist (4-way) | :: Waist (4-way) |
| Second row seat adjustment | ●Proportional lowering | Adjustable angle | Adjustable angle | Adjustable angle | ●Angle adjustable |
| ●Proportional lowering | ●Proportional lowering | ●Proportional lowering | ●Proportional lowering | ||
| Passenger seat rear adjustable buttons | ● | ● | ● | ● | ● |
| Rear Cup Holder | ● | ● | ● | ● | ● |
| multimedia | |||||
| Large color screen in the center console | ● | ● | ● | ● | ● |
| satellite navigation system | ● | ● | ● | ● | ● |
| Navigating the road information display | ● | ● | ● | ● | ● |
| Map Branding | Baidu | Baidu | Baidu | Baidu | Baidu |
| Roadside assistance calls | ● | ● | ● | ● | ● |
| In-vehicle Intelligent System | ●RISING OS | ●RISING OS | ●RISING OS | ●RISING OS | ●RISING OS |
| Automotive Intelligence Chip | Qualcomm Snapdragon 8155 | Qualcomm Snapdragon 8155 | Qualcomm Snapdragon 8155 | Qualcomm Snapdragon 8155 | Qualcomm Snapdragon 8155 |
| Mobile APP Remote Function | ●Door control | ●Door control | ●Door control | ●Door control | ●Door control |
| ●Window control | ●Window control | ●Window control | ●Window control | ●Window control | |
| ● Vehicle start-up | ● Vehicle start-up | ● Vehicle start-up | ● Vehicle start-up | ● Vehicle start-up | |
| ● Charge management | ● Charge management | ● Charge management | ● Charge management | ● Charge management | |
| ● Air conditioning control | ● Air conditioning control | ● Air conditioning control | ● Air conditioning control | ● Air conditioning control | |
| :: Vehicle condition check/diagnosis | :: Vehicle condition check/diagnosis | :: Vehicle condition check/diagnosis | :: Vehicle condition check/diagnosis | :: Vehicle condition check/diagnosis | |
| :: Vehicle location/search | :: Vehicle location/search | :: Vehicle location/search | :: Vehicle location/search | :: Vehicle location/search | |
| ● Owner services (find charging stations, gas stations, parking lots, etc.) | ● Owner services (find charging stations, gas stations, parking lots, etc.) | ● Owner services (find charging stations, gas stations, parking lots, etc.) | ● Owner services (find charging stations, gas stations, parking lots, etc.) | ● Owner services (find charging stations, gas stations, parking lots, etc.) | |
| Bluetooth/Car Phone | ● | ● | ● | ● | ● |
| Number of audio speakers | 16 | 16 | 16 | 16 | 16 |
| Voice Recognition Control System | :: Multimedia systems | :: Multimedia systems | :: Multimedia systems | :: Multimedia systems | :: Multimedia systems |
| :: Navigation | :: Navigation | :: Navigation | :: Navigation | :: Navigation | |
| :: Telephone | :: Telephone | :: Telephone | :: Telephone | :: Telephone | |
| :: Air conditioning | :: Air conditioning | :: Air conditioning | :: Air conditioning | :: Air conditioning | |
| Center screen size | ●15.05 inches | ●15.05 inches | ●15.05 inches | ●15.05 inches | ●15.05 inches |
| Voice assistant wake words | ●Hi, Fifan. | ●Hi, Fifan. | ●Hi, Fifan. | ●Hi, Fifan. | ●Hi, Fifan. |
| 4G/5G networks | ●4G | ●4G | ●5G | ●5G | ●5G |
| facial recognition | - | - | ● | ● | ● |
| Telematics | ● | ● | ● | ● | ● |
| OTA upgrade | ● | ● | ● | ● | ● |
| Rear LCD screen size | ●8 inches | ●8 inches | ●8 inches | ●8 inches | ●8 inches |
| Rear control multimedia | ● | ● | ● | ● | ● |
| Interface Support | ●USB port | ●USB port | ●USB port | ●USB port | ●USB port |
| ●Type-C port | ●Type-C port | ●Type-C port | ●Type-C port | ●Type-C port | |
| Power Support | 12V power supply for luggage compartment | 12V power supply for luggage compartment | 12V power supply for luggage compartment | 12V power supply for luggage compartment | ●Luggage compartment 12V power supply |
| (stage) lighting | |||||
| low beam (headlights) | ●LED | ●LED | ●LED | ●LED | ●LED |
| high beam (headlights) | ●LED | ●LED | ●LED | ●LED | ●LED |
| LED daytime running lights | ● | ● | ● | ● | ● |
| Adaptive high and low beam | ● | ● | ● | ● | ● |
| Adjustable headlights | ● | ● | ● | ● | ● |
| Automatic headlights | ● | ● | ● | ● | ● |
| Delayed headlight off | ● | ● | ● | ● | ● |
| Interior ambient lighting | ● | ● | ● | ● | ● |
| Glass/Mirror | |||||
| power window | ●Forward | ●Forward | ●Forward | ●Forward | ●Forward |
| ● Post | ● Post | ● Post | ● Post | ● Post | |
| One-touch window lifting | ● Full vehicle | ● Full vehicle | ● Full vehicle | ● Full vehicle | ● Full vehicle |
| Anti Window Pinch Handle | ● | ● | ● | ● | ● |
| outside rearview mirror | ●Motorized adjustment | ●Motorized adjustment | ●Motorized adjustment | ●Motorized adjustment | ●Motorized adjustment |
| :: Electric folding | :: Electric folding | :: Electric folding | :: Electric folding | :: Electric folding | |
| ●Heating | ●Heating | ●Heating | ●Heating | ●Heating | |
| ●Automatic folding for locking the car | ●Automatic folding for locking the car | ●Automatic folding for locking the car | ●Automatic folding for locking the car | ●Automatic folding for locking the car | |
| ●Automatic reversing down | ●Automatic reversing down | ●Automatic reversing down | ●Automatic reversing down | ●Automatic reversing down | |
| rearview mirror | ●Automatic anti-glare | ●Automatic anti-glare | ●Automatic anti-glare | ●Automatic anti-glare | ●Automatic anti-glare |
| Glass Functions | :: Multi-layer soundproofing | :: Multi-layer soundproofing | :: Multi-layer soundproofing | :: Multi-layer soundproofing | :: Multi-layer soundproofing |
| ● Rear side privacy | ● Rear side privacy | ● Rear side privacy | ● Rear side privacy | ● Rear side privacy | |
| inductive wiper | ● | ● | ● | ● | ● |
| Air conditioners/refrigerators | |||||
| Air conditioning control method | ● Automatic control | ● Automatic control | ● Automatic control | ● Automatic control | ● Automatic control |
| Individual air-conditioning in the rear | ● | ● | ● | ● | ● |
| rear air vent | ● | ● | ● | ● | ● |
| Temperature zone control | ● | ● | ● | ● | ● |
| PM2.5 filtration | ● | ● | ● | ● | ● |
