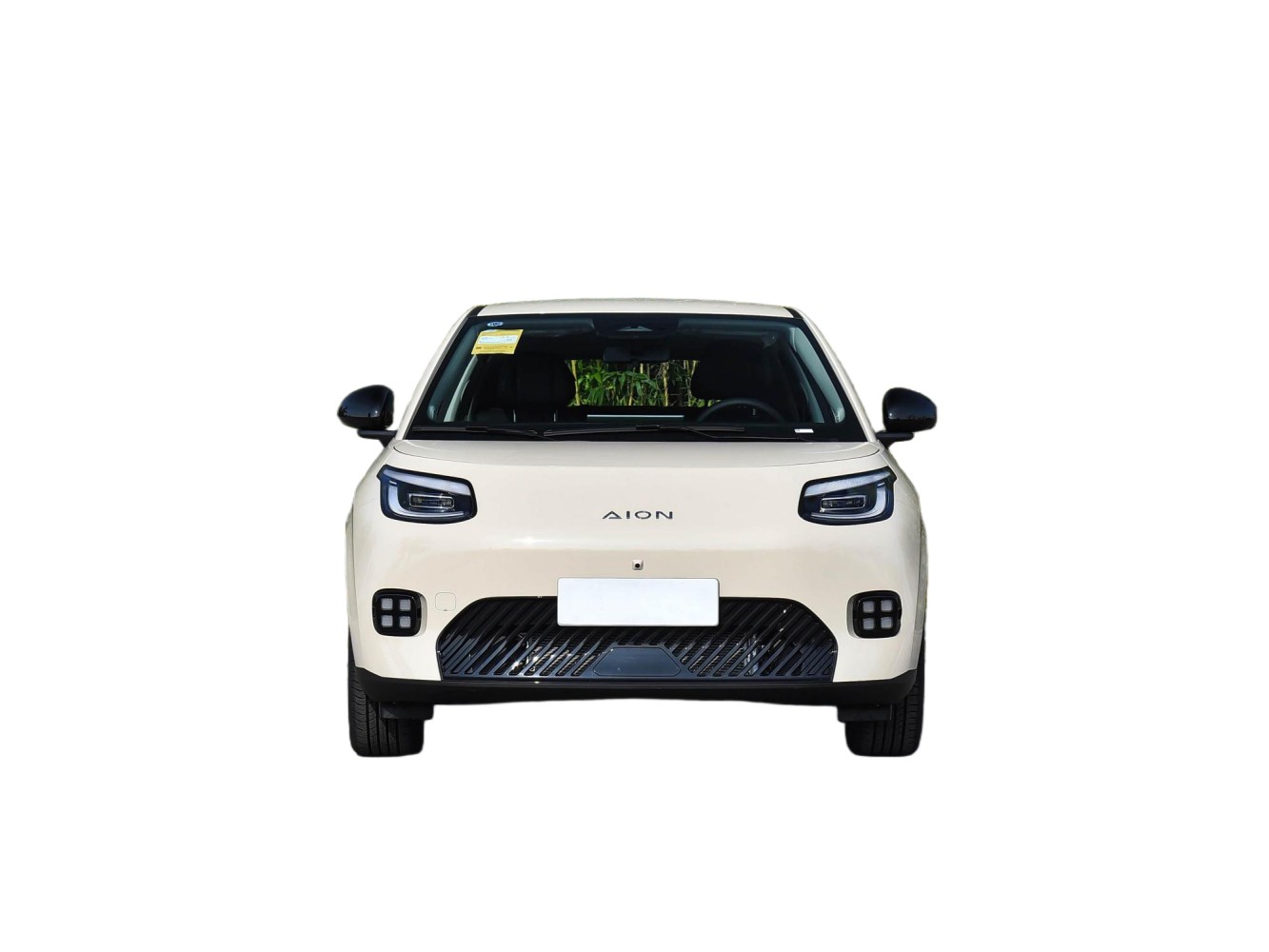

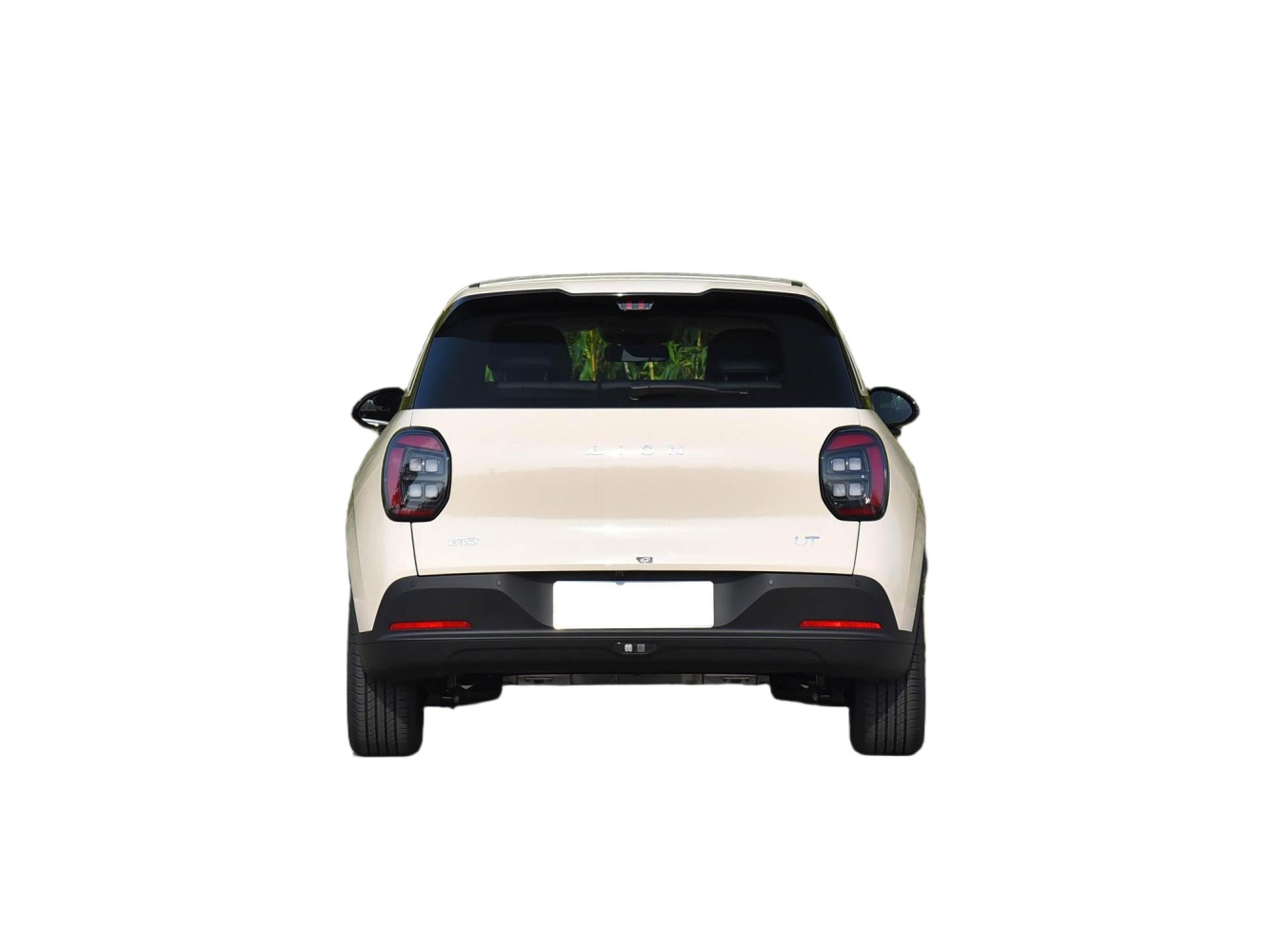

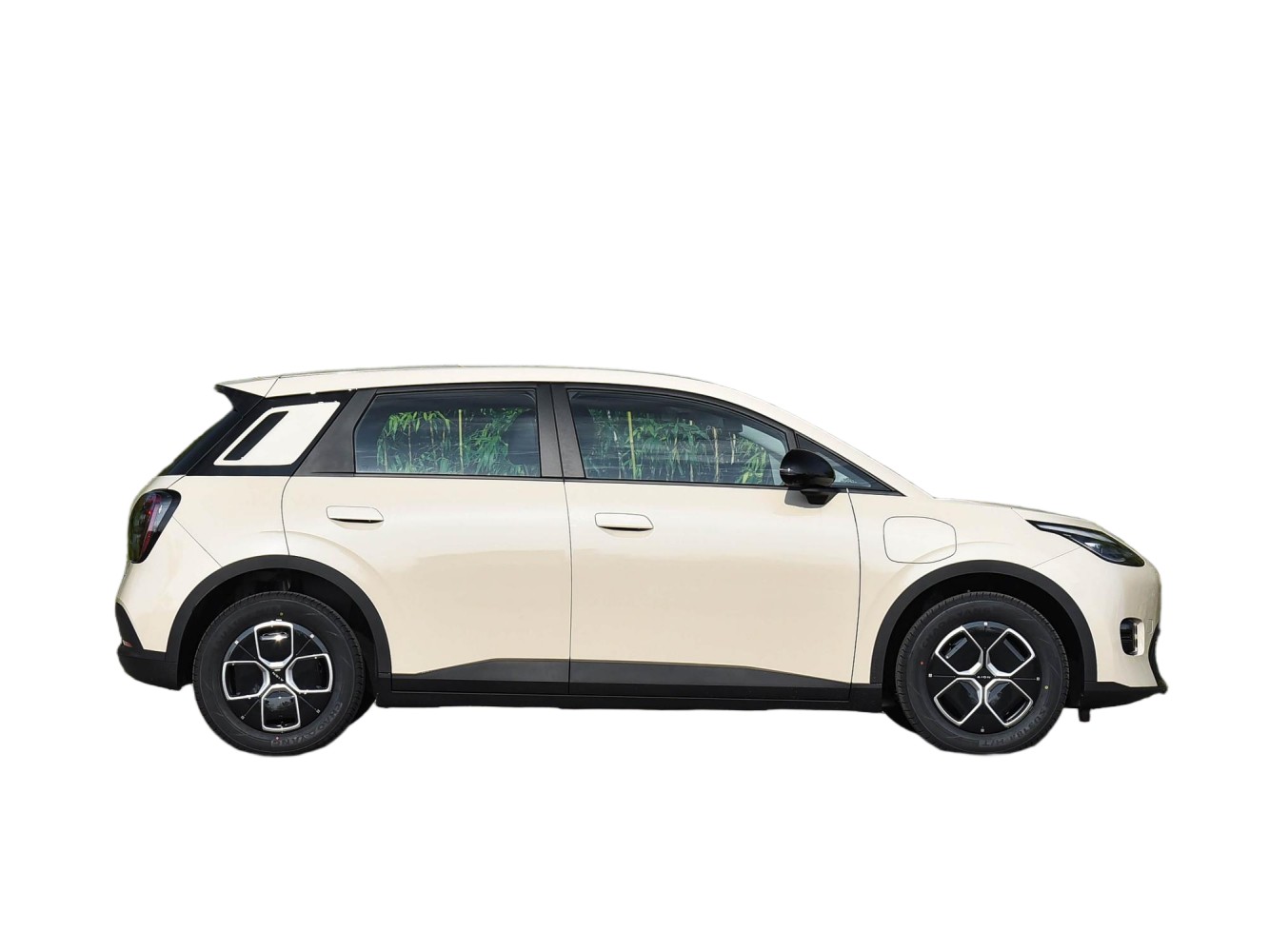

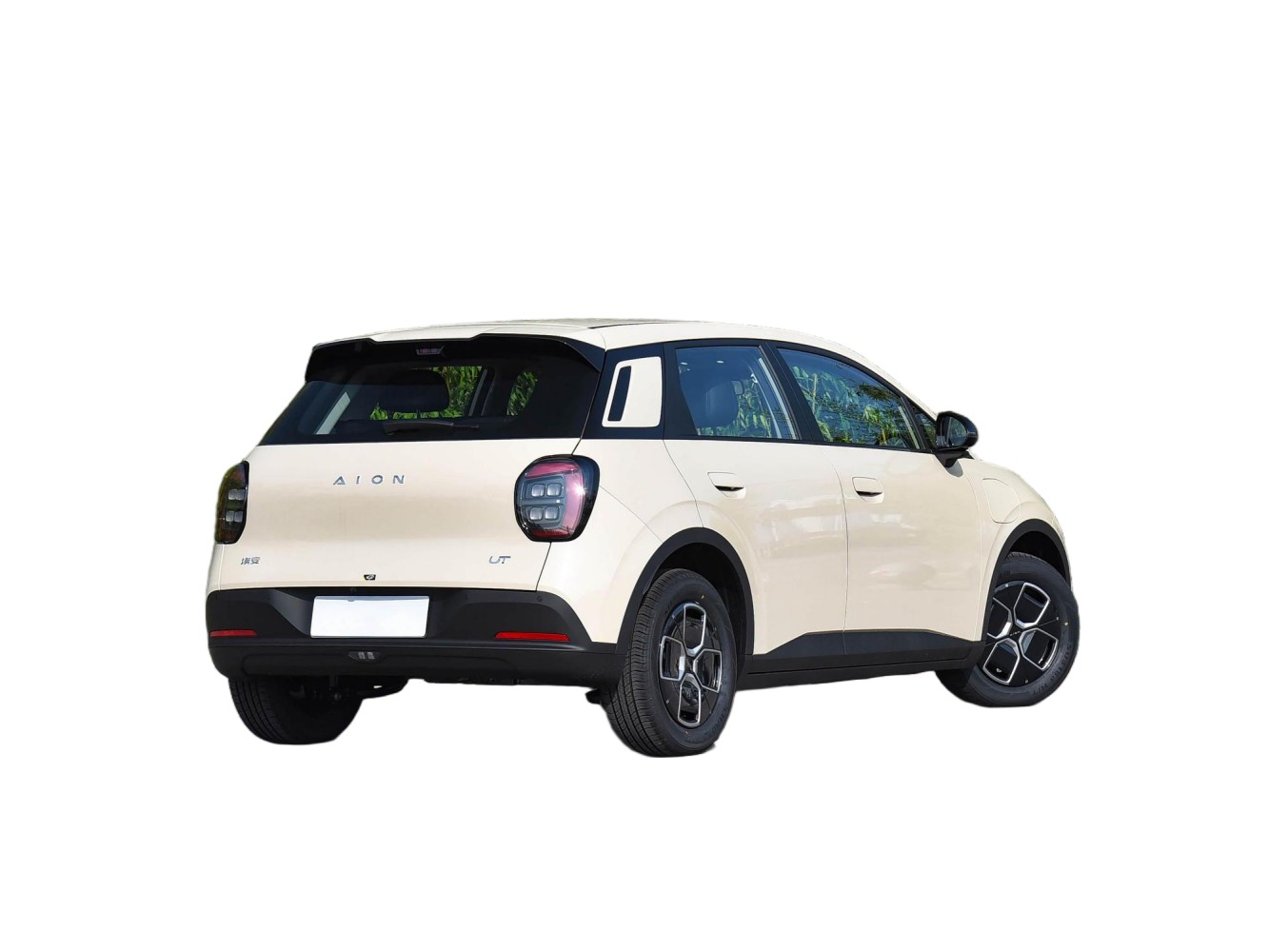

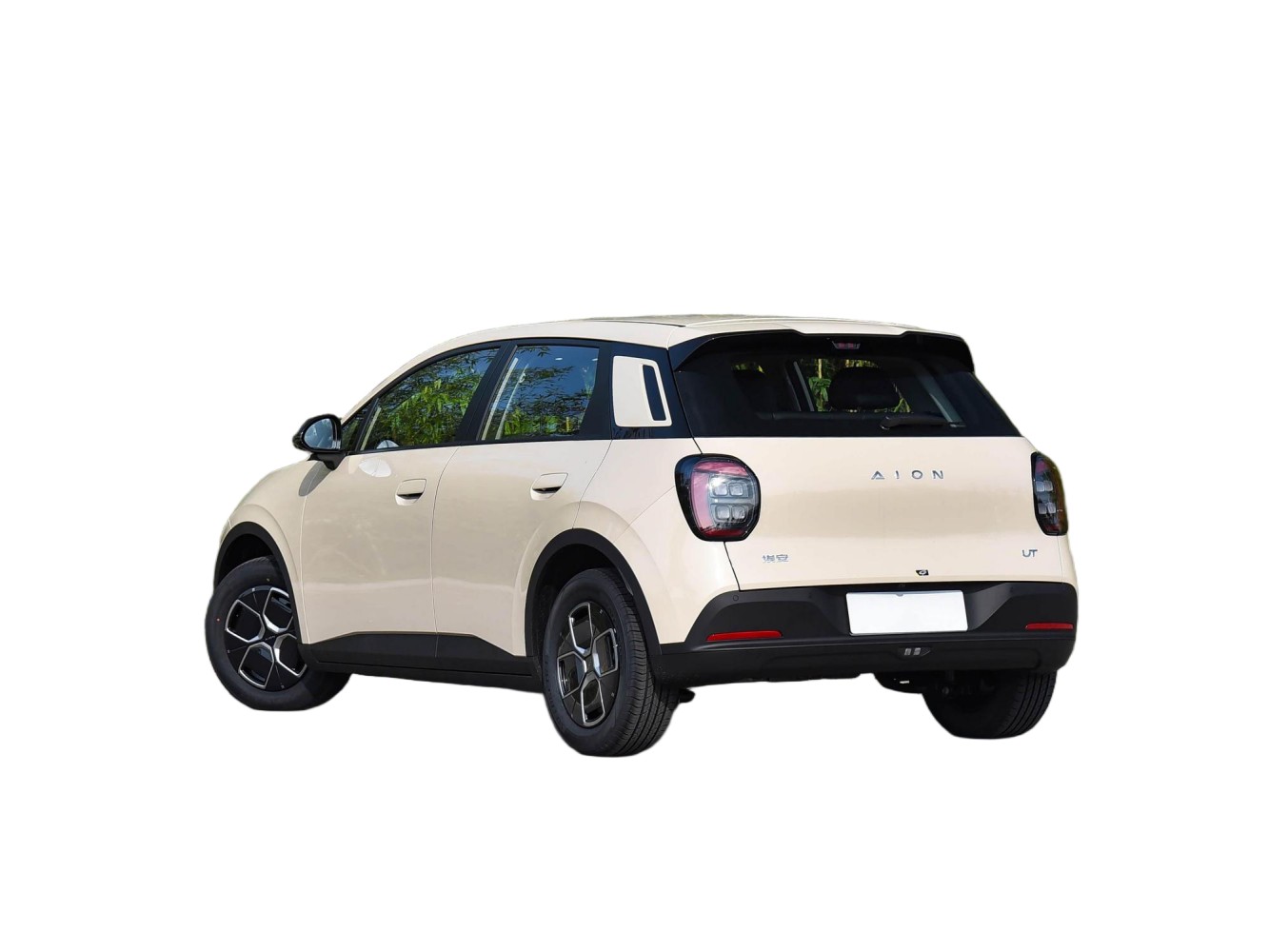

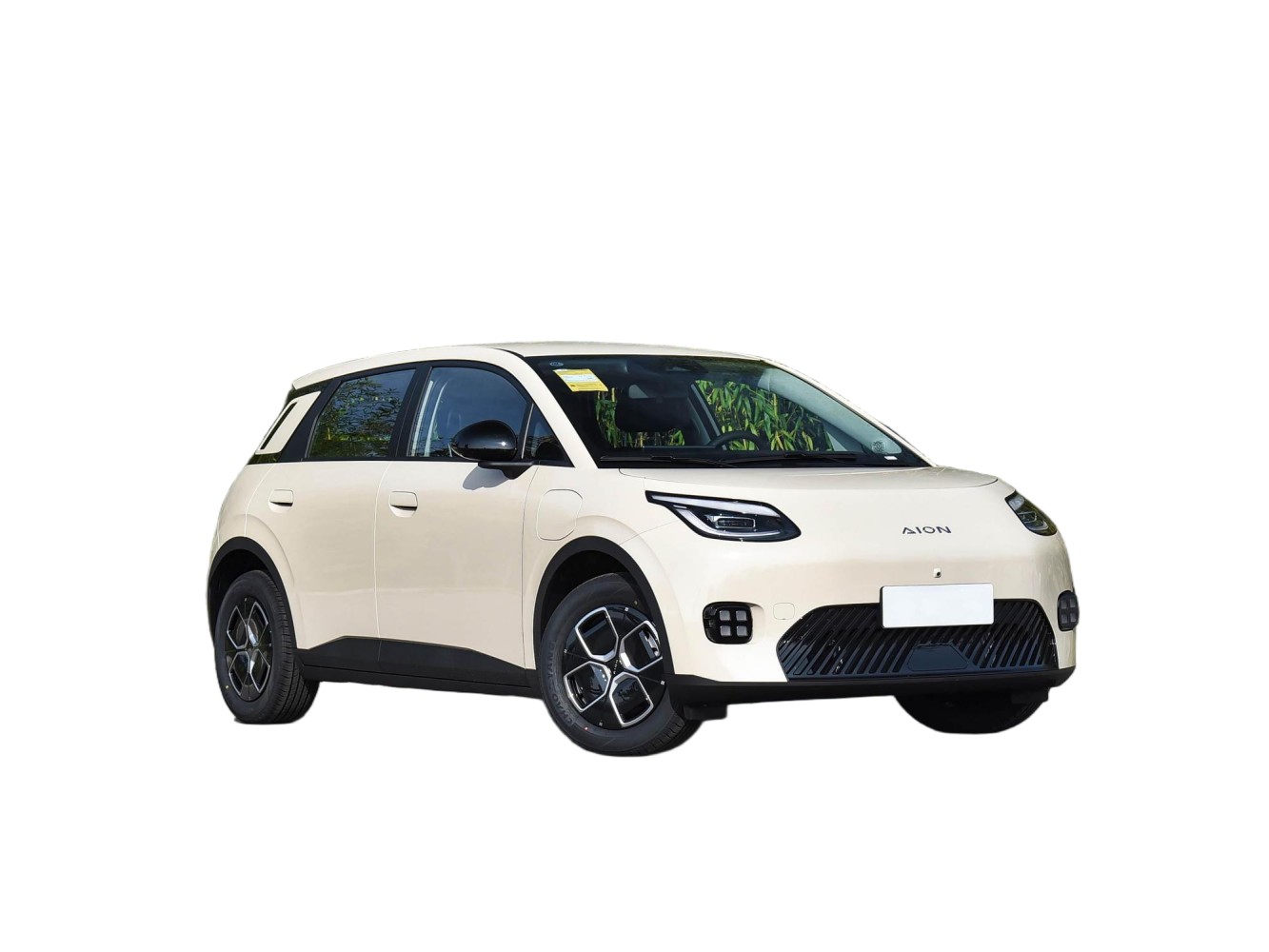

Exterior Design
The AION UT is a compact pure electric hatchback, equipped with a closed front grille and full LED headlight groups. The vehicle is fitted with LED taillight groups and rear bumper trim. Multiple body color options are available. The vehicle adopts 17-inch and 18-inch wheel configurations for different versions. Semi-hidden door handles are equipped as standard. A panoramic sunroof is equipped for partial versions.
The vehicle adopts a 5-door 5-seater hatchback layout. The body dimensions are 4270 mm in length, 1850 mm in width and 1575 mm in height, with a wheelbase of 2750 mm. Electrically adjustable exterior mirrors with heating and automatic folding functions are equipped for different versions. An electric charging port cover is equipped as standard.
Interior Design
The vehicle is equipped with a full LCD digital instrument cluster and central control touchscreen. Multiple interior color schemes are available, matched with fabric and leather upholstery and metallic decorative trim. The vehicle supports multi-color ambient lighting and automatic constant temperature air conditioning. An electronic gear shift lever is equipped as standard.
Standard configurations include front, side and curtain airbags, front and rear parking sensors, rearview camera and constant-speed cruise control. Keyless entry and one-key start functions are standard. High-spec versions are equipped with panoramic camera system, adaptive cruise control, lane keeping assist and active braking system. The vehicle supports vehicle network connection, V2L external discharge and OTA upgrade functions. Partial versions are equipped with wireless phone charging functions and electrically adjustable driver seats.
Powertrain
The AION UT adopts front-wheel drive layout, matched with single-speed fixed gear electric drive assembly. The vehicle is equipped with front permanent magnet synchronous motors with different parameters. The standard version motor has a maximum power of 100 kW and a peak torque of 145 Nm. The high-power version motor has a maximum power of 150 kW and a peak torque of 210 Nm.
The vehicle is equipped with lithium iron phosphate battery packs of 32.24kWh and 34.86kWh for different versions. The CLTC pure electric cruising range covers 320 km and 330 km for basic versions, and 420 km for high-spec versions. The vehicle supports DC fast charging and AC slow charging functions. The vehicle is equipped with energy recovery system and battery constant temperature management system. The vehicle adopts front MacPherson independent suspension and rear torsion beam non-independent suspension system.
| 2025 AION UT 330 Starburst Edition | 2025 AION UT 330 Intelligent Edition | 2025 AION UT 420 Intelligent Edition | 2025 AION UT 420 Intelligent Luxury Edition | 2025 AION UT 420 Intelligent Edition | |
|---|---|---|---|---|---|
| Basic Information | |||||
| Availability | 2025.02 | 2025.02 | 2025.02 | 2025.02 | 2025.02 |
| vehicle class | Small two-box | Small two-box | Small two-box | Small two-box | Small two-box |
| Length*Width*Height(mm) | 4270*1850*1575 | 4270*1850*1575 | 4270*1850*1575 | 4270*1850*1575 | 4270*1850*1575 |
| Type of energy | all-electric | all-electric | all-electric | all-electric | all-electric |
| CLTC pure electric range (km) | 330 | 330 | 420 | 420 | 420 |
| Total motor power (kW) | 100 | 100 | 100 | 100 | 100 |
| Maximum speed (km/h) | 150 | 150 | 150 | 150 | 150 |
| Battery Type | - | - | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery |
| Battery capacity (kWh) | 34.868 | 34.868 | 44.257 | 44.257 | 44.257 |
| Fast charging time (h) | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| Fast charging capacity (%) | 30-80 | 30-80 | 30-80 | 30-80 | 30-80 |
| body of automobile | |||||
| Length (mm) | 4270 | 4270 | 4270 | 4270 | 4270 |
| Width (mm) | 1850 | 1850 | 1850 | 1850 | 1850 |
| Height (mm) | 1575 | 1575 | 1575 | 1575 | 1575 |
| Wheelbase (mm) | 2750 | 2750 | 2750 | 2750 | 2750 |
| Front wheelbase(mm) | 1600 | 1600 | 1600 | 1600 | 1600 |
| Rear wheelbase(mm) | 1600 | 1600 | 1600 | 1600 | 1600 |
| Weight (kg) | - | - | 1510 | 1510 | 1540 |
| Maximum full load mass (kg) | - | - | 2000 | 2000 | 2000 |
| Luggage compartment volume (L) | 440 | 440 | 440 | 440 | 440 |
| Number of doors (pcs) | 5 | 5 | 5 | 5 | 5 |
| Number of seats (pcs) | 5 | 5 | 5 | 5 | 5 |
| Approach angle (°) | 17 | 17 | 17 | 17 | 17 |
| Departure angle (°) | 28 | 28 | 28 | 28 | 28 |
| electric motor | |||||
| Total motor power (kW) | 100 | 100 | 100 | 100 | 100 |
| Maximum power of front electric motor (kW) | 100 | 100 | 100 | 100 | 100 |
| CLTC pure electric range (km) | 330 | 330 | 420 | 420 | 420 |
| Battery capacity (kWh) | 34.868 | 34.868 | 44.257 | 44.257 | 44.257 |
| 100km power consumption (kWh/100km) | 11.4 | 11.4 | 11.4 | 11.4 | 11.4 |
| Electricity-equivalent fuel consumption (L/100km) | - | - | 1.32 | 1.32 | 1.32 |
| Fast charging time (h) | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| Motor structure | permanent magnetism | permanent magnetism | permanent magnetism | permanent magnetism | permanent magnetism |
| Principle of motor operation | synchronization | synchronization | synchronization | synchronization | synchronization |
| Number of drive motors | single motor | single motor | single motor | single motor | single motor |
| Motor Layout | preamplifier | preamplifier | preamplifier | preamplifier | preamplifier |
| Battery Type | - | - | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery |
| Battery Cell Brands | - | - | Impulse battery | Impulse battery | Impulse battery |
| Battery cooling method | liquid cooling | liquid cooling | liquid cooling | liquid cooling | liquid cooling |
| fast charging function | be in favor of | be in favor of | be in favor of | be in favor of | be in favor of |
| Fast charging capacity (%) | 30-80 | 30-80 | 30-80 | 30-80 | 30-80 |
| energy recovery | 1 | 1 | 1 | 1 | 1 |
| Battery preheating | ● | ● | ● | ● | ● |
| external discharge | - | ○ | - | - | - |
| Chassis/steering | |||||
| Driving form | front drive | front drive | front drive | front drive | front drive |
| Front suspension type | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension |
| Rear suspension type | Torsion beam non-independent suspension | Torsion beam non-independent suspension | Torsion beam non-independent suspension | Torsion beam non-independent suspension | Torsion beam non-independent suspension |
| Steering assist form | electric power assist | electric power assist | electric power assist | electric power assist | electric power assist |
| Wheels/Brakes | |||||
| Front/Rear Brake Type | Ventilated Disc Type / Disc Type | Ventilated Disc Type / Disc Type | Ventilated Disc Type / Disc Type | Ventilated Disc Type / Disc Type | Ventilated Disc Type / Disc Type |
| Parking brake type | electronic parking | electronic parking | electronic parking | electronic parking | electronic parking |
| Front Tire Specification | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/55 R17 |
| Rear Tire Specification | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/55 R17 |
| Wheel Material | steel (chemistry) | steel (chemistry) | Aluminum option | - | - |
| Spare tire specification | - | Tire Repair Tools | - | - | - |
| Active/passive safety features | |||||
| ABS anti-lock | ● | ● | ● | ● | ● |
| Brake force distribution (EBD/CBC etc.) | ● | ● | ● | ● | ● |
| Brake Assist (BA/EBA/BAS etc.) | ● | ● | ● | ● | ● |
| Traction control (ASR/TCS/TRC etc.) | ● | ● | ● | ● | ● |
| Stability Control (ESC/ESP/DSC etc.) | ● | ● | ● | ● | ● |
| Active braking/safety systems | - | - | - | - | ● |
| merging aid | - | - | - | - | ● |
| lane keeping assist system | - | - | - | - | ● |
| lane departure warning | - | - | - | - | ● |
| Road traffic signage recognition | - | - | - | - | ● |
| Low Speed Warning | ● | ● | ● | ● | ● |
| front exhaust airbag | :: Driver's airbag | :: Driver's airbag | :: Driver's airbag | :: Driver's airbag | :: Driver's airbag |
| ●Passenger airbag | ●Passenger airbag | ●Passenger airbag | ●Passenger airbag | ●Passenger airbag | |
| ●Side airbags | ●Side airbags | ●Side airbags | |||
| ●Head airbags (air curtains) | |||||
| Rear airbags | - | - | - | - | ●Head airbags (air curtains) |
| Tire Pressure Detection Device | ●Display | ●Display | ●Display | ●Display | ●Display |
| Seat Belt Reminder | ● | ● | ● | ● | ● |
| ISOFIX child restraints | ● | ● | ● | ● | ● |
| Forward Collision Warning | - | - | - | - | ● |
| Auxiliary/Manipulation Configurations | |||||
| parking radar | - | ● Post | - | - | ● Post |
| Driver Assistance Video | ● Backup camera | ● Backup camera | ● Backup camera | ●360-degree panoramic image | ●360-degree panoramic image |
| Transparent chassis/540 degree image | - | - | - | ● | ● |
| cruise control | - | ●Cruise control | - | - | ●Adaptive cruise at all speeds |
| Driving Mode Switching | :: Economy | :: Economy | :: Campaigns | :: Campaigns | :: Campaigns |
| :: Standard/comfort | :: Standard/comfort | :: Economy | :: Economy | :: Economy | |
| :: Standard/comfort | :: Standard/comfort | :: Standard/comfort | |||
| hill-holding aid | ● | ● | - | - | - |
| automatic parking | - | ● | ● | ● | ● |
| Assisted driving level | - | - | - | - | ●L2 |
| Driver Assistance System | - | - | - | - | ●ADiGO |
| External/anti-theft configurations | |||||
| skylights | - | - | - | - | ● Non-opening panoramic sunroof |
| Trunk opening method | - | - | - | - | ● Electric |
| ●Induction | |||||
| Power trunk position memory | - | - | - | - | ● |
| Key Type | ●Remote key | ●Remote key | ●Remote key | ●Remote key | ●Remote key |
| Central locking in the car | ● | ● | ● | ● | ● |
| Internal Configuration | |||||
| Steering wheel material | :: Plastics | :: Plastics | :: Plastics | ● Leather | ● Leather |
| Steering Wheel Adjustment | ● Manual | ● Manual | ● Manual | ● Manual | ● Manual |
| Adjustable up and down | Adjustable up and down | Adjustable up and down | Adjustable up and down | Adjustable up and down | |
| Steering wheel functions | :: Multifunctionality | :: Multifunctionality | :: Multifunctionality | :: Multifunctionality | :: Multifunctionality |
| center armrest | ●Forward | ●Forward | ●Forward | ●Forward | ●Forward |
| Gear Shift Form | ●Electronic pocket shifter | ●Electronic pocket shifter | ●Electronic pocket shifter | ●Electronic pocket shifter | ●Electronic pocket shifter |
| Sun visor vanity mirror | ● | ● | ● | ● | ● |
| Full LCD instrument cluster | ● | ● | ● | ● | ● |
| Liquid crystal instrument size | 8.8 inches | 8.8 inches | 8.8 inches | 8.8 inches | 8.8 inches |
| ETC device | ○ | ○ | ○ | ○ | ○ |
| Intelligent Hardware | |||||
| Number of cameras | - | :: 1 | - | - | - |
| Number of ultrasonic radars | - | :: 4 | - | - | - |
| Wake-on-Speech Recognition | :: Bi-regional | :: Bi-regional | :: Bi-regional | :: Bi-regional | :: Bi-regional |
| seating | |||||
| Seat Material | :: Fabrics | :: Imitation leather | :: Imitation leather | :: Imitation leather | :: Imitation leather |
| Seat electric adjustment | - | - | - | ●Principal Driver | ●Principal Driver |
| ●Passenger | |||||
| Main seat adjustment | ●Forward and backward adjustment | ●Forward and backward adjustment | ●Forward and backward adjustment | ●Forward and backward adjustment | ●Forward and backward adjustment |
| Backrest adjustment | Backrest adjustment | Backrest adjustment | Backrest adjustment | Backrest adjustment | |
| ●High/low adjustment (2-way) | ●High/low adjustment (2-way) | ●High/low adjustment (2-way) | ●High/low adjustment (2-way) | ●High/low adjustment (2-way) | |
| Adjustment of passenger seat | ●Forward and backward adjustment | ●Forward and backward adjustment | ●Forward and backward adjustment | ●Forward and backward adjustment | ●Forward and backward adjustment |
| Backrest adjustment | Backrest adjustment | Backrest adjustment | Backrest adjustment | Backrest adjustment | |
| Second row seat adjustment | ●Angle adjustable | ●Angle adjustable | ●Angle adjustable | ●Proportional lowering | ●Proportional lowering |
| multimedia | ●Proportional lowering | ●Proportional lowering | ●Proportional lowering | ||
| Large color screen in the center console | ●Touch LCD | ●Touch LCD | ●Touch LCD | ●Touch LCD | ●Touch LCD |
| satellite navigation system | ● | ● | ● | ● | ● |
| Navigating the road information display | ● | ● | ● | ● | ● |
| Map Branding | ●Gold | ●Gold | ●Gold | ●Gold | ●Gold |
| Roadside assistance calls | ● | ● | ● | ● | ● |
| Mobile APP Remote Function | ●Door control | ●Door control | ● | ● | ● |
| ● Vehicle start-up | ● Vehicle start-up | ||||
| ● Charge management | ● Charge management | ||||
| ●Light control | ●Light control | ||||
| ● Air conditioning control | ● Air conditioning control | ||||
| :: Vehicle condition check/diagnosis | :: Vehicle condition check/diagnosis | ||||
| :: Vehicle location/search | :: Vehicle location/search | ||||
| ● Owner services (find charging posts, gas stations, parking lots, etc.) | ● Owner services (find charging posts, gas stations, parking lots, etc.) | ||||
| :: Maintenance/repair appointments | :: Maintenance/repair appointments | ||||
| Bluetooth/Car Phone | ● | ● | ● | ● | ● |
| Cell phone connectivity/mapping | - | ●CarPlay support | ●CarPlay support | ●CarPlay support | ●CarPlay support |
| ●Support HUAWEI HiCar | ●Support HUAWEI HiCar | ●Support HUAWEI HiCar | ●Support HUAWEI HiCar | ||
| ●Carlink support | ●Carlink support | ●Carlink support | ●Carlink support | ||
| Number of audio speakers | 2 | 4 | 4 | 6 | 6 |
| Voice Recognition Control System | ● | ● | ● | ● | ● |
| Center screen size | ●14.6 inches | ●14.6 inches | ●14.6 inches | ●14.6 inches | ●14.6 inches |
| Voice assistant wake words | ♪ Hello, nose ♪ | ♪ Hello, nose ♪ | ♪ Hello, nose ♪ | ♪ Hello, nose ♪ | ♪ Hello, nose ♪ |
| speech recognition | ● | ● | ● | ● | ● |
| 4G/5G networks | ●4G | ●4G | ●4G | ●4G | ●4G |
| Wi-Fi hotspot | ● | ● | - | - | - |
| Telematics | ● | ● | ● | ● | ● |
| OTA upgrade | ● | ● | ● | ● | ● |
| Interface Support | ● USB port | ● USB port | ● USB port | ● USB port | ● USB port |
| ●Type-C port | ●Type-C port | ●Type-C port | ●Type-C port | ●Type-C port | |
| Number of USB/Type-C ports | :: 2 in the front row | :: 2 in the front row | :: 2 front/1 rear | :: 2 front/1 rear | :: 2 front/1 rear |
| app store | ● | ● | ● | ● | ● |
| (stage) lighting | |||||
| low beam (headlights) | ●LED | ●LED | ●LED | ●LED | ●LED |
| high beam (headlights) | ●LED | ●LED | ●LED | ●LED | ●LED |
| LED daytime running lights | - | ○ | ○ | ○ | ○ |
| Adaptive high and low beam | - | - | - | - | ● |
| Adjustable headlights | ● | ● | ● | ● | ● |
| Automatic headlights | ● | ● | ● | ● | ● |
| Delayed headlight off | ● | ● | ● | ● | ● |
| Interior Ambient Lighting | - | - | - | - | ● |
| Touch Reading Lamp | ● | ● | ● | ● | ● |
| Glass/Mirror | |||||
| power window | ●Forward | ●Forward | ●Forward | ●Forward | ●Forward |
| ● Post | ● Post | ● Post | ● Post | ● Post | |
| One-touch window lifting | ● Front row | ● Front row | ● Full vehicle | ● Full vehicle | ● Full vehicle |
| Anti Window Pinch Handle | ● | ● | ● | ● | ● |
| rearview mirror | ●Motorized adjustment | ●Motorized adjustment | ●Motorized adjustment | ●Motorized adjustment | ●Motorized adjustment |
| ●Heating | ●Heating | :: Electric folding | |||
| ●Automatic folding for locking the car | |||||
| rearview mirror | ●Manual anti-glare | ●Manual anti-glare | ●Manual anti-glare | ●Manual anti-glare | ●Manual anti-glare |
| inductive wiper | - | ○ | ○ | - | - |
| rear wiper | - | - | - | ● | ● |
| Air conditioners/refrigerators | |||||
| Air conditioning control method | ●Manual control | ● Automatic control | ● Automatic control | ● Automatic control | ● Automatic control |
| heat pump air conditioner | ● | ● | ● | ● | ● |
| rear air vent | - | - | - | ● | ● |
| air purification | - | - | - | - | ● |
| PM2.5 filtration | - | - | - | - | ● |
