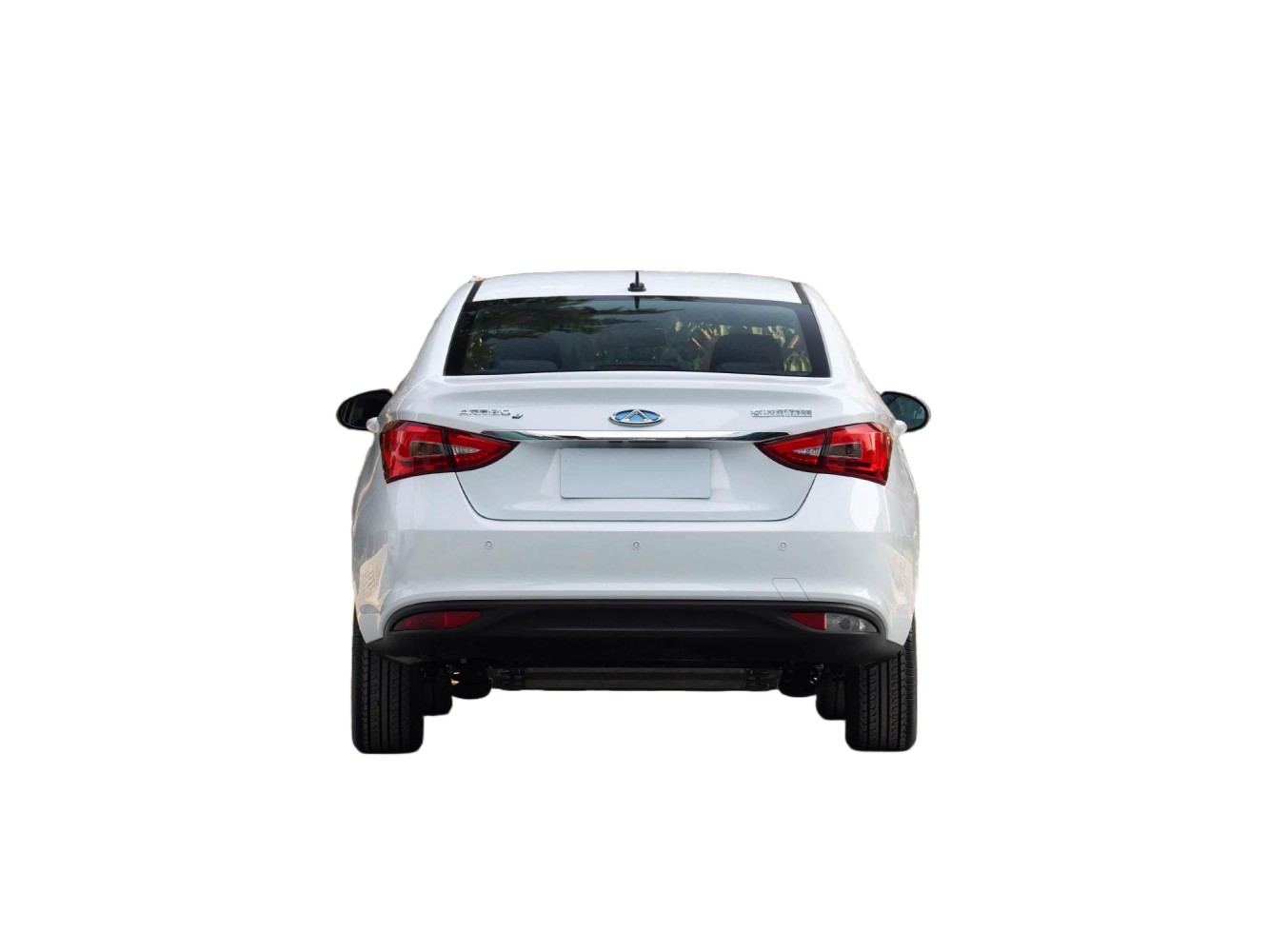

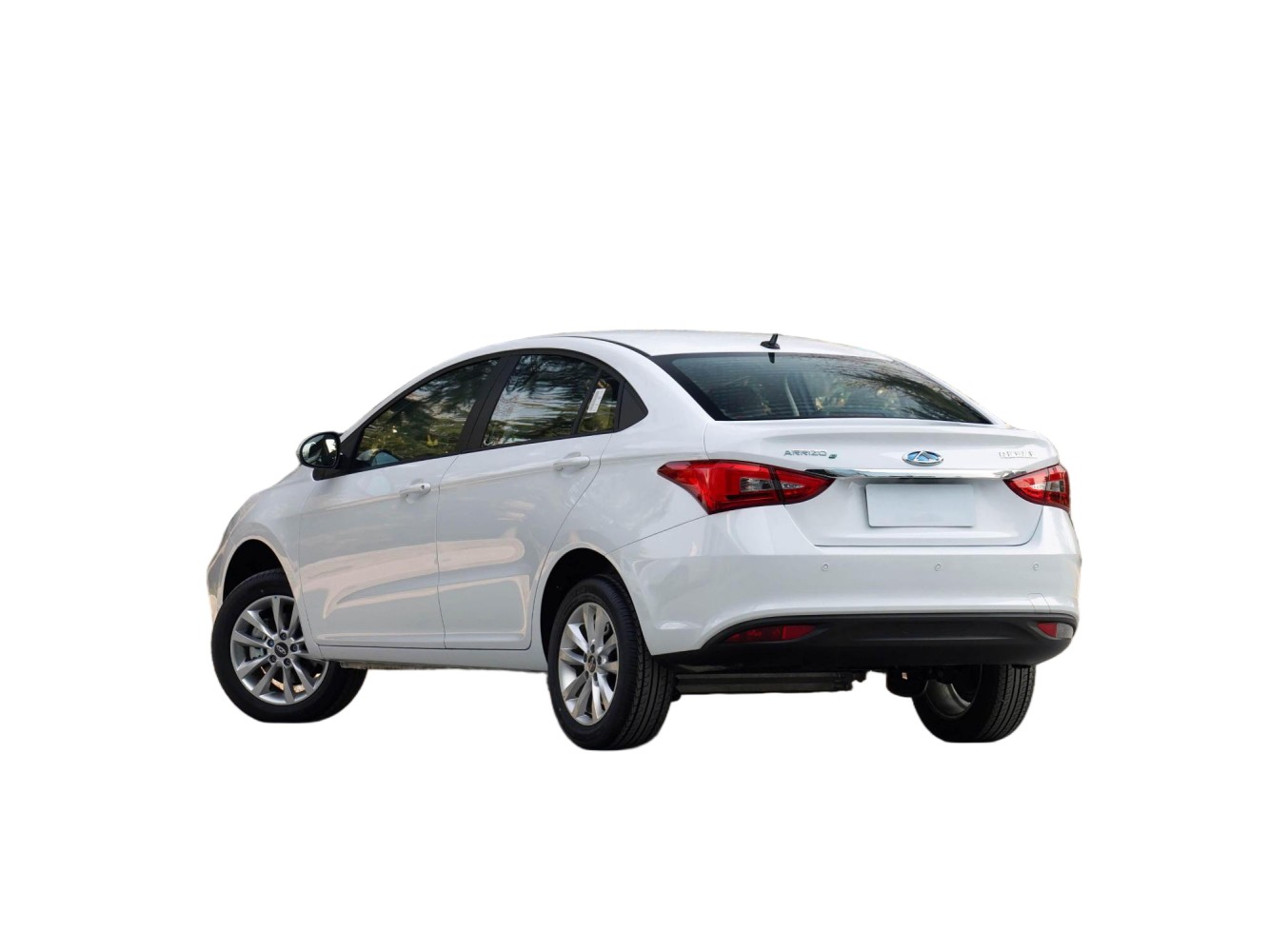

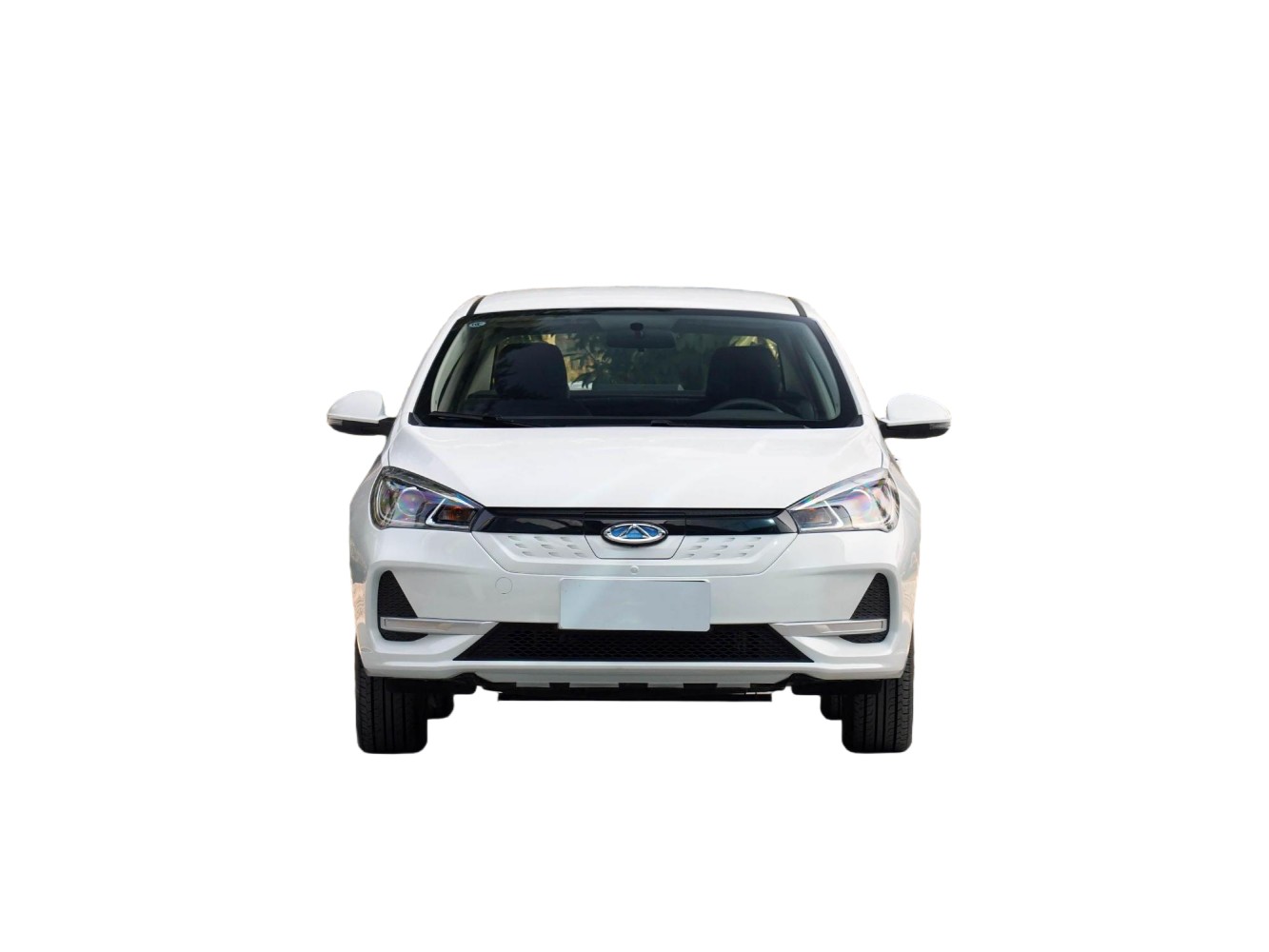

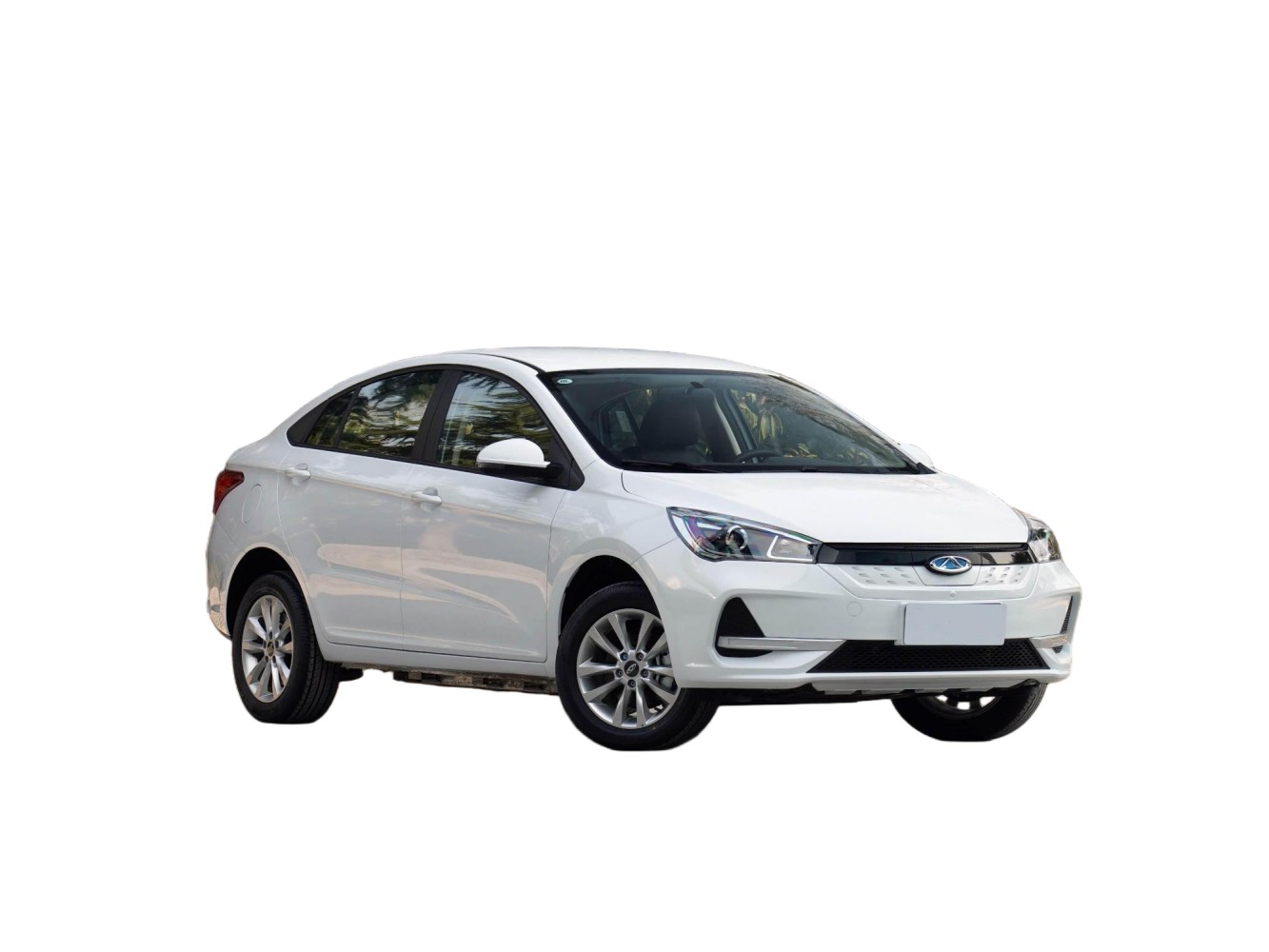

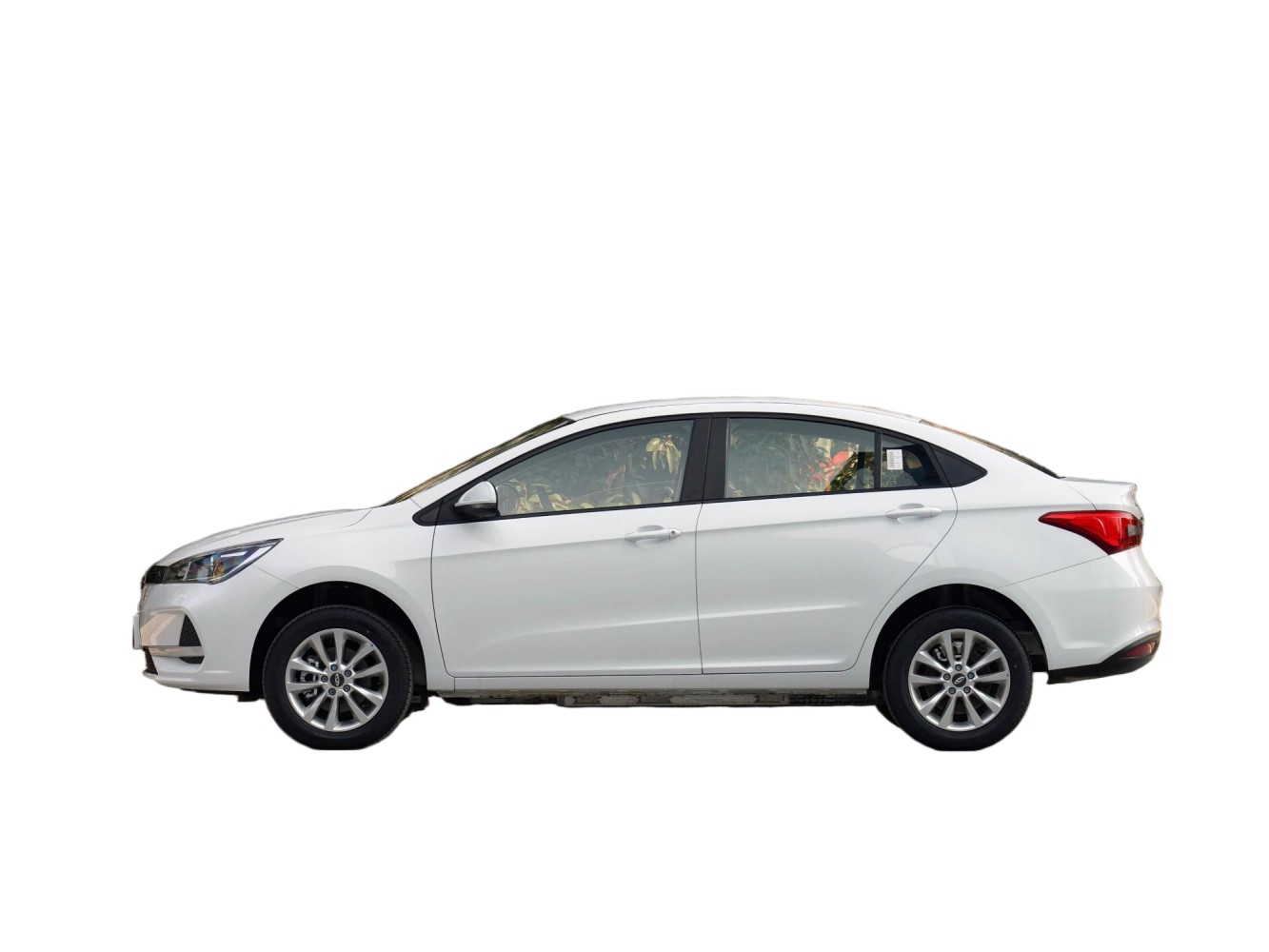

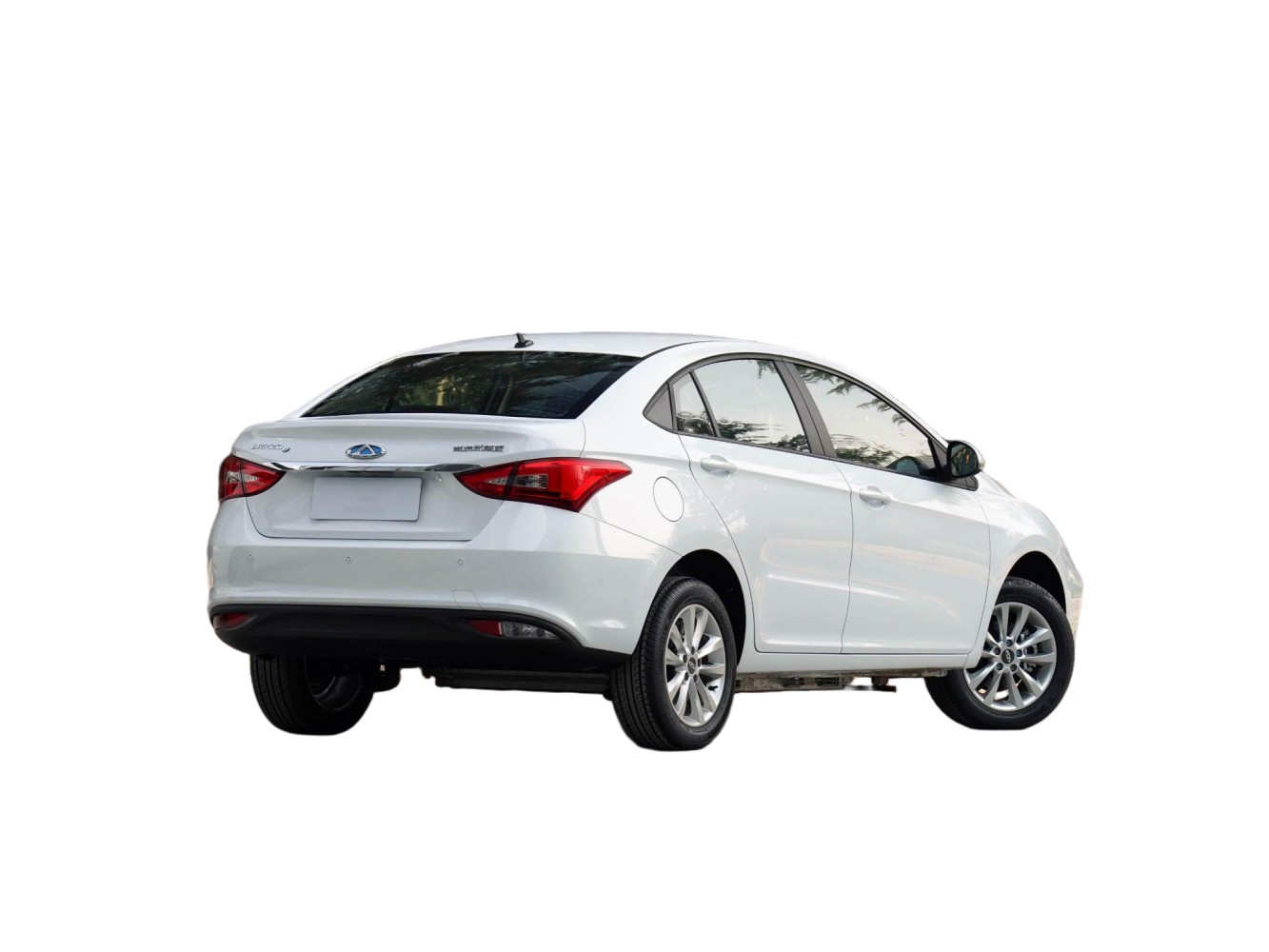

Exterior Design
The Chery Arrizo E is a compact pure electric sedan, equipped with a closed front grille and full LED headlight groups. The vehicle is fitted with LED taillight groups and rear bumper trim. Multiple body color options are available. The vehicle adopts 17-inch wheel configurations for different versions. Conventional door handles are equipped as standard. A panoramic sunroof is equipped for partial versions.
The vehicle adopts a 4-door 5-seater sedan layout. The body dimensions are 4572 mm in length, 1825 mm in width and 1540 mm in height, with a wheelbase of 2670 mm. Electrically adjustable exterior mirrors with heating functions are equipped for different versions. An electric charging port cover is equipped as standard.
Interior Design
The vehicle is equipped with a mechanical instrument panel and full LCD digital instrument cluster for different versions, as well as central control touchscreen. Multiple interior color schemes are available, matched with fabric and leather upholstery and metallic decorative trim. The vehicle supports automatic constant temperature air conditioning. An electronic gear shift lever is equipped as standard.
Standard configurations include front and side airbags, front and rear parking sensors, rearview camera and constant-speed cruise control. Keyless entry and one-key start functions are equipped for partial versions. High-spec versions are equipped with curtain airbags and 360-degree panoramic camera system. The vehicle supports OTA upgrade functions and energy recovery display.
Powertrain
The Chery Arrizo E adopts front-wheel drive layout, matched with single-speed fixed gear electric drive assembly. The vehicle is equipped with front permanent magnet synchronous motors. The low-power version has a maximum power of 100 kW and a peak torque of 175 Nm. The high-power version has a maximum power of 120 kW.
The vehicle is equipped with lithium iron phosphate battery packs. The CLTC pure electric cruising range covers 405 km and 455 km for different versions. The vehicle supports DC fast charging and AC slow charging functions. The vehicle is equipped with energy recovery system. The vehicle adopts front MacPherson independent suspension and rear torsion beam non-independent suspension system.
| 405km Outbound x | 455km Traveling version x | Unbridled x | Travel version x | |
|---|---|---|---|---|
| Basic vehicle parameters | ||||
| Level: | compact car model | compact car model | compact car model | compact car model |
| Body form: | 4-door, 5-seat sedan | 4-door, 5-seat sedan | 4-door, 5-seat sedan | 4-door, 5-seat sedan |
| L x W x H (mm): | 4602x1825x1540 | 4602x1825x1540 | 4572x1825x1496 | 4572x1825x1520 |
| Wheelbase (mm): | 2670 | 2670 | 2670 | 2670 |
| Power Type: | all-electric | all-electric | all-electric | all-electric |
| Maximum power of the whole vehicle (kW): | 100 | 100 | 120 | 120 |
| Maximum torque of the whole vehicle (N-m): | 175 | 175 | 210 | 210 |
| Official top speed (km/h): | 130 | 130 | 152 | 152 |
| Fast charging time (hours): | 0.5 | 0.5 | 0.5 | 0.5 |
| Slow charging time (hours): | 9 | 9 | 9 | 9 |
| MITI pure electric range (km): | 405 | 455 | 401 | 401 |
| body of automobile | ||||
| Overall mass (kg): | 1435 | 1470 | 1460 | 1445 |
| Minimum Ground Clearance (mm): | 120 | 120 | 121 | 121 |
| Approach angle (°): | 17 | 17 | - | - |
| Departure angle (°): | 18 | 18 | - | - |
| motor | ||||
| electric motor | ||||
| MITI pure electric range (km): | 405 | 455 | 401 | 401 |
| Motor Type: | Permanent magnet/synchronous | Permanent magnet/synchronous | Permanent magnet/synchronous | Permanent magnet/synchronous |
| Total motor power (kW): | 100 | 100 | 120 | 120 |
| Total motor torque (N-m): | 175 | 175 | 210 | 210 |
| Number of motors: | 1 | 1 | 1 | 1 |
| Motor Layout: | preamplifier | preamplifier | preamplifier | preamplifier |
| Maximum power of front electric motor (kW): | 100 | 100 | 120 | 120 |
| Maximum torque of front motor (N-m): | 175 | 175 | 210 | 210 |
| Battery type: | lithium iron phosphate battery | lithium iron phosphate battery | Ternary lithium battery | Ternary lithium battery |
| Battery capacity (kWh): | 48.16 | 53.61 | 54.3 | 54.3 |
| Battery Pack Warranty: | 8 years/300,000 kilometers | 8 years/300,000 kilometers | 8 years/120,000 kilometers | 8 years/120,000 kilometers |
| Charging compatibility: | Dedicated charging post + public charging post | Dedicated charging post + public charging post | Dedicated charging post + public charging post | Dedicated charging post + public charging post |
| Charging method: | Fast charging + slow charging | Fast charging + slow charging | Fast charging + slow charging | Fast charging + slow charging |
| Fast charging time (hours): | 0.5 | 0.5 | 0.5 | 0.5 |
| Slow charging time (hours): | 9 | 9 | 9 | 9 |
| Fast charging volume (%): | 30-80 | 30-80 | 80 | 80 |
| transmission | ||||
| Number of gears: | 1 | 1 | 1 | 1 |
| Transmission Type: | Electric Vehicle Single Speed | Electric Vehicle Single Speed | Electric Vehicle Single Speed | Electric Vehicle Single Speed |
| Chassis steering | ||||
| Drive method: | front drive | front drive | front drive | front drive |
| Splitter (4WD) type: | - | - | - | - |
| Body Structure: | Load-bearing body | Load-bearing body | Load-bearing body | Load-bearing body |
| Steering Assist: | electric power assist | electric power assist | electric power assist | electric power assist |
| Front suspension type: | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension |
| Rear suspension type: | Torsion beam non-independent suspension | Torsion beam non-independent suspension | Torsion beam non-independent suspension | Torsion beam non-independent suspension |
| Wheel brakes | ||||
| Front brake type: | Ventilated tray type | Ventilated tray type | Ventilated tray type | Ventilated tray type |
| Rear brake type: | disk | disk | disk | disk |
| Parking brake type: | electronic handbrake | electronic handbrake | Hand Brake | Hand Brake |
| Front Tire Specifications: | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Rear Tire Specifications: | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel material: | aluminum | aluminum | aluminum | aluminum |
| Spare tire specification: | Tire Repair Tool Only | Tire Repair Tool Only | Non-full-size spare tire | Non-full-size spare tire |
| safety equipment | ||||
| Primary/passenger airbags: | Main ●/Sub ● | Main ●/Sub ● | Main ●/Sub ● | Main ●/Sub ● |
| Seatbelt not fastened tip: | ● | ● | ● | ● |
| ISO FIX child seat interface: | ● | ● | ● | ● |
| Tire pressure monitoring device: | Tire Pressure Alarm | Tire Pressure Alarm | Tire Pressure Display | Tire Pressure Display |
| Automatic anti-lock (ABS, etc.): | ● | ● | ● | ● |
| Brake force distribution | ● | ● | ● | ● |
| (EBD/CBC, etc.): | ||||
| Brake Assist | ● | ● | character used in Taiwan as a substitute for a real name (like "X" in English) | character used in Taiwan as a substitute for a real name (like "X" in English) |
| (EBA/BAS/BA, etc.): | ||||
| traction control | ● | ● | character used in Taiwan as a substitute for a real name (like "X" in English) | character used in Taiwan as a substitute for a real name (like "X" in English) |
| (ASR/TCS/TRC, etc.): | ||||
| stability control | ● | ● | character used in Taiwan as a substitute for a real name (like "X" in English) | character used in Taiwan as a substitute for a real name (like "X" in English) |
| (ESP/DSC/VSC, etc.): | ||||
| Auto Park: | ● | ● | - | - |
| Uphill Assist: | ● | ● | character used in Taiwan as a substitute for a real name (like "X" in English) | character used in Taiwan as a substitute for a real name (like "X" in English) |
| Steep slopes slow down: | ● | ● | - | - |
| Electronic engine immobilization: | - | - | - | - |
| Center lock in the car: | ● | ● | ● | ● |
| Remote key: | ● | ● | ● | ● |
| Keyless start system: | ● | ● | ● | ● |
| Fatigue Driving Alerts: | ● | ● | ● | ● |
| Interior Features/Configurations | ||||
| Steering wheel material: | :: Plastics | :: Plastics | :: Plastics | :: Plastics |
| Steering wheel position adjustment: | :: Up and down | :: Up and down | :: Up and down | :: Up and down |
| Multi-function steering wheel: | ● | ● | - | - |
| Front/rear back-up radar: | Front -/back ● | Front -/back ● | Front -/back ● | Front -/back ● |
| Driver Assistance Imaging: | ○Reverse Viewer | ○Reverse Viewer | ○Reverse Viewer | - |
| Driving mode switching: | :: Campaigns | :: Campaigns | :: Campaigns | :: Campaigns |
| :: Economy | :: Economy | :: Economy | :: Economy | |
| Separate power connector in the car: | ●12V | ●12V | ●12V | ●12V |
| The trip computer display: | ● | ● | ● | ● |
| LCD gauge size: | ●7 inches | ●7 inches | - | - |
| Built-in car recorder: | - | - | ● | ● |
| Seat Configuration | ||||
| Seat Material: | :: Imitation leather | :: Imitation leather | :: Imitation leather | :: Imitation leather |
| Main driver's seat adjustment direction: | ●Forward and backward adjustment | ●Forward and backward adjustment | ●Forward and backward adjustment | ●Forward and backward adjustment |
| Backrest adjustment | Backrest adjustment | Backrest adjustment | Backrest adjustment | |
| ●High and low adjustment | ●High and low adjustment | ●High and low adjustment | ●High and low adjustment | |
| ●Lumbar support | ●Lumbar support | |||
| Passenger seat adjustment direction: | ●Forward and backward adjustment | ●Forward and backward adjustment | ●Forward and backward adjustment | ●Forward and backward adjustment |
| Backrest adjustment | Backrest adjustment | Backrest adjustment | Backrest adjustment | |
| Front Seat Features: | ●Ventilation (driver's seat only) | ●Ventilation (driver's seat only) | - | - |
| The way the rear seats are lowered: | Only the whole thing can be put down | Only the whole thing can be put down | Only the whole thing can be put down | Only the whole thing can be put down |
| Front/rear seat center armrests: | Front ● / Back - | Front ● / Back - | Front ● / Back - | Front ● / Back - |
| Multimedia Configuration | ||||
| GPS navigation system: | character used in Taiwan as a substitute for a real name (like "X" in English) | character used in Taiwan as a substitute for a real name (like "X" in English) | character used in Taiwan as a substitute for a real name (like "X" in English) | - |
| Navigate the road information display: | character used in Taiwan as a substitute for a real name (like "X" in English) | character used in Taiwan as a substitute for a real name (like "X" in English) | character used in Taiwan as a substitute for a real name (like "X" in English) | - |
| Center console LCD: | ○Touch LCD | ○Touch LCD | ○Touch LCD | - |
| Center console LCD screen size: | ○9 inches | ○9 inches | ○9 inches | - |
| Bluetooth/car phone: | character used in Taiwan as a substitute for a real name (like "X" in English) | character used in Taiwan as a substitute for a real name (like "X" in English) | character used in Taiwan as a substitute for a real name (like "X" in English) | - |
| Cell phone connectivity/mapping: | ○Support factory connectivity/mapping software | ○Support factory connectivity/mapping software | - | - |
| Voice Control: | ○Voice Control | ○Voice Control | ○Voice Control | - |
| Telematics: | character used in Taiwan as a substitute for a real name (like "X" in English) | character used in Taiwan as a substitute for a real name (like "X" in English) | - | - |
| External audio interface: | ●USB | ●USB | ●USB | ●USB |
| USB/Type-C port: | :: 2 front/2 rear | :: 2 front/2 rear | :: 1 front/ 1 rear | :: 1 front/ 1 rear |
| Number of speaker horns (pcs): | ●2 speakers | ●2 speakers | ●1 Horn | ●1 Horn |
| Lighting Configuration | ||||
| Daytime running lights: | - | - | ● | ● |
| Height adjustable headlights: | ● | ● | ● | ● |
| Windows and mirrors | ||||
| Front/rear power windows: | Front ●/Rear ● | Front ●/Rear ● | Front ●/Rear ● | Front ●/Rear ● |
| Outside rearview mirror function: | ●Motorized adjustment | ●Motorized adjustment | ●Motorized adjustment | ●Motorized adjustment |
| Inside rearview mirror function: | - | - | ●Manual anti-glare | ●Manual anti-glare |
| Interior vanity mirrors: | - | - | ●Passenger seat | ●Passenger seat |
| Air conditioners/refrigerators | ||||
| Air conditioning temperature control method: | ●Manual air conditioning | ●Manual air conditioning | ●Manual air conditioning | ●Manual air conditioning |
