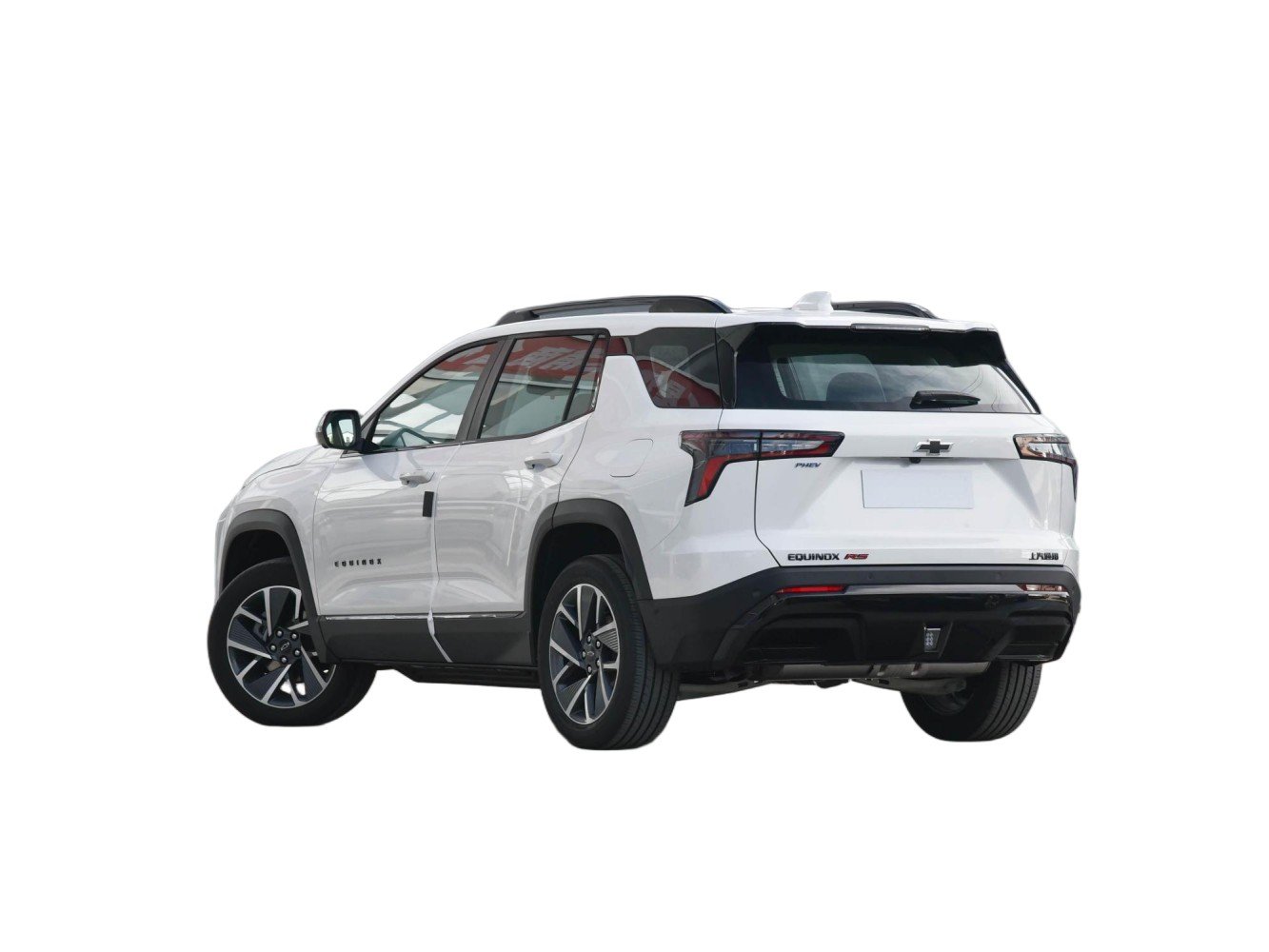

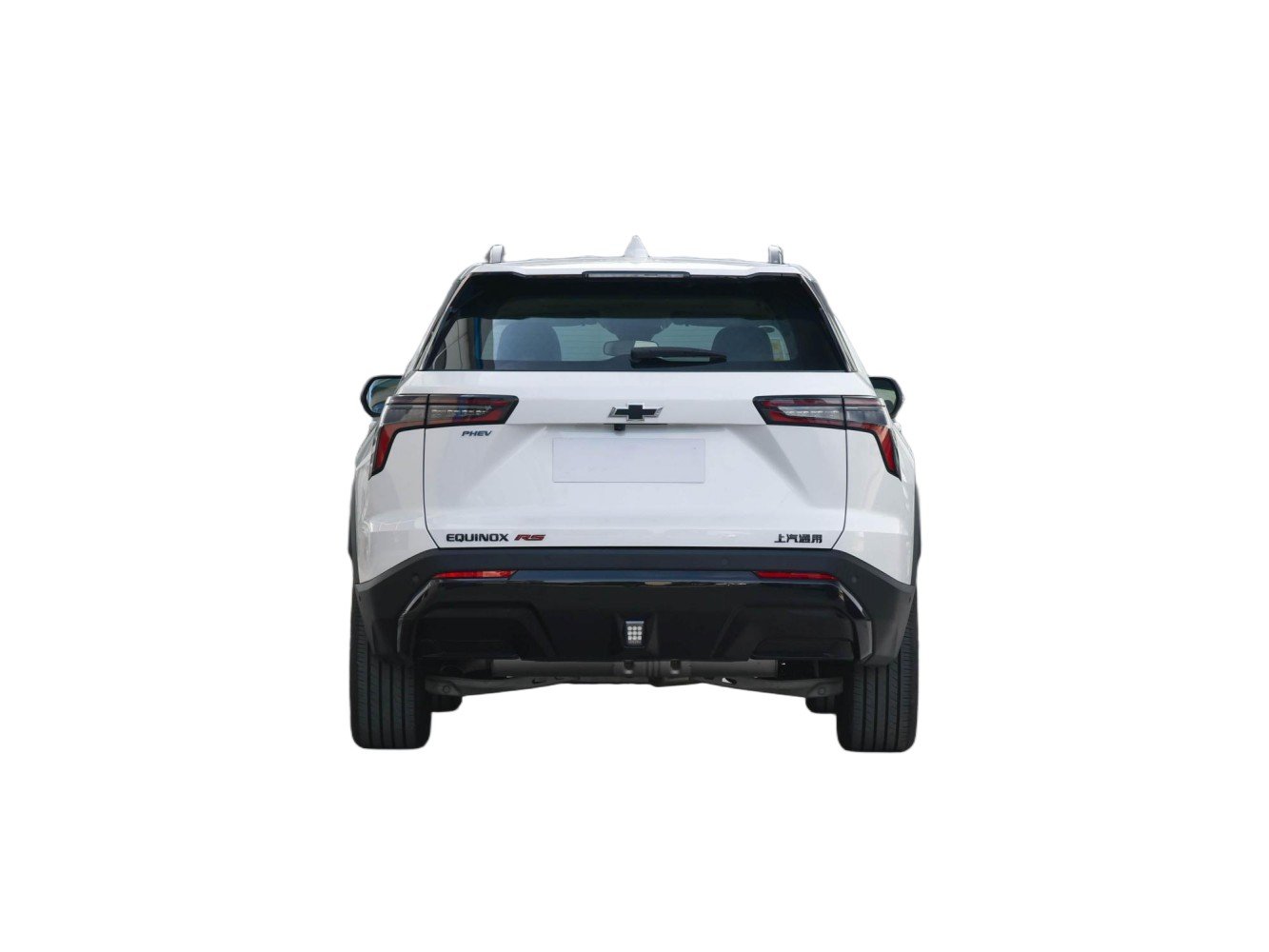

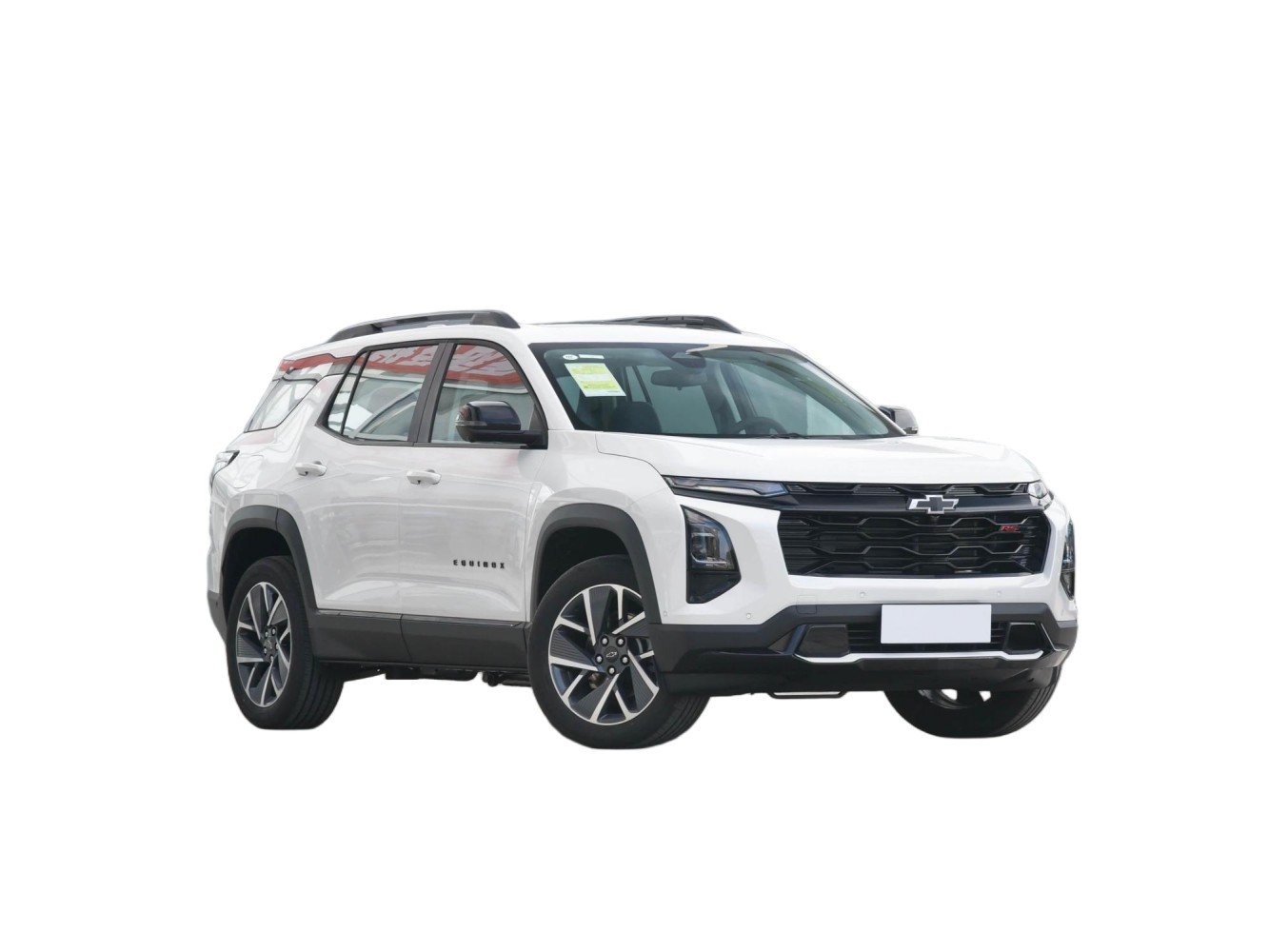

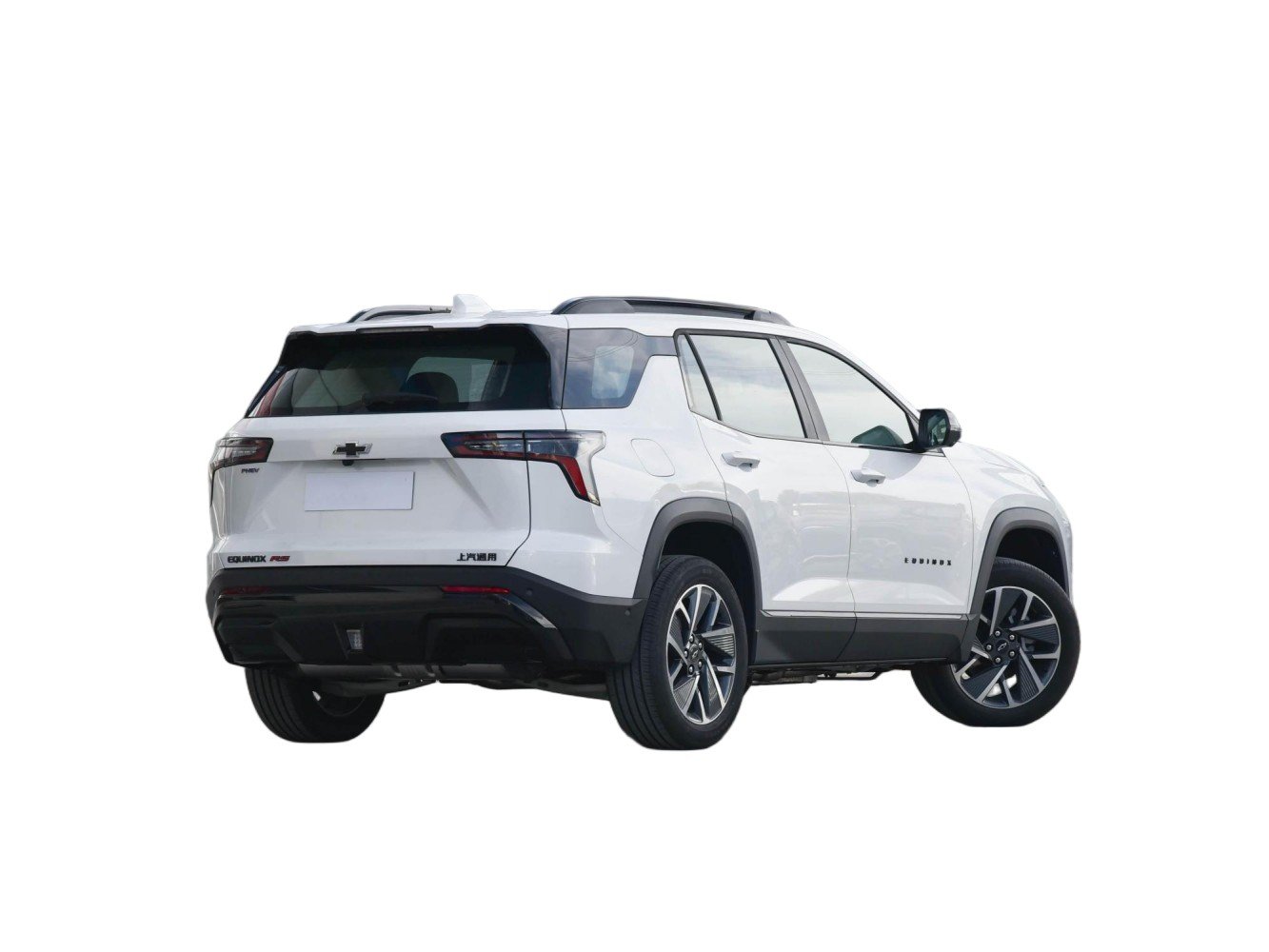

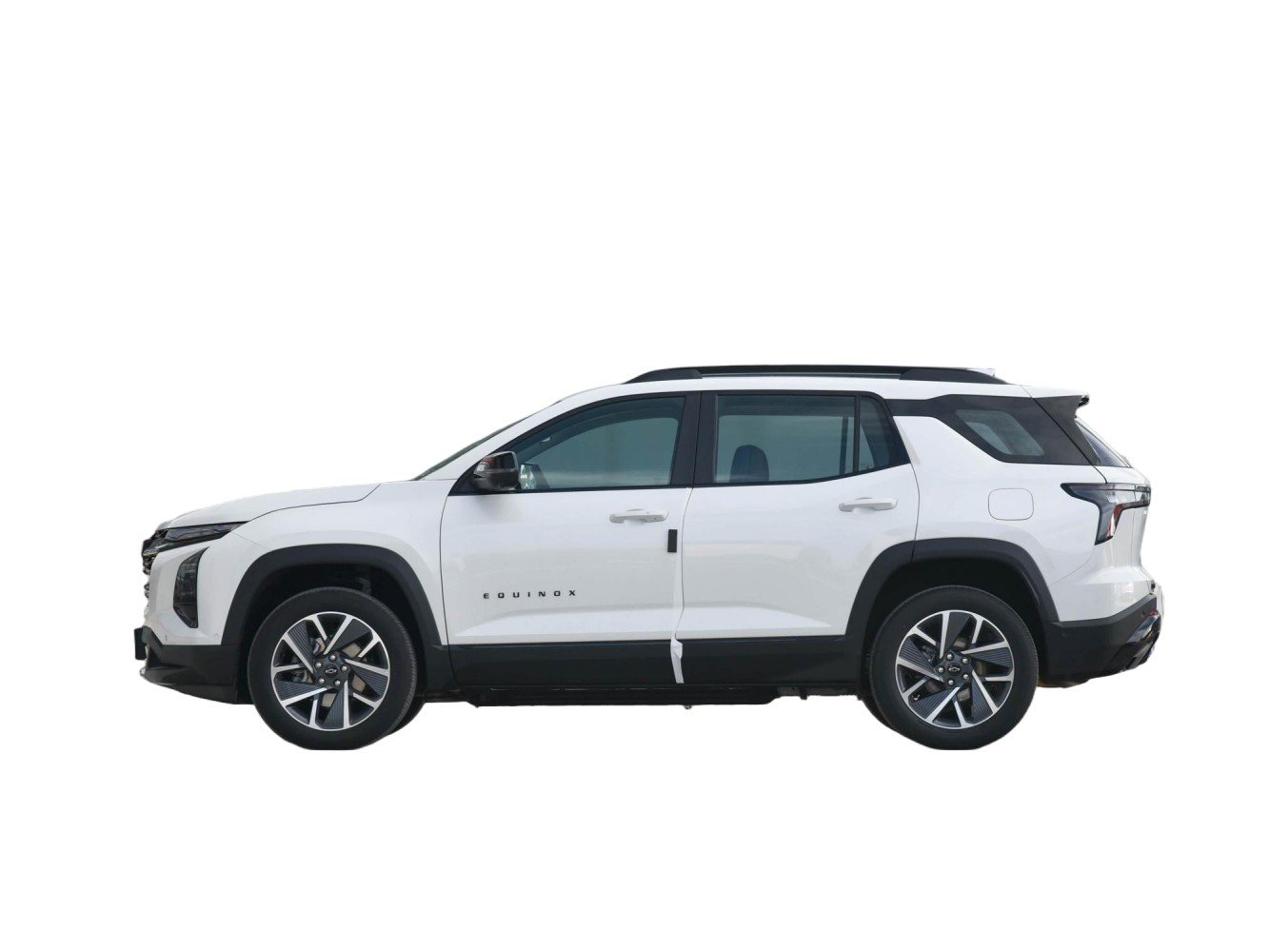

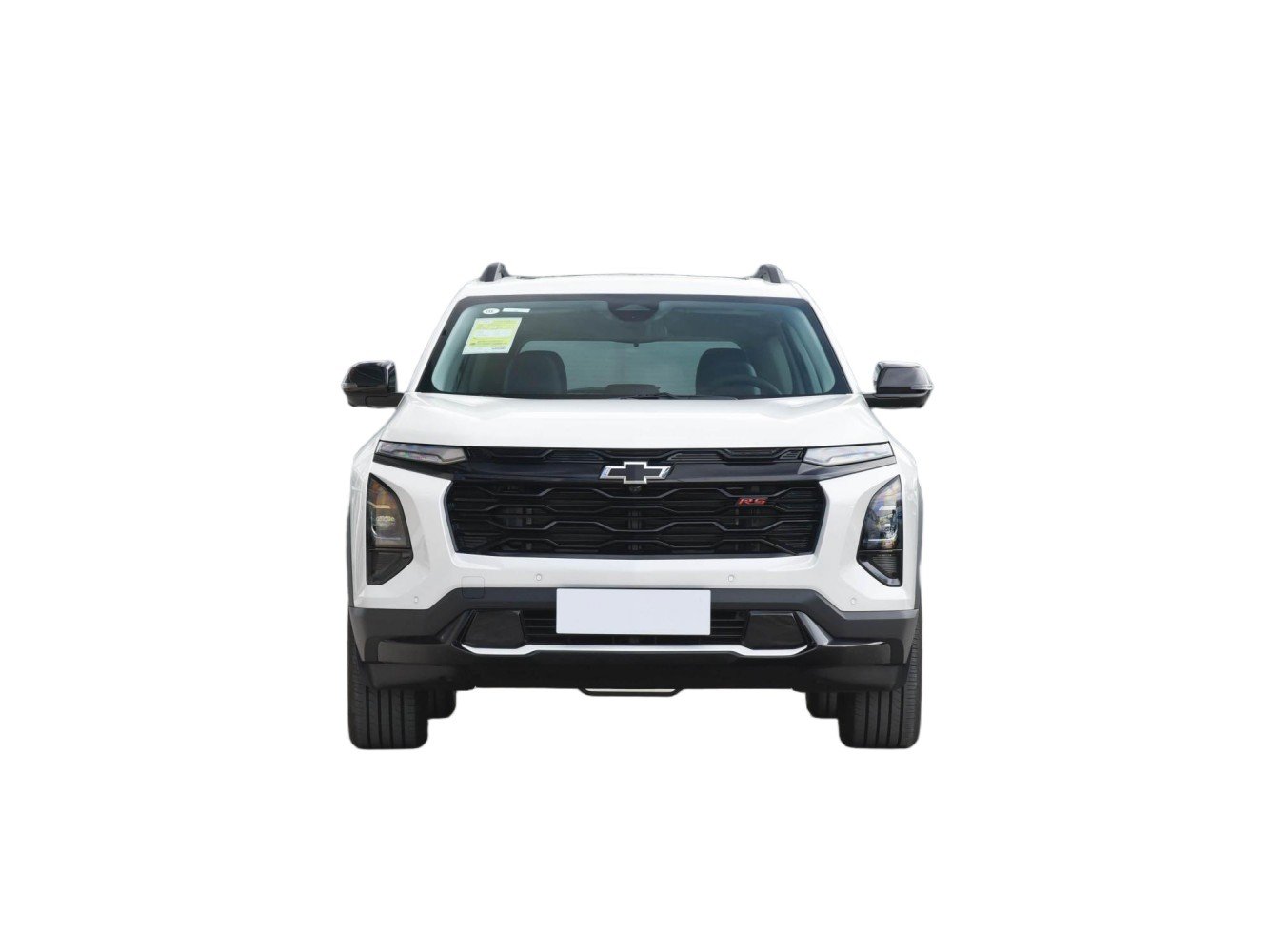

Exterior Design
The Chevrolet Equinox Plus is a compact plug-in hybrid SUV, equipped with a polygonal front grille and split full LED headlight groups. The vehicle is fitted with LED taillight groups and rear bumper trim. Multiple body color options are available. The vehicle adopts 18-inch and 19-inch wheel configurations for different versions. Conventional door handles are equipped as standard. A panoramic sunroof is equipped for partial versions.
The vehicle adopts a 5-door 5-seater SUV layout. The body dimensions are 4653 mm in length, 1902 mm in width, 1714 mm and 1728 mm in height for different versions, with a wheelbase of 2730 mm. Electrically adjustable exterior mirrors with heating and automatic folding functions are equipped for different versions. Electric tailgate is equipped for high-spec versions. An electric charging port cover is equipped as standard.
Interior Design
The vehicle is equipped with a full LCD digital instrument cluster and central control touchscreen. Multiple interior color schemes are available, matched with leather upholstery and metallic decorative trim. The vehicle supports multi-color ambient lighting and dual-zone automatic constant temperature air conditioning. An electronic gear shift lever is equipped as standard.
Standard configurations include front, side and curtain airbags, front and rear parking sensors, rearview camera and constant-speed cruise control. Keyless entry and one-key start functions are standard. High-spec versions are equipped with 360-degree panoramic camera system, adaptive cruise control, lane keeping assist and active braking system. The vehicle supports wireless phone charging, V2L external discharge and OTA upgrade functions.
Powertrain
The Chevrolet Equinox Plus adopts front-wheel drive layout, matched with 2-speed dedicated hybrid DHT transmission. The vehicle is equipped with 1.5T inline four-cylinder turbocharged hybrid-specific gasoline engine. The comprehensive system maximum power is 272 kW and the comprehensive system peak torque is 565 Nm.
The vehicle is equipped with hybrid battery packs. The CLTC pure electric cruising range covers 102 km and 155 km for different versions. The vehicle supports DC fast charging and AC slow charging functions. The vehicle is equipped with energy recovery system. The vehicle adopts front MacPherson independent suspension and rear multi-link independent suspension system.
| 2024 Chevrolet Equinox Plus 102km RS Luxury Edition | 2024 Chevrolet Equinox PLUS 102km RS Flagship Edition | 2024 Chevrolet Equinox PLUS 102km RS Ultimate Edition | 2024 Equinox Plus Activ Ultimate Edition | |
|---|---|---|---|---|
| Basic Information | ||||
| Launch date | 2024.04 | 2024.04 | 2024.04 | 2024.04 |
| Body level | Mid-size SUV | Mid-size SUV | Mid-size SUV | Mid-size SUV |
| Length * Width * Height (mm) | 4653*1902*1714 | 4653*1902*1714 | 4653*1902*1714 | 4653*1902*1728 |
| Energy type | Plug-in hybrid | Plug-in hybrid | Plug-in hybrid | Plug-in hybrid |
| WLTC pure electric range (km) | 80 | 80 | 80 | 120 |
| CLTC pure electric range (km) | 102 | 102 | 102 | 155 |
| System total power (kW) | 272 | 272 | 272 | 272 |
| System combined torque (N·m) | 565 | 565 | 565 | 565 |
| engine | 1.5T / 180 hp / Inline 4-cylinder | 1.5T / 180 hp / Inline 4-cylinder | 1.5T / 180 hp / Inline 4-cylinder | 1.5T / 180 hp / Inline 4-cylinder |
| Maximum power (kW) | 132 | 132 | 132 | 132 |
| Maximum torque (N·m) | 250 | 250 | 250 | 250 |
| Number of gears | 2 | 2 | 2 | 2 |
| gearbox | Dedicated Hybrid Transmission (DHT) | Dedicated Hybrid Transmission (DHT) | Dedicated Hybrid Transmission (DHT) | Dedicated Hybrid Transmission (DHT) |
| Maximum speed (km/h) | 180 | 180 | 180 | 180 |
| 0-100km/h acceleration (s) | 6.8 | 6.8 | 6.8 | 7 |
| WLTC combined fuel consumption (L/100km) | 1.61 | 1.61 | 1.61 | 1.03 |
| Battery Type | Lithium iron phosphate batteries | Lithium iron phosphate batteries | Lithium iron phosphate batteries | Lithium iron phosphate batteries |
| Battery capacity (kWh) | 16.5 | 16.5 | 16.5 | 24.4 |
| Warranty Policy | Three years or 100,000 kilometers | Three years or 100,000 kilometers | Three years or 100,000 kilometers | Three years or 100,000 kilometers |
| Body | ||||
| Length (mm) | 4653 | 4653 | 4653 | 4653 |
| Width (mm) | 1902 | 1902 | 1902 | 1902 |
| Height(mm) | 1714 | 1714 | 1714 | 1728 |
| Wheelbase (mm) | 2730 | 2730 | 2730 | 2730 |
| Front track width (mm) | 1626 | 1626 | 1626 | 1626 |
| Rear track width (mm) | 1628 | 1628 | 1628 | 1628 |
| Curb weight (kg) | 1860 | 1860 | 1860 | 1895 |
| Maximum load capacity (kg) | 2290 | 2290 | 2290 | 2340 |
| Luggage capacity (L) | 648-1619 | 648-1619 | 648-1619 | 648-1619 |
| Fuel tank capacity (L) | 46 | 46 | 46 | 46 |
| Number of car doors | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 |
| Approach angle (°) | 18 | 18 | 18 | 18 |
| Departure angle (°) | 19 | 19 | 19 | 19 |
| Sport appearance kit | ● | ● | ● | ● |
| engine | ||||
| Displacement (mL) | 1498 | 1498 | 1498 | 1498 |
| Engine Model | LAX | LAX | LAX | LAX |
| Maximum horsepower (Ps) | 180 | 180 | 180 | 180 |
| Maximum power (kW) | 132 | 132 | 132 | 132 |
| Maximum net power (kW) | 127 | 127 | 127 | 127 |
| Maximum power speed (rpm) | 5500 | 5500 | 5500 | 5500 |
| Maximum torque (N·m) | 250 | 250 | 250 | 250 |
| Maximum torque speed (rpm) | 1500-4500 | 1500-4500 | 1500-4500 | 1500-4500 |
| cylinder | Inline 4-cylinder | Inline 4-cylinder | Inline 4-cylinder | Inline 4-cylinder |
| Engine position | Front | Front | Front | Front |
| Intake form | Turbocharged | Turbocharged | Turbocharged | Turbocharged |
| Valve structure | Double overhead camshaft | Double overhead camshaft | Double overhead camshaft | Double overhead camshaft |
| fuel supply method | Direct Injection | Direct Injection | Direct Injection | Direct Injection |
| Cylinder block material | aluminum alloy | aluminum alloy | aluminum alloy | aluminum alloy |
| fuel grade | 92# | 92# | 92# | 92# |
| Environmental standards | National 6 | National 6 | National 6 | National 6 |
| electric motor | ||||
| Total power of electric motors (kW) | 140 | 140 | 140 | 140 |
| Total torque of the electric motor (N·m) | 315 | 315 | 315 | 315 |
| Maximum power of the front motor (kW) | 140 | 140 | 140 | 140 |
| Maximum torque of the front motor (N·m) | 315 | 315 | 315 | 315 |
| System total power (kW) | 272 | 272 | 272 | 272 |
| System combined torque (N·m) | 565 | 565 | 565 | 565 |
| WLTC pure electric range (km) | 80 | 80 | 80 | 120 |
| CLTC pure electric range (km) | 102 | 102 | 102 | 155 |
| Battery capacity (kWh) | 16.5 | 16.5 | 16.5 | 24.4 |
| Energy consumption per 100 kilometers (kWh/100km) | 15.4 | 15.4 | 15.4 | 18.4 |
| Electricity-equivalent fuel consumption (L/100km) | 1.74 | 1.74 | 1.74 | 2.08 |
| Motor structure | Permanent magnet | Permanent magnet | Permanent magnet | Permanent magnet |
| Motor working principle | synchronous | synchronous | synchronous | synchronous |
| Number of drive motors | single motor | single motor | single motor | single motor |
| Motor layout | Front | Front | Front | Front |
| Battery Type | Lithium iron phosphate batteries | Lithium iron phosphate batteries | Lithium iron phosphate batteries | Lithium iron phosphate batteries |
| Battery cell brands | Freddie | Freddie | Freddie | Jiangsu Zhengli |
| Energy recovery | ● | ● | ● | ● |
| External discharge | - | - | - | ● |
| Total system power (Ps) | 370 | 370 | 370 | 370 |
| Chassis/Steering | ||||
| Drive form | front-wheel drive | front-wheel drive | front-wheel drive | front-wheel drive |
| Front suspension type | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension |
| Rear suspension type | Multi-link independent suspension | Multi-link independent suspension | Multi-link independent suspension | Multi-link independent suspension |
| Steering power type | Electric Assist | Electric Assist | Electric Assist | Electric Assist |
| Wheels/Brakes | ||||
| Front/Rear Brake Type | Ventilation disc type / disc type | Ventilation disc type / disc type | Ventilation disc type / disc type | Ventilation disc type / disc type |
| Parking brake type | Electronic parking brake | Electronic parking brake | Electronic parking brake | Electronic parking brake |
| Front tire specifications | 235/65 R17 | 235/55 R19 | 235/55 R19 | 235/55 R19 |
| Rear tire specifications | 235/65 R17 | 235/55 R19 | 235/55 R19 | 235/55 R19 |
| Wheel material | aluminum alloy | aluminum alloy | aluminum alloy | aluminum alloy |
| Active/passive safety configuration | ||||
| ABS anti-lock braking system | ● | ● | ● | ● |
| Brakeforce Distribution (EBD/CBC, etc.) | ● | ● | ● | ● |
| Brake assist (BA/EBA/BAS, etc.) | ● | ● | ● | ● |
| Traction control (ASR/TCS/TRC, etc.) | ● | ● | ● | ● |
| Vehicle stability control (ESC/ESP/DSC, etc.) | ● | ● | ● | ● |
| Active braking/safety system | ● | ● | ● | ● |
| Lane change assist | ● | ● | ● | ● |
| Lane Keeping Assist | ● | ● | ● | ● |
| Lane centering | - | - | ● | ● |
| Lane departure warning | ● | ● | ● | ● |
| Road traffic sign recognition | - | - | ● | ● |
| Low speed warning | ● | ● | ● | ● |
| DOW Door Opening Warning | ● | ● | ● | ● |
| Front airbags | ●Driver's side airbag | ●Driver's side airbag | ●Driver's side airbag | ●Driver's side airbag |
| ●Passenger's side airbag | ●Passenger's side airbag | ●Passenger's side airbag | ●Passenger's side airbag | |
| ●Side airbags | ●Side airbags | ●Side airbags | ●Side airbags | |
| ●Head airbags (curtain airbags) | ●Head airbags (curtain airbags) | ●Head airbags (curtain airbags) | ●Head airbags (curtain airbags) | |
| Rear airbags | ●Head airbags (air curtains) | ●Head airbags (air curtains) | ●Head airbags (air curtains) | ●Head airbags (air curtains) |
| Tire pressure monitoring device | ● Display | ● Display | ● Display | ● Display |
| Seatbelt reminder | ●Full vehicle | ●Full vehicle | ●Full vehicle | ●Full vehicle |
| ISOFIX child seat | ● | ● | ● | ● |
| Forward Collision Warning | ● | ● | ● | ● |
| Assist/Control Configuration | ||||
| Parking radar | ●After | ●After | ●Before | ●Before |
| ●After | ●After | |||
| Driving assistance imaging | ● Reversing camera | ● Reversing camera | ●360-degree panoramic imaging | ●360-degree panoramic imaging |
| Rear Cross Traffic Alert System | ● | ● | ● | ● |
| Cruise system | ● Full-speed adaptive cruise control | ● Full-speed adaptive cruise control | ● Full-speed adaptive cruise control | ● Full-speed adaptive cruise control |
| Driving mode switching | ●Sports | ●Sports | ●Sports | ●Sports |
| ●Economy | ●Economy | ●Economy | ●Economy | |
| ●Standard/Comfort | ●Standard/Comfort | ●Standard/Comfort | ●Standard/Comfort | |
| ●Snow | ●Snow | ●Snow | ●Snow | |
| Steep slope descent | ● | ● | ● | ● |
| Hill Start Assist | ● | ● | ● | ● |
| Automatic parking | ● | ● | ● | ● |
| Automatic parking | - | - | ● | ● |
| Assistance Level | ●L2 | ●L2 | ●L2 | ●L2 |
| Assisted parking | - | - | ● | ● |
| Start-up reminder | - | - | ● | ● |
| External/Anti-theft Configuration | ||||
| skylight | - | ●Openable panoramic sunroof | ●Openable panoramic sunroof | ●Openable panoramic sunroof |
| Roof rack | ● | ● | ● | ● |
| Active grille shutters | ● | ● | ● | ● |
| Trunk opening method | - | - | ●Electric | ●Electric |
| ●Induction | ●Induction | |||
| Electric tailgate position memory | - | - | ● | ● |
| Key type | ●Remote key | ●Remote key | ●Remote key | ●Remote key |
| ●Bluetooth key | ●Bluetooth key | ●Bluetooth key | ||
| Keyless entry | ● | ● | ● | ● |
| Keyless start system | ● | ● | ● | ● |
| Central locking | ● | ● | ● | ● |
| Engine electronic anti-theft | ● | ● | ● | ● |
| Internal configuration | ||||
| Steering wheel material | ●Genuine leather | ●Genuine leather | ●Genuine leather | ●Genuine leather |
| Steering wheel adjustment | ● Manually | ● Manually | ● Manually | ● Manually |
| adjustable (height up/ | adjustable (height up/ | adjustable (height up/ | adjustable (height up/ | |
| down) and (forward/backward) | down) and (forward/backward) | down) and (forward/backward) | down) and (forward/backward) | |
| Steering wheel functions | ●Multifunctional | ●Multifunctional | ●Multifunctional | ●Multifunctional |
| Steering wheel off-hand detection | - | - | ● | ● |
| Central handrail | ●Before | ●Before | ●Before | ●Before |
| ●After | ●After | ●After | ●After | |
| Gear shifting | ●Electronic column shifter | ●Electronic column shifter | ●Electronic column shifter | ●Electronic column shifter |
| Sun visor vanity mirror | ● | ● | ● | ● |
| Full LCD instrument panel | ● | ● | ● | ● |
| LCD instrument size | 11 inches | 11 inches | 11 inches | 11 inches |
| Active noise cancellation | ● | ● | ● | ● |
| Wireless charging function for mobile phones | - | ●Front row | ●Front row | ●Front row |
| Dashboard screen resolution (px) | ●2000x810 | ●2000x810 | ●2000x810 | ●2000x810 |
| Dashboard screen pixel density | ●200PPI | ●200PPI | ●200PPI | ●200PPI |
| Smart hardware | ||||
| Forward sensing camera | ● Monocular | ● Monocular | ● Monocular | ● Monocular |
| Number of cameras | ●2 | ●2 | ●5 | ●5 |
| Number of ultrasonic radars | ●4 | ●4 | ●12 | ●12 |
| Voice regional wake-up recognition | ●Dual Zone | ●Dual Zone | ●Dual Zone | ●Dual Zone |
| Seats | ||||
| Seat material | ● Faux leather | ● Faux leather | ●Genuine leather | ●Other materials |
| Front seat functions | - | - | ●Heating | ●Heating |
| ●Ventilation | ●Ventilation | |||
| Electric seat adjustment | ●Driver's seat | ●Driver's seat | ●Driver's seat | ●Driver's seat |
| ●Passenger seat | ●Passenger seat | |||
| Driver's seat adjustment method | ● Fore-and-aft adjustment | ● Fore-and-aft adjustment | ● Fore-and-aft adjustment | ● Fore-and-aft adjustment |
| ● Backrest adjustment | ● Backrest adjustment | ● Backrest adjustment | ● Backrest adjustment | |
| ● Height adjustment (4-way) | ● Height adjustment (4-way) | ● Height adjustment (4-way) | ● Height adjustment (4-way) | |
| ● Lumbar support (4-way) | ● Lumbar support (4-way) | |||
| Passenger seat adjustment method | ●Fore-and-aft adjustment | ●Fore-and-aft adjustment | ● Fore-and-aft adjustment | ● Fore-and-aft adjustment |
| ●Backrest adjustment | ●Backrest adjustment | ● Backrest adjustment | ● Backrest adjustment | |
| ● Height adjustment (4-way) | ● Height adjustment (4-way) | |||
| ● Lumbar support (4-way) | ● Lumbar support (4-way) | |||
| Second row seat adjustment | ●Proportion Reversed | ●Proportion Reversed | ●Proportion Reversed | ●Proportion Reversed |
| Rear cup holders | ● | ● | ● | ● |
| multimedia | ||||
| Central control color screen | ● Touchscreen LCD | ● Touchscreen LCD | ● Touchscreen LCD | ● Touchscreen LCD |
| Satellite navigation system | ● | ● | ● | ● |
| Navigation traffic information display | ● | ● | ● | ● |
| Map Brands | Baidu | Baidu | Baidu | Baidu |
| In-vehicle smart chip | ● Qualcomm Snapdragon 8155 | ● Qualcomm Snapdragon 8155 | ● Qualcomm Snapdragon 8155 | ● Qualcomm Snapdragon 8155 |
| Mobile APP remote function | ● | ● | ● | ● |
| Bluetooth/Car Phone | ● | ● | ● | ● |
| Mobile phone interconnection/mapping | ●Supports CarPlay | ●Supports CarPlay | ●Supports CarPlay | ●Supports CarPlay |
| Number of speakers | 7 | 7 | 7 | 7 |
| Voice recognition control system | ● | ● | ● | ● |
| Central control screen size | ●11.3 inches | ●11.3 inches | ●11.3 inches | ●11.3 inches |
| Central control screen resolution | ●2000x974 | ●2000x974 | ●2000x974 | ●2000x974 |
| Central control screen pixel density | ●200PPI | ●200PPI | ●200PPI | ●200PPI |
| Voice wake-up words | ● | ● | ● | ● |
| 4G/5G networks | ●5G | ●5G | ●5G | ●5G |
| Connected Vehicles | ● | ● | ● | ● |
| OTA upgrade | ● | ● | ● | ● |
| Interface support | ●USB interface | ●USB interface | ●USB interface | ●USB interface |
| ●Type-C interface | ●Type-C interface | ●Type-C interface | ●Type-C interface | |
| Number of USB/Type-C ports | ● 2 in the front row / 2 in the back row | ● 2 in the front row / 2 in the back row | ● 2 in the front row / 2 in the back row | ● 2 in the front row / 2 in the back row |
| App Store | ● | ● | ● | ● |
| light | ||||
| low beam headlights | ●LED | ●LED | ●LED | ●LED |
| High beams | ●LED | ●LED | ●LED | ●LED |
| LED daytime running lights | ● | ● | ● | ● |
| Adaptive high and low beam | ● | ● | ● | ● |
| Headlights are adjustable | ● | ● | ● | ● |
| Automatic headlights | ● | ● | ● | ● |
| Headlights delayed shut-off | ● | ● | ● | ● |
| Interior ambient lighting | - | - | ● | ● |
| Glass/Rearview Mirror | ||||
| Electric windows | ●Before | ●Before | ●Before | ●Before |
| ●After | ●After | ●After | ●After | |
| One-touch window operation | ●Front row | ●Front row | ●Front row | ●Front row |
| Anti-pinch function for car windows | ● | ● | ● | ● |
| exterior rearview mirror | ●Electrically adjustable | ●Electrically adjustable | ●Electrically adjustable | ●Electrically adjustable |
| ●Electrically folding | ●Electrically folding | ●Electrically folding | ●Electrically folding | |
| ●Heated | ●Heated | ●Heated | ●Heated | |
| ●Automatically folds when locking | ●Automatically folds when locking | ●Automatically folds when locking | ●Automatically folds when locking | |
| Interior rearview mirror | ● Manual anti-glare | ● Manual anti-glare | ● Manual anti-glare | ● Manual anti-glare |
| Rain-sensing wipers | - | - | ● | ● |
| Rear wiper | ● | ● | ● | ● |
| Air conditioner/refrigerator | ||||
| Air conditioning control methods | ●Manual control | ●Manual control | ●Automatic control | ●Automatic control |
| Rear air vent | ● | ● | ● | ● |
| Temperature zone control | - | - | ● | ● |
| PM2.5 filtration | - | - | ● | ● |
Reviews
There are no reviews yet.
