Exterior Design

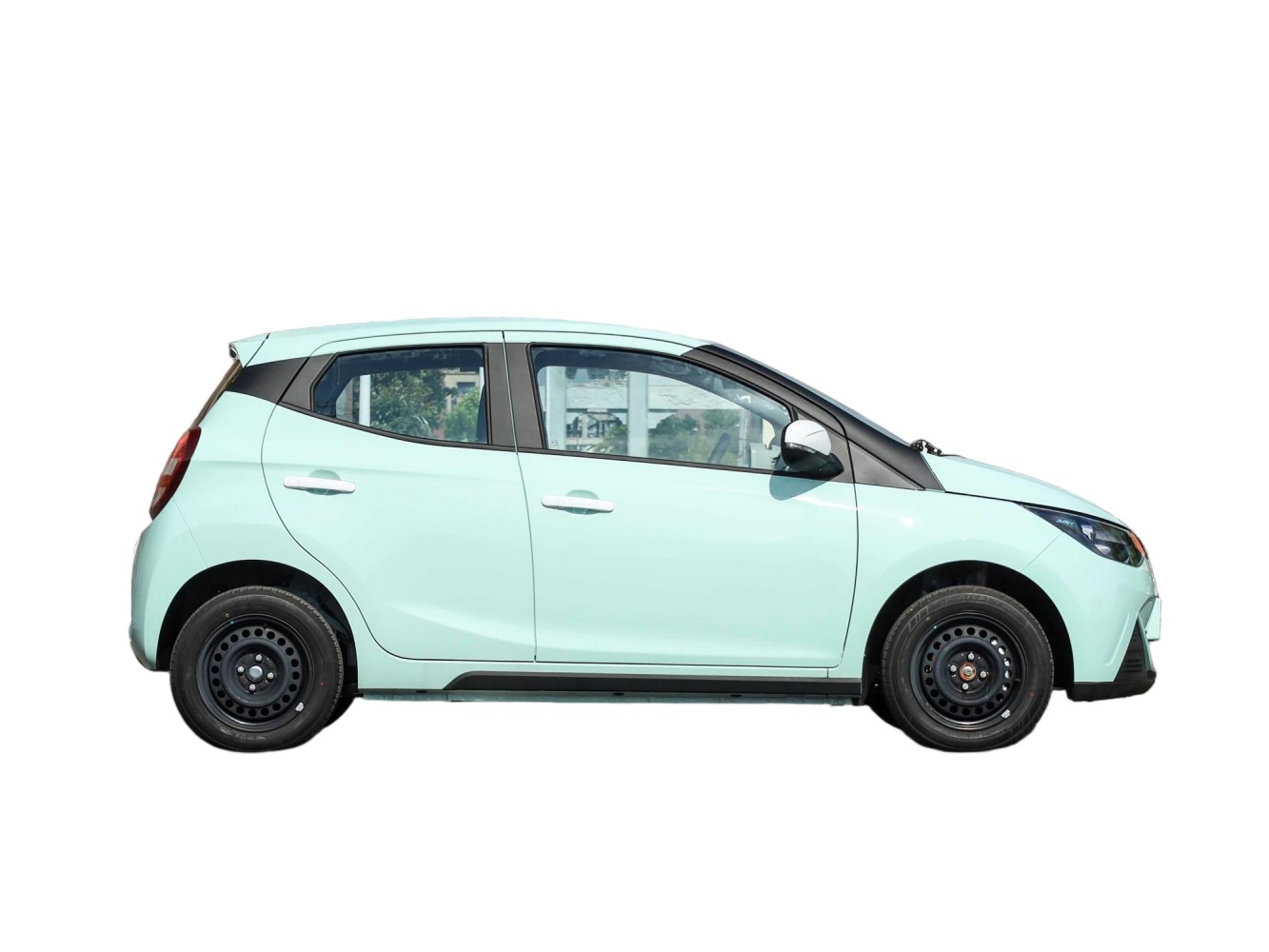

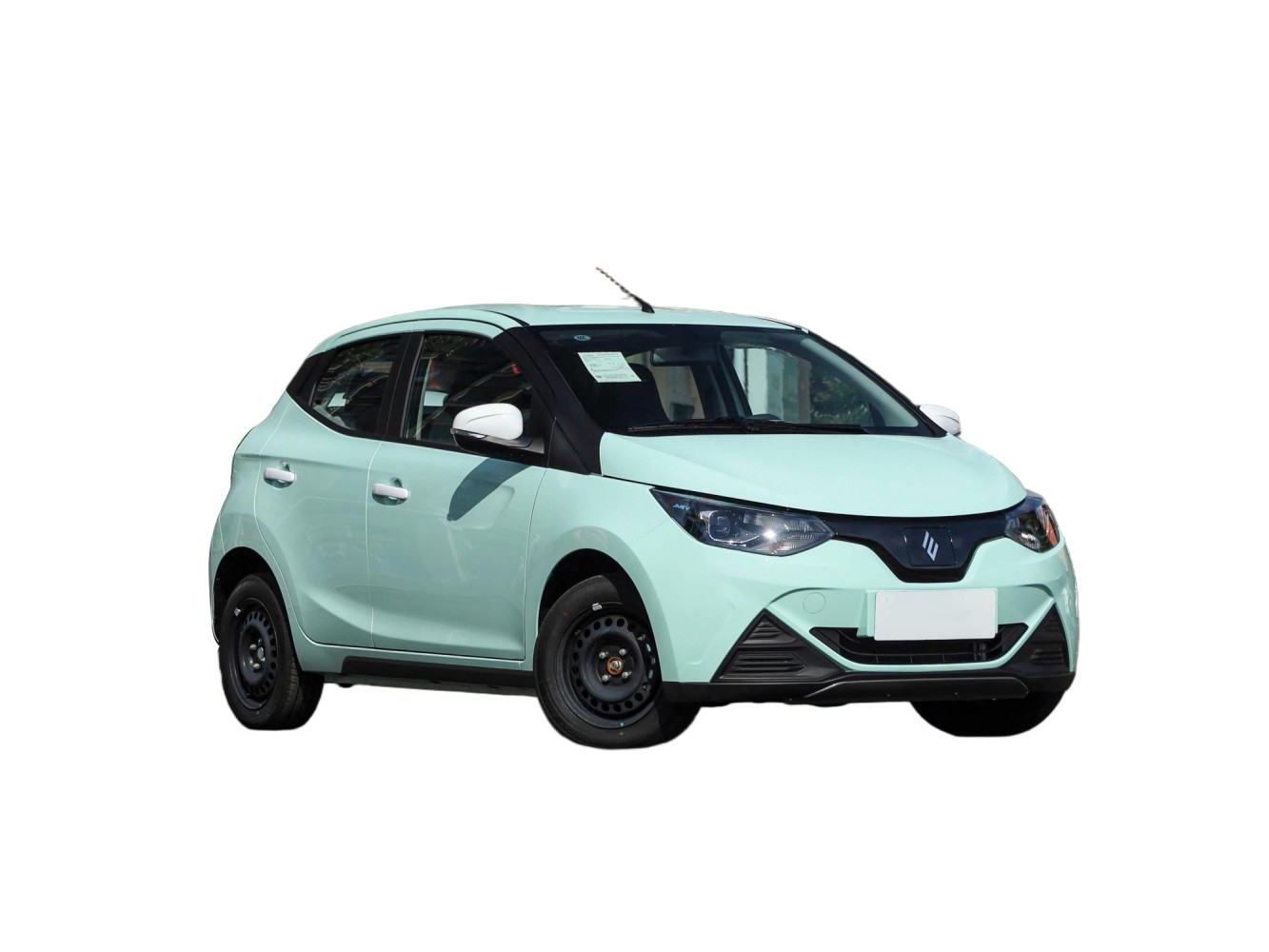

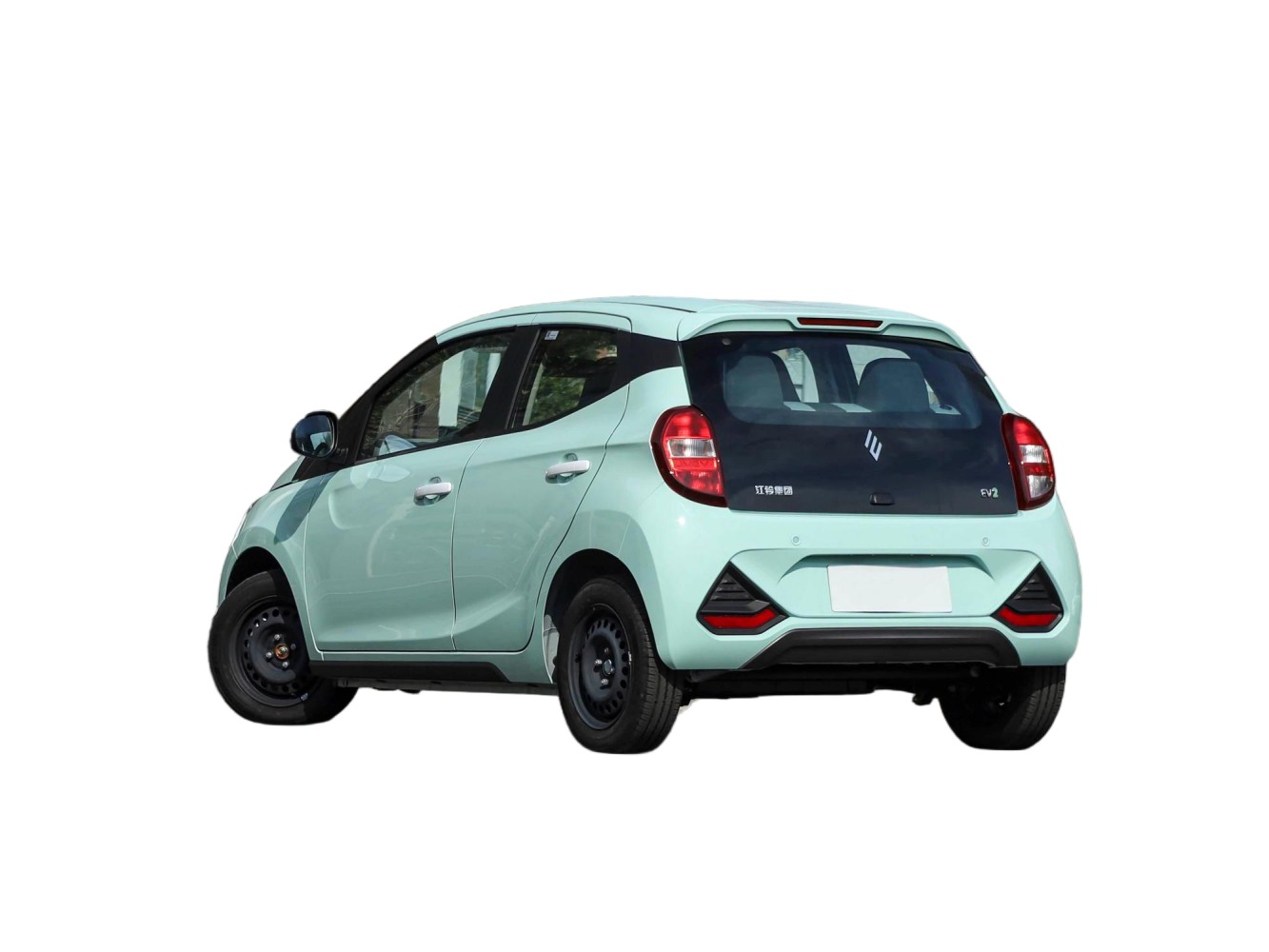

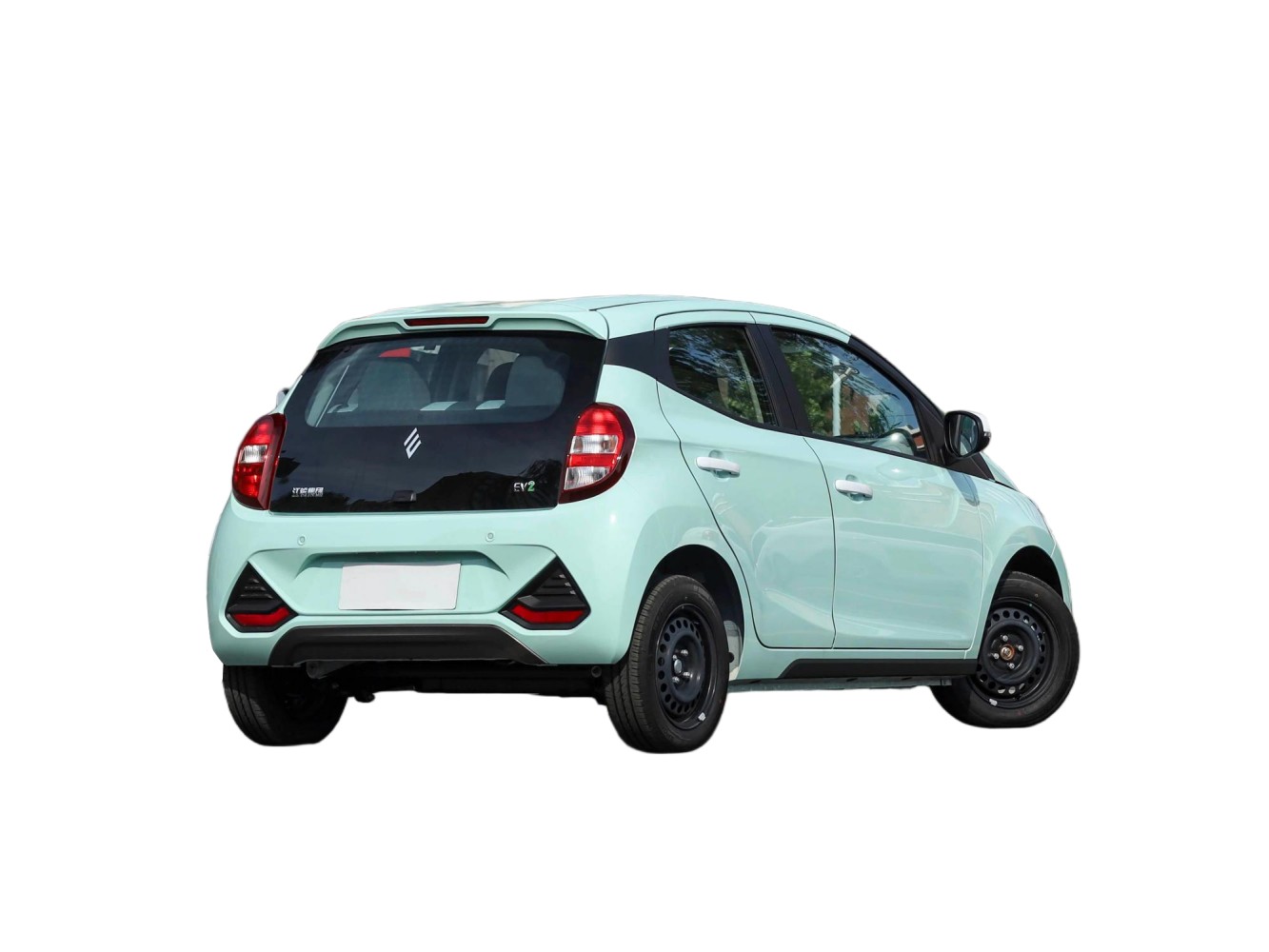

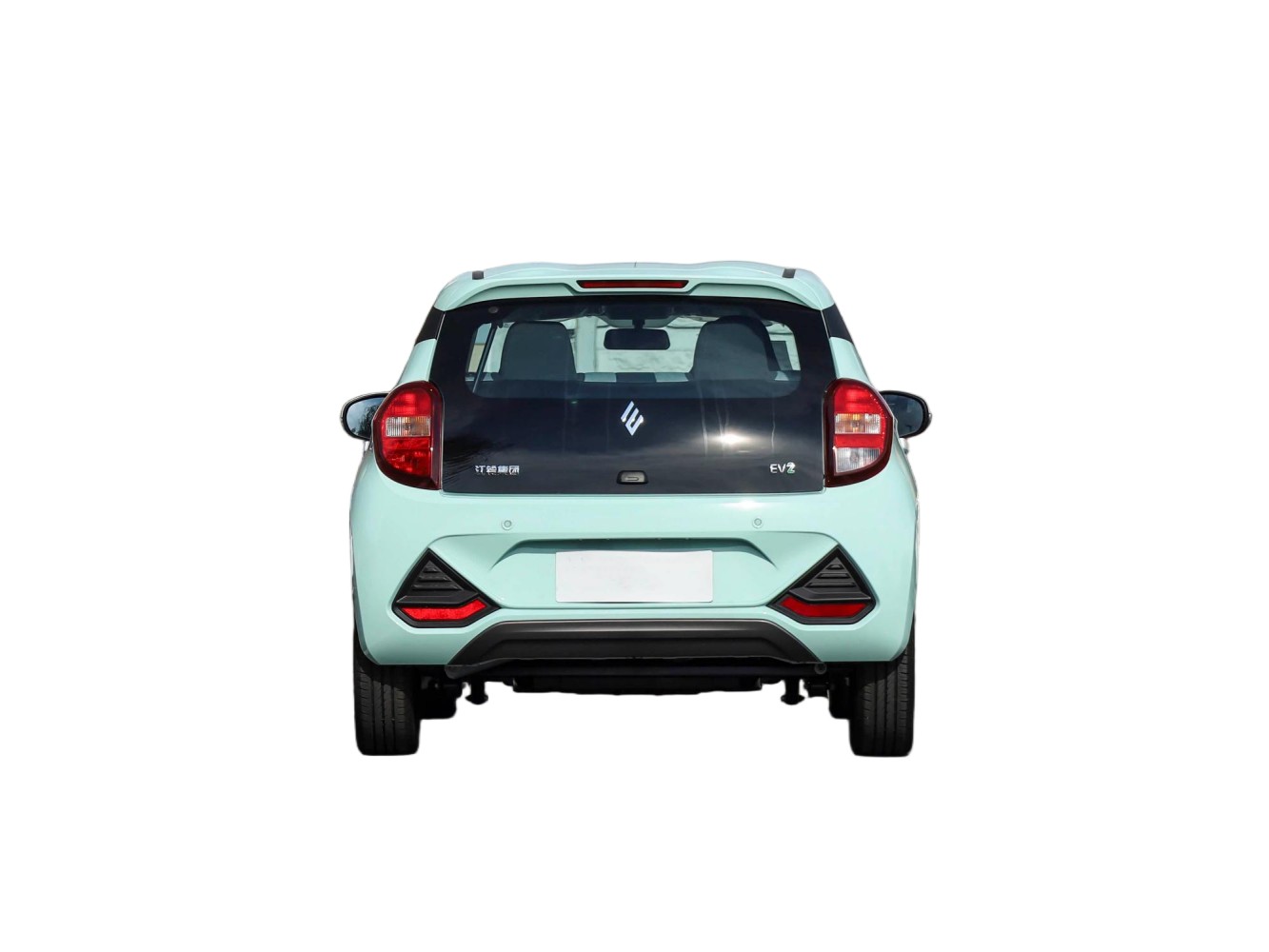

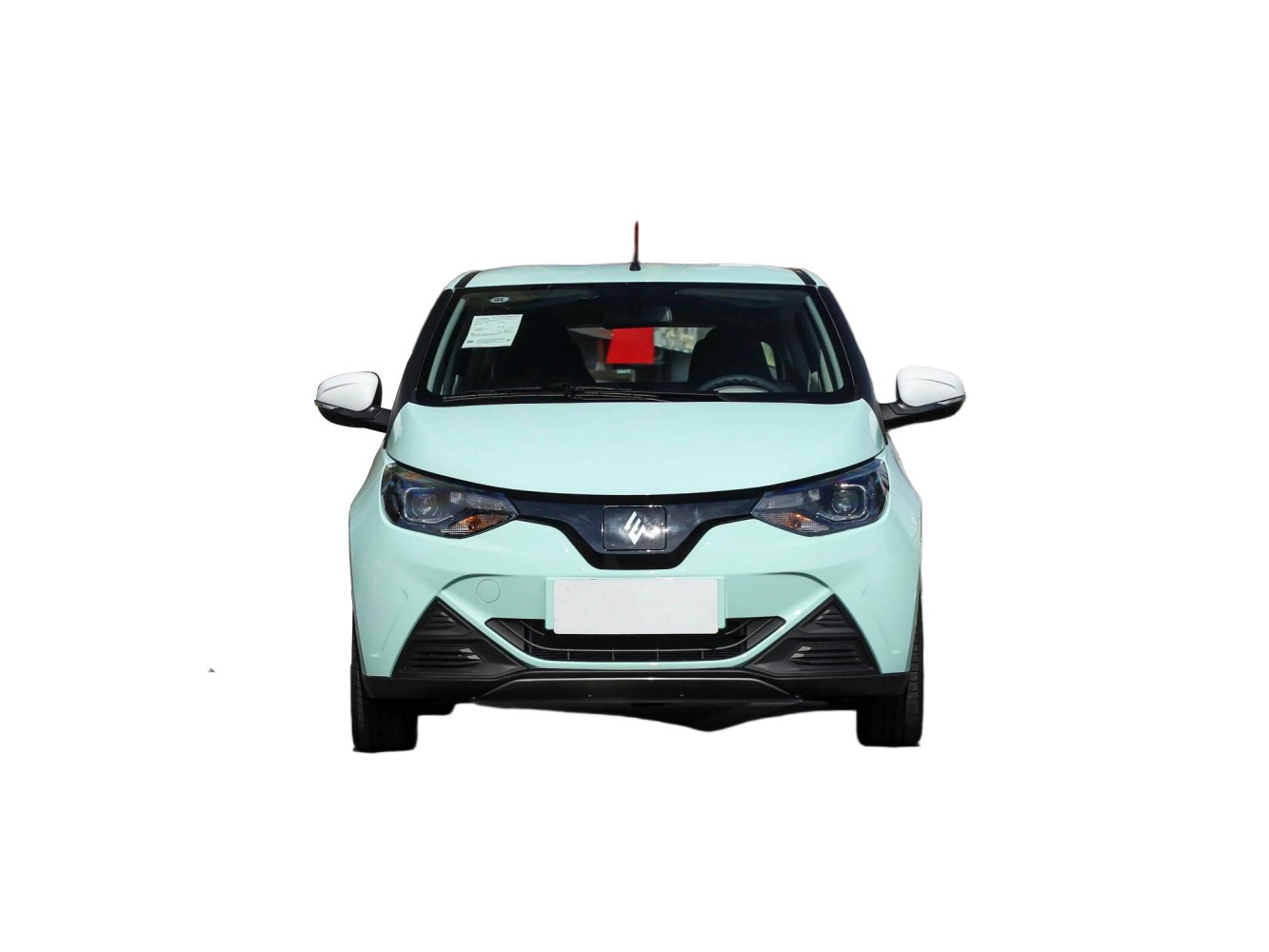

The JMEV EV2 is a micro pure electric vehicle equipped with LED headlight assemblies and LED taillight groups. The vehicle is fitted with 14-inch wheel rims. The available exterior body colors include White, Blue, Green and Gray.
In terms of dimensions, the vehicle measures 3500 mm in length, 1646 mm in width, and 1460 mm in height, with a wheelbase of 2340 mm. It adopts a 5-door 4-seat layout. The rear seats support folding adjustment to expand rear cargo space.
Interior Design
The JMEV EV2 is fitted with a full LCD instrument panel and a central control touch screen. The interior is equipped with fabric seats as standard, as well as a multi-function steering wheel. Partial versions support mobile phone remote control function.
In terms of configurations, the standard model comes with rearview camera, cruise control, front airbags, ABS and EBD system. Higher-spec models are equipped with vehicle networking system.
Powertrain
The JMEV EV2 adopts front single-motor front-wheel drive pure electric powertrain, paired with a single-speed fixed gear transmission. The motor delivers maximum power of 26 kW or 30 kW and peak torque of 84 Nm or 85 Nm for different versions. The official 0-50 km/h acceleration time is 6.7 seconds, and the maximum speed is 100 km/h.
The vehicle is equipped with 15.86 kWh lithium iron phosphate battery packs. The vehicle has a CLTC cruising range of 201 km. It supports fast charging and slow charging functions. The vehicle adopts front MacPherson independent suspension and rear torsion beam non-independent suspension.
| 2023 JMEV EV2 Mascot Edition 201km Comfort | 2023 JMEV EV2 Mascot Edition 201km Deluxe | |
|---|---|---|
| Basic Information | ||
| Availability | 2023.08 | 2023.08 |
| vehicle class | Miniature two-car | Miniature two-car |
| Length*Width*Height(mm) | 3500*1646*1460 | 3500*1646*1460 |
| Type of energy | all-electric | all-electric |
| CLTC pure electric range (km) | 201 | 201 |
| Total motor power (kW) | 26 | 26 |
| Total motor torque (N-m) | 84 | 84 |
| Maximum speed (km/h) | 100 | 100 |
| Battery Type | lithium iron phosphate battery | lithium iron phosphate battery |
| Battery capacity (kWh) | 15.86 | 15.86 |
| Warranty Policy | Three years or 60,000 kilometers | Three years or 60,000 kilometers |
| body of automobile | ||
| Length (mm) | 3500 | 3500 |
| Width (mm) | 1646 | 1646 |
| Height (mm) | 1460 | 1460 |
| Wheelbase (mm) | 2340 | 2340 |
| Front wheelbase(mm) | 1420 | 1420 |
| Rear wheelbase(mm) | 1420 | 1420 |
| Weight (kg) | 890 | 890 |
| Number of doors (pcs) | 5 | 5 |
| Number of seats (pcs) | 4 | 4 |
| electric motor | ||
| Total motor power (kW) | 26 | 26 |
| Total motor torque (N-m) | 84 | 84 |
| Maximum power of front electric motor (kW) | 26 | 26 |
| Maximum torque of front motor (N-m) | 84 | 84 |
| CLTC pure electric range (km) | 201 | 201 |
| Battery capacity (kWh) | 15.86 | 15.86 |
| Motor structure | permanent magnetism | permanent magnetism |
| Principle of motor operation | synchronization | synchronization |
| Number of drive motors | single motor | single motor |
| Motor Layout | preamplifier | preamplifier |
| Battery Type | lithium iron phosphate battery | lithium iron phosphate battery |
| Battery Cell Brands | Shingwanda (name) | Shingwanda (name) |
| Battery cooling method | air cooling | air cooling |
| Battery Energy Density(Wh/kg) | 122 | 122 |
| Battery Pack Warranty | Eight years or 120,000 kilometers | Eight years or 120,000 kilometers |
| Battery preheating | character used in Taiwan as a substitute for a real name (like "X" in English) | character used in Taiwan as a substitute for a real name (like "X" in English) |
| Chassis/steering | ||
| Driving form | front drive | front drive |
| Front suspension type | MacPherson independent suspension | MacPherson independent suspension |
| Rear suspension type | Trailing Arm Non-Independent Suspension | Trailing Arm Non-Independent Suspension |
| Steering assist form | electric power assist | electric power assist |
| Wheels/Brakes | ||
| Front/Rear Brake Type | Disc / Drum | Disc / Drum |
| Parking brake type | handbrake | handbrake |
| Front Tire Specification | 165/65 R14 | 165/65 R14 |
| Rear Tire Specification | 165/65 R14 | 165/65 R14 |
| Wheel Material | steel (chemistry) | aluminum |
| Active/passive safety features | ||
| ABS anti-lock | ● | ● |
| Brake force distribution (EBD/CBC etc.) | ● | ● |
| front exhaust airbag | :: Driver's airbag | :: Driver's airbag |
| Tire Pressure Detection Device | ● Alarms | ● Alarms |
| Seat Belt Reminder | ●Principal Driver | ●Principal Driver |
| ISOFIX child restraints | ● | ● |
| Auxiliary/maneuvering features | ||
| parking radar | ● Post | ● Post |
| Driver Assistance Video | - | ● Backup camera |
| Driving Mode Switching | :: Campaigns | :: Campaigns |
| :: Economy | :: Economy | |
| hill-holding aid | ● | ● |
| External/anti-theft configurations | ||
| Key Type | ●Remote key | ●Remote key |
| ● Mechanical key | ● Mechanical key | |
| Central locking in the car | ● | ● |
| Internal Configuration | ||
| Steering wheel material | :: Plastics | :: Plastics |
| Steering Wheel Adjustment | ● Manual | ● Manual |
| seating | Adjustable up and down | Adjustable up and down |
| Seat Material | :: Fabrics | :: Fabrics |
| Integral adjustment of the main driver's seat | ●Before and after | ●Before and after |
| ●Backrests | ●Backrests | |
| Passenger seat overall adjustment | ●Before and after | ●Before and after |
| ●Backrests | ●Backrests | |
| Second row seat adjustment | ● Integral lowering | ● Integral lowering |
| Rear Cup Holder | ● | ● |
| multimedia | ||
| Large color screen in the center console | - | ● |
| Bluetooth/car phone | - | ● |
| Number of audio speakers | 2 | 2 |
| Center screen size | - | ●9 inches |
| Interface Support | ●USB port | ●USB port |
| illumination | ||
| low beam (headlights) | ● Halogen | ● Halogen |
| high beam (headlights) | ● Halogen | ● Halogen |
| Adjustable headlights | ● | ● |
| Glass/Mirror | ||
| power window | ●Forward | ●Forward |
| Air conditioners/refrigerators | ● Post | ● Post |
| Air conditioning control method | ●Manual control | ●Manual control |
