Exterior Design

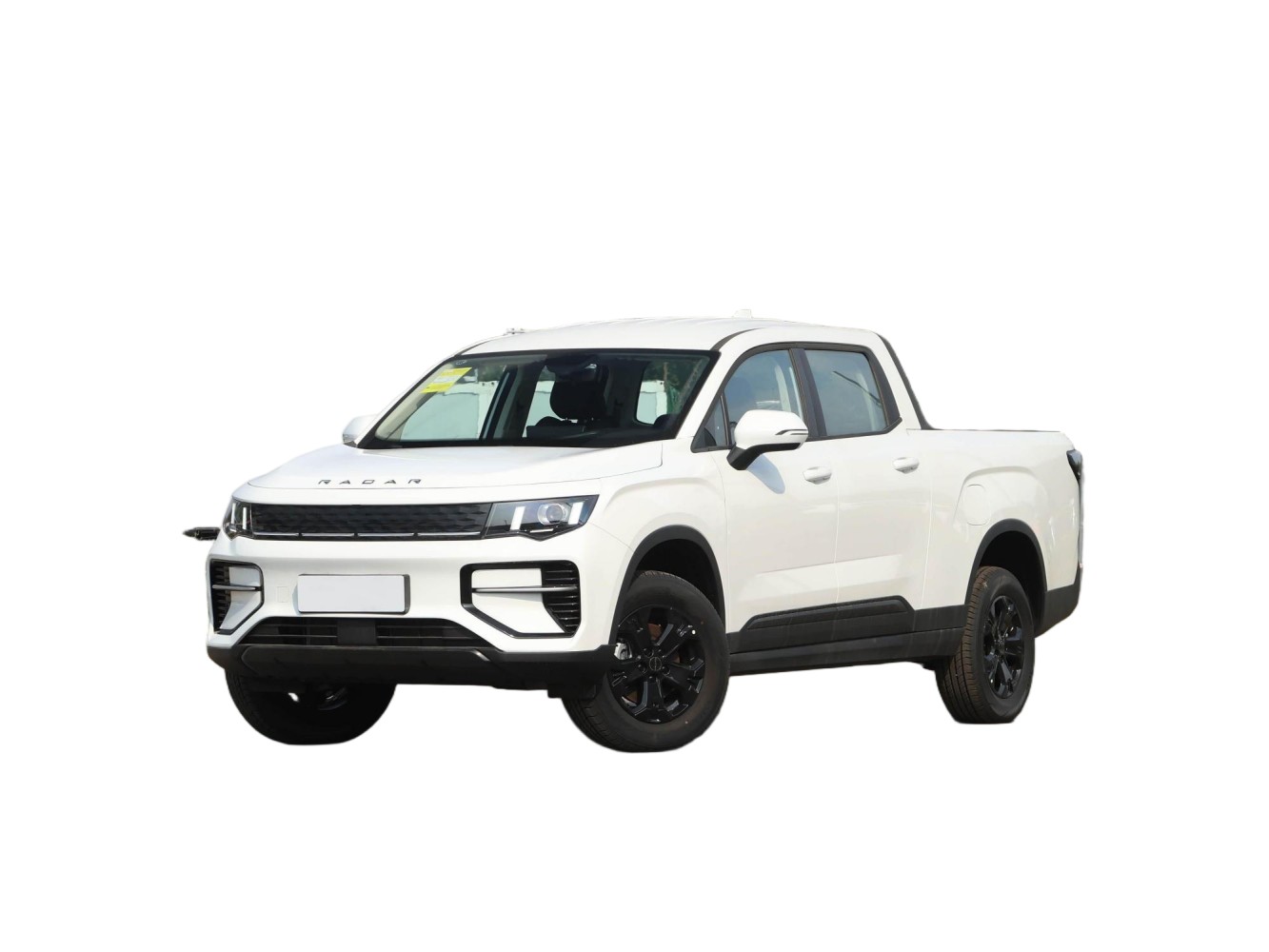

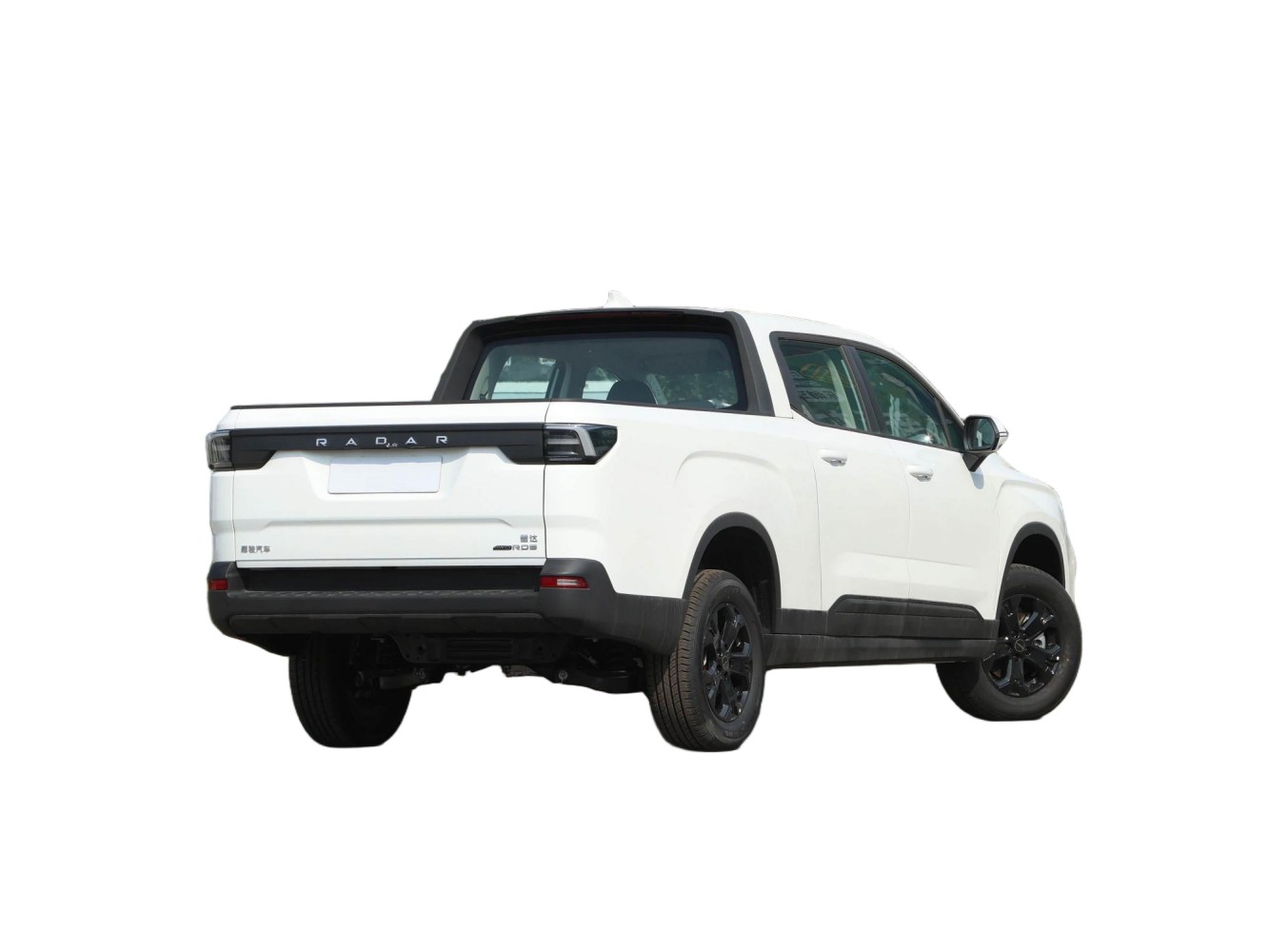

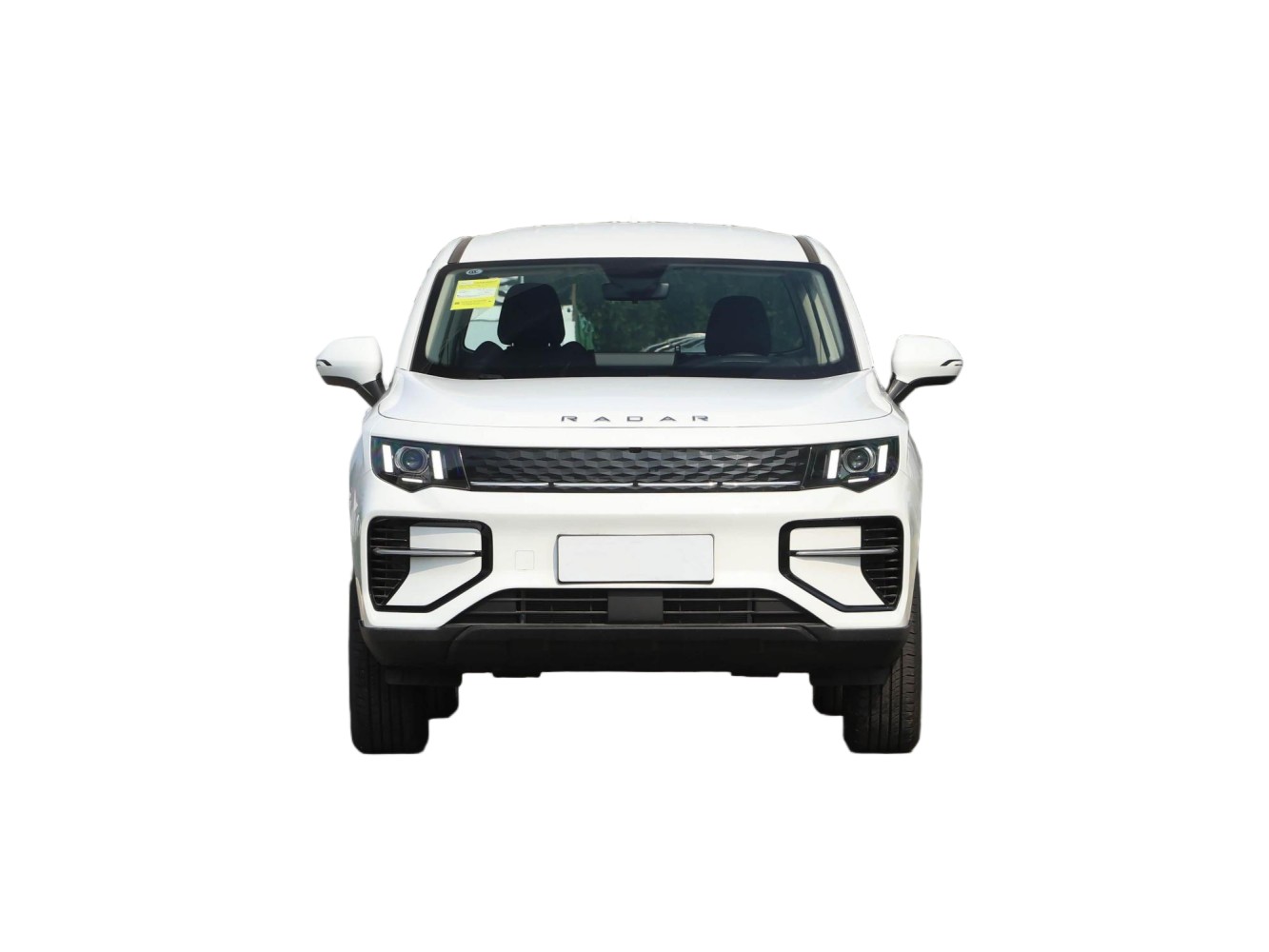

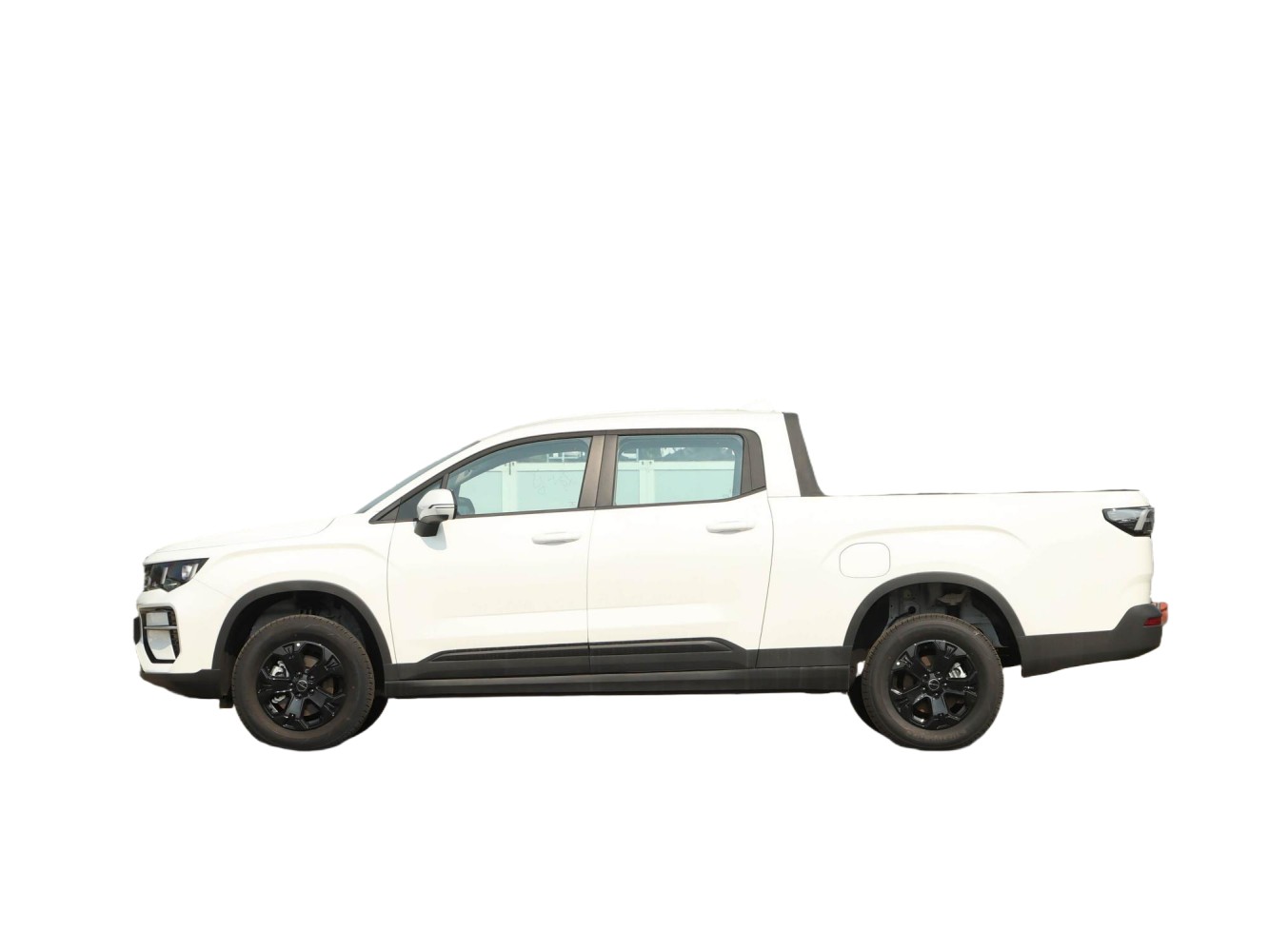

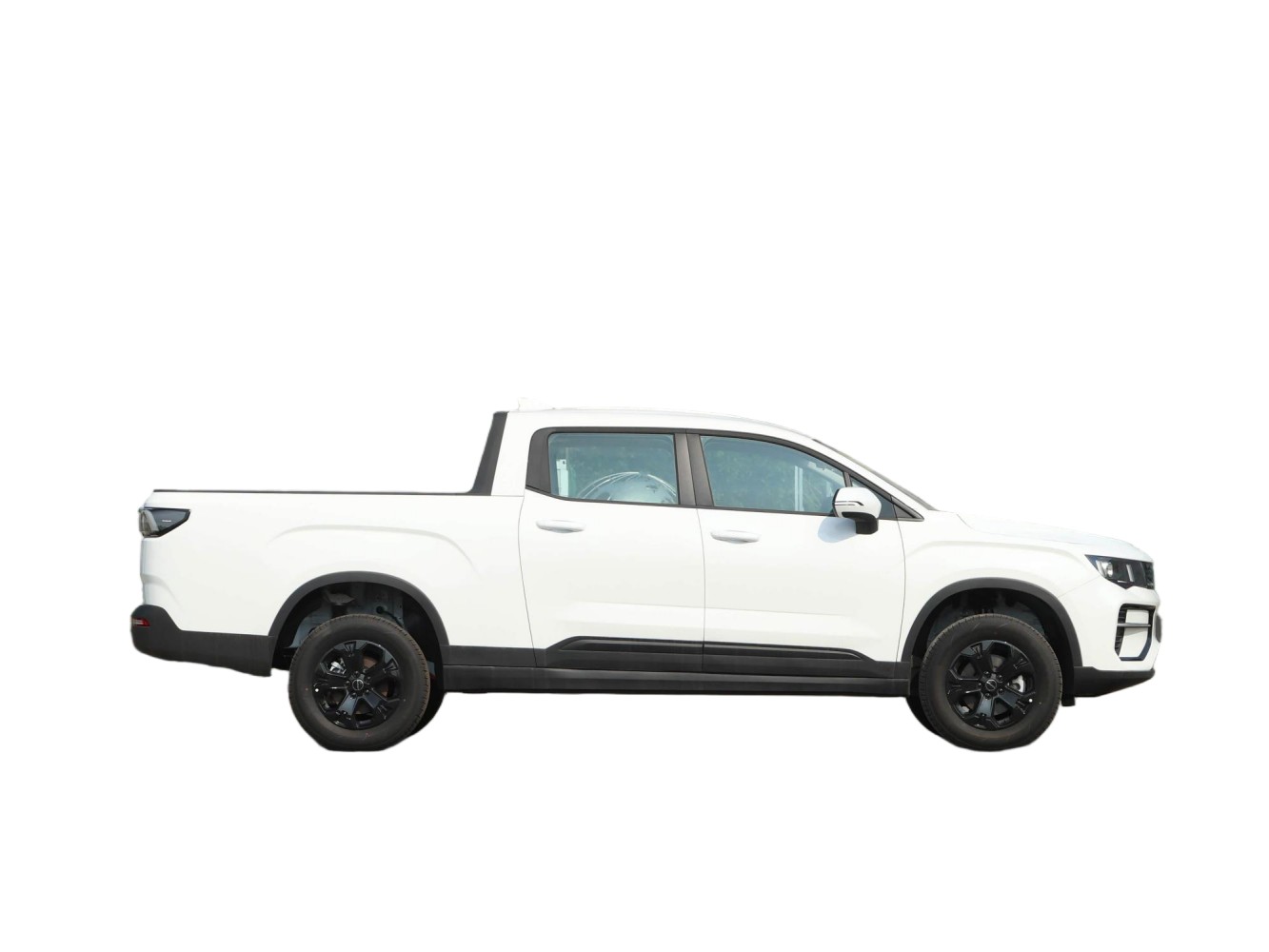

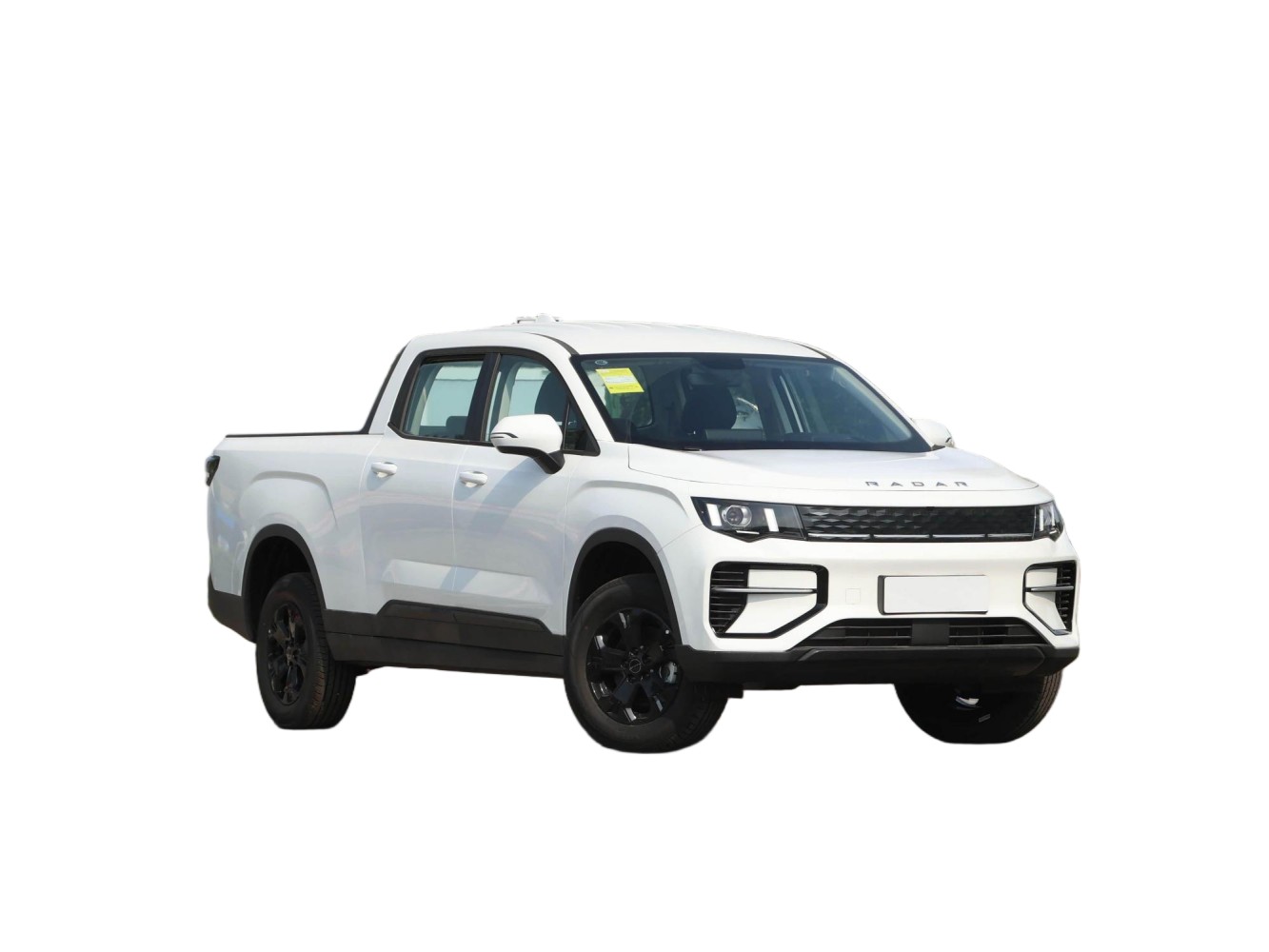

The RADAR RD5 is a medium-sized new energy pickup truck, equipped with a front grille and full LED headlight groups. The vehicle is fitted with LED taillight groups and rear bumper trim. Multiple body color options are available. The vehicle adopts 17-inch and 18-inch wheel configurations for different versions. Conventional door handles are equipped as standard. Roof rails are equipped as standard.
The vehicle adopts a 4-door 5-seater pickup truck layout. The body dimensions cover 5260 mm and 5500 mm in length, 1900 mm in width, 1865 mm and 1880 mm in height, with wheelbase options of 3120 mm and 3310 mm for different versions. Electrically adjustable exterior mirrors with heating functions are equipped for different versions. Electric charging port cover and fuel tank cap are equipped for corresponding versions.
Interior Design
The vehicle is equipped with a full LCD digital instrument cluster and central control touchscreen. Multiple interior color schemes are available, matched with fabric and leather upholstery and metallic decorative trim. The vehicle supports multi-color ambient lighting and automatic constant temperature air conditioning system. An electronic gear shift lever is equipped as standard.
Standard configurations include front airbags, front and rear parking sensors and rearview camera. Keyless entry and one-key start functions are standard. High-spec versions are equipped with 540-degree panoramic camera system, adaptive cruise control, lane keeping assist and active braking system. The vehicle supports vehicle network connection, wireless phone charging, V2L external discharge and OTA upgrade functions. Partial versions are equipped with multi-adjustable seats and multi-speaker audio system.
Powertrain
The RADAR RD5 adopts front-wheel drive and four-wheel drive layouts. Pure electric versions are matched with single-speed fixed gear electric drive assembly, equipped with permanent magnet synchronous motors with maximum power of 180 kW and 280 kW for different versions. Plug-in hybrid versions are matched with 3-speed DHT transmission, equipped with 1.5T inline four-cylinder turbocharged hybrid engine, with a comprehensive system maximum power of 260 kW and a comprehensive peak torque of 914 Nm.
The vehicle is equipped with lithium iron phosphate and ternary lithium battery packs for different versions. The CLTC pure electric cruising range covers 310 km, 430 km, 505 km, 520 km and 605 km. Plug-in hybrid versions meet China VI emission standards. The vehicle is equipped with energy recovery system and battery constant temperature management system. Multiple driving mode adjustment functions are available. The vehicle adopts front double-wishbone independent suspension and rear leaf spring suspension system.
| 2025 Radar RD5 310km 2WD Long Cab Fortune King Kong | 2025 Radar RD5 330km 4WD Long Cab Power King Kong | 2025 Radar RD5 430km 2WD Standard Box Fortune King Kong | 2025 Radar RD5 430km 2WD Long Cab Fortune King Kong | 2025 Radar RD5 505km 2WD Long Cab Fortune King Kong | 2025 Radar RD5 460km 4WD Standard Vehicle Power King Kong | 2025 Radar RD5 460km 4WD Long Cab Power King Kong | 2025 Radar RD5 605km 2WD Standard Box Fortune King Kong | 2025 Radar RD5 605km 2WD Long Cab Fortune King Kong | 2025 Radar RD5 520km 4WD Long Cab Power King Kong | |
|---|---|---|---|---|---|---|---|---|---|---|
| Basic Information | ||||||||||
| Availability | 2024.12 | 2024.12 | 2024.12 | 2024.12 | 2024.12 | 2024.12 | 2024.12 | 2024.12 | 2024.12 | 2024.12 |
| vehicle class | pickup | pickup | pickup | pickup | pickup | pickup | pickup | pickup | pickup | pickup |
| Length*Width*Height(mm) | 5500*1900*1830 | 5500*1900*1880 | 5260*1900*1865 | 5500*1900*1865 | 5500*1900*1865 | 5260*1900*1880 | 5500*1900*1880 | 5260*1900*1865 | 5500*1900*1865 | 5500*1900*1880 |
| Type of energy | all-electric | all-electric | all-electric | all-electric | all-electric | all-electric | all-electric | all-electric | all-electric | all-electric |
| CLTC pure electric range (km) | 310 | 330 | 430 | 430 | 505 | 460 | 460 | 605 | 605 | 520 |
| Total motor power (kW) | 180 | 280 | 180 | 180 | 180 | 280 | 280 | 180 | 180 | 280 |
| Total motor torque (N-m) | 309 | 485 | 309 | 309 | 309 | 485 | 485 | 309 | 309 | 485 |
| Maximum speed (km/h) | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 |
| Battery Type | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | Ternary lithium battery | Ternary lithium battery | Ternary lithium battery |
| body of automobile | ||||||||||
| Length (mm) | 5500 | 5500 | 5260 | 5500 | 5500 | 5260 | 5500 | 5260 | 5500 | 5500 |
| Width (mm) | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 |
| Height (mm) | 1830 | 1880 | 1865 | 1865 | 1865 | 1880 | 1880 | 1865 | 1865 | 1880 |
| Wheelbase (mm) | 3310 | 3310 | 3120 | 3310 | 3310 | 3120 | 3310 | 3120 | 3310 | 3310 |
| Front wheelbase(mm) | - | - | 1614 | 1614 | - | 1614 | 1614 | - | - | - |
| Rear wheelbase(mm) | - | - | 1620 | 1620 | - | 1620 | 1620 | - | - | - |
| Weight (kg) | - | - | 1970 | 2030 | - | 2090 | 2150 | - | - | - |
| Number of doors (pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats (pcs) | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| electric motor | ||||||||||
| Total motor power (kW) | 180 | 280 | 180 | 180 | 180 | 280 | 280 | 180 | 180 | 280 |
| Total motor torque (N-m) | 309 | 485 | 309 | 309 | 309 | 485 | 485 | 309 | 309 | 485 |
| Maximum power of front electric motor (kW) | - | 100 | - | - | - | 100 | 100 | - | - | 100 |
| Maximum torque of front motor (N-m) | - | 176 | - | - | - | 176 | 176 | - | - | 176 |
| Maximum power of rear electric motor (kW) | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 |
| Rear motor maximum torque (N-m) | 309 | 309 | 309 | 309 | 309 | 309 | 309 | 309 | 309 | 309 |
| CLTC pure electric range (km) | 310 | 330 | 430 | 430 | 505 | 460 | 460 | 605 | 605 | 520 |
| Motor structure | permanent magnetism | permanent magnetism | permanent magnetism | permanent magnetism | permanent magnetism | permanent magnetism | permanent magnetism | permanent magnetism | permanent magnetism | permanent magnetism |
| Principle of motor operation | synchronization | synchronization | synchronization | synchronization | synchronization | synchronization | synchronization | synchronization | synchronization | synchronization |
| Number of drive motors | single motor | Dual Motor | single motor | single motor | single motor | Dual Motor | Dual Motor | single motor | single motor | Dual Motor |
| Motor Layout | place after (e.g. in grammar) | front and rear | place after (e.g. in grammar) | place after (e.g. in grammar) | place after (e.g. in grammar) | front and rear | front and rear | place after (e.g. in grammar) | place after (e.g. in grammar) | front and rear |
| Battery Type | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | Ternary lithium battery | Ternary lithium battery | Ternary lithium battery |
| energy recovery | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| external discharge | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Chassis/steering | ||||||||||
| Driving form | rear drive | four-wheel drive | rear drive | rear drive | rear drive | four-wheel drive | four-wheel drive | rear drive | rear drive | four-wheel drive |
| Front suspension type | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension |
| Rear suspension type | Multi-link independent suspension | Multi-link independent suspension | Multi-link independent suspension | Multi-link independent suspension | Multi-link independent suspension | Multi-link independent suspension | Multi-link independent suspension | Multi-link independent suspension | Multi-link independent suspension | Multi-link independent suspension |
| Steering assist form | electric power assist | electric power assist | electric power assist | electric power assist | electric power assist | electric power assist | electric power assist | electric power assist | electric power assist | electric power assist |
| Wheels/Brakes | ||||||||||
| Front/Rear Brake Type | Ventilated Disc Type / Disc Type | Ventilated Disc Type / Disc Type | Ventilated Disc Type / Disc Type | Ventilated Disc Type / Disc Type | Ventilated Disc Type / Disc Type | Ventilated Disc Type / Disc Type | Ventilated Disc Type / Disc Type | Ventilated Disc Type / Disc Type | Ventilated Disc Type / Disc Type | Ventilated Disc Type / Disc Type |
| Front Tire Specification | 225/65 R17 | 235/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 | 235/65 R17 | 235/65 R17 | 225/65 R17 | 225/65 R17 | 235/65 R17 |
| Rear Tire Specification | 225/65 R17 | 235/65 R17 | 225/65 R17 | 225/65 R17 | 225/65 R17 | 235/65 R17 | 235/65 R17 | 225/65 R17 | 225/65 R17 | 235/65 R17 |
| Wheel Material | steel (chemistry) | steel (chemistry) | steel (chemistry) | steel (chemistry) | steel (chemistry) | aluminum | aluminum | aluminum | aluminum | aluminum |
| Active/passive safety features | ||||||||||
| ABS anti-lock | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Brake force distribution (EBD/CBC etc.) | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Brake Assist (BA/EBA/BAS etc.) | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Traction control (ASR/TCS/TRC etc.) | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Stability Control (ESC/ESP/DSC etc.) | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| front exhaust airbag | :: Driver's airbag | :: Driver's airbag | :: Driver's airbag | :: Driver's airbag | :: Driver's airbag | :: Driver's airbag | :: Driver's airbag | :: Driver's airbag | :: Driver's airbag | :: Driver's airbag |
| ●Passenger airbag | ●Passenger airbag | ●Passenger airbag | ●Passenger airbag | ●Passenger airbag | ●Passenger airbag | ●Passenger airbag | ●Passenger airbag | ●Passenger airbag | ●Passenger airbag | |
| Tire Pressure Detection Device | ● Alarms | ● Alarms | ● Alarms | ● Alarms | ● Alarms | ● Alarms | ● Alarms | ● Alarms | ● Alarms | ● Alarms |
| Seat Belt Reminder | ●Principal Driver | ●Principal Driver | ●Principal Driver | ●Principal Driver | ●Principal Driver | ●Principal Driver | ●Principal Driver | ●Principal Driver | ●Principal Driver | ●Principal Driver |
| Auxiliary/Manipulation Configurations | ●Passenger | ●Passenger | ●Passenger | ●Passenger | ●Passenger | ●Passenger | ●Passenger | ●Passenger | ●Passenger | ●Passenger |
| parking radar | ● Post | ● Post | ● Post | ● Post | ● Post | ● Post | ● Post | ● Post | ● Post | ● Post |
| Driver Assistance Video | - | - | ● Backup camera | ● Backup camera | ● Backup camera | ● Backup camera | ● Backup camera | ● Backup camera | ● Backup camera | ● Backup camera |
| cruise control | - | - | ●Cruise control | ●Cruise control | ●Cruise control | ●Cruise control | ●Cruise control | ●Cruise control | ●Cruise control | ●Cruise control |
| Driving Mode Switching | :: Campaigns | :: Campaigns | :: Campaigns | :: Campaigns | :: Campaigns | :: Campaigns | :: Campaigns | :: Campaigns | :: Campaigns | :: Campaigns |
| :: Economy | :: Economy | :: Economy | :: Economy | :: Economy | :: Economy | :: Economy | :: Economy | :: Economy | :: Economy | |
| :: Standard/comfort | :: Standard/comfort | :: Standard/comfort | :: Standard/comfort | :: Standard/comfort | :: Standard/comfort | :: Standard/comfort | :: Standard/comfort | :: Standard/comfort | :: Standard/comfort | |
| :: Snow | :: Snow | :: Snow | :: Snow | |||||||
| ● Off-road | ● Off-road | ● Off-road | ● Off-road | |||||||
| steep incline and slow descent | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| hill-holding aid | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| automatic parking | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| External/anti-theft configurations | ||||||||||
| Key Type | ●Remote key | ●Remote key | ●Remote key | ●Remote key | ●Remote key | ●Remote key | ●Remote key | ●Remote key | ●Remote key | ●Remote key |
| Keyless entry | - | - | ● | ● | ● | ● | ● | ● | ● | ● |
| Keyless Start System | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Central locking in the car | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Internal Configuration | ||||||||||
| Steering wheel material | :: Plastics | :: Plastics | :: Plastics | :: Plastics | :: Plastics | :: Plastics | :: Plastics | :: Plastics | :: Plastics | :: Plastics |
| Steering wheel functions | :: Multifunctionality | :: Multifunctionality | :: Multifunctionality | :: Multifunctionality | :: Multifunctionality | :: Multifunctionality | :: Multifunctionality | :: Multifunctionality | :: Multifunctionality | :: Multifunctionality |
| Gear Shift Form | ●Electronic gearshift | ●Electronic gearshift | ●Electronic gearshift | ●Electronic gearshift | ●Electronic gearshift | ●Electronic gearshift | ●Electronic gearshift | ●Electronic gearshift | ●Electronic gearshift | ●Electronic gearshift |
| Liquid crystal instrument size | 8.8 inches | 8.8 inches | 8.8 inches | 8.8 inches | 8.8 inches | 8.8 inches | 8.8 inches | 8.8 inches | 8.8 inches | 8.8 inches |
| seating | ||||||||||
| Seat Material | :: Fabrics | :: Fabrics | :: Imitation leather | :: Imitation leather | :: Imitation leather | :: Imitation leather | :: Imitation leather | :: Imitation leather | :: Imitation leather | :: Imitation leather |
| Integral adjustment of the main driver's seat | ●Before and after | ●Before and after | ●Before and after | ●Before and after | ●Before and after | ●Before and after | ●Before and after | ●Before and after | ●Before and after | ●Before and after |
| ●Backrests | ●Backrests | ●Backrests | ●Backrests | ●Backrests | ●Backrests | ●Backrests | ●Backrests | ●Backrests | ●Backrests | |
| ●High/Low (2-way) | ●High/Low (2-way) | ●High/Low (2-way) | ●High/Low (2-way) | ●High/Low (2-way) | ●High/Low (2-way) | ●High/Low (2-way) | ●High/Low (2-way) | ●High/Low (2-way) | ●High/Low (2-way) | |
| Passenger seat overall adjustment | ●Before and after | ●Before and after | ●Before and after | ●Before and after | ●Before and after | ●Before and after | ●Before and after | ●Before and after | ●Before and after | ●Before and after |
| ●Backrests | ●Backrests | ●Backrests | ●Backrests | ●Backrests | ●Backrests | ●Backrests | ●Backrests | ●Backrests | ●Backrests | |
| Second row seat adjustment | ●Proportional lowering | ●Proportional lowering | ●Proportional lowering | ●Proportional lowering | ●Proportional lowering | ●Proportional lowering | ●Proportional lowering | ●Proportional lowering | ●Proportional lowering | ●Proportional lowering |
| multimedia | ||||||||||
| Large color screen in the center console | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Bluetooth/Car Phone | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Number of audio speakers | 2 | 2 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Center screen size | ●8 inches | ●8 inches | ●8 inches | ●8 inches | ●8 inches | ●8 inches | ●8 inches | ●8 inches | ●8 inches | ●8 inches |
| Interface Support | ● USB port | ● USB port | ● USB port | ● USB port | ● USB port | ● USB port | ● USB port | ● USB port | ● USB port | ● USB port |
| (stage) lighting | ||||||||||
| low beam (headlights) | ● Halogen | ● Halogen | ● Halogen | ● Halogen | ● Halogen | ● Halogen | ● Halogen | ● Halogen | ● Halogen | ● Halogen |
| high beam (headlights) | ● Halogen | ● Halogen | ● Halogen | ● Halogen | ● Halogen | ● Halogen | ● Halogen | ● Halogen | ● Halogen | ● Halogen |
| LED daytime running lights | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Automatic headlights | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Glass/Mirror | ||||||||||
| power window | ●Forward | ●Forward | ●Forward | ●Forward | ●Forward | ●Forward | ●Forward | ●Forward | ●Forward | ●Forward |
| ● Post | ● Post | ● Post | ● Post | ● Post | ● Post | ● Post | ● Post | ● Post | ● Post | |
| One-touch window lifting | - | - | ● Full vehicle | ● Full vehicle | ● Full vehicle | ● Full vehicle | ● Full vehicle | ● Full vehicle | ● Full vehicle | ● Full vehicle |
| Anti Window Pinch Handle | - | - | ● | ● | ● | ● | ● | ● | ● | ● |
| rearview mirror | ●Motorized adjustment | ●Motorized adjustment | ●Motorized adjustment | ●Motorized adjustment | ●Motorized adjustment | ●Motorized adjustment | ●Motorized adjustment | ●Motorized adjustment | ●Motorized adjustment | ●Motorized adjustment |
| rearview mirror | ●Manual anti-glare | ●Manual anti-glare | ●Manual anti-glare | ●Manual anti-glare | ●Manual anti-glare | ●Manual anti-glare | ●Manual anti-glare | ●Manual anti-glare | ●Manual anti-glare | ●Manual anti-glare |
| Air conditioners/refrigerators | ||||||||||
| Air conditioning control method | ●Manual control | ●Manual control | ●Manual control | ●Manual control | ●Manual control | ●Manual control | ●Manual control | ●Manual control | ●Manual control | ●Manual control |
| PM2.5 filtration | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
