Arcfox T1







Exterior Design

Arcfox T1 adopts the official design concept of the new generation of Arc-Flow. The front face adopts a closed grille design, together with a penetrating LED light strip.

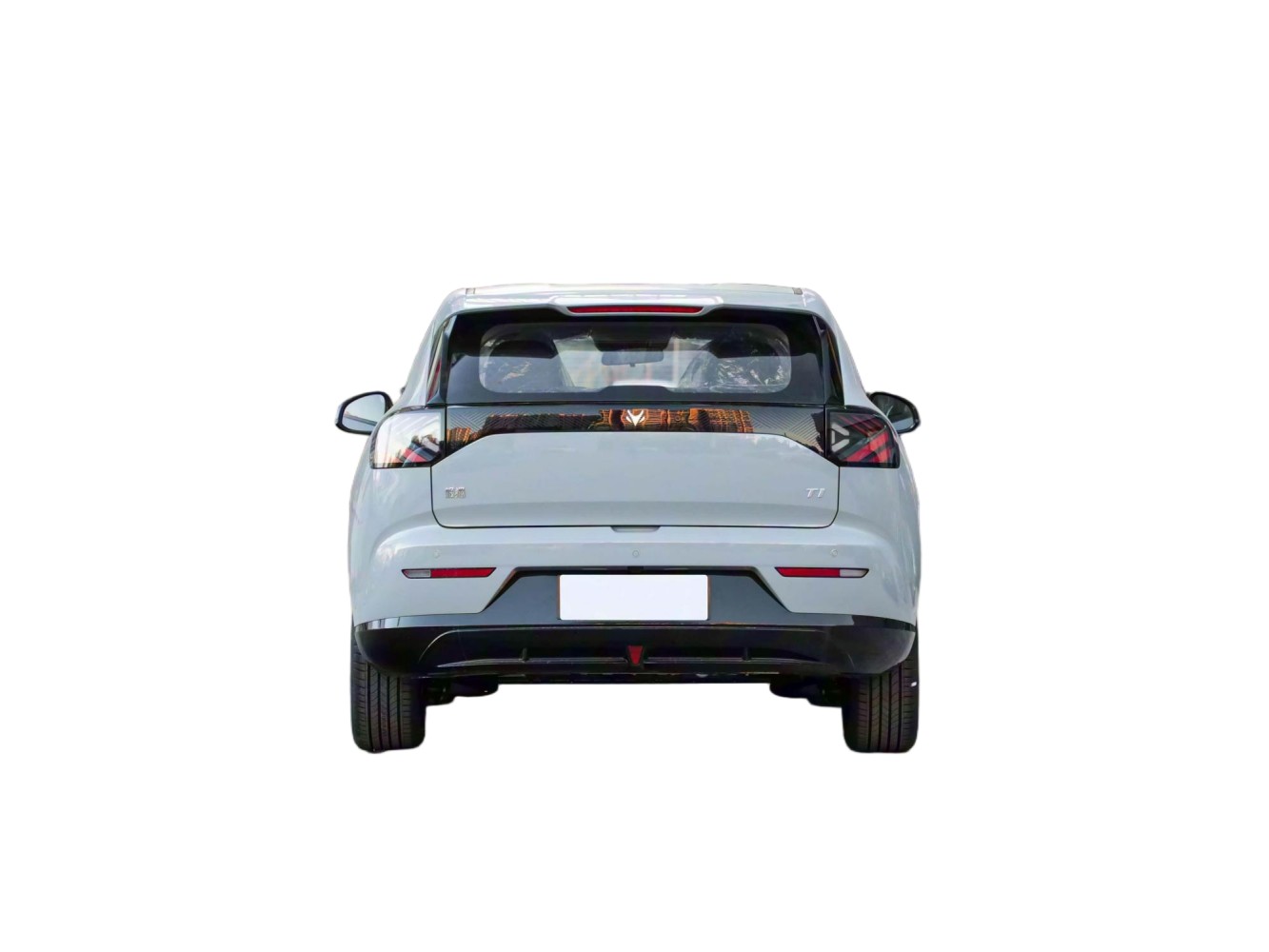

The rear of the car also adopts a through-tail light design, echoing the front face. The new car offers six stylish body color choices, including Morning White, Wanner Blue, Flowing Silver, Grass Dew Green, Haze Purple and Midnight Gray.

In terms of body dimensions, the new car’s length, width and height are 4337/1860/1572mm respectively, and its wheelbase reaches 2770mm, a figure that is quite outstanding in its class.

Interior design

Arcfox T1 is equipped with the only surrounded technology cabin in its class, with a 15.6-inch center control screen + 8.8-inch LCD instrumentation, key information can be seen with the eyes up. The Microcloud fiber velvet material, which is the same as that of the million-dollar luxury models, is soft and skin-friendly, with good temperature adaptability, and covered with nano-scale anti-fouling coating, so that even light-colored interiors can be used with peace of mind. The seat part adopts the cloud feeling embracing ergonomic design, with both wrapping and supporting feeling, not easy to be fatigued after a long time riding, and is equipped with heating, ventilating, and memory functions, which are warm in winter and cool in summer, all in one.

Space performance is one of the core selling points of Arcfox T1. With a long wheelbase of 2770mm, its rear legroom reaches 934mm, even exceeding the level of some B-class cars. The front seats support the one-touch flattening function, which can be connected with the rear to form a 1.8-meter-long resting space, which is very suitable for camping and lunch break scenarios. In terms of storage, the trunk volume can be flexibly changed between 459 liters and 1,352 liters, and there are 32 storage areas in the whole car to fully meet the needs of a variety of car scenarios.

Power

Arcfox T1 is equipped with a front-mounted permanent magnet synchronous motor, providing two power versions of 70kW and 95kW. The battery pack offers 33.4kWh and 42.3kWh capacity options, corresponding to a CLTC range of 320km and 425km respectively.





	2025 Arcfox T1 320 PRO	2025 Arcfox T1 320 PLUS	2025 Arcfox T1 425 PRO	2025 Arcfox T1 425 PLUS	2025 Arcfox T1 425 MAX
Basic Information
Time to market	2025.09	2025.09	2025.09	2025.09	2025.09
Body level	Small hatchback	Small hatchback	Small hatchback	Small hatchback	Small hatchback
Length*Width*Height(mm)	4337*1860*1572	4337*1860*1572	4337*1860*1572	4337*1860*1572	4337*1860*1572
Energy type	Pure electric	Pure electric	Pure electric	Pure electric	Pure electric
CLTC pure electric range (km)	320	320	425	425	425
Total motor power (kW)	95	95	70	70	70
Total torque of the motor (N·m)	176	176	176	176	176
Maximum speed (km/h)	150	150	140	140	140
Battery Type	lithium iron phosphate battery	lithium iron phosphate battery	lithium iron phosphate battery	lithium iron phosphate battery	lithium iron phosphate battery
Battery capacity (kWh)	33.4	33.4	42.3	42.3	42.3
Fast charging time (h)	0.28	0.28	0.28	0.28	0.28
Fast charging capacity (%)	30-80	30-80	30-80	30-80	30-80
Warranty Policy	Five years or 120,000 kilometers	Five years or 120,000 kilometers	Five years or 120,000 kilometers	Five years or 120,000 kilometers	Five years or 120,000 kilometers
body
Length (mm)	4337	4337	4337	4337	4337
Width (mm)	1860	1860	1860	1860	1860
Height(mm)	1572	1572	1572	1572	1572
Wheelbase (mm)	2770	2770	2770	2770	2770
Front wheelbase (mm)	1600	1600	1600	1600	1600
Rear wheelbase (mm)	1610	1610	1610	1610	1610
Curb mass (kg)	1415	1415	1420	1420	1420
Maximum full load mass (kg)	1825	1825	1825	1825	1825
Luggage compartment volume (L)	459-1352	459-1352	459-1352	459-1352	459-1352
Number of doors	5	5	5	5	5
Number of seats	5	5	5	5	5
Approach angle (°)	19	19	19	19	19
Departure angle (°)	twenty three	twenty three	twenty three	twenty three	twenty three
electric motor
Total motor power (kW)	95	95	70	70	70
Total torque of the motor (N·m)	176	176	176	176	176
Maximum power of front motor (kW)	95	95	70	70	70
Maximum torque of front motor (N·m)	176	176	176	176	176
CLTC pure electric range (km)	320	320	425	425	425
Battery capacity (kWh)	33.4	33.4	42.3	42.3	42.3
Power consumption per 100 kilometers (kWh/100km)	11.2	11.2	11.2	11.2	11.2
Electric energy equivalent fuel consumption (L/100km)	1.3	1.3	1.3	1.3	1.3
Slow charging time (h)	11	11	7.5	7.5	7.5
Fast charging time (h)	0.28	0.28	0.28	0.28	0.28
Motor structure	permanent magnet	permanent magnet	permanent magnet	permanent magnet	permanent magnet
How a motor works	synchronous	synchronous	synchronous	synchronous	synchronous
Number of drive motors	Single motor	Single motor	Single motor	Single motor	Single motor
Motor layout	Pre	Pre	Pre	Pre	Pre
Battery Type	lithium iron phosphate battery	lithium iron phosphate battery	lithium iron phosphate battery	lithium iron phosphate battery	lithium iron phosphate battery
Battery cell brand	China New Aviation	China New Aviation	China New Aviation	Juwan Yinpai	China New Aviation
Battery cooling method	Direct cooling	Direct cooling	Direct cooling	Direct cooling	Direct cooling
Battery energy density (Wh/kg)	125	125	135	135	135
Fast charging function	support	support	support	support	support
Fast charging capacity (%)	30-80	30-80	30-80	30-80	30-80
Energy recovery	●	●	●	●	●
Chassis/Steering
Drive type	front-wheel drive	front-wheel drive	front-wheel drive	front-wheel drive	front-wheel drive
Front suspension type	McPherson independent suspension	McPherson independent suspension	McPherson independent suspension	McPherson independent suspension	McPherson independent suspension
Rear suspension type	Torsion beam non-independent suspension	Torsion beam non-independent suspension	Torsion beam non-independent suspension	Torsion beam non-independent suspension	Torsion beam non-independent suspension
Power steering form	Electric power steering	Electric power steering	Electric power steering	Electric power steering	Electric power steering
Wheels/Brakes
Front/rear brake type	Ventilated disc/disc	Ventilated disc/disc	Ventilated disc/disc	Ventilated disc/disc	Ventilated disc/disc
Parking brake type	Electronic parking brake	Electronic parking brake	Electronic parking brake	Electronic parking brake	Electronic parking brake
Front tire specifications	215/55 R17	215/55 R17	215/55 R17	215/55 R18	215/55 R18
Rear tire specifications	215/55 R17	215/55 R17	215/55 R17	215/55 R18	215/55 R18
Wheel material	steel	steel	steel	aluminum alloy	aluminum alloy
Active/passive safety configuration
ABS anti-lock braking system	●	●	●	●	●
Braking force distribution (EBD/CBC, etc.)	●	●	●	●	●
Brake assist (BA/EBA/BAS, etc.)	●	●	●	●	●
Traction control (ASR/TCS/TRC, etc.)	●	●	●	●	●
Vehicle stability control (ESC/ESP/DSC, etc.)	●	●	●	●	●
Active braking/safety systems	-	-	-	-	●
Lane centering	-	-	-	-	●
Lane Departure Warning	-	-	-	-	●
Road traffic sign recognition	-	-	-	-	●
Low speed warning	●	●	●	●	●
Front airbags	●Driver's airbag	●Driver's airbag	●Driver's airbag	●Driver's airbag	●Driver's airbag
	●Passenger's airbag	●Passenger's airbag	●Passenger's airbag	●Passenger's airbag	●Passenger airbag
	●Side airbag	●Side airbag	●Side airbag	●Side airbag	●Side airbag
					●Head airbag (air curtain)
rear airbags	-	-	-	-	●Head airbag (air curtain)
Tire pressure detection device	●Alarm	●Alarm	●Alarm	●Alarm	●Alarm
Seat belt not fastened reminder	Front row	Front row	Front row	Front row	Front row
ISOFIX child seat	●	●	●	●	●
Forward Collision Warning	-	-	-	-	●
Auxiliary/control configuration
parking radar	After	After	After	After	●Front
					●Back
Driving assistance images	Reversing image	●360-degree panoramic image	●360-degree panoramic image	●360-degree panoramic image	●360-degree panoramic image
		●Blind spot image	●Blind spot image	●Blind spot image	●Blind spot image
Transparent chassis/540-degree imaging	-	●	●	●	●
Cruise control system	Cruise control	Cruise control	Cruise control	Cruise control	●Full-speed adaptive cruise control
Driving mode switch	●Sports	●Sports	●Sports	●Sports	●Sports
	●Economy	●Economy	●Economy	●Economy	●Economy
	●Standard/Comfort	●Standard/Comfort	●Standard/Comfort	●Standard/Comfort	●Standard/Comfort
	●Customized/Personalized	●Customized/Personalized	●Customized/Personalized	●Customized/Personalized	●Customized/Personalized
Steep slope descent	●	●	●	●	●
Hill-start assist	●	●	●	●	●
Automatic parking	●	●	●	●	●
Remote control parking	-	-	-	-	●
Track reverse	-	-	-	-	●
Driving assistance level	-	-	-	-	L2
External/anti-theft configuration
Skylight	-	-	-	●The panoramic sunroof cannot be opened	●The panoramic sunroof cannot be opened
Trunk opening method	-	-	-	●Electric	●Electric
Electric trunk position memory	-	-	-	●	●
Key type	●Remote control key	●Remote control key	●Remote control key	●Remote control key	●Remote control key
	●Bluetooth key	●Bluetooth key	●Bluetooth key	●Bluetooth key	●Bluetooth key
Keyless entry	●	●	●	●	●
Keyless start system	●	●	●	●	●
Remote start function	●	●	●	●	●
Central locking system in the car	●	●	●	●	●
Internal Configuration
Steering wheel material	Leather	Leather	Leather	Leather	Leather
Steering wheel adjustment	●Manually	●Manually	●Manually	●Manually	●Manually
	adjustable up and down,	adjustable up and down,	adjustable up and down,	adjustable up and down,	adjustable up and down,
	front and back	front and back	front and back	front and back	front and back
Steering wheel functions	Multifunctional	Multifunctional	Multifunctional	Multifunctional	Multifunctional
Central armrest	●Before	●Before	●Before	●Before	●Before
Gear shifting	●Electronic hand-held gear shift	●Electronic hand-held gear shift	●Electronic hand-held gear shift	●Electronic hand-held gear shift	●Electronic hand-held gear shift
Sun visor makeup mirror	●	●	●	●	●
Full LCD instrument panel	●	●	●	●	●
LCD instrument size	8.8 inches	8.8 inches	8.8 inches	8.8 inches	8.8 inches
ETC device	-	-	-	-	●
Smart Hardware
Forward perception camera	-	-	-	-	Monocular
Number of cameras	1	4	4	4	5
Number of ultrasonic radars	3	3	3	3	12
Voice wake-up recognition by region	●Dual area	●Dual area	●Dual area	●Dual area	●Dual area
Seat
Seat material	Imitation leather	Imitation leather	Imitation leather	Imitation leather	Imitation leather
Front seat functions	-	Heating	Heating	●Heating	●Heating
				●Ventilation	●Ventilation
Electric seat adjustment	-	-	Driver	●Driver	●Driver
				●Passenger	●Passenger
Main seat adjustment method	●Front and rear adjustment	●Front and rear adjustment	●Front and rear adjustment	●Front and rear adjustment	●Front and rear adjustment
	●Backrest adjustment	●Backrest adjustment	●Backrest adjustment	●Backrest adjustment	●Backrest adjustment
	●Height adjustment (2-way)	●Height adjustment (2-way)	●Height adjustment (2-way)	●Height adjustment (2-way)	●Height adjustment (2-way)
Passenger seat adjustment method	●Front and rear adjustment	●Front and rear adjustment	●Front and rear adjustment	●Front and rear adjustment	●Front and rear adjustment
	●Backrest adjustment	●Backrest adjustment	●Backrest adjustment	●Backrest adjustment	●Backrest adjustment
Second row seat adjustment	●Take it down as a whole	●Take it down as a whole	●Take it down as a whole	●Proportional tilt	●Proportional tilt
multimedia
Large color screen on the center console	Touch LCD screen	Touch LCD screen	Touch LCD screen	Touch LCD screen	Touch LCD screen
Satellite navigation system	●	●	●	●	●
Navigation traffic information display	●	●	●	●	●
Map Brand	AutoNavi	AutoNavi	AutoNavi	AutoNavi	AutoNavi
Roadside assistance call	●	●	●	●	●
In-vehicle intelligent system	α-OS	α-OS	α-OS	α-OS	α-OS
Car computer smart chip	X9HP	X9HP	X9HP	X9HP	X9HP
Mobile APP remote function	● Door control	● Door control	● Door control	● Door control	● Door control
	● Vehicle start	● Vehicle start	● Vehicle start	● Vehicle start	● Vehicle start
	● Charging management	● Charging management	● Charging management	● Charging management	● Charging management
	● Vehicle location/search	● Vehicle location/search	● Vehicle location/search	● Vehicle location/search	● Vehicle location/search
	● Maintenance/repair reservation	● Maintenance/repair reservation	● Maintenance/repair reservation	● Maintenance/repair reservation	● Maintenance/repair reservation
Bluetooth/car phone	●	●	●	●	●
Mobile phone interconnection/mapping	●Support CarPlay	●Support CarPlay	●Support CarPlay	●Support CarPlay	●Support CarPlay
	●Support HUAWEI HiCar	●Support HUAWEI HiCar	●Support HUAWEI HiCar	●Support HUAWEI HiCar	●Support HUAWEI HiCar
	●Support Carlink	●Support Carlink	●Support Carlink	●Support Carlink	●Support Carlink
Number of audio speakers	4	4	4	6	6
Voice recognition control system	●	●	●	●	●
Central control screen size	15.6 inches	15.6 inches	15.6 inches	15.6 inches	15.6 inches
Central control screen resolution	1920x1080	1920x1080	1920x1080	1920x1080	1920x1080
Central control screen pixel density	141PPI	141PPI	141PPI	141PPI	141PPI
Voice wake-up word-free	●	●	●	●	●
Voice assistant wake-up word	Little Fox	Little Fox	Little Fox	Little Fox	Little Fox
Continuous Speech Recognition	●	●	●	●	●
Seeing is telling	●	●	●	●	●
4G/5G network	4G	4G	4G	4G	4G
Wi-Fi hotspots	●	●	●	●	●
Internet of Vehicles	●	●	●	●	●
OTA upgrade	●	●	●	●	●
Interface support	●USB port	●USB port	●USB port	●USB port	●USB port
	●Type-C port	●Type-C port	●Type-C port	●Type-C port	●Type-C port
Number of USB/Type-C ports	2 in the front row / 1 in the back row	2 in the front row / 1 in the back row	2 in the front row / 1 in the back row	2 in the front row / 1 in the back row	2 in the front row / 1 in the back row
USB/Type-C maximum charging power	66W	66W	66W	66W	66W
Vehicle system memory (GB)	8	8	8	8	8
Vehicle system storage (GB)	64	64	64	64	64
App Store	●	●	●	●	●
light
low beam	LED	LED	LED	LED	LED
High beam	LED	LED	LED	LED	LED
Adaptive high and low beam	-	-	-	-	●
Adjustable headlights	●	●	●	●	●
Automatic headlights	●	●	●	●	●
Headlight delayed off	●	●	●	●	●
Glass/rearview mirror
Power windows	●Front	●Front	●Front	●Front	●Front
	●Back	●Back	●Back	●Back	●Back
One-touch window lift	●Full vehicle	●Full vehicle	●Full vehicle	●Full vehicle	●Full vehicle
Car window anti-pinch finger	●	●	●	●	●
exterior mirrors	●Electric adjustment	●Electric adjustment	●Electric adjustment	●Electric adjustment	●Electric adjustment
					●Electric folding
					●Memory
					●Heating
					●Automatic folding when locking the car
					●Automatic downward folding when reversing
Interior rearview mirror	●Manual anti-glare	●Manual anti-glare	●Manual anti-glare	●Manual anti-glare	●Manual anti-glare
rain-sensing wipers	●	●	●	●	●
Air conditioning/refrigerator
Air conditioning control method	Automatic control	Automatic control	Automatic control	Automatic control	Automatic control
heat pump air conditioner	●	●	●	●	●
rear air outlet	●	●	●	●	●
