Exterior Design

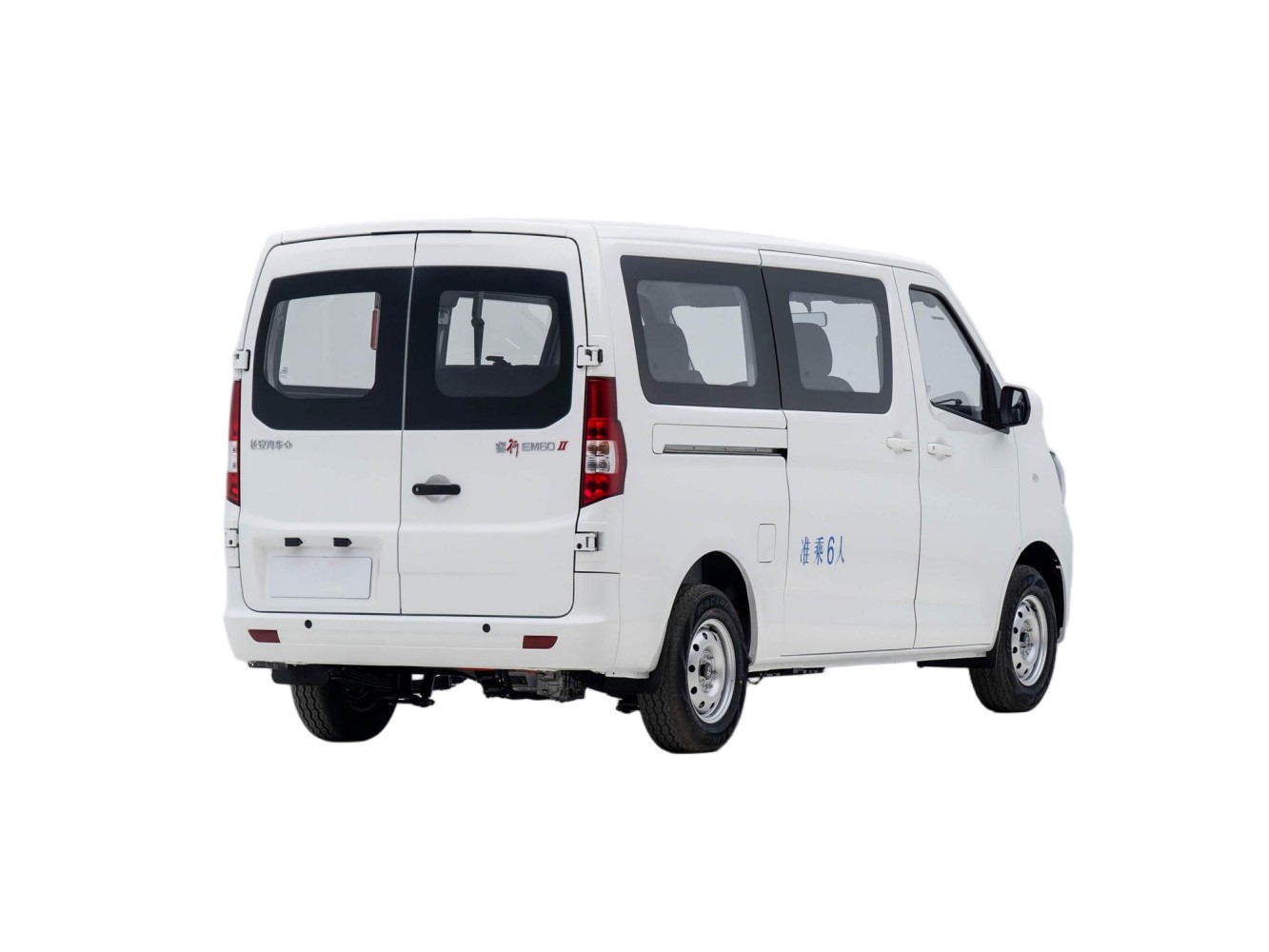

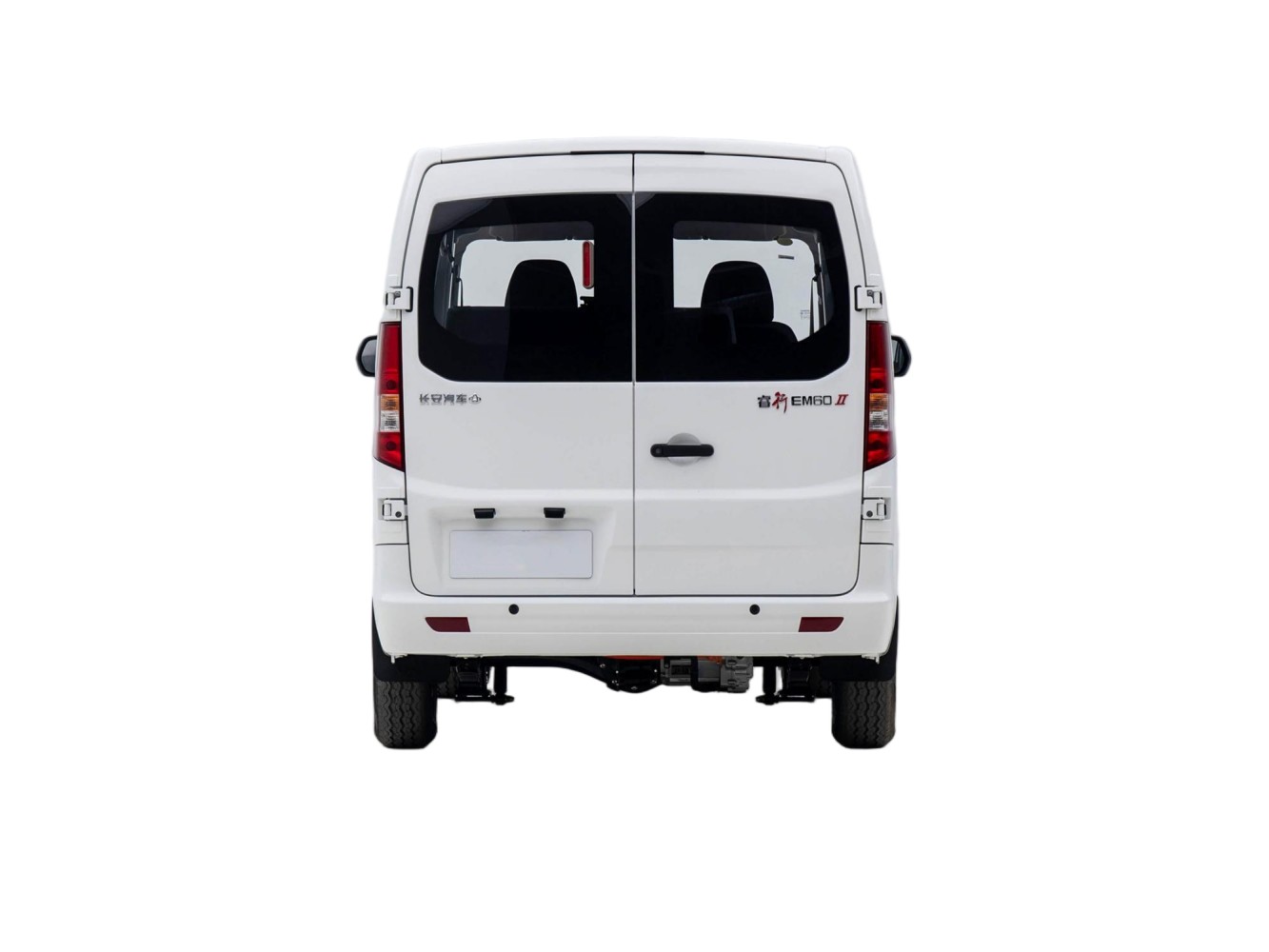

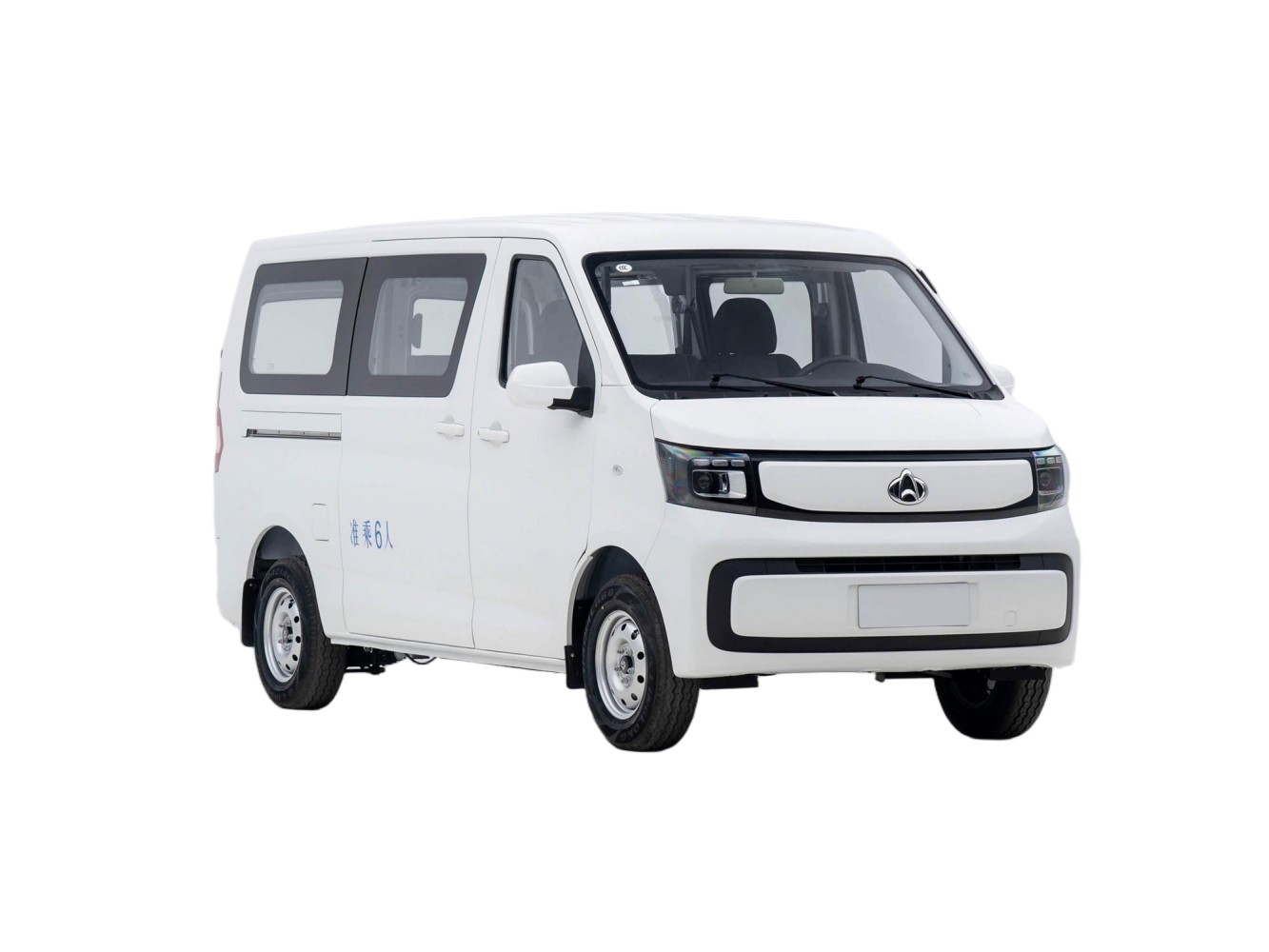

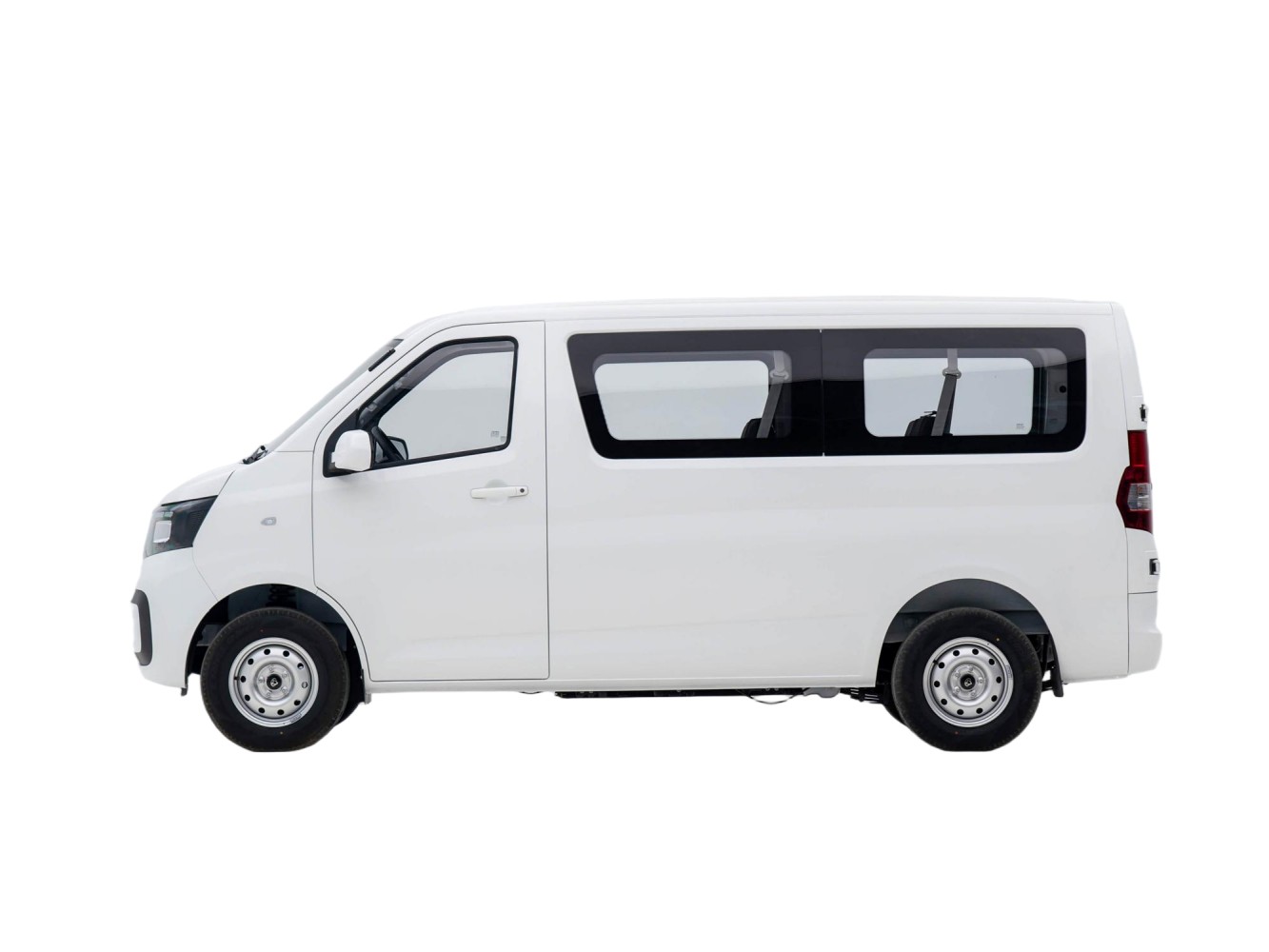

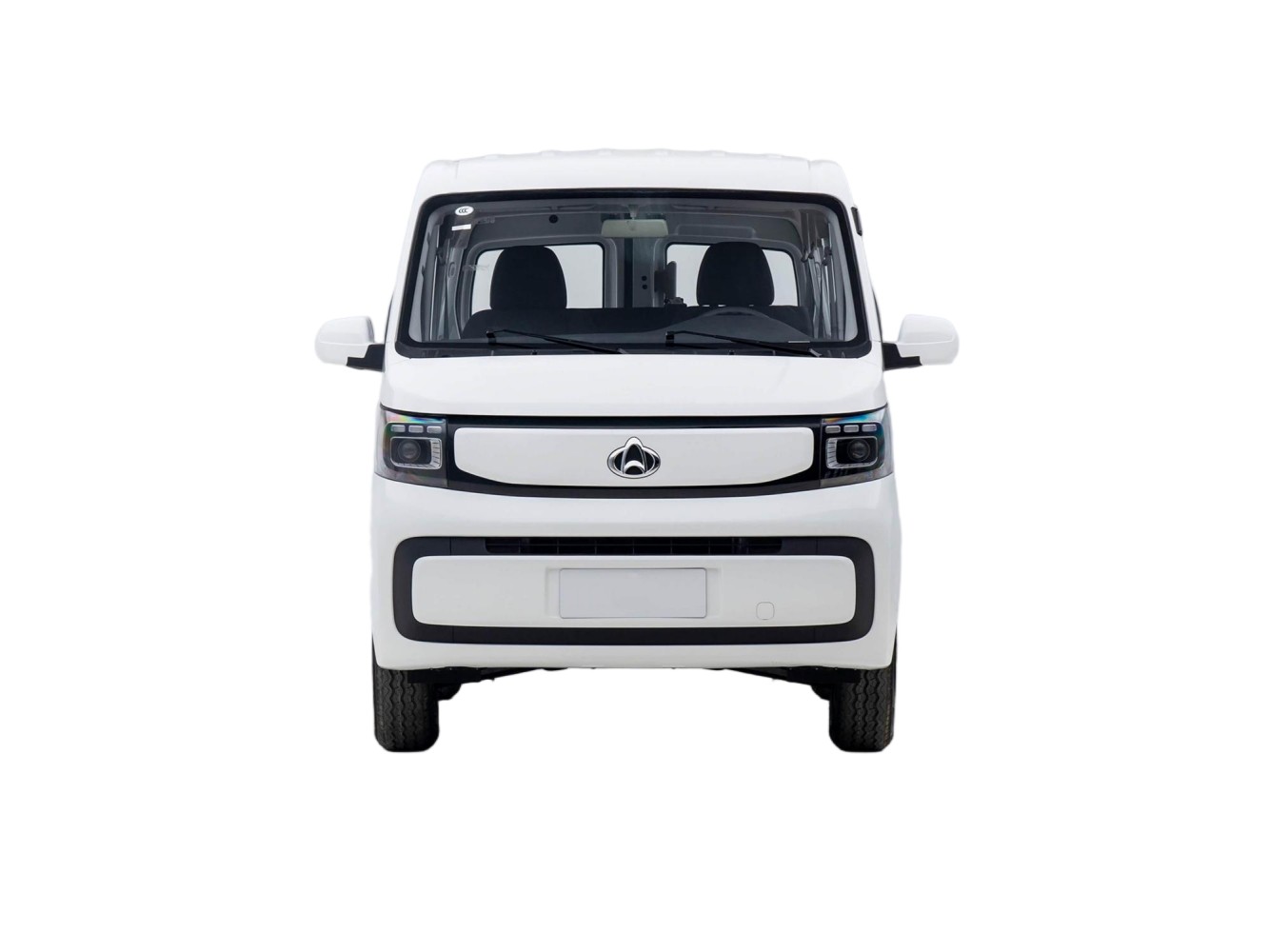

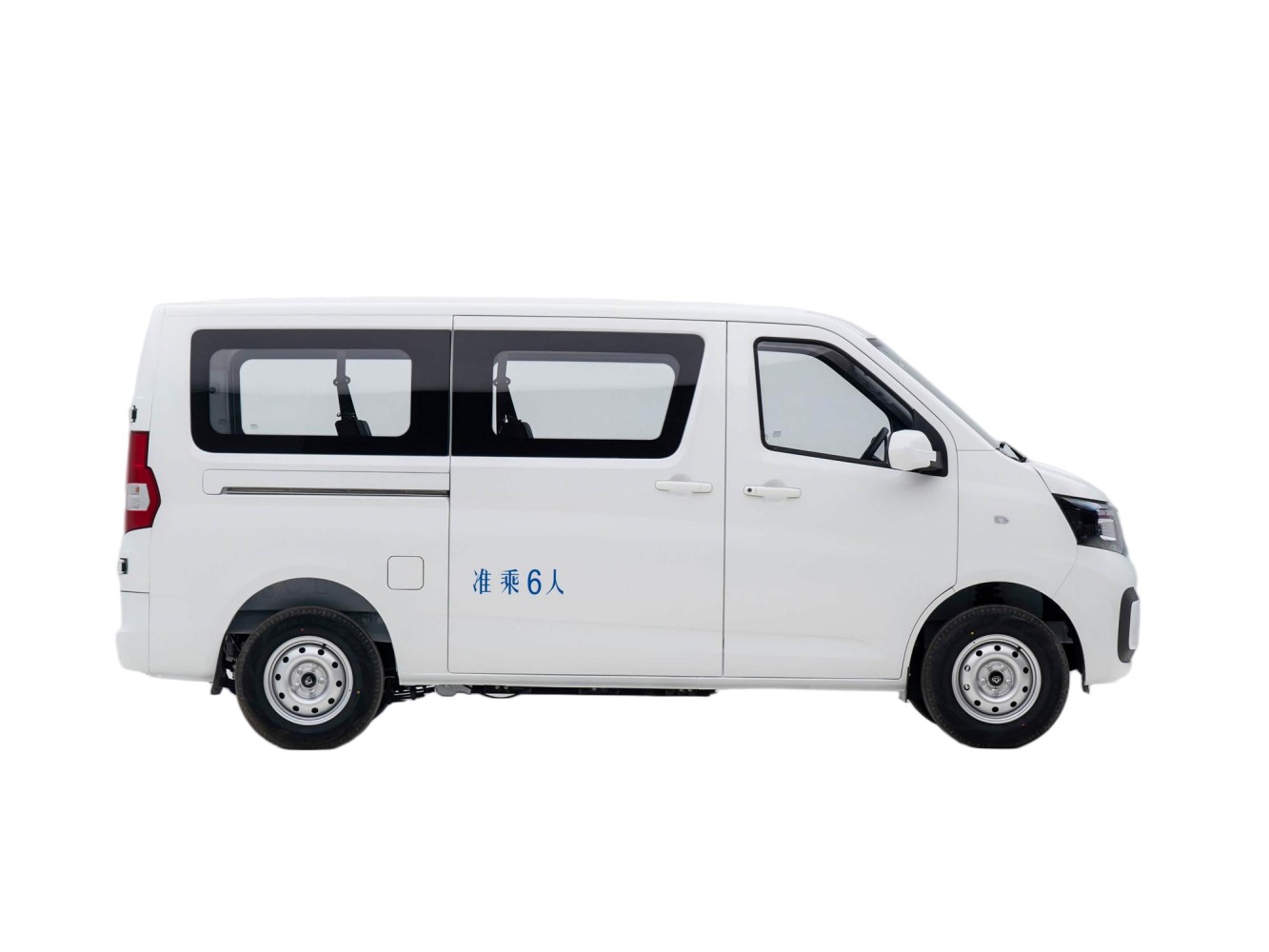

The Changan Ruixing EM60 is a micro pure electric commercial vehicle, equipped with a closed front grille and halogen headlight groups. The vehicle is fitted with vertical taillight groups and practical rear bumper trim. Multiple body color options are available. The vehicle adopts 15-inch wheel configurations for different versions. Conventional door handles are equipped as standard.
The vehicle adopts a 5-door layout with 2-seater, 5-seater and 7-seater cabin configurations. The body dimensions are 4575 mm in length, 1715 mm in width and 1990 mm in height, with a wheelbase of 3000 mm. Manually adjustable exterior mirrors are standard configurations. Rear flip door and opposite door structures are available for different versions.
Interior Design
The vehicle is equipped with a liquid crystal instrument panel and central control display screen for high-spec versions. Multiple interior color schemes are available, matched with fabric upholstery and plastic decorative trim. The vehicle supports manual air conditioning system. A mechanical gear shift lever is equipped as standard.
Standard configurations include rear parking sensors and rearview camera. Manual door locks and manual window lifts are standard. The vehicle supports Bluetooth connection and USB interface functions. Partial versions are equipped with battery heating function.
Powertrain
The Changan Ruixing EM60 adopts front-wheel drive layout, matched with single-speed electric transmission. The vehicle is equipped with a front-mounted permanent magnet synchronous motor. The motor has maximum power of 60 kW and 70 kW for different versions, with a peak torque of 220 Nm and 175 Nm respectively.
The vehicle is equipped with lithium iron phosphate battery packs. The CLTC pure electric cruising range covers 240 km, 265 km and 300 km for different versions. The vehicle supports AC slow charging function. The vehicle adopts front MacPherson independent suspension and rear leaf spring non-independent suspension system.
| 2024 Ruixing EM60 Hatchback Comfort 2-Seater 41.86kWh SC5031XXYABCBEV | 2024 Ruixing EM60 Hatchback Comfort 2-Seater 41.86kWh SC5031XXYABABEV | 2024 Ruixing EM60 Hatchback Comfort 5-Seater 41.86kWh SC5031XXYABCBEV | 2024 RWD EM60 Folio Comfort 2-Seater 41.86kWh SC5031XXYABCBEV | 2024 RWD EM60 Hatchback Comfort 5-Seater 41.86kWh SC5031XXYABABEV | 2024 RWD EM60 Folio Comfort 2-Seater 41.86kWh SC5031XXYABABEV | 2024 RWD EM60 Folio Comfort 5-Seater 41.86kWh SC5031XXYABCBEV | 2024 RWD EM60 Folio Comfort 5-Seater 41.86kWh SC5031XXYABABEV | 2024 RWD EM60 Fortune Edition Liftback Door 2 Seater 38.7kWh | 2024 Changan Ruixing EM60 Fortune Edition 6-seater 41.86kWh | 2024 RWD EM60 Fortune Edition Liftback Door 2 Seater 41.86kWh | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Basic Information | |||||||||||
| Availability | 2024.02 | 2024.02 | 2024.02 | 2024.02 | 2024.02 | 2024.02 | 2024.02 | 2024.02 | 2024.06 | 2024.06 | 2024.06 |
| vehicle class | lightweight construction | lightweight construction | lightweight construction | lightweight construction | lightweight construction | lightweight construction | lightweight construction | lightweight construction | lightweight construction | lightweight construction | lightweight construction |
| Length*Width*Height(mm) | 4525*1715*1990 | 4525*1715*1990 | 4525*1715*1990 | 4525*1715*1990 | 4525*1715*1990 | 4525*1715*1990 | 4525*1715*1990 | 4525*1715*1990 | 4525*1715*1990 | 4525*1715*1990 | 4525*1715*1990 |
| Type of energy | all-electric | all-electric | all-electric | all-electric | all-electric | all-electric | all-electric | all-electric | all-electric | all-electric | all-electric |
| NEDC pure electric range (km) | - | - | - | - | - | - | - | - | 265 | - | 300 |
| CLTC pure electric range (km) | 300 | 260 | 300 | 300 | 260 | 260 | 300 | 260 | - | 270 | - |
| Total motor power (kW) | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Total motor torque (N-m) | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
| Maximum speed (km/h) | 90 | 100 | 90 | 90 | 100 | 100 | 90 | 100 | 100 | 100 | 90 |
| Battery Type | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery |
| body of automobile | |||||||||||
| Length (mm) | 4525 | 4525 | 4525 | 4525 | 4525 | 4525 | 4525 | 4525 | 4525 | 4525 | 4525 |
| Width (mm) | 1715 | 1715 | 1715 | 1715 | 1715 | 1715 | 1715 | 1715 | 1715 | 1715 | 1715 |
| Height (mm) | 1990 | 1990 | 1990 | 1990 | 1990 | 1990 | 1990 | 1990 | 1990 | 1990 | 1990 |
| Wheelbase (mm) | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Front wheelbase(mm) | 1445 | 1445 | 1445 | 1445 | 1445 | 1445 | 1445 | 1445 | 1445 | 1445 | 1445 |
| Rear wheelbase(mm) | 1506 | 1506 | 1506 | 1506 | 1506 | 1506 | 1506 | 1506 | 1506 | 1506 | 1506 |
| Weight (kg) | 1510 | 1510 | 1535 | 1510 | 1535 | 1510 | 1535 | 1535 | 1510 | 1560 | 1510 |
| Number of doors (pcs) | 4 | 4 | 4 | 5 | 4 | 5 | 5 | 5 | 4 | 4 | 4 |
| Number of seats (pcs) | 2 | 2 | 5 | 2 | 5 | 2 | 5 | 5 | 2 | 6 | 2 |
| electric motor | |||||||||||
| Total motor power (kW) | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Total motor torque (N-m) | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
| Maximum power of rear electric motor (kW) | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Rear motor maximum torque (N-m) | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
| NEDC pure electric range (km) | - | - | - | - | - | - | - | - | 265 | - | 300 |
| CLTC pure electric range (km) | 300 | 260 | 300 | 300 | 260 | 260 | 300 | 260 | - | 270 | - |
| Motor structure | permanent magnetism | permanent magnetism | permanent magnetism | permanent magnetism | permanent magnetism | permanent magnetism | permanent magnetism | permanent magnetism | permanent magnetism | permanent magnetism | permanent magnetism |
| Principle of motor operation | synchronization | synchronization | synchronization | synchronization | synchronization | synchronization | synchronization | synchronization | synchronization | synchronization | synchronization |
| Number of drive motors | single motor | single motor | single motor | single motor | single motor | single motor | single motor | single motor | single motor | single motor | single motor |
| Motor Layout | place after (e.g. in grammar) | place after (e.g. in grammar) | place after (e.g. in grammar) | place after (e.g. in grammar) | place after (e.g. in grammar) | place after (e.g. in grammar) | place after (e.g. in grammar) | place after (e.g. in grammar) | place after (e.g. in grammar) | place after (e.g. in grammar) | place after (e.g. in grammar) |
| Battery Type | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery |
| Battery Pack Warranty | Eight years or 400,000 kilometers | Eight years or 400,000 kilometers | Eight years or 400,000 kilometers | Eight years or 400,000 kilometers | Eight years or 400,000 kilometers | Eight years or 400,000 kilometers | Eight years or 400,000 kilometers | Eight years or 400,000 kilometers | Eight years or 400,000 kilometers | Eight years or 400,000 kilometers | Eight years or 400,000 kilometers |
| Battery preheating | ● | ● | ● | ● | ● | ● | ● | ● | - | - | - |
| Chassis/steering | |||||||||||
| Driving form | rear drive | rear drive | rear drive | rear drive | rear drive | rear drive | rear drive | rear drive | rear drive | rear drive | rear drive |
| Front suspension type | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension |
| Rear suspension type | Non-independent suspension with leaf springs | Non-independent suspension with leaf springs | Non-independent suspension with leaf springs | Non-independent suspension with leaf springs | Non-independent suspension with leaf springs | Non-independent suspension with leaf springs | Non-independent suspension with leaf springs | Non-independent suspension with leaf springs | Non-independent suspension with leaf springs | Non-independent suspension with leaf springs | Non-independent suspension with leaf springs |
| Steering assist form | electric power assist | electric power assist | electric power assist | electric power assist | electric power assist | electric power assist | electric power assist | electric power assist | electric power assist | electric power assist | electric power assist |
| Wheels/Brakes | |||||||||||
| Front/Rear Brake Type | Ventilated Disc / Drum | Ventilated Disc / Drum | Ventilated Disc / Drum | Ventilated Disc / Drum | Ventilated Disc / Drum | Ventilated Disc / Drum | Ventilated Disc / Drum | Ventilated Disc / Drum | Ventilated Disc / Drum | Ventilated Disc / Drum | Ventilated Disc / Drum |
| Front Tire Specification | 185R14LT | 185R14LT | 185R14LT | 185R14LT | 185R14LT | 185R14LT | 185R14LT | 185R14LT | 185R14LT | 185R14LT | 185R14LT |
| Rear Tire Specification | 185 R14C | 185 R14C | 185 R14C | 185 R14C | 185 R14C | 185 R14C | 185 R14C | 185 R14C | 185R14LT | 185 R14C | 185R14LT |
| Wheel Material | steel (chemistry) | steel (chemistry) | steel (chemistry) | steel (chemistry) | steel (chemistry) | steel (chemistry) | steel (chemistry) | steel (chemistry) | steel (chemistry) | steel (chemistry) | steel (chemistry) |
| Active/passive safety features | |||||||||||
| ABS anti-lock | - | - | - | - | - | - | - | - | ● | ● | ● |
| Brake force distribution (EBD/CBC etc.) | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Tire Pressure Detection Device | - | - | - | - | - | - | - | - | - | ●Display | - |
| Seat Belt Reminder | ●Principal Driver | ●Principal Driver | ●Principal Driver | ●Principal Driver | ●Principal Driver | ●Principal Driver | ●Principal Driver | ●Principal Driver | - | - | - |
| ISOFIX child restraints | - | - | - | - | - | - | - | - | - | ● | - |
| Auxiliary/Manipulation Configurations | |||||||||||
| parking radar | ● Post | ● Post | ● Post | ● Post | ● Post | ● Post | ● Post | ● Post | ● Post | ● Post | ● Post |
| Driving Mode Switching | :: Economy | :: Economy | :: Economy | :: Economy | :: Economy | :: Economy | :: Economy | :: Economy | :: Economy | :: Economy | :: Economy |
| External/anti-theft configurations | |||||||||||
| Key Type | ●Remote key | ●Remote key | ●Remote key | ●Remote key | ●Remote key | ●Remote key | ●Remote key | ●Remote key | ●Remote key | ●Remote key | ●Remote key |
| Central locking in the car | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Internal Configuration | |||||||||||
| Steering wheel material | :: Plastics | :: Plastics | :: Plastics | :: Plastics | :: Plastics | :: Plastics | :: Plastics | :: Plastics | - | - | - |
| seating | |||||||||||
| Seat Material | :: Fabrics | :: Fabrics | :: Fabrics | :: Fabrics | :: Fabrics | :: Fabrics | :: Fabrics | :: Fabrics | :: Fabrics | :: Fabrics | :: Fabrics |
| Integral adjustment of the main driver's seat | ●Before and after | ●Before and after | ●Before and after | ●Before and after | ●Before and after | ●Before and after | ●Before and after | ●Before and after | ●Before and after | ●Before and after | ●Before and after |
| ●Backrests | ●Backrests | ●Backrests | ●Backrests | ●Backrests | ●Backrests | ●Backrests | ●Backrests | ●Backrests | ●Backrests | ●Backrests | |
| Passenger seat overall adjustment | ●Before and after | ●Before and after | ●Before and after | ●Before and after | ●Before and after | ●Before and after | ●Before and after | ●Before and after | ●Before and after | ●Before and after | ●Before and after |
| ●Backrests | ●Backrests | ●Backrests | ●Backrests | ●Backrests | ●Backrests | ●Backrests | ●Backrests | ●Backrests | ●Backrests | ●Backrests | |
| Second row seat adjustment | - | - | - | - | - | - | - | - | - | - | - |
| multimedia | |||||||||||
| Bluetooth/Car Phone | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Number of audio speakers | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 1 |
| Interface Support | ●USB port | ●USB port | ●USB port | ●USB port | ●USB port | ●USB port | ●USB port | ●USB port | ● USB port | ●USB port | ●USB port |
| illumination | |||||||||||
| low beam (headlights) | ● Halogen | ● Halogen | ● Halogen | ● Halogen | ● Halogen | ● Halogen | ● Halogen | ● Halogen | ● Halogen | ● Halogen | ● Halogen |
| high beam (headlights) | ● Halogen | ● Halogen | ● Halogen | ● Halogen | ● Halogen | ● Halogen | ● Halogen | ● Halogen | ● Halogen | ● Halogen | ● Halogen |
| Adjustable headlights | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| front fog lights (of a motor vehicle) | - | - | - | - | - | - | - | - | - | - | - |
| Glass/Mirror | |||||||||||
| power window | ●Forward | ●Forward | ●Forward | ●Forward | ●Forward | ●Forward | ●Forward | ●Forward | ●Forward | ●Forward | ●Forward |
| ● Post | ● Post | ||||||||||
| One-touch window lifting | ● Front row | ● Front row | ● Front row | ● Front row | ● Front row | ● Front row | ● Front row | ● Front row | ● Front row | - | ● Front row |
| Air conditioners/refrigerators | |||||||||||
| Air conditioning control method | ●Manual control | ●Manual control | ●Manual control | ●Manual control | ●Manual control | ●Manual control | ●Manual control | ●Manual control | ●Manual control | ●Manual control | ●Manual control |
