Exterior Design

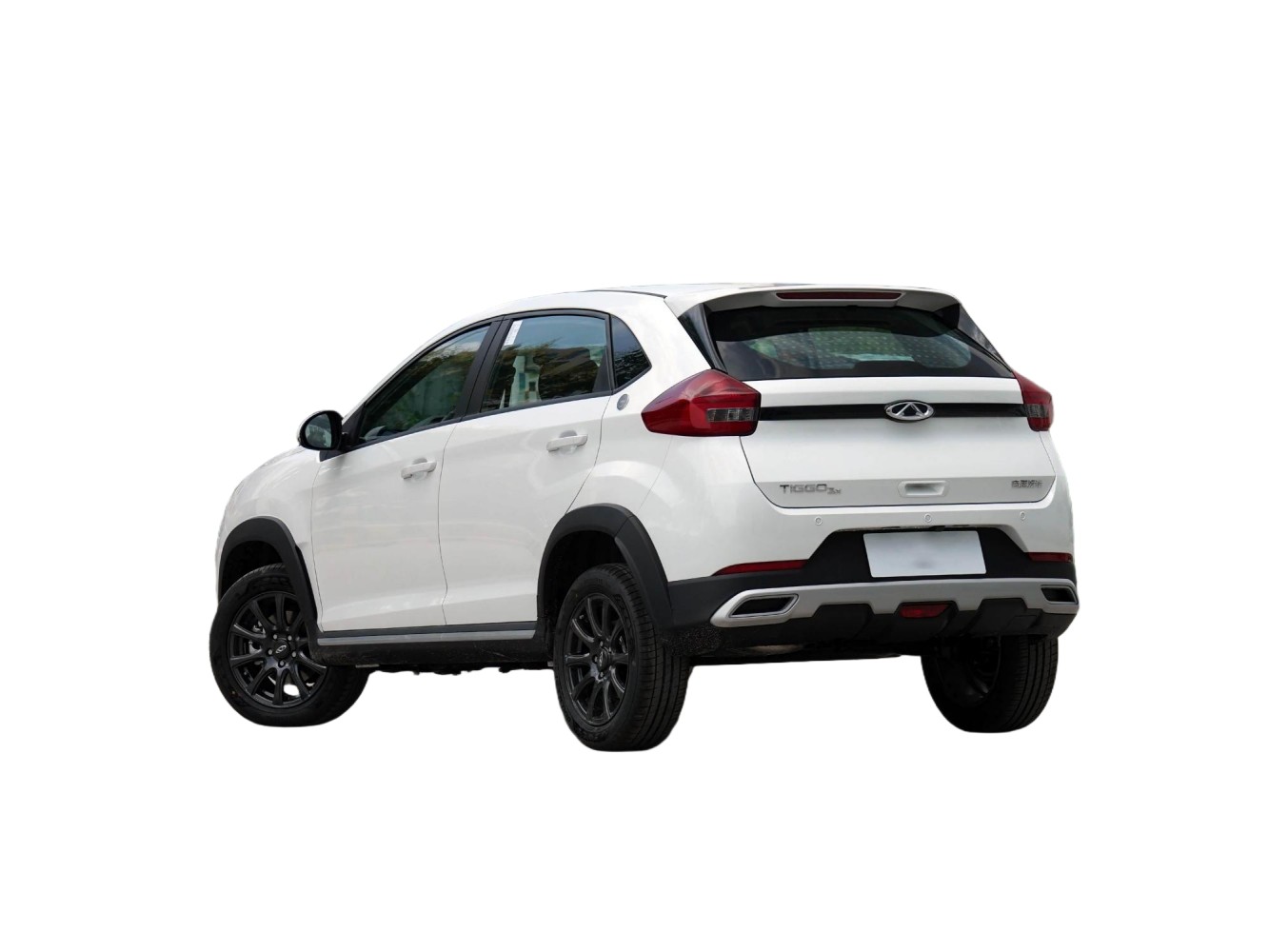

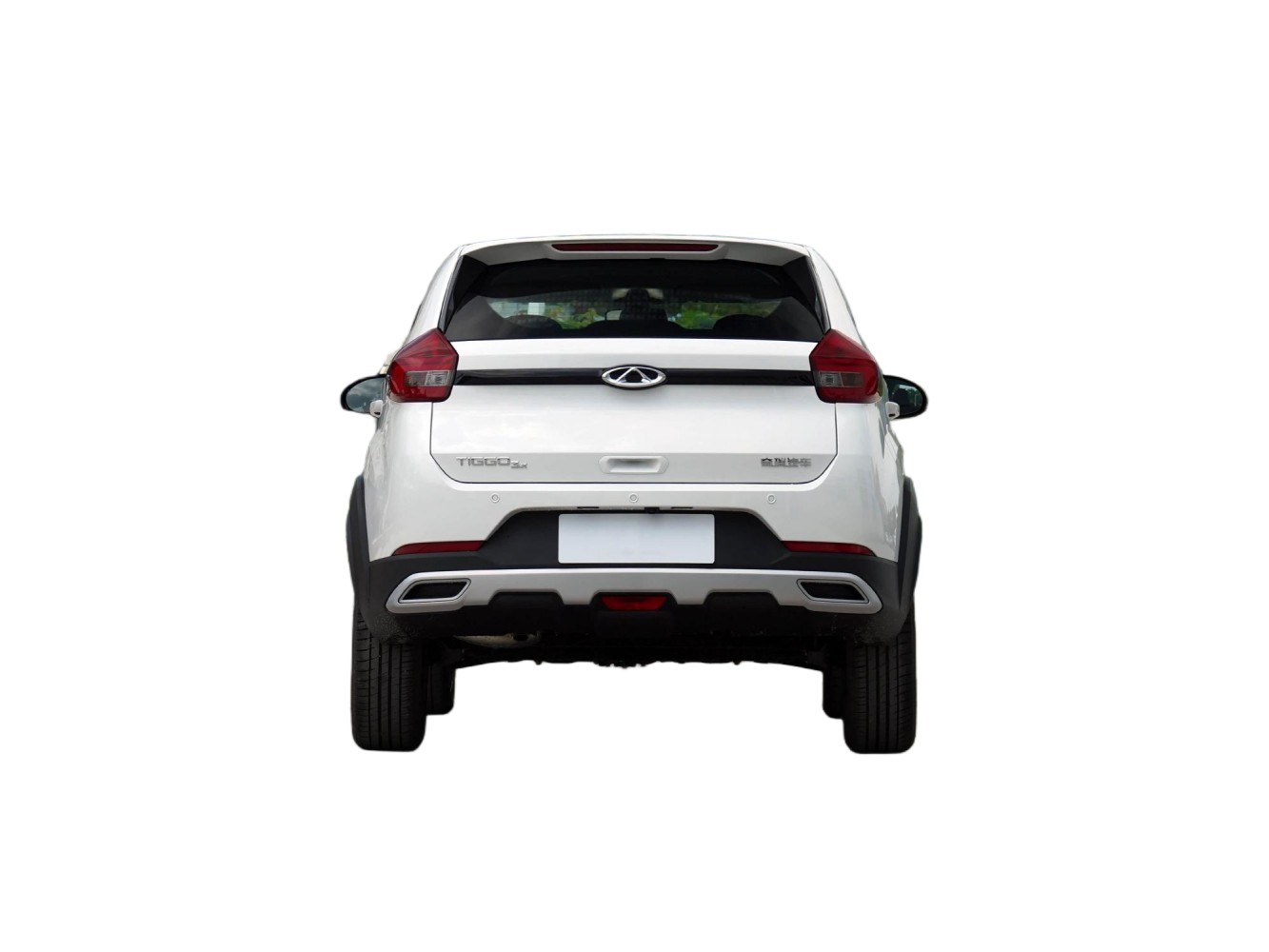

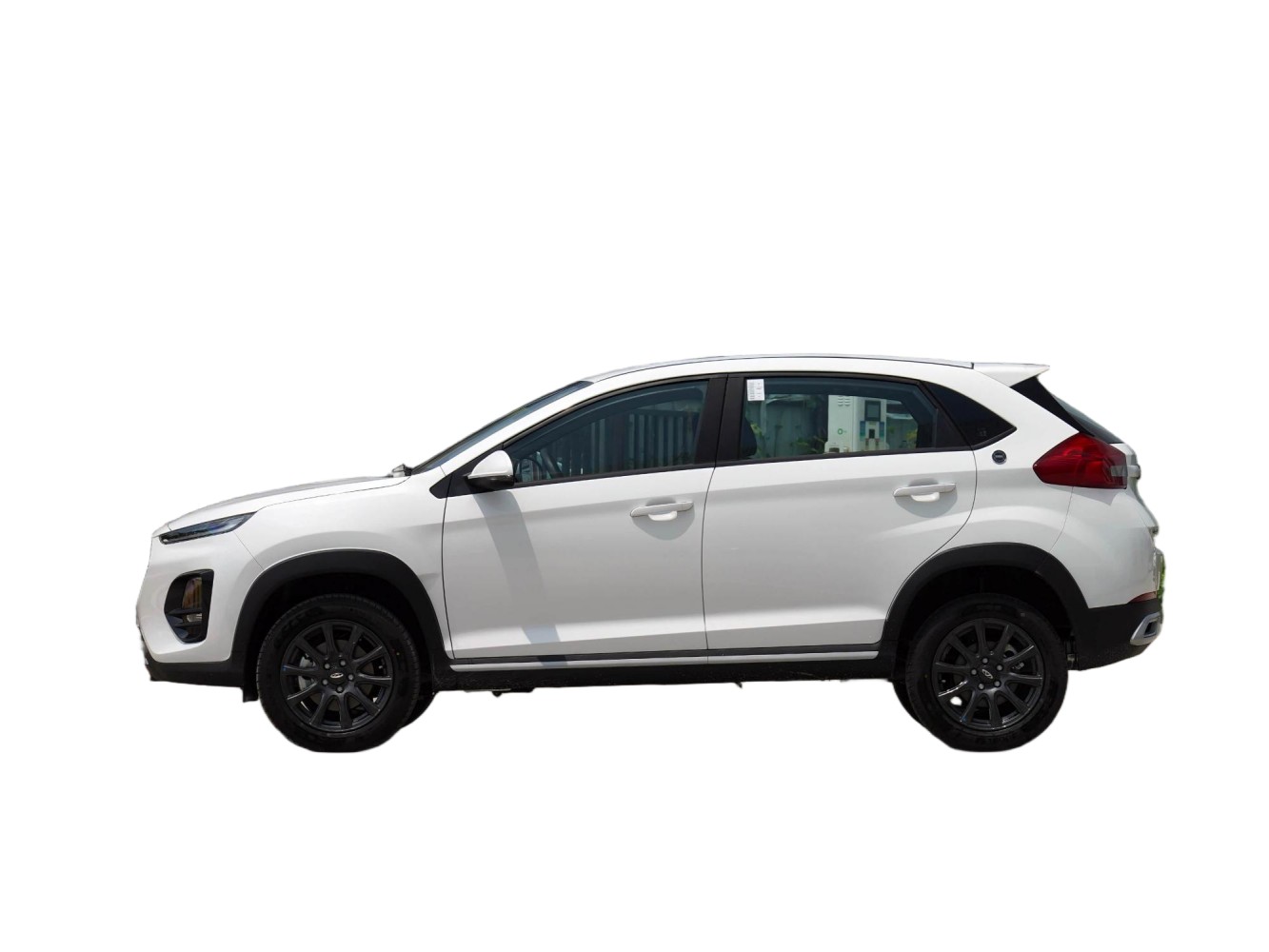

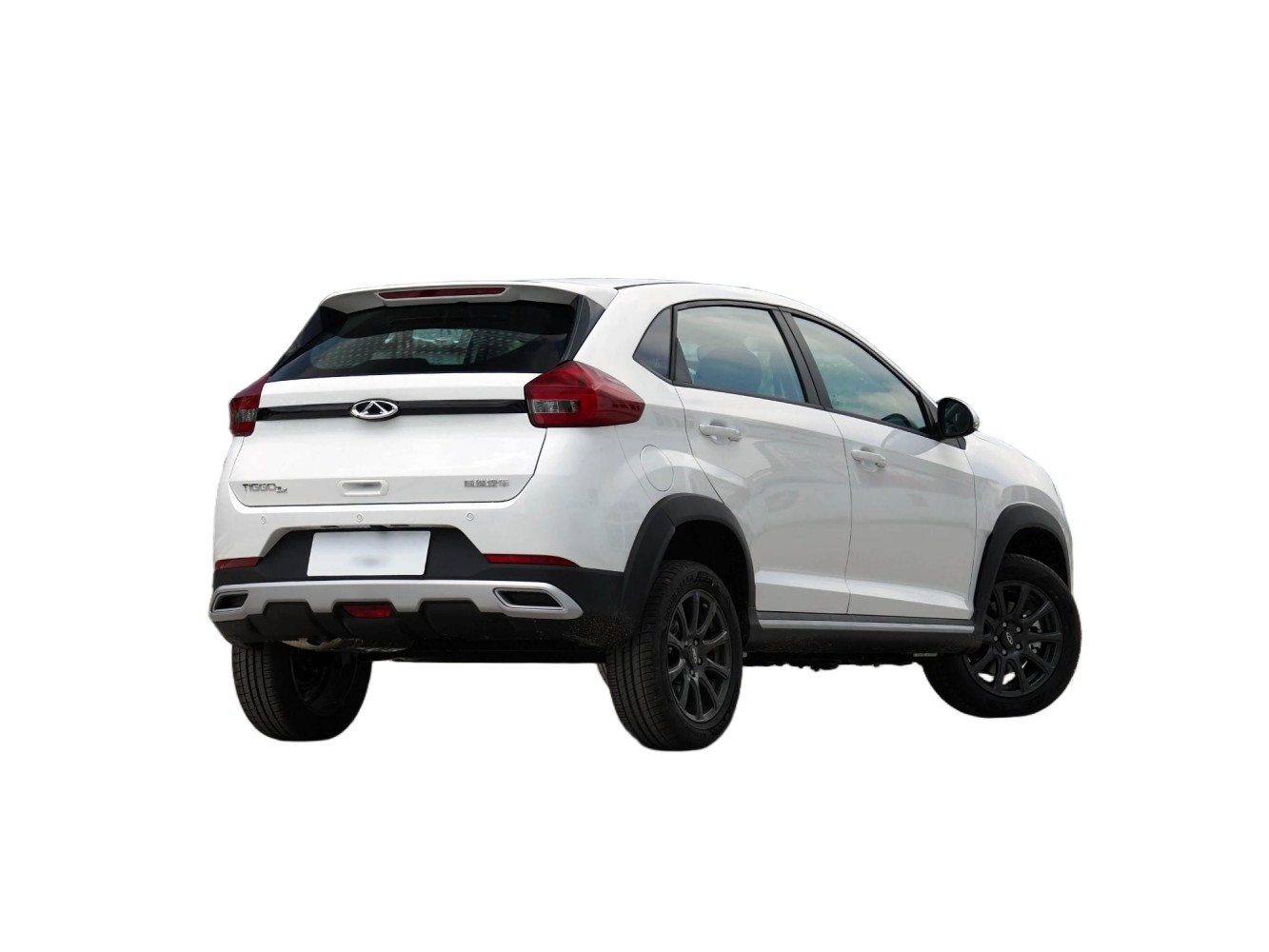

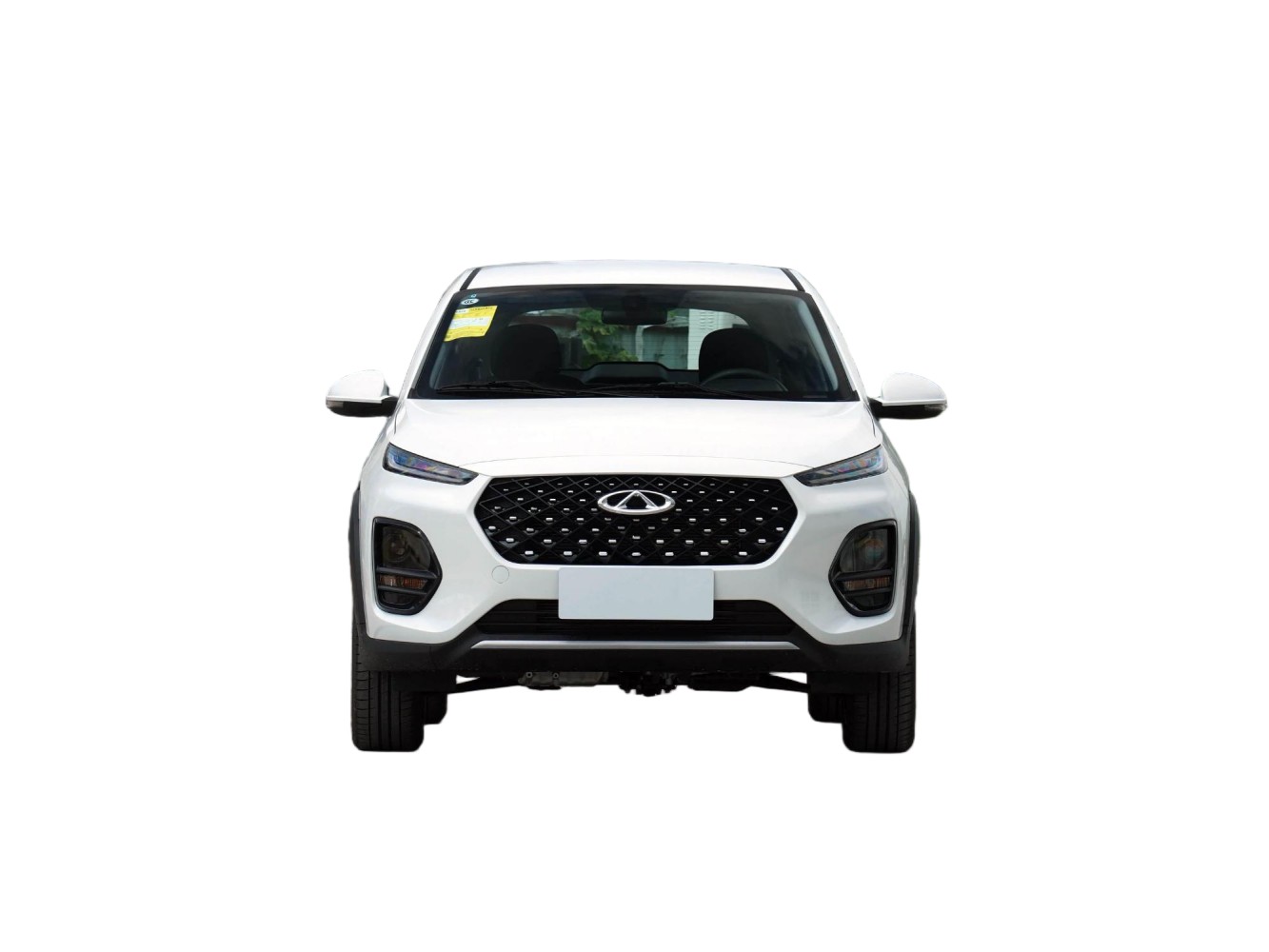

The Chery Tiggo 3X is a small gasoline SUV, equipped with a polygonal front grille and full LED headlight groups. The vehicle is fitted with through-type LED taillight groups and rear bumper trim. Multiple body color options are available. The vehicle adopts 16-inch wheel configurations for different versions. Conventional door handles are equipped as standard. A panoramic sunroof is equipped for partial versions.
The vehicle adopts a 5-door 5-seater SUV layout. The body dimensions are 4200 mm in length, 1760 mm in width and 1570 mm in height, with a wheelbase of 2555 mm. Electrically adjustable exterior mirrors with heating functions are equipped for different versions.
Interior Design
The vehicle is equipped with a mechanical instrument panel and central control touchscreen for different versions. Multiple interior color schemes are available, matched with fabric and leather upholstery and metallic decorative trim. The vehicle supports automatic constant temperature air conditioning. Mechanical and electronic gear shift levers are equipped for different versions.
Standard configurations include front and side airbags, front parking sensors and rearview camera. Constant-speed cruise control is equipped for partial versions. Keyless entry and one-key start functions are equipped for high-spec versions. High-spec versions are equipped with curtain airbags and 360-degree panoramic camera system. The vehicle supports OTA upgrade functions.
Powertrain
The Chery Tiggo 3X adopts front-wheel drive layout, matched with 5-speed manual transmission and 9-speed simulated CVT transmission for different versions. The vehicle is equipped with 1.5L naturally aspirated inline four-cylinder gasoline engine. The engine has a maximum power of 85 kW and a peak torque of 143 Nm.
The vehicle is fueled with gasoline and meets China VI emission standards. The vehicle adopts front MacPherson independent suspension and rear torsion beam non-independent suspension system.
| 2024 Chery Tiggo 2 1.5L CVT Excellence Edition | 2024 Chery Tiggo 2 Value Edition 1.5L Manual Style | 2024 Chery Tiggo 2 Preferred Edition 1.5L CVT Style | |
|---|---|---|---|
| Basic Information | |||
| Availability | 2024.08 | 2024.04 | 2024.04 |
| vehicle class | compact SUV | compact SUV | compact SUV |
| Length*Width*Height(mm) | 4200*1760*1570 | 4200*1760*1570 | 4200*1760*1570 |
| Type of energy | gasoline | gasoline | gasoline |
| environmental standard | Country 6 | Country 6 | Country 6 |
| motor | 1.5L / 116 hp / inline 4-cylinder | 1.5L / 116 hp / inline 4-cylinder | 1.5L / 116 hp / inline 4-cylinder |
| Maximum power (kW) | 85 | 85 | 85 |
| Maximum torque (N-m) | 143 | 143 | 143 |
| Number of gears | Analog 9 | 5 | Analog 9 |
| transmission | CVT (Continuously Variable Transmission) | manual gearbox | CVT (Continuously Variable Transmission) |
| Maximum speed (km/h) | 165 | 170 | 165 |
| NEDC Combined Fuel Consumption (L/100km) | 6.9 | 6.7 | 6.9 |
| WLTC Combined Fuel Consumption (L/100km) | 7.34 | 7.22 | 7.34 |
| Warranty Policy | Three years or 100,000 kilometers | Three years or 100,000 kilometers | Three years or 100,000 kilometers |
| body of automobile | |||
| Length (mm) | 4200 | 4200 | 4200 |
| Width (mm) | 1760 | 1760 | 1760 |
| Height (mm) | 1570 | 1570 | 1570 |
| Wheelbase (mm) | 2555 | 2555 | 2555 |
| Front wheelbase(mm) | 1495 | 1495 | 1495 |
| Rear wheelbase(mm) | 1484 | 1484 | 1484 |
| Weight (kg) | 1268 | 1238 | 1268 |
| Maximum full load mass (kg) | 1662 | 1662 | 1662 |
| Luggage compartment volume (L) | 420 | 420 | 420 |
| Fuel tank volume (L) | 48 | 48 | 48 |
| Number of doors (pcs) | 5 | 5 | 5 |
| Number of seats (pcs) | 5 | 5 | 5 |
| Approach angle (°) | 20 | 20 | 20 |
| Departure angle (°) | 26 | 26 | 26 |
| motor | |||
| Displacement (mL) | 1499 | 1499 | 1499 |
| Engine Model | SQRE4G15C | SQRE4G15C | SQRE4G15C |
| Maximum horsepower (Ps) | 116 | 116 | 116 |
| Maximum power (kW) | 85 | 85 | 85 |
| Maximum net power (kW) | 83 | 83 | 83 |
| Maximum power speed(rpm) | 6150 | 6150 | 6150 |
| Maximum torque (N-m) | 143 | 143 | 143 |
| Maximum torque speed (rpm) | 4000 | 4000 | 4000 |
| cylinder (engine) | Inline 4-cylinder | Inline 4-cylinder | Inline 4-cylinder |
| engine position | preamplifier | preamplifier | preamplifier |
| Intake form | naturally aspirated | naturally aspirated | naturally aspirated |
| valve train | double overhead camshaft | double overhead camshaft | double overhead camshaft |
| Lubrication method | Multi-point electronic injection | Multi-point electronic injection | Multi-point electronic injection |
| Cylinder material | foundry iron | foundry iron | foundry iron |
| fuel grade | 92# | 92# | 92# |
| environmental standard | Country 6 | Country 6 | Country 6 |
| Chassis/steering | |||
| Driving form | front drive | front drive | front drive |
| Front suspension type | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension |
| Rear suspension type | Torsion beam non-independent suspension | Torsion beam non-independent suspension | Torsion beam non-independent suspension |
| Steering assist form | electric power assist | electric power assist | electric power assist |
| Wheels/Brakes | |||
| Front/Rear Brake Type | Ventilated Disc Type / Disc Type | Ventilated Disc Type / Disc Type | Ventilated Disc Type / Disc Type |
| Parking brake type | handbrake | handbrake | handbrake |
| Front Tire Specification | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Rear Tire Specification | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel Material | aluminum | aluminum | aluminum |
| Spare tire specification | - | Non-full size | Non-full size |
| Active/passive safety features | |||
| ABS anti-lock | ● | ● | ● |
| Brake force distribution (EBD/CBC etc.) | ● | ● | ● |
| Brake Assist (BA/EBA/BAS etc.) | - | - | ○ |
| Traction control (ASR/TCS/TRC etc.) | - | - | ○ |
| Stability Control (ESC/ESP/DSC etc.) | - | - | ○ |
| front exhaust airbag | :: Driver's airbag | :: Driver's airbag | :: Driver's airbag |
| ●Passenger airbag | ●Passenger airbag | ●Passenger airbag | |
| Tire Pressure Detection Device | ●Display | ●Display | ●Display |
| Seat Belt Reminder | ●Main driver's seat | ●Main driver's seat | ●Main driver's seat |
| ISOFIX child restraints | ● | ● | ● |
| Auxiliary/Manipulation Configurations | |||
| parking radar | ● Post | ● Post | ● Post |
| Driver Assistance Video | ● Backup camera | ● Backup camera | ● Backup camera |
| cruise control | - | ●Cruise control | ●Cruise control |
| Driving Mode Switching | :: Campaigns | - | :: Campaigns |
| :: Economy | :: Economy | ||
| steep incline and slow descent | - | - | ○ |
| hill-holding aid | - | - | ○ |
| automatic parking | - | - | ○ |
| External/anti-theft configurations | |||
| skylights | - | - | ●Electric sunroof |
| roof rack | - | ● | ● |
| Key Type | ●Remote key | ●Remote key | ●Remote key |
| Keyless entry | - | - | ● |
| Keyless Start System | ● | - | ● |
| Central locking in the car | ● | ● | ● |
| electronic immobilizer | ● | ● | ● |
| Internal Configuration | |||
| Steering wheel material | :: Plastics | ● Leather | ● Leather |
| Steering Wheel Adjustment | ● Manual | ● Manual | ● Manual |
| Adjustable up and down | Adjustable up and down | Adjustable up and down | |
| Steering wheel functions | - | :: Multifunctionality | :: Multifunctionality |
| center armrest | ●Forward | ●Forward | ●Forward |
| Gear Shift Form | ● Mechanical gearshift | ● Mechanical gearshift | ● Mechanical gearshift |
| Sun visor vanity mirror | ● | ● | ● |
| Liquid crystal instrument size | 3.5 inches | 3.5 inches | 3.5 inches |
| Intelligent Hardware | |||
| Number of cameras | :: 1 | :: 1 | :: 1 |
| Number of ultrasonic radars | ● 3 | ● 3 | ● 3 |
| Wake-on-Speech Recognition | ● Single area | ● Single area | ● Single area |
| seating | |||
| Seat Material | :: Fabrics | :: Imitation leather | :: Imitation leather |
| Front Seat Function | - | - | ○Heating |
| Main seat adjustment | ●Forward and backward adjustment | ●Forward and backward adjustment | ●Forward and backward adjustment |
| Backrest adjustment | Backrest adjustment | Backrest adjustment | |
| ●High/low adjustment (2-way) | ●High/low adjustment (2-way) | ||
| Adjustment of passenger seat | ●Forward and backward adjustment | ●Forward and backward adjustment | ●Forward and backward adjustment |
| Backrest adjustment | Backrest adjustment | Backrest adjustment | |
| Second row seat adjustment | ● Integral lowering | ● Integral lowering | ● Integral lowering |
| multimedia | |||
| Large color screen in the center console | ●Touch LCD | ●Touch LCD | ●Touch LCD |
| Bluetooth/Car Phone | ● | ● | ● |
| Cell phone connectivity/mapping | ●Factory connectivity/mapping | ●Factory connectivity/mapping | ●Factory connectivity/mapping |
| Number of audio speakers | 2 | 2 | 2 (Option 4) |
| Center screen size | ●9 inches | ●9 inches | ●9 inches |
| Wi-Fi hotspot | - | ● | ● |
| Interface Support | ● USB port | ● USB port | ● USB port |
| Number of USB/Type-C ports | :: 1 in the front row | :: 1 in the front row | :: 1 in the front row |
| illumination | |||
| low beam (headlights) | ● Halogen | ● Halogen | ○LED |
| ● Halogen | |||
| high beam (headlights) | ● Halogen | ● Halogen | ○LED |
| ● Halogen | |||
| LED daytime running lights | ● | ● | ● |
| Adjustable headlights | ● | ● | ● |
| Automatic headlights | ● | ● | ● |
| Glass/Mirror | |||
| power window | ●Forward | ●Forward | ●Forward |
| ● Post | ● Post | ● Post | |
| rearview mirror | ●Motorized adjustment | ●Motorized adjustment | ●Motorized adjustment |
| ●Heating | ●Heating | ||
| rearview mirror | ●Manual anti-glare | ●Manual anti-glare | ●Manual anti-glare |
| rear wiper | - | - | ● |
| Air conditioners/refrigerators | |||
| Air conditioning control method | ●Manual control | ●Manual control | ●Manual control |
