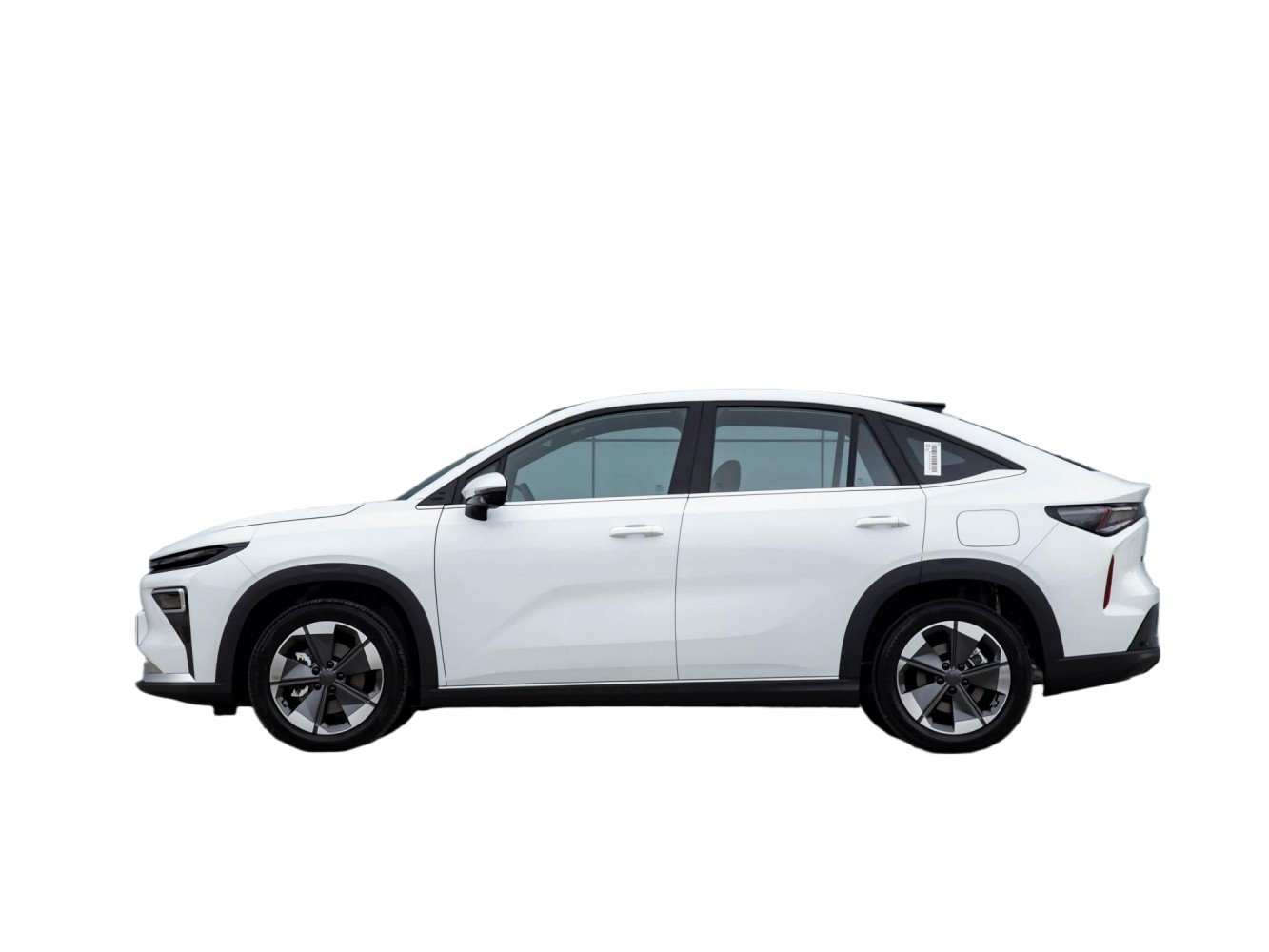

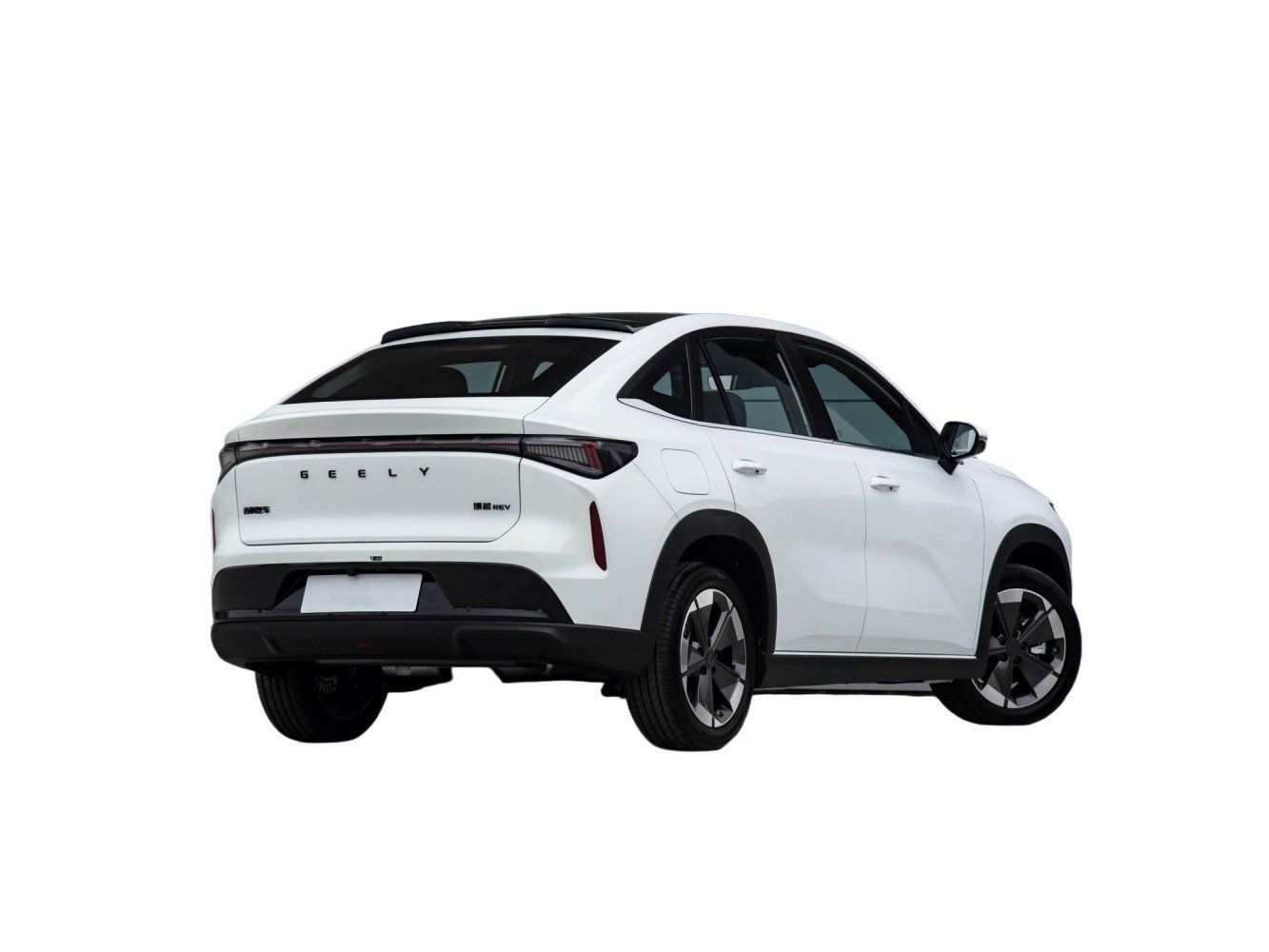

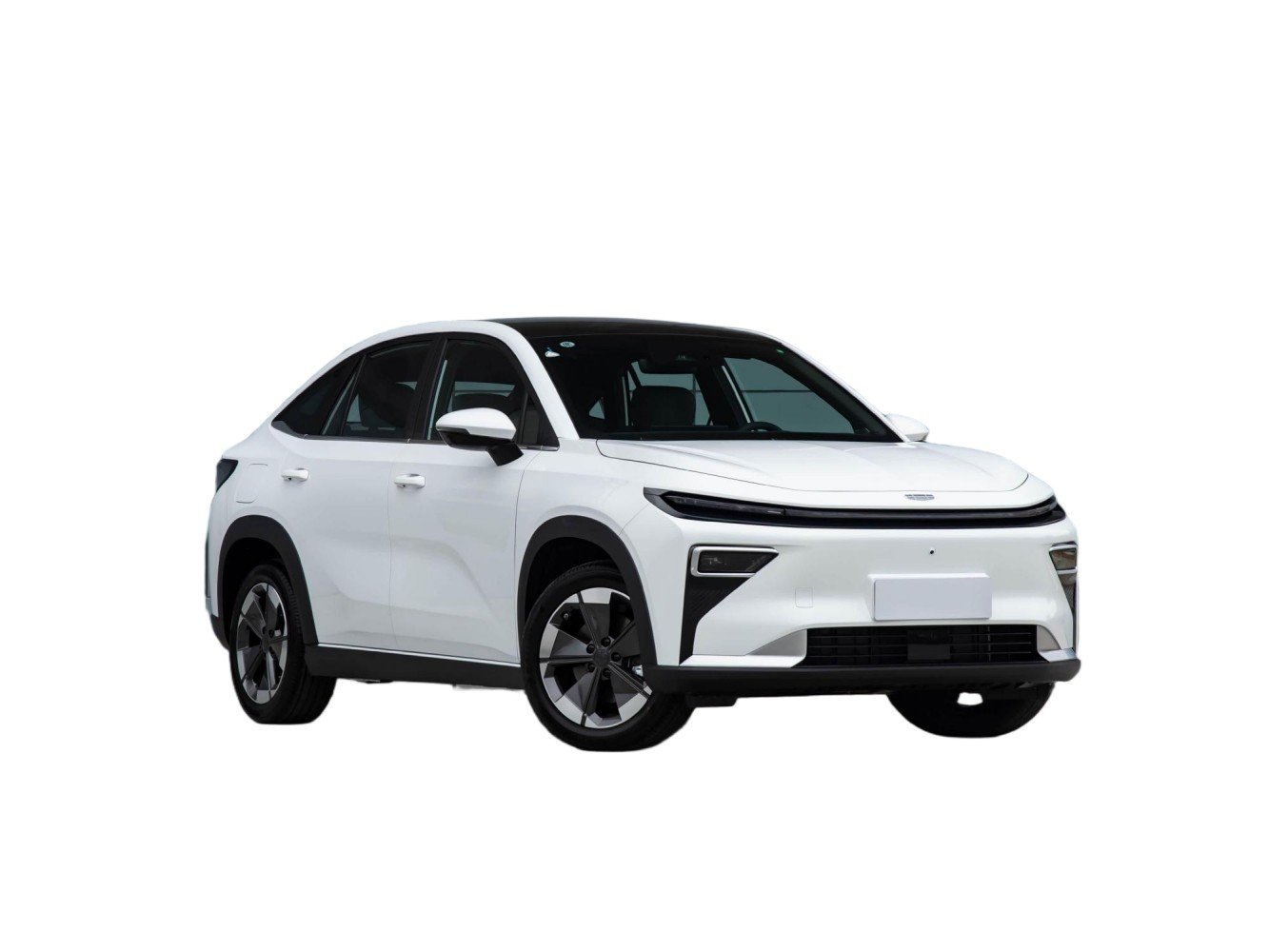

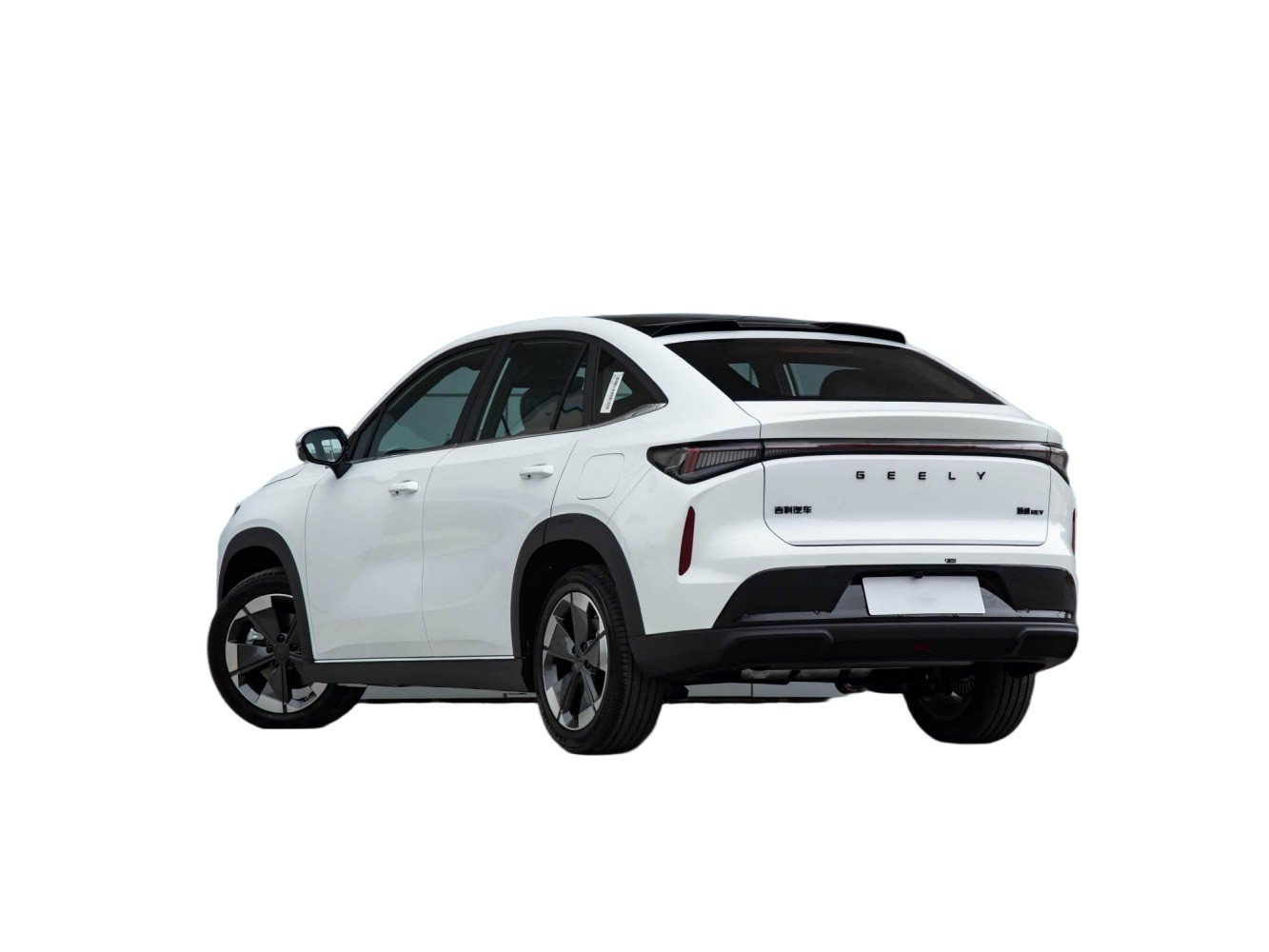

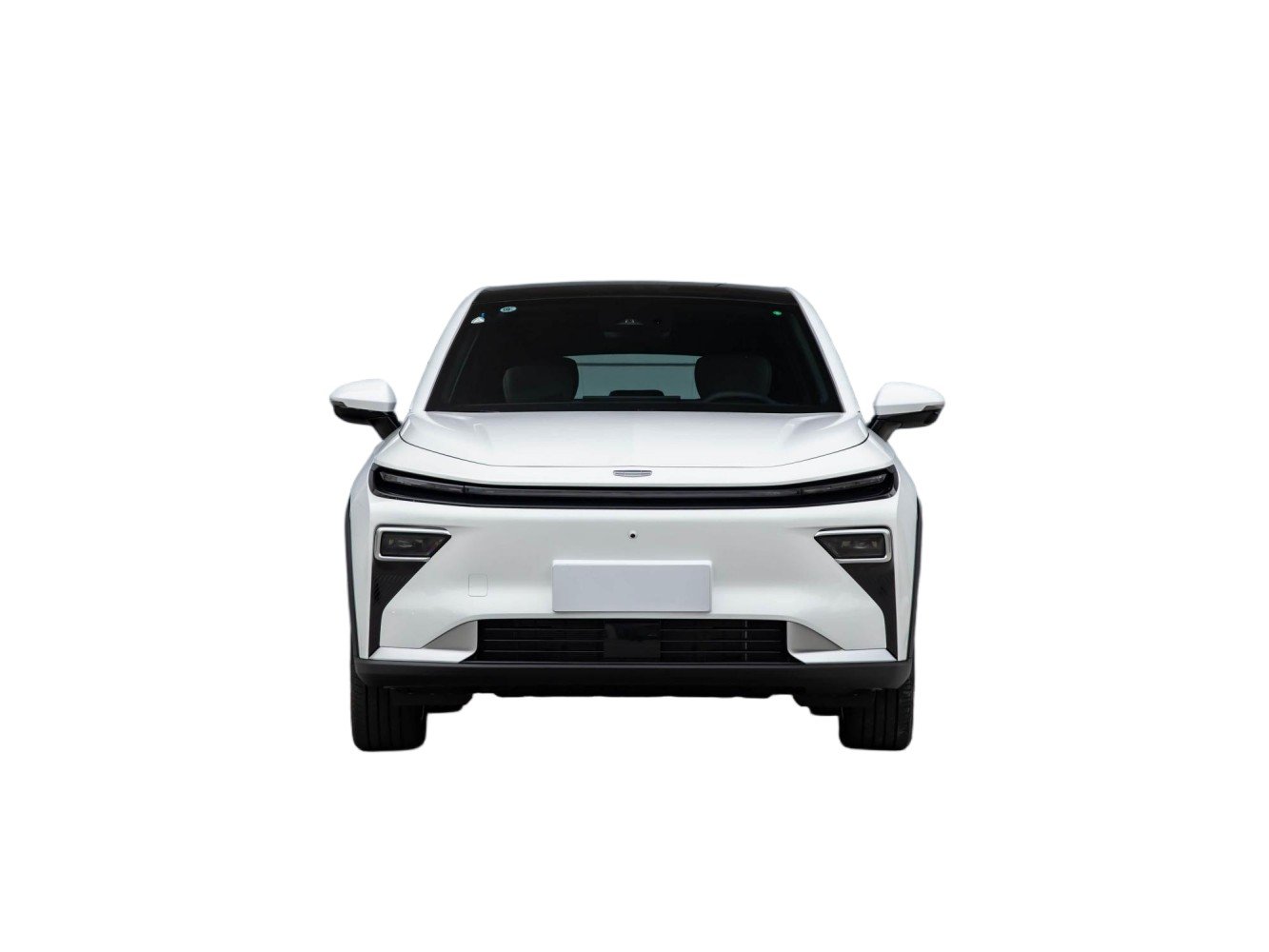

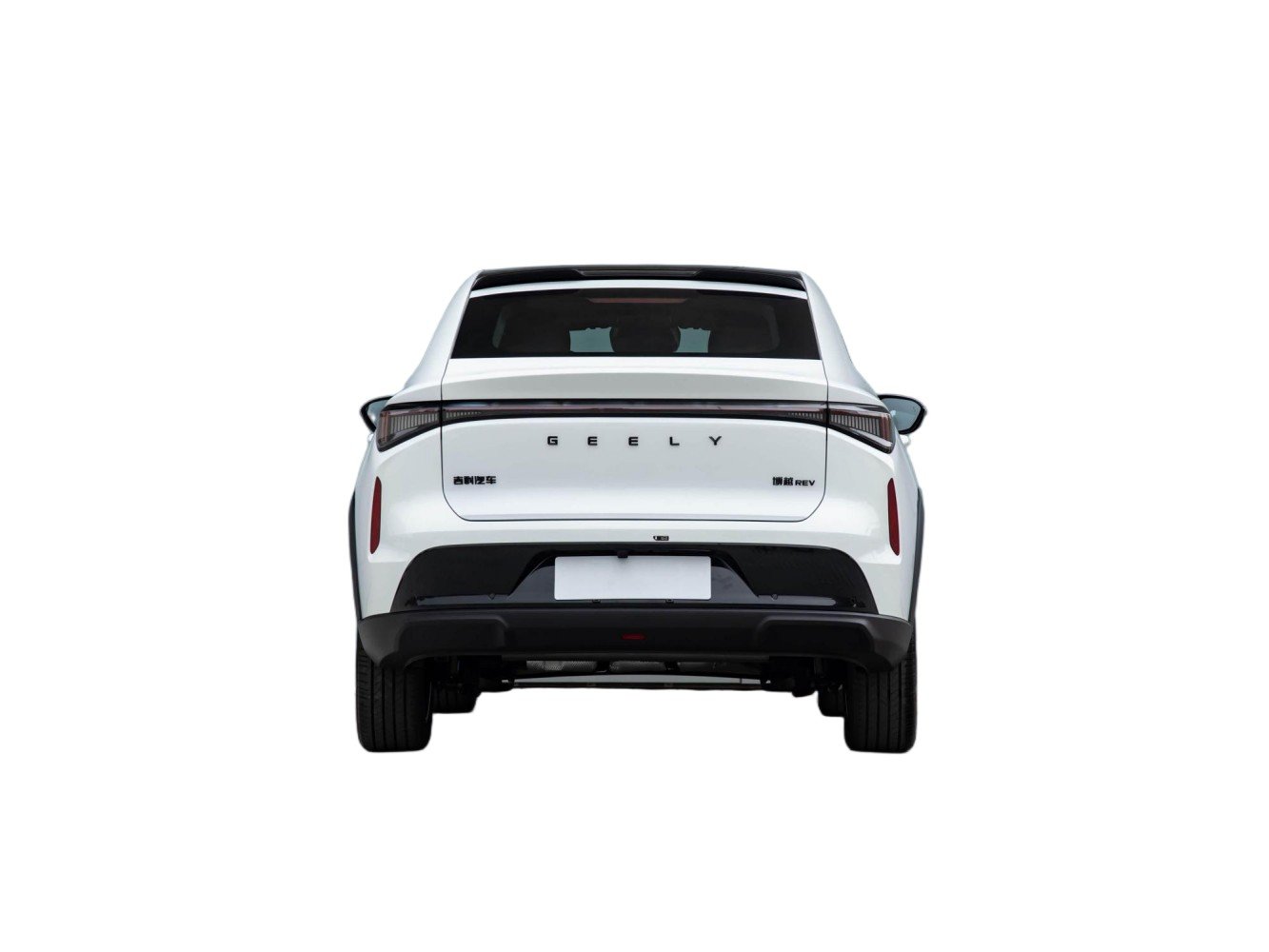

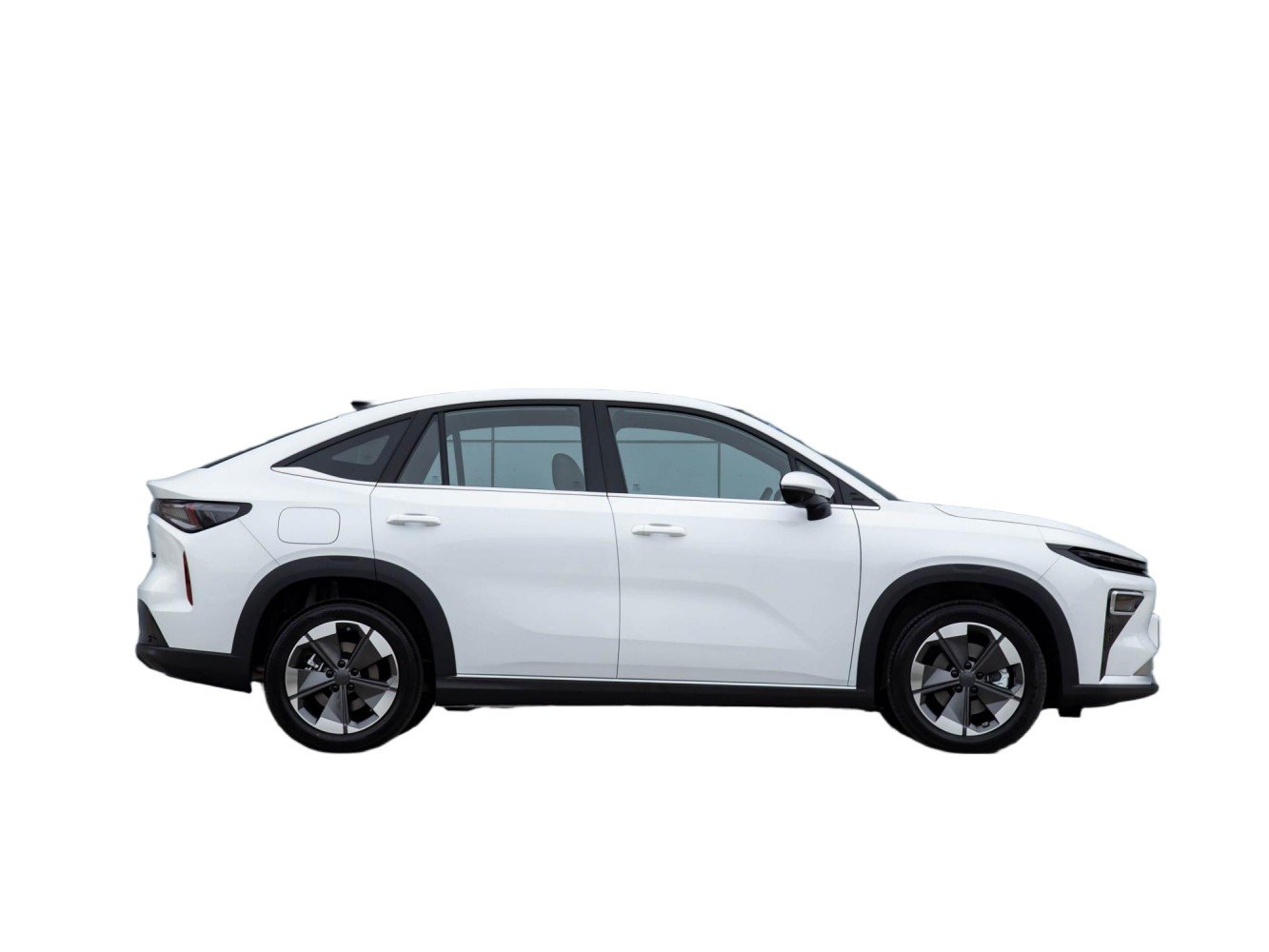

Exterior Design
The GEELY Boyue REV is a compact extended-range electric SUV, equipped with a front grille and full LED headlight groups. The vehicle is fitted with through-type LED taillight groups and rear bumper trim. Multiple body color options are available. The vehicle adopts 18-inch wheel configurations for different versions. Conventional door handles are equipped as standard. A panoramic sunroof is equipped for partial versions.
The vehicle adopts a 5-door 5-seater SUV layout. The body dimensions are 4680 mm in length, 1905 mm in width and 1710 mm in height, with a wheelbase of 2778 mm. Electrically adjustable exterior mirrors with heating functions are equipped for different versions. An electric charging port cover and fuel tank cap are equipped as standard.
Interior Design
The vehicle is equipped with an 8.8-inch full LCD digital instrument cluster and 14.6-inch suspended central control touchscreen. Multiple interior color schemes are available, matched with leather upholstery and metallic decorative trim. The vehicle supports multi-color ambient lighting and automatic constant temperature air conditioning system. A column-mounted electronic gear shift lever is equipped as standard.
Standard configurations include front, side and curtain airbags, front and rear parking sensors, rearview camera and constant-speed cruise control. Keyless entry and one-key start functions are standard. Partial versions are equipped with 540-degree panoramic camera system, head-up display system, adaptive cruise control, lane keeping assist and active braking system. The vehicle supports vehicle network connection, V2L external discharge and OTA upgrade functions. Partial versions are equipped with multi-adjustable front seats with heating and ventilation functions and multi-speaker audio system.
Powertrain
The GEELY Boyue REV adopts front-wheel drive layout, matched with single-speed fixed gear electric drive assembly. The vehicle is equipped with a 1.5L inline four-cylinder range extender engine. The permanent magnet synchronous drive motor has a maximum power of 160 kW and a peak torque of 327 Nm.
The vehicle is equipped with 28.3kWh and 50.4kWh lithium iron phosphate battery packs for different versions. The CLTC pure electric cruising range covers 220 km and 375 km, and the comprehensive cruising range reaches 1525 km. The vehicle supports fast charging and slow charging functions. The vehicle is equipped with energy recovery system and multiple driving mode adjustment functions. The vehicle adopts front MacPherson independent suspension and rear multi-link independent suspension system.
| 2026 Geely Boyue REV 220km Long Range Platinum Extended Range Smart Edition | 2026 Geely Boyue REV 220km Long Range Platinum Extended Range Smart Edition | 2026 Geely Boyue REV 375km Ultra-Long Range Platinum Extended Range Smart Edition | |
|---|---|---|---|
| Basic Information | |||
| Launch date | 2026.03 | 2026.03 | 2026.03 |
| Body level | compact SUV | compact SUV | compact SUV |
| Length * Width * Height (mm) | 4680*1892*1650 | 4680*1892*1650 | 4680*1892*1650 |
| Energy type | Range extender | Range extender | Range extender |
| WLTC pure electric range (km) | 156 | 156 | 280 |
| CLTC pure electric range (km) | 220 | 220 | 375 |
| engine | 1.5L / 112hp / Inline 4-cylinder | 1.5L / 112hp / Inline 4-cylinder | 1.5L / 112hp / Inline 4-cylinder |
| Maximum power (kW) | 82 | 82 | 82 |
| Maximum torque (N·m) | 136 | 136 | 136 |
| Number of gears | 1 | 1 | 1 |
| gearbox | Fixed gear ratio gearbox | Fixed gear ratio gearbox | Fixed gear ratio gearbox |
| Maximum speed (km/h) | 185 | 185 | 185 |
| 0-100km/h acceleration (s) | 7.3 | 7.3 | 8.4 |
| WLTC combined fuel consumption (L/100km) | 0.73 | 0.73 | 0.33 |
| Battery Type | Lithium iron phosphate batteries | Lithium iron phosphate batteries | Lithium iron phosphate batteries |
| Battery capacity (kWh) | 28.3 | 28.3 | 50.4 |
| Fast charging time (h) | 0.25 | 0.25 | 0.4 |
| Fast charging capacity (%) | 30-80 | 30-80 | 30-80 |
| Warranty Policy | Six years or 150,000 kilometers | Six years or 150,000 kilometers | Six years or 150,000 kilometers |
| Body | |||
| Length (mm) | 4680 | 4680 | 4680 |
| Width (mm) | 1892 | 1892 | 1892 |
| Height(mm) | 1650 | 1650 | 1650 |
| Wheelbase (mm) | 2778 | 2778 | 2778 |
| Front track width (mm) | 1600 | 1600 | 1600 |
| Rear track width (mm) | 1600 | 1600 | 1600 |
| Curb weight (kg) | 1760 | 1760 | 1960 |
| Maximum load capacity (kg) | 2155 | 2155 | 2355 |
| Luggage capacity (L) | 402-1593 | 402-1593 | 402-1593 |
| Fuel tank capacity (L) | 52 | 52 | 52 |
| Number of car doors | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 |
| Approach angle (°) | 16 | 16 | 16 |
| Departure angle (°) | twenty two | twenty two | twenty two |
| Minimum turning radius (m) | 5.4 | 5.4 | 5.4 |
| engine | |||
| Displacement (mL) | 1499 | 1499 | 1499 |
| Engine Model | BHE15-BFN | BHE15-BFN | BHE15-BFN |
| Maximum horsepower (Ps) | 112 | 112 | 112 |
| Maximum power (kW) | 82 | 82 | 82 |
| Maximum net power (kW) | 79 | 79 | 79 |
| Maximum power speed (rpm) | 6000 | 6000 | 6000 |
| Maximum torque (N·m) | 136 | 136 | 136 |
| Maximum torque speed (rpm) | 4000-5000 | 4000-5000 | 4000-5000 |
| cylinder | Inline 4-cylinder | Inline 4-cylinder | Inline 4-cylinder |
| Engine position | Front | Front | Front |
| Intake form | Natural inhalation | Natural inhalation | Natural inhalation |
| Valve structure | Double overhead camshaft | Double overhead camshaft | Double overhead camshaft |
| fuel supply method | Multi-point electronic injection | Multi-point electronic injection | Multi-point electronic injection |
| Cylinder block material | aluminum alloy | aluminum alloy | aluminum alloy |
| fuel grade | 92# | 92# | 92# |
| Environmental standards | National 6 | National 6 | National 6 |
| electric motor | |||
| Total power of electric motors (kW) | 160 | 160 | 160 |
| Total torque of the electric motor (N·m) | 327 | 327 | 327 |
| Maximum power of the front motor (kW) | 160 | 160 | 160 |
| Maximum torque of the front motor (N·m) | 327 | 327 | 327 |
| WLTC pure electric range (km) | 156 | 156 | 280 |
| CLTC pure electric range (km) | 220 | 220 | 375 |
| Battery capacity (kWh) | 28.3 | 28.3 | 50.4 |
| Energy consumption per 100 kilometers (kWh/100km) | 16.1 | 16.1 | 18 |
| Electricity-equivalent fuel consumption (L/100km) | 1.87 | 1.87 | 2.09 |
| Slow charging time (h) | 4.2 | 4.2 | 6.9 |
| Fast charging time (h) | 0.25 | 0.25 | 0.4 |
| Motor structure | Permanent magnet | Permanent magnet | Permanent magnet |
| Motor working principle | synchronous | synchronous | synchronous |
| Number of drive motors | single motor | single motor | single motor |
| Motor layout | Front | Front | Front |
| Battery Type | Lithium iron phosphate batteries | Lithium iron phosphate batteries | Lithium iron phosphate batteries |
| Battery cell brands | Ji Yaotong | Ji Yaotong | Ji Yaotong |
| Battery cooling method | direct cooling | direct cooling | Liquid cooling |
| Fast charging function | support | support | support |
| Fast charging capacity (%) | 30-80 | 30-80 | 30-80 |
| Energy recovery | ● | ● | ● |
| External discharge | ● | ● | ● |
| Chassis/Steering | |||
| Drive form | front-wheel drive | front-wheel drive | front-wheel drive |
| Front suspension type | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension |
| Rear suspension type | Torsion beam non-independent suspension | Torsion beam non-independent suspension | Torsion beam non-independent suspension |
| Adjustable suspension | ● | ● | ● |
| Steering power type | Electric Assist | Electric Assist | Electric Assist |
| Wheels/Brakes | |||
| Front/Rear Brake Type | Ventilation disc type / disc type | Ventilation disc type / disc type | Ventilation disc type / disc type |
| Parking brake type | Electronic parking brake | Electronic parking brake | Electronic parking brake |
| Front tire specifications | 215/60 R17 | 215/55 R18 | 215/55 R18 |
| Rear tire specifications | 215/60 R17 | 215/55 R18 | 215/55 R18 |
| Wheel material | aluminum alloy | aluminum alloy | aluminum alloy |
| Active/passive safety configuration | |||
| ABS anti-lock braking system | ● | ● | ● |
| Brakeforce Distribution (EBD/CBC, etc.) | ● | ● | ● |
| Brake assist (BA/EBA/BAS, etc.) | ● | ● | ● |
| Traction control (ASR/TCS/TRC, etc.) | ● | ● | ● |
| Vehicle stability control (ESC/ESP/DSC, etc.) | ● | ● | ● |
| Active braking/safety system | - | ● | ● |
| Lane change assist | - | ● | ● |
| Lane Keeping Assist | - | ● | ● |
| Lane departure warning | - | ● | ● |
| Road traffic sign recognition | - | ● | ● |
| Low speed warning | ● | ● | ● |
| DOW Door Opening Warning | - | ● | ● |
| Front airbags | ●Driver's seat airbag | ●Driver's side airbag | ●Driver's side airbag |
| ●Passenger's airbag | ●Passenger's side airbag | ●Passenger's side airbag | |
| ●Side airbags | ●Side airbags | ●Side airbags | |
| ●Head airbags (curtain airbags) | ●Head airbags (curtain airbags) | ||
| Rear airbags | - | ●Head airbags (air curtains) | ●Head airbags (air curtains) |
| Tire pressure monitoring device | ●Alarm | ● Display | ● Display |
| Seatbelt reminder | ●Front row | ●Front row | ●Front row |
| ISOFIX child seat | ● | ● | ● |
| Forward Collision Warning | - | ● | ● |
| Rear Collision Warning | - | ● | ● |
| Assist/Control Configuration | |||
| Parking radar | ●After | ●After | ●After |
| Driving assistance imaging | ● Reversing camera | ●360-degree panoramic imaging | ●360-degree panoramic imaging |
| Transparent chassis/540-degree imaging | - | ● | ● |
| Rear Cross Traffic Alert System | - | ● | ● |
| Cruise system | ● Cruise Control | ●Adaptive cruise control | ●Adaptive cruise control |
| Driving mode switching | ●Sports | ●Sports | ●Sports |
| ●Finance | ●Finance | ●Finance | |
| ●Standard/Comfort | ●Standard/Comfort | ●Standard/Comfort | |
| Steep slope descent | ● | ● | ● |
| Hill Start Assist | ● | ● | ● |
| Automatic parking | ● | ● | ● |
| Assistance Level | - | ●L2 | ●L2 |
| Assisted parking | - | ● | ● |
| Assisted lane change | - | ● | ● |
| External/Anti-theft Configuration | |||
| skylight | ○ Non-openable panoramic sunroof (3000 yuan) | ●Non-openable panoramic sunroof | ○ Non-openable panoramic sunroof (3000 yuan) |
| Trunk opening method | - | ●Electric | ○ Electric |
| Electric tailgate position memory | - | ● | ○ |
| Key type | ●Mechanical key | ●Mechanical key | ●Mechanical key |
| ●Bluetooth key | ●Bluetooth key | ●Bluetooth key | |
| Keyless entry | ● | ● | ● |
| Keyless start system | ● | ● | ● |
| Remote start function | ● | ● | ● |
| Central locking | ● | ● | ● |
| Engine electronic anti-theft | ● | ● | ● |
| Internal configuration | |||
| Steering wheel material | ●Leather | ●Leather | ●Leather |
| Steering wheel adjustment | ● Manually | ● Manually | ● Manually |
| adjustable (height up/down | adjustable (height up/down | adjustable (height up/down | |
| ) and (front/back) | ) and (front/back) | ) and (front/back) | |
| Steering wheel functions | ●Multifunctional | ●Multifunctional | ●Multifunctional |
| Central handrail | - | ●Before | ●Before |
| ●After | ●After | ||
| Gear shifting | ●Electronic column shifter | ●Electronic column shifter | ●Electronic column shifter |
| Sun visor vanity mirror | ● | ● | ● |
| Full LCD instrument panel | - | ● | ● |
| LCD instrument size | 8.8 inches | 8.8 inches | 8.8 inches |
| HUD (Head-Up Display) | - | - | ○ |
| HUD head-up size | - | - | ○15 inches |
| Wireless charging function for mobile phones | - | ●Front row | ●Front row |
| Smart hardware | |||
| Forward sensing camera | - | ● Monocular | ● Monocular |
| Number of cameras | ●1 | ●5 | ●5 |
| Number of ultrasonic radars | ●4 | ●4 | ●4 |
| Number of millimeter-wave radars | - | ●2 | ●2 |
| Voice regional wake-up recognition | ●Dual Zone | ●Dual Zone | ●Dual Zone |
| Seats | |||
| Seat material | ● Faux leather | ● Faux leather | ● Faux leather |
| Front seat functions | ● Heated (driver's seat only) | ●Heating | ○ Ventilation |
| ●Ventilation | ○ Massage | ||
| ●Massage | ● Heating (Driver's seat only) | ||
| ○Headrest Speaker | ○ Heating (Passenger seat only) | ||
| ○ Headrest speakers | |||
| Electric seat adjustment | ●Driver's seat | ●Driver's seat | ●Driver's seat |
| ●Passenger seat | ●Passenger seat | ●Passenger seat | |
| Driver's seat adjustment method | ● Fore-and-aft adjustment | ● Fore-and-aft adjustment | ● Fore-and-aft adjustment |
| ● Backrest adjustment | ● Backrest adjustment | ● Backrest adjustment | |
| ● Height adjustment (2-way) | ● Height adjustment (2-way) | ● Height adjustment (2-way) | |
| Passenger seat adjustment method | ●Fore-and-aft adjustment | ● Fore-and-aft adjustment | ● Fore-and-aft adjustment |
| ●Backrest adjustment | ● Backrest adjustment | ● Backrest adjustment | |
| ● Leg rest adjustment | ● Leg rest adjustment | ||
| Second row seat adjustment | ● Lay down completely | ●Proportion Reversed | ●Proportion Reversed |
| multimedia | |||
| Central control color screen | ● Touchscreen LCD | ● Touchscreen LCD | ● Touchscreen LCD |
| Satellite navigation system | ● | ● | ● |
| Navigation traffic information display | ● | ● | ● |
| Map Brands | ● Gaode Map | ● Gaode Map | ● Gaode Map |
| In-vehicle intelligent system | ●Flyme Auto | ●Flyme Auto | ●Flyme Auto |
| Mobile APP remote function | ●Door controls | ●Door controls | ●Door controls |
| ●Window controls | ●Window controls | ●Window controls | |
| ●Vehicle start | ●Vehicle start | ●Vehicle start | |
| ●Charging management | ●Charging management | ●Charging management | |
| ●Air conditioning control | ●Air conditioning control | ●Air conditioning control | |
| ●Vehicle status inquiry/diagnosis | ●Vehicle status inquiry/diagnosis | ●Vehicle status inquiry/diagnosis | |
| ●Vehicle location/vehicle finder | ●Vehicle location/vehicle finder | ●Vehicle location/vehicle finder | |
| Bluetooth/Car Phone | ● | ● | ● |
| Mobile phone interconnection/mapping | ●Supports HUAWEI HiCar | ●Supports HUAWEI HiCar | ●Supports HUAWEI HiCar |
| ●Supports Carlink | ●Supports Carlink | ●Supports Carlink | |
| ●Supports Flyme Link | ●Supports Flyme Link | ●Supports Flyme Link | |
| Number of speakers | 6 | 6 (Optional 16) | 6 (Optional 16) |
| Voice recognition control system | ●Multimedia system | ●Multimedia system | ●Multimedia system |
| ●Navigation | ●Navigation | ●Navigation | |
| ●Telephone | ●Telephone | ●Telephone | |
| Central control screen size | ●14.6 inches | ●14.6 inches | ●14.6 inches |
| Voice wake-up words | ● | ● | ● |
| Voice assistant wake word | ●Hi, EVA | ●Hi, EVA | ●Hi, EVA |
| Continuous speech recognition | ● | ● | ● |
| What is visible can be said | ● | ● | ● |
| 4G/5G networks | ●4G | ●4G | ●4G |
| Connected Vehicles | ● | ● | ● |
| OTA upgrade | ● | ● | ● |
| Interface support | ●USB interface | ●USB interface | ●USB interface |
| ●Type-C interface | ●Type-C interface | ●Type-C interface | |
| Number of USB/Type-C ports | ● 3 seats in the front row / 2 seats in the back row | ● 3 seats in the front row / 2 seats in the back row | ● 3 seats in the front row / 2 seats in the back row |
| Wireless charging power for mobile phones | - | ●50W | ●50W |
| Power support | - | ●12V power supply in the luggage compartment | ○12V power supply in the luggage compartment |
| App Store | ● | ● | ● |
| light | |||
| low beam headlights | ●LED | ●LED | ●LED |
| High beams | ●LED | ●LED | ●LED |
| LED daytime running lights | ● | ● | ● |
| Adaptive high and low beam | - | ● | ● |
| Headlights are adjustable | ● | ● | ● |
| Automatic headlights | ● | ● | ● |
| Headlights delayed shut-off | ● | ● | ● |
| Interior ambient lighting | - | ● | ○ |
| Glass/Rearview Mirror | |||
| Electric windows | ●Before | ●Before | ●Before |
| ●After | ●After | ●After | |
| One-touch window operation | ●Full vehicle | ●Full vehicle | ●Full vehicle |
| Anti-pinch function for car windows | ● | ● | ● |
| exterior rearview mirror | ●Electrically adjustable | ●Electrically adjustable | ●Electrically adjustable |
| ●Heating | ●Electrically folding | ●Electrically folding | |
| ●Memory function | ○Memory | ||
| ●Heating | ●Heating | ||
| ●Automatic folding when locking | ●Automatic folding when locking | ||
| Interior rearview mirror | ● Manual anti-glare | ● Manual anti-glare | ● Manual anti-glare |
| Rain-sensing wipers | ● | ● | ● |
| Air conditioner/refrigerator | |||
| Air conditioning control methods | ●Automatic control | ●Automatic control | ●Automatic control |
| Rear air vent | ● | ● | ● |
| Temperature zone control | - | ● | ○ |
| PM2.5 filtration | ● | ● | ● |
Reviews
There are no reviews yet.
