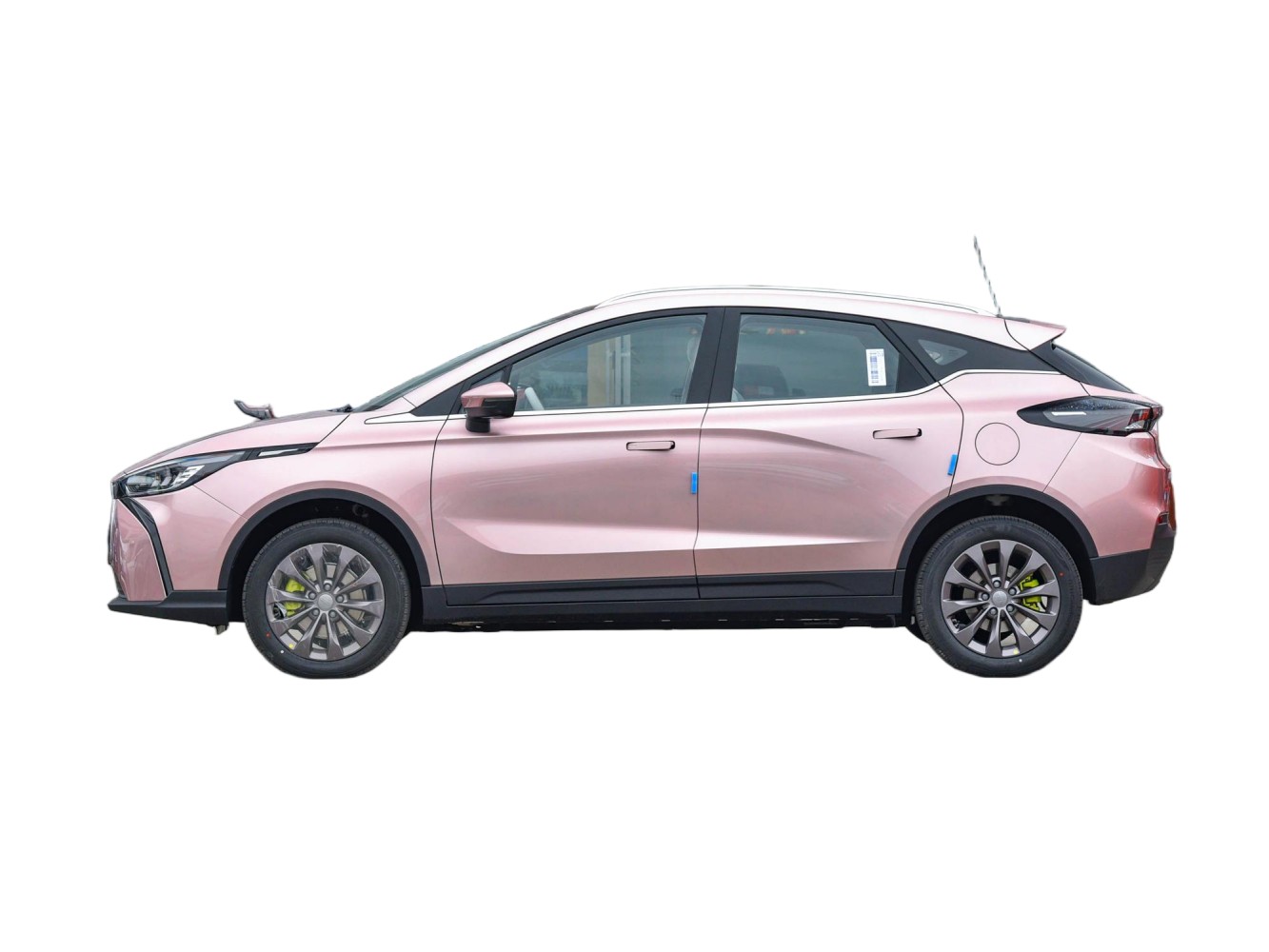

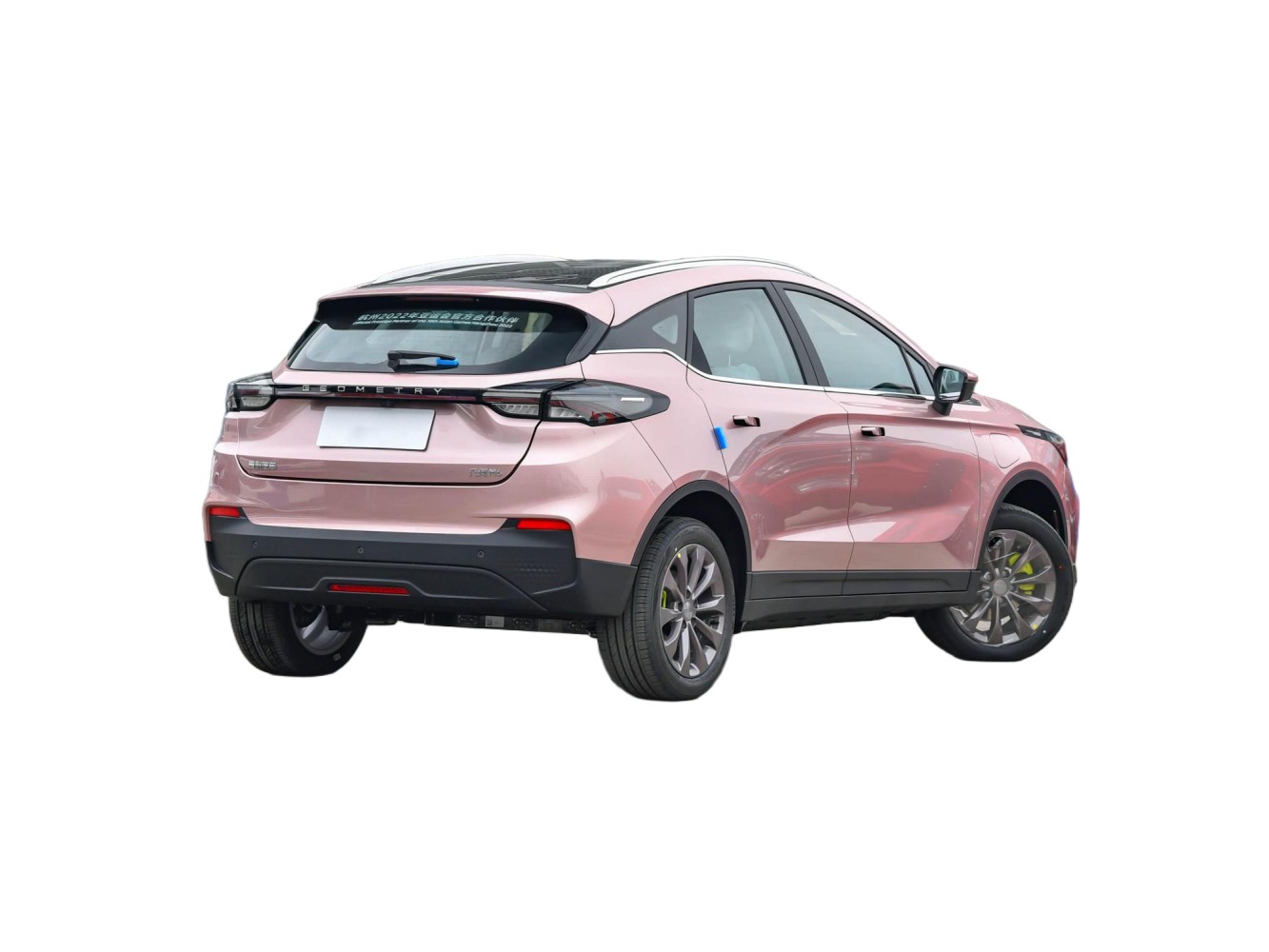

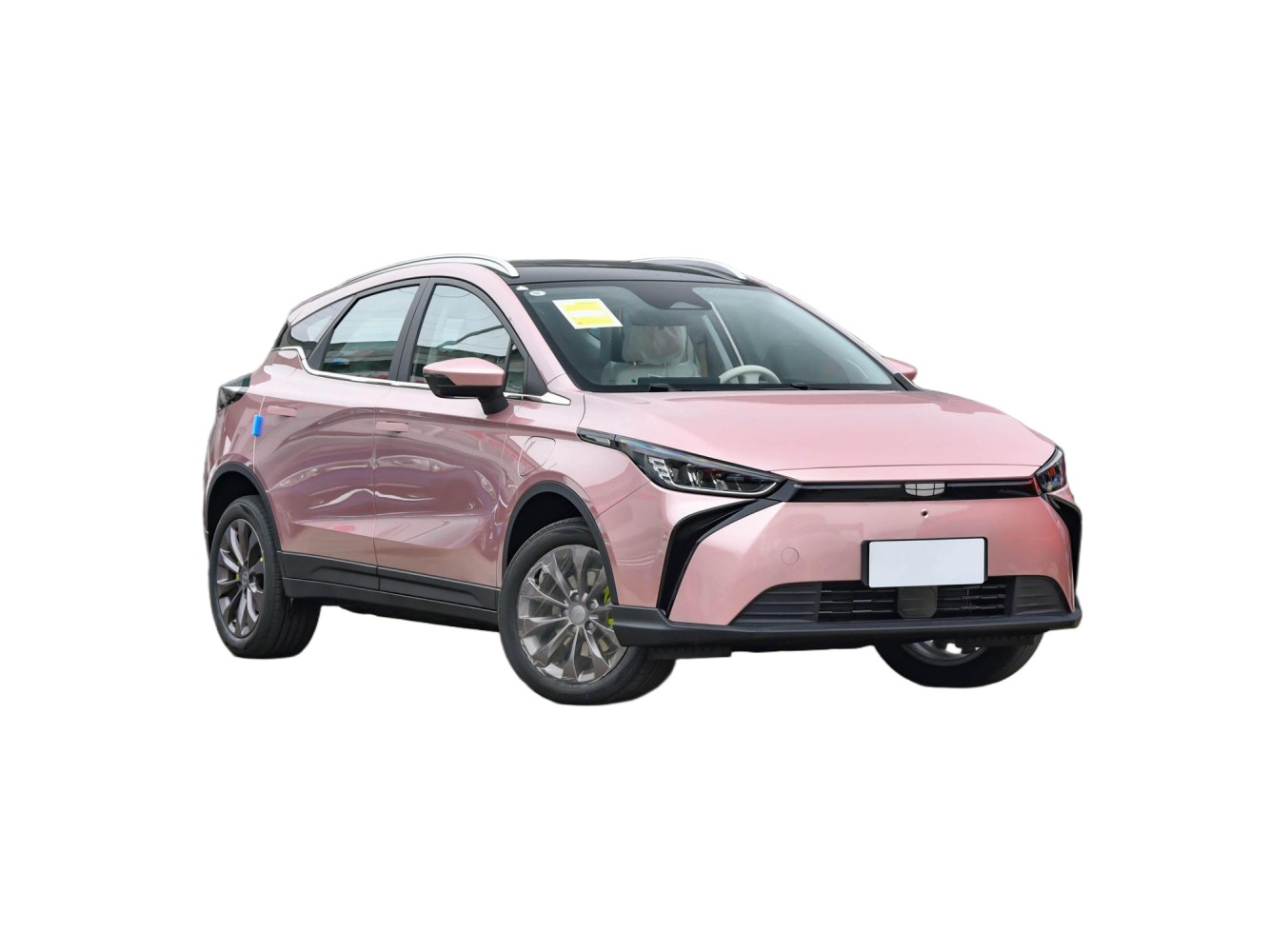

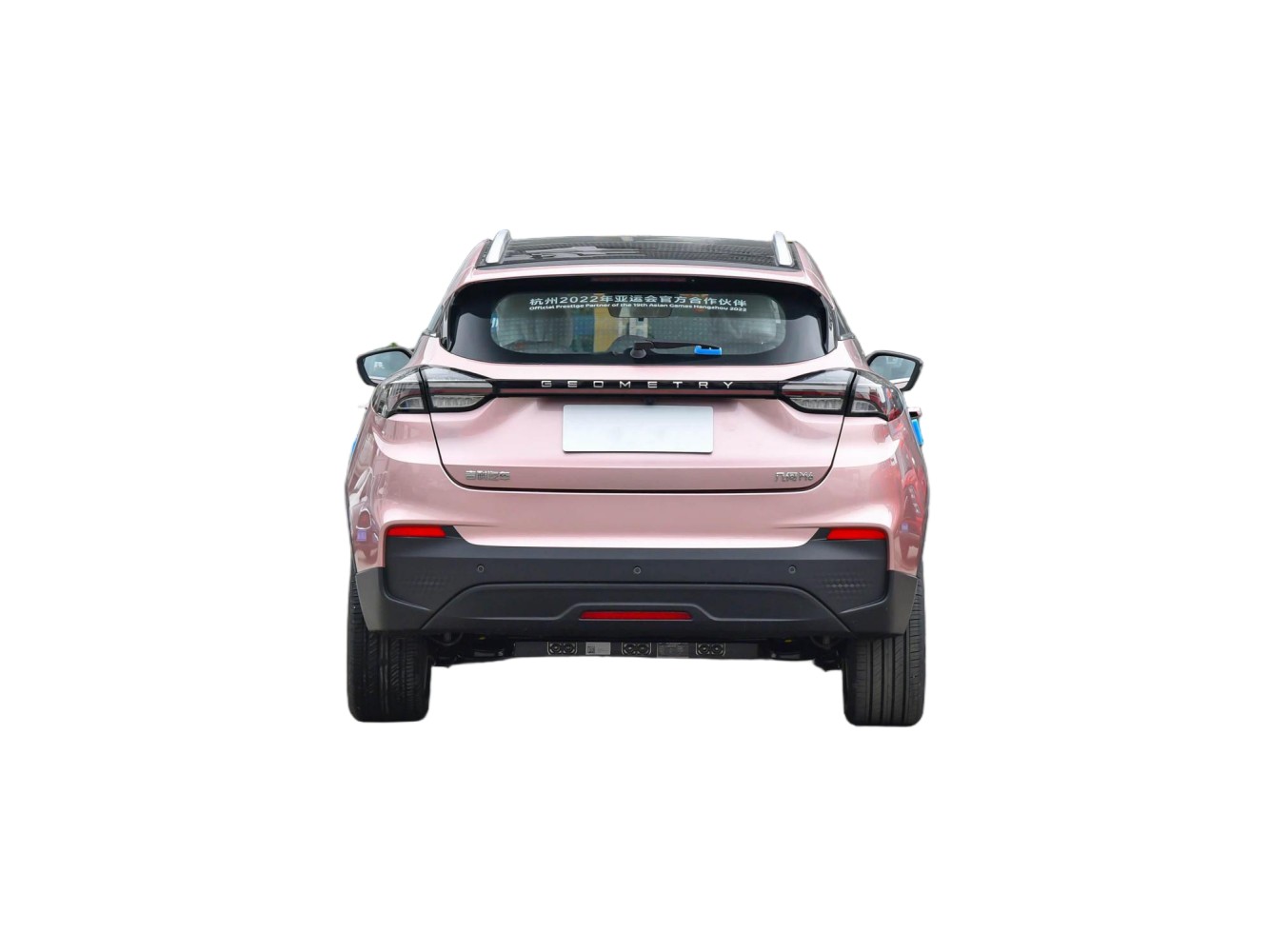

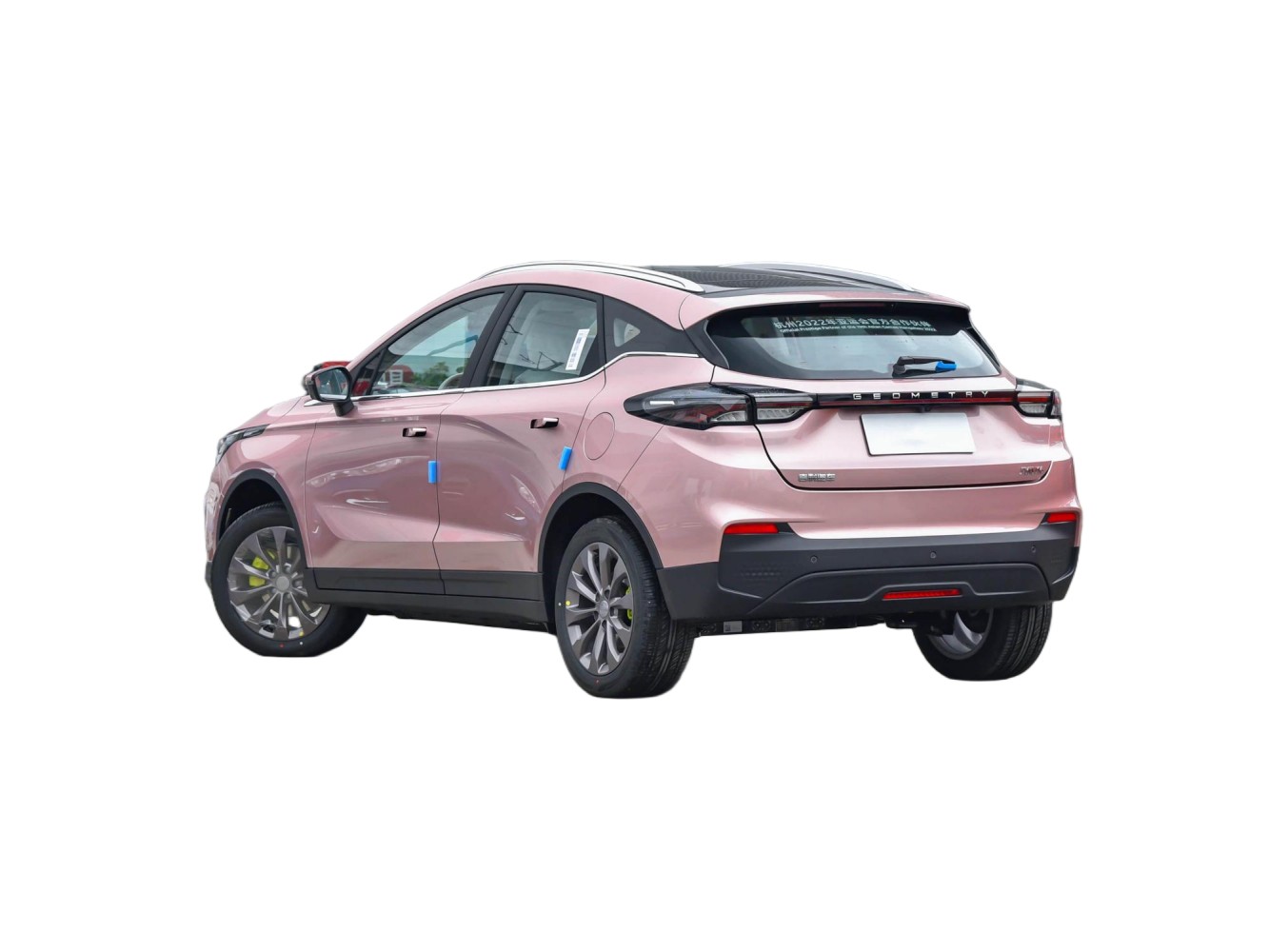

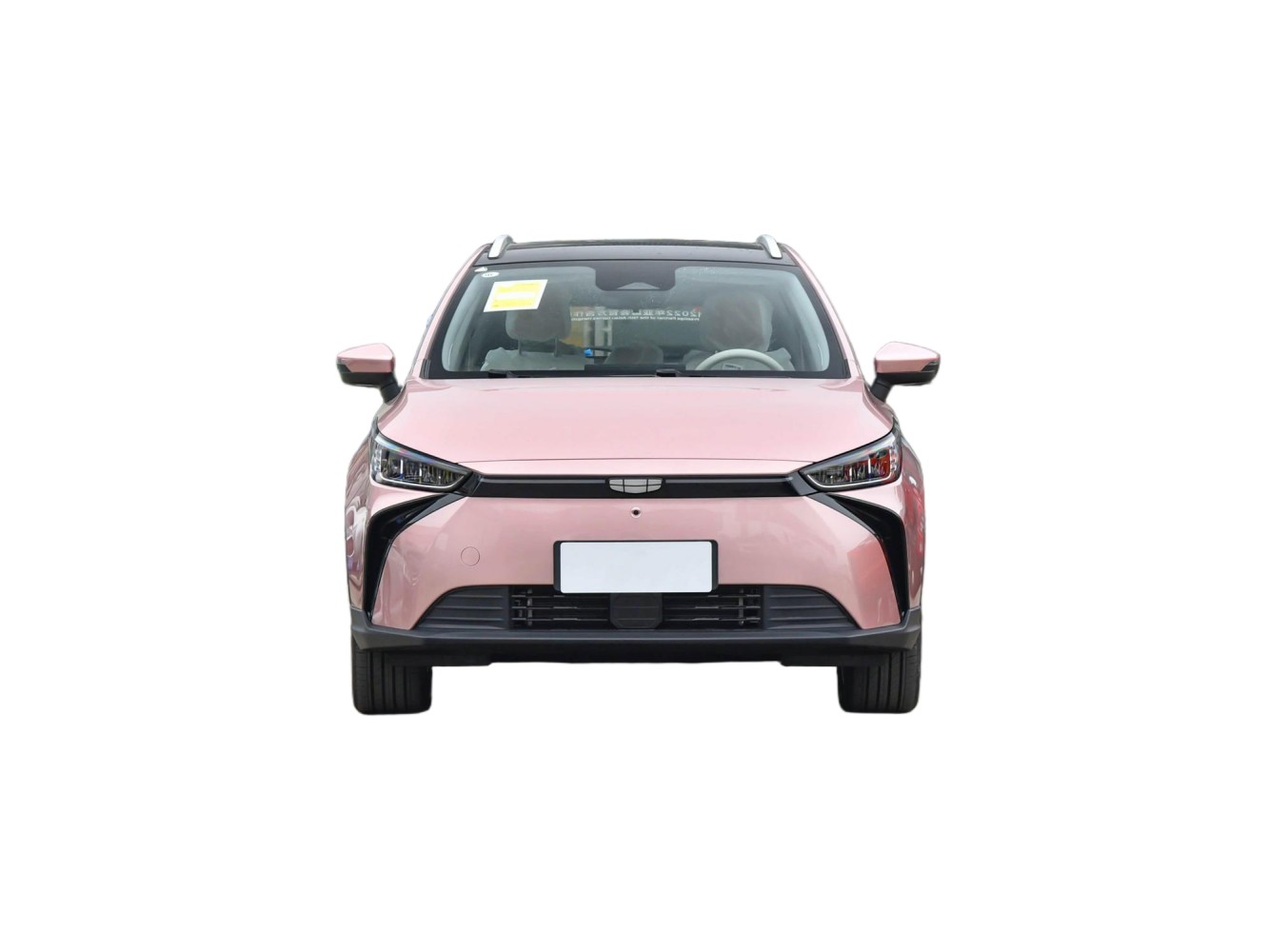

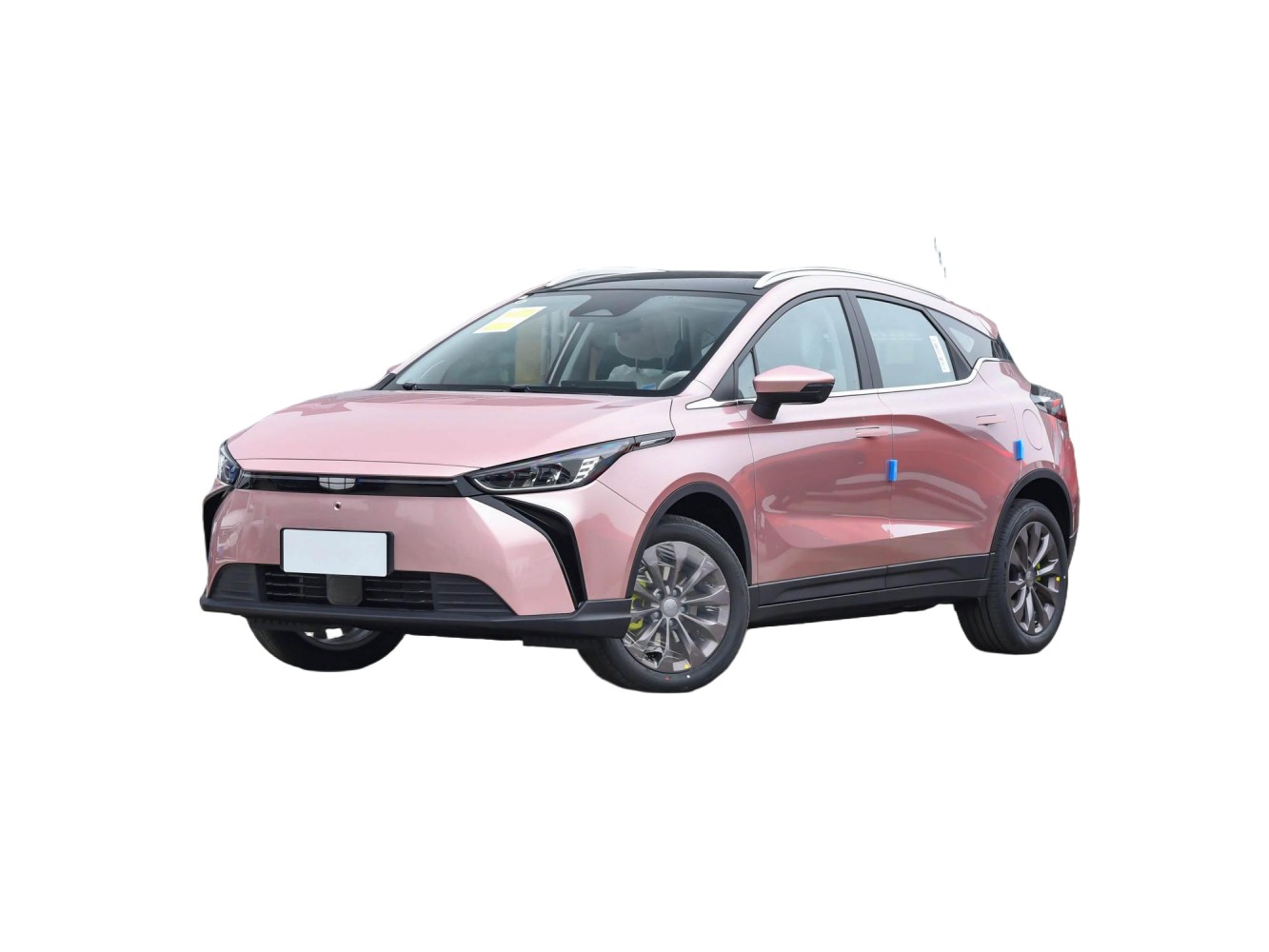

Exterior Design
The GEELY Geometry M6 is a compact pure electric SUV, equipped with a closed front grille and full LED headlight groups. The vehicle is fitted with through-type LED taillight groups and rear bumper trim. Multiple body color options are available. The vehicle adopts 18-inch wheel configurations for different versions. Conventional door handles are equipped as standard. A panoramic sunroof is equipped for partial versions.
The vehicle adopts a 5-door 5-seater SUV layout. The body dimensions are 4432 mm in length, 1833 mm in width and 1560 mm in height, with a wheelbase of 2700 mm. Electrically adjustable exterior mirrors with heating functions are equipped for different versions. An electric charging port cover is equipped as standard.
Interior Design
The vehicle is equipped with a 10.2-inch full LCD digital instrument cluster and 14.6-inch central control touchscreen. Multiple interior color schemes are available, matched with faux leather upholstery and metallic decorative trim. The vehicle supports multi-color ambient lighting and automatic constant temperature air conditioning system. An electronic gear shift lever is equipped as standard.
Standard configurations include front, side and curtain airbags, front and rear parking sensors, rearview camera and constant-speed cruise control. Keyless entry and one-key start functions are standard. Partial versions are equipped with 540-degree panoramic camera system, adaptive cruise control, lane keeping assist and active braking system. The vehicle supports vehicle network connection, V2L external discharge and OTA upgrade functions. Partial versions are equipped with multi-adjustable front seats with heating functions and multi-speaker audio system.
Powertrain
The GEELY Geometry M6 adopts front-wheel drive layout, matched with single-speed fixed gear electric drive assembly. The vehicle is equipped with front permanent magnet synchronous motors with maximum power of 120 kW and 150 kW for different versions. The 150 kW motor has a peak torque of 310 Nm.
The vehicle is equipped with lithium iron phosphate battery packs. The CLTC pure electric cruising range covers 450 km and 580 km for different versions. The vehicle supports DC fast charging and AC slow charging functions. The vehicle is equipped with adjustable energy recovery system and multiple driving mode adjustment functions. The vehicle adopts front MacPherson independent suspension and rear multi-link independent suspension system.
| 2022 Geometry M6 450 New Intelligence | 2022 Geometry M6 450 New Heavy Duty | 2022 Geometry M6 580 New Lexus | 2022 Geometry M6 580 New Fun Model | |
|---|---|---|---|---|
| Basic Information | ||||
| vehicle class | Compact SUV | Compact SUV | Compact SUV | Compact SUV |
| Length*Width*Height(mm) | 4432*1833*1560 | 4432*1833*1560 | 4432*1833*1560 | 4432*1833*1560 |
| Type of energy | all-electric | all-electric | all-electric | all-electric |
| NEDC pure electric range (km) | 400 | 400 | 550 | 550 |
| CLTC pure electric range (km) | 450 | 450 | 580 | 580 |
| Total motor power (kW) | 150 | 150 | 150 | 150 |
| Total motor torque (N-m) | 310 | 310 | 310 | 310 |
| Maximum speed (km/h) | 150 | 150 | 150 | 150 |
| 0-100km/h acceleration(s) | 6.9 | 6.9 | 6.9 | 6.9 |
| Battery Type | Ternary lithium battery | Ternary lithium battery | Ternary lithium battery | Ternary lithium battery |
| Battery capacity (kWh) | 53 | 53 | 70 | 70 |
| Fast charging time (h) | 0.5 | 0.5 | 0.63 | 0.63 |
| Fast charging capacity (%) | 80 | 80 | 80 | 80 |
| Warranty Policy | Four years or 150,000 kilometers | Four years or 150,000 kilometers | Four years or 150,000 kilometers | Four years or 150,000 kilometers |
| body of automobile | ||||
| Length (mm) | 4432 | 4432 | 4432 | 4432 |
| Width (mm) | 1833 | 1833 | 1833 | 1833 |
| Height (mm) | 1560 | 1560 | 1560 | 1560 |
| Wheelbase (mm) | 2700 | 2700 | 2700 | 2700 |
| Front wheelbase(mm) | 1561 | 1561 | 1561 | 1561 |
| Rear wheelbase(mm) | 1560 | 1560 | 1560 | 1560 |
| Weight (kg) | 1545 | 1545 | 1665 | 1665 |
| Luggage compartment volume (L) | 340-1150 | 340-1150 | 340-1150 | 340-1150 |
| Number of doors (pcs) | 5 | 5 | 5 | 5 |
| Number of seats (pcs) | 5 | 5 | 5 | 5 |
| electric motor | ||||
| Total motor power (kW) | 150 | 150 | 150 | 150 |
| Total motor torque (N-m) | 310 | 310 | 310 | 310 |
| Maximum power of front electric motor (kW) | 150 | 150 | 150 | 150 |
| Maximum torque of front motor (N-m) | 310 | 310 | 310 | 310 |
| NEDC pure electric range (km) | 400 | 400 | 550 | 550 |
| CLTC pure electric range (km) | 450 | 450 | 580 | 580 |
| Battery capacity (kWh) | 53 | 53 | 70 | 70 |
| 100km power consumption (kWh/100km) | 13 | 13 | 13.2 | 13.2 |
| Slow charging time (h) | 8.5 | 8.5 | 11 | 11 |
| Fast charging time (h) | 0.5 | 0.5 | 0.63 | 0.63 |
| Motor structure | permanent magnetism | permanent magnetism | permanent magnetism | permanent magnetism |
| Principle of motor operation | synchronization | synchronization | synchronization | synchronization |
| Number of drive motors | single motor | single motor | single motor | single motor |
| Motor Layout | preamplifier | preamplifier | preamplifier | preamplifier |
| Battery Type | Ternary lithium battery | Ternary lithium battery | Ternary lithium battery | Ternary lithium battery |
| Battery Cell Brands | - | - | Ningde Times | Ningde Times |
| Battery cooling method | liquid cooling | liquid cooling | liquid cooling | liquid cooling |
| Battery Energy Density(Wh/kg) | 160.35 | 160.35 | 183.23 | 183.23 |
| fast charging function | be in favor of | be in favor of | be in favor of | be in favor of |
| Fast charging capacity (%) | 80 | 80 | 80 | 80 |
| Battery Pack Warranty | Unlimited years/mileage for first owner (liability waivers are subject to official terms) | Unlimited years/mileage for first owner (liability waivers are subject to official terms) | Unlimited years/mileage for first owner (liability waivers are subject to official terms) | Unlimited years/mileage for first owner (liability waivers are subject to official terms) |
| Battery preheating | ● | ● | ● | ● |
| Chassis/steering | ||||
| Driving form | front drive | front drive | front drive | front drive |
| Front suspension type | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension |
| Rear suspension type | Torsion beam non-independent suspension | Torsion beam non-independent suspension | Torsion beam non-independent suspension | Torsion beam non-independent suspension |
| Steering assist form | electric power assist | electric power assist | electric power assist | electric power assist |
| Wheels/Brakes | ||||
| Front/Rear Brake Type | Ventilated Disc Type / Disc Type | Ventilated Disc Type / Disc Type | Ventilated Disc Type / Disc Type | Ventilated Disc Type / Disc Type |
| Parking brake type | electronic parking | electronic parking | electronic parking | electronic parking |
| Front Tire Specification | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/45 R18 |
| Rear Tire Specification | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/45 R18 |
| Wheel Material | aluminum | aluminum | aluminum | aluminum |
| Active/passive safety features | ||||
| ABS anti-lock | ● | ● | ● | ● |
| Brake force distribution (EBD/CBC etc.) | ● | ● | ● | ● |
| Brake Assist (BA/EBA/BAS etc.) | ● | ● | ● | ● |
| Traction control (ASR/TCS/TRC etc.) | ● | ● | ● | ● |
| Stability Control (ESC/ESP/DSC etc.) | ● | ● | ● | ● |
| Active braking/safety systems | ● | ● | ● | ● |
| merging aid | - | - | - | ● |
| lane keeping assist system | ● | ● | ● | ● |
| lane departure warning | ● | ● | ● | ● |
| Road traffic signage recognition | ● | ● | ● | ● |
| front exhaust airbag | :: Driver's airbag | :: Driver's airbag | :: Driver's airbag | :: Driver's airbag |
| ●Passenger airbag | ●Passenger airbag | ●Passenger airbag | ●Passenger airbag | |
| ●Side airbags | ●Side airbags | |||
| ●Head airbags (air curtains) | ||||
| Rear airbags | - | - | - | ●Head airbags (air curtains) |
| Tire Pressure Detection Device | ●Display | ●Display | ●Display | ●Display |
| Seat Belt Reminder | ●Principal Driver | ●Principal Driver | ●Principal Driver | ●Principal Driver |
| ●Passenger | ●Passenger | ●Passenger | ●Passenger | |
| ISOFIX child restraints | ● | ● | ● | ● |
| Forward Collision Warning | ● | ● | ● | ● |
| Auxiliary/Manipulation Configurations | ||||
| parking radar | ● Post | ● Post | ● Post | ●Forward |
| ● Post | ||||
| Driver Assistance Video | ● Backup camera | ●360-degree panoramic image | ● Backup camera | ●360-degree panoramic image |
| Transparent chassis/540 degree image | - | - | - | ● |
| cruise control | ●Adaptive cruise at all speeds | ●Adaptive cruise at all speeds | ●Adaptive cruise at all speeds | ●Adaptive cruise at all speeds |
| Driving Mode Switching | :: Campaigns | :: Campaigns | :: Campaigns | :: Campaigns |
| :: Economy | :: Economy | :: Economy | :: Economy | |
| :: Standard/comfort | :: Standard/comfort | :: Standard/comfort | :: Standard/comfort | |
| steep incline and slow descent | ● | ● | ● | ● |
| hill-holding aid | ● | ● | ● | ● |
| automatic parking | ● | ● | ● | ● |
| automatic parking | - | - | - | ● |
| remote control | - | - | - | ● |
| Assisted driving level | ●L2 | ●L2 | ●L2 | ●L2 |
| External/anti-theft configurations | ||||
| skylights | - | ● Non-opening panoramic sunroof | - | ● Non-opening panoramic sunroof |
| roof rack | - | ● | - | ● |
| Active Closed Grille | - | ● | - | ● |
| Concealed power door handles | - | ● | - | ● |
| Key Type | ●Remote key | ●Remote key | ●Remote key | ●Remote key |
| ● Bluetooth key | ● Bluetooth key | ● Bluetooth key | ● Bluetooth key | |
| Keyless entry | - | ● | - | ● |
| Keyless Start System | ● | ● | ● | ● |
| Remote start function | ● | ● | ● | ● |
| Central locking in the car | ● | ● | ● | ● |
| Internal Configuration | ||||
| Steering wheel material | ● Leather | ● Leather | ● Leather | ● Leather |
| Steering Wheel Adjustment | ● Manual | ● Manual | ● Manual | ● Manual |
| Adjustable up and down | Adjustable up and down | Adjustable up and down | Adjustable up and down | |
| Adjustable front and rear | Adjustable front and rear | Adjustable front and rear | Adjustable front and rear | |
| Steering wheel functions | :: Multifunctionality | :: Multifunctionality | :: Multifunctionality | :: Multifunctionality |
| center armrest | ●Forward | ●Forward | ●Forward | ●Forward |
| ● Post | ● Post | |||
| Sun visor vanity mirror | ● | ● | ● | ● |
| Liquid crystal instrument size | 10.2 in. | 10.2 in. | 10.2 in. | 10.2 in. |
| HUD Head-Up Display | - | - | - | ● |
| Wireless charging function for cell phones | - | ● Front row | - | ● Front row |
| Intelligent Hardware | ||||
| Number of cameras | :: 1 | ● 5 | :: 1 | ● 5 |
| Number of ultrasonic radars | :: 4 | :: 4 | :: 4 | :: 12 |
| seating | ||||
| Seat Material | :: Imitation leather | :: Imitation leather | :: Imitation leather | :: Imitation leather |
| Main Driver's Seat Function | - | ●Heating | - | :: Memory |
| ●Heating | ||||
| Passenger seat function | - | ●Heating | - | ●Heating |
| Seat electric adjustment | - | ●Principal Driver | - | ●Principal Driver |
| ●Passenger | ||||
| Integral adjustment of the main driver's seat | ●Before and after | ●Before and after | ●Before and after | ●Before and after |
| ●Backrests | ●Backrests | ●Backrests | ●Backrests | |
| ●High/Low (2-way) | ●High/Low (2-way) | ●High/Low (2-way) | ●High/Low (2-way) | |
| Passenger seat overall adjustment | ●Before and after | ●Before and after | ●Before and after | ●Before and after |
| ●Backrests | ●Backrests | ●Backrests | ●Backrests | |
| Second row seat adjustment | ●Proportional lowering | ●Proportional lowering | ●Proportional lowering | ●Proportional lowering |
| Rear Cup Holder | - | ● | - | ● |
| multimedia | ||||
| Large color screen in the center console | ● | ● | ● | ● |
| satellite navigation system | ● | ● | ● | ● |
| Navigating the road information display | ● | ● | ● | ● |
| Map Branding | ●Gold | ●Gold | ●Gold | ●Gold |
| In-vehicle Intelligent System | ●HarmonyOS | ●HarmonyOS | ●HarmonyOS | ●HarmonyOS |
| Mobile APP Remote Function | ●Door control | ●Door control | ●Door control | ●Door control |
| ● Vehicle start-up | ● Vehicle start-up | ● Vehicle start-up | ● Vehicle start-up | |
| ● Charge management | ● Charge management | ● Charge management | ● Charge management | |
| ● Air conditioning control | ● Air conditioning control | ● Air conditioning control | ● Air conditioning control | |
| :: Vehicle condition check/diagnosis | :: Vehicle condition check/diagnosis | :: Vehicle condition check/diagnosis | :: Vehicle condition check/diagnosis | |
| Bluetooth/Car Phone | ● | ● | ● | ● |
| Cell phone connectivity/mapping | ●Factory connectivity/mapping | ●Factory connectivity/mapping | ●Factory connectivity/mapping | ●Factory connectivity/mapping |
| Number of audio speakers | awaiting investigation | awaiting investigation | awaiting investigation | awaiting investigation |
| Voice Recognition Control System | :: Multimedia systems | :: Multimedia systems | :: Multimedia systems | :: Multimedia systems |
| :: Navigation | :: Navigation | :: Navigation | :: Navigation | |
| :: Telephone | :: Telephone | :: Telephone | :: Telephone | |
| :: Air conditioning | :: Air conditioning | :: Air conditioning | :: Air conditioning | |
| Center screen size | ●14.6 inches | ●14.6 inches | ●14.6 inches | ●14.6 inches |
| Voice assistant wake words | Hello, Geometry. | Hello, Geometry. | Hello, Geometry. | Hello, Geometry. |
| 4G/5G networks | ●4G | ●4G | ●4G | ●4G |
| Telematics | ● | ● | ● | ● |
| OTA upgrade | ● | ● | ● | ● |
| Interface Support | ● USB port | ● USB port | ● USB port | ● USB port |
| (stage) lighting | ●Type-C port | ●Type-C port | ●Type-C port | ●Type-C port |
| low beam (headlights) | ●LED | ●LED | ●LED | ●LED |
| high beam (headlights) | ●LED | ●LED | ●LED | ●LED |
| LED daytime running lights | - | ● | - | ● |
| Adaptive high and low beam | ● | ● | ● | ● |
| Adjustable headlights | ● | ● | ● | ● |
| Automatic headlights | ● | ● | ● | ● |
| Delayed headlight off | ● | ● | ● | ● |
| Interior Ambient Lighting | - | - | - | ● |
| Glass/Mirror | ||||
| power window | ●Forward | ●Forward | ●Forward | ●Forward |
| ● Post | ● Post | ● Post | ● Post | |
| One-touch window lifting | ● Full vehicle | ● Full vehicle | ● Full vehicle | ● Full vehicle |
| Anti Window Pinch Handle | ● | ● | ● | ● |
| rearview mirror | ●Motorized adjustment | ●Motorized adjustment | ●Motorized adjustment | ●Motorized adjustment |
| ●Heating | :: Electric folding | ●Heating | :: Electric folding | |
| ●Heating | :: Memory | |||
| ●Automatic folding for locking the car | ●Heating | |||
| ●Automatic folding for locking the car | ||||
| ●Automatic reversing down | ||||
| rearview mirror | ●Manual anti-glare | ●Manual anti-glare | ●Manual anti-glare | ●Manual anti-glare |
| inductive wiper | - | ● | - | ● |
| Air conditioners/refrigerators | ||||
| Air conditioning control method | ● Automatic control | ● Automatic control | ● Automatic control | ● Automatic control |
| rear air vent | ● | ● | ● | ● |
| Temperature zone control | ● | ● | ● | ● |
| PM2.5 filtration | ● | ● | ● | ● |
| Negative Ion Generator | - | ● | - | ● |
