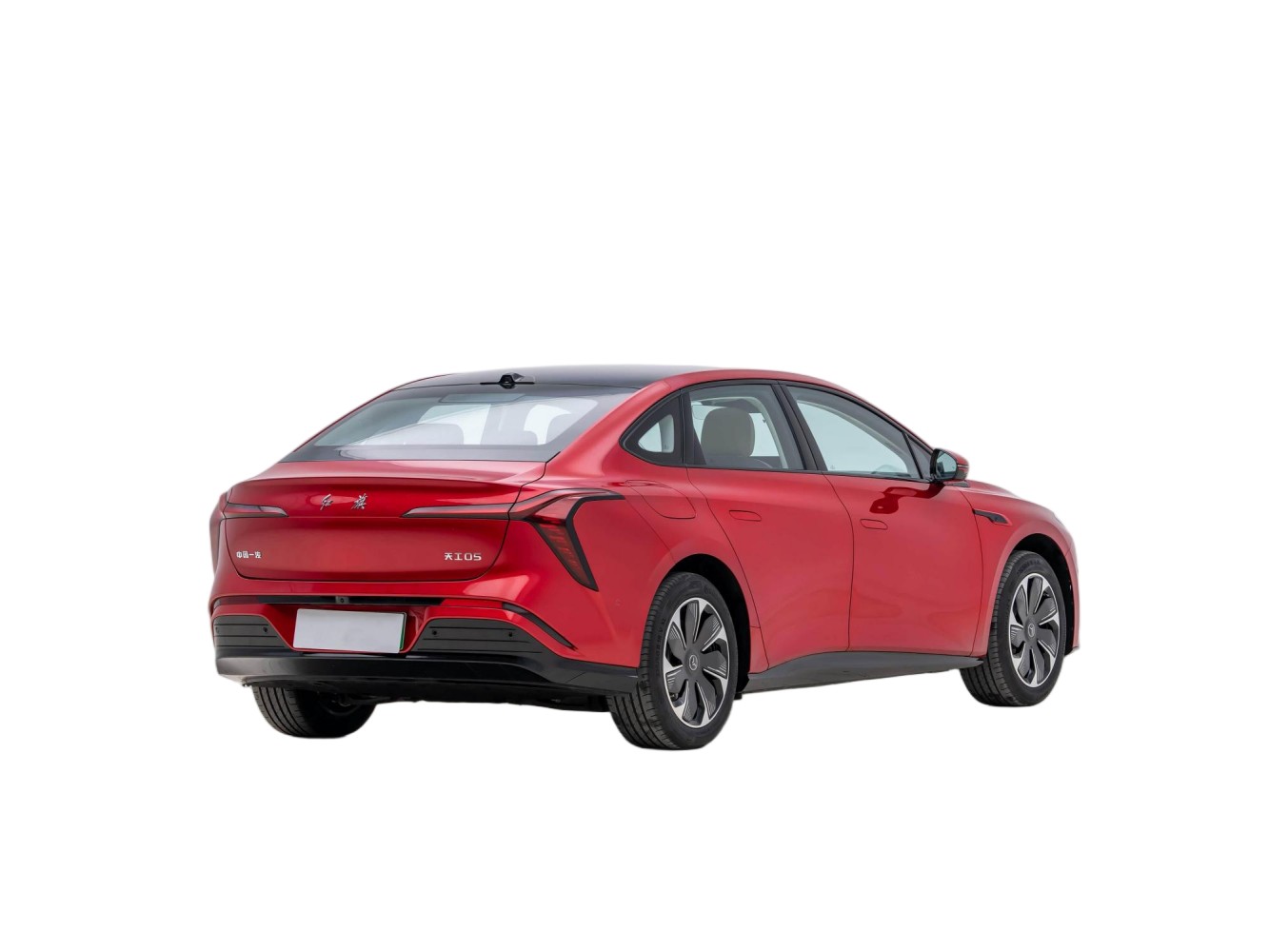

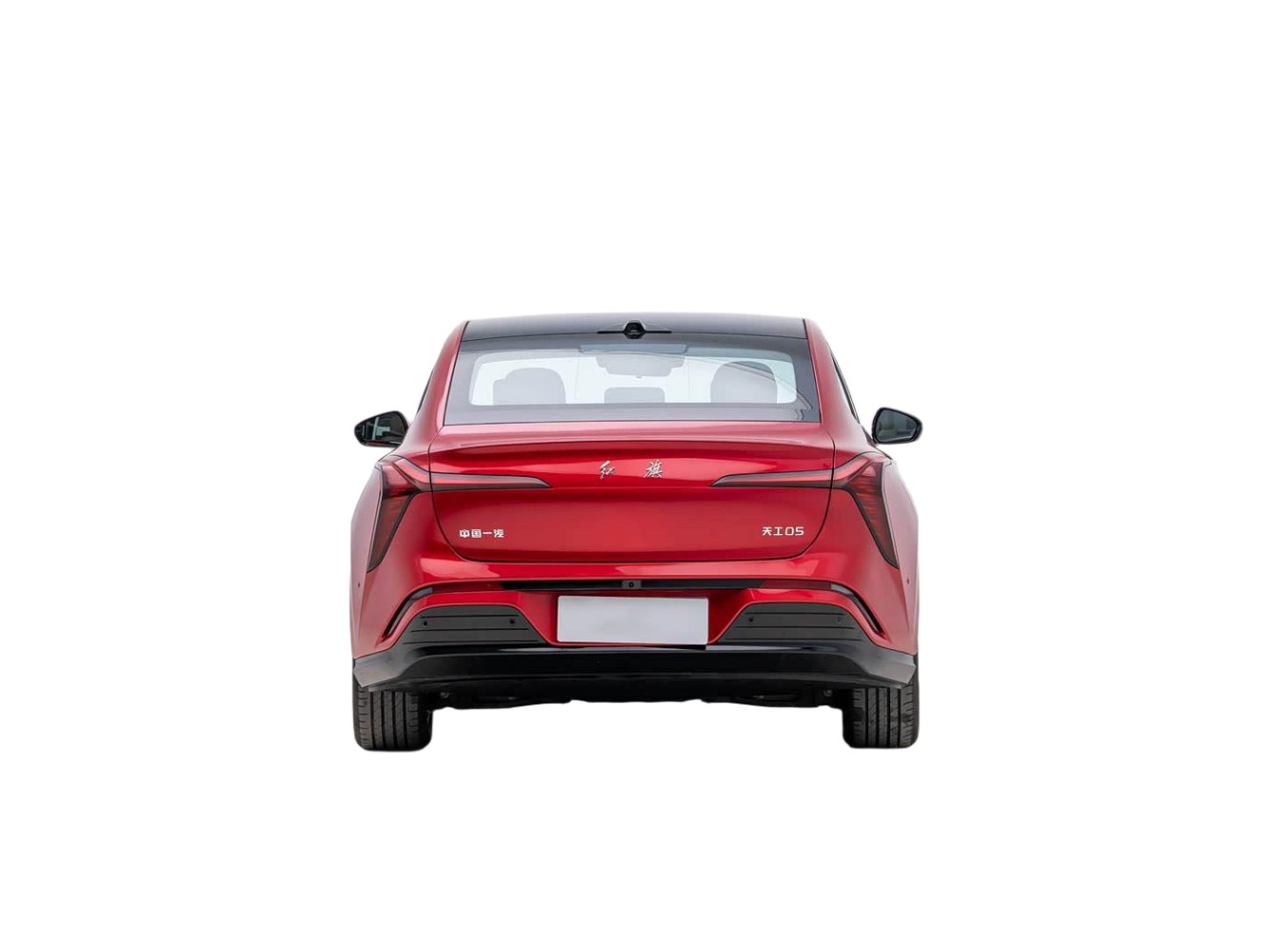

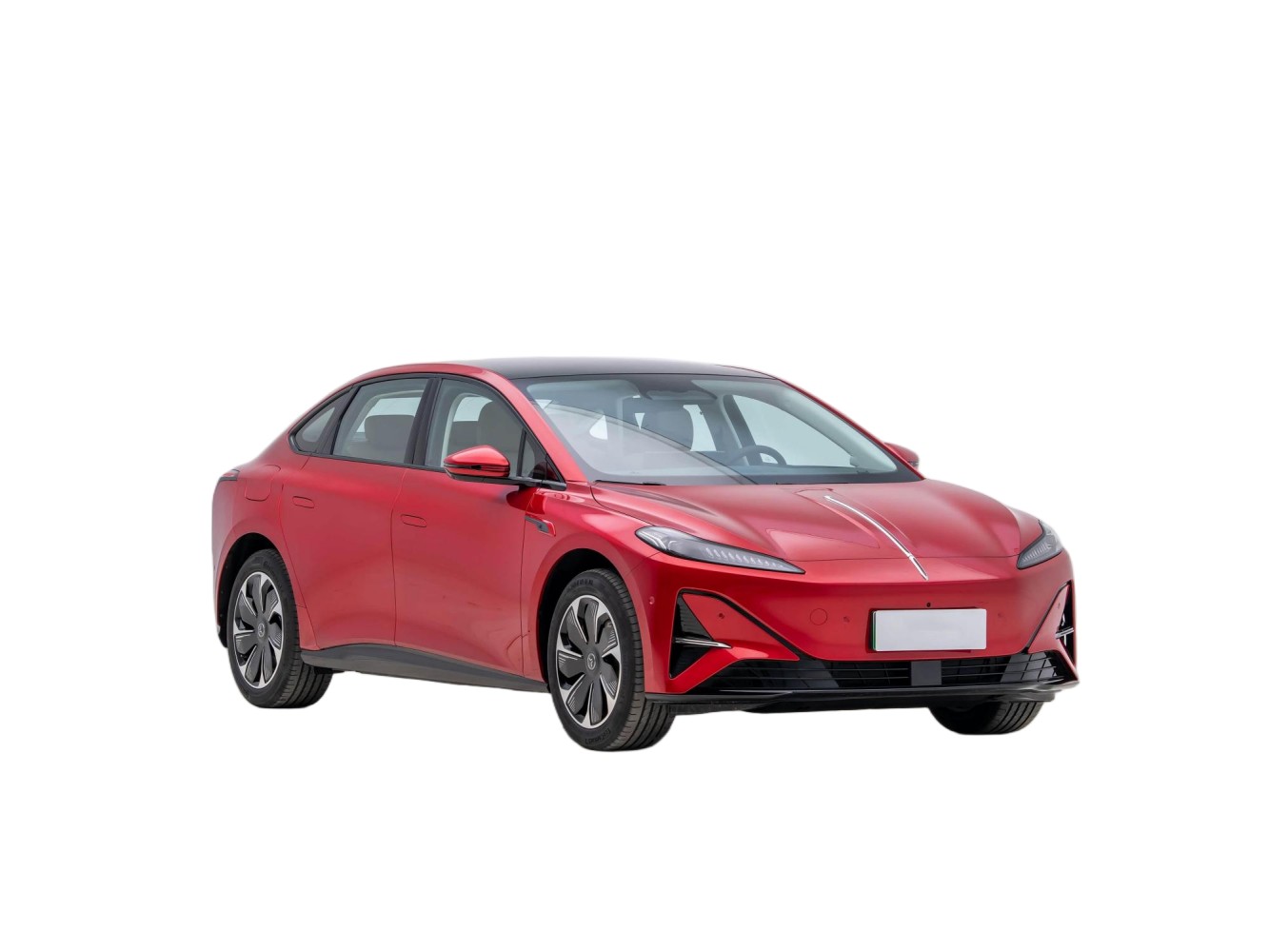

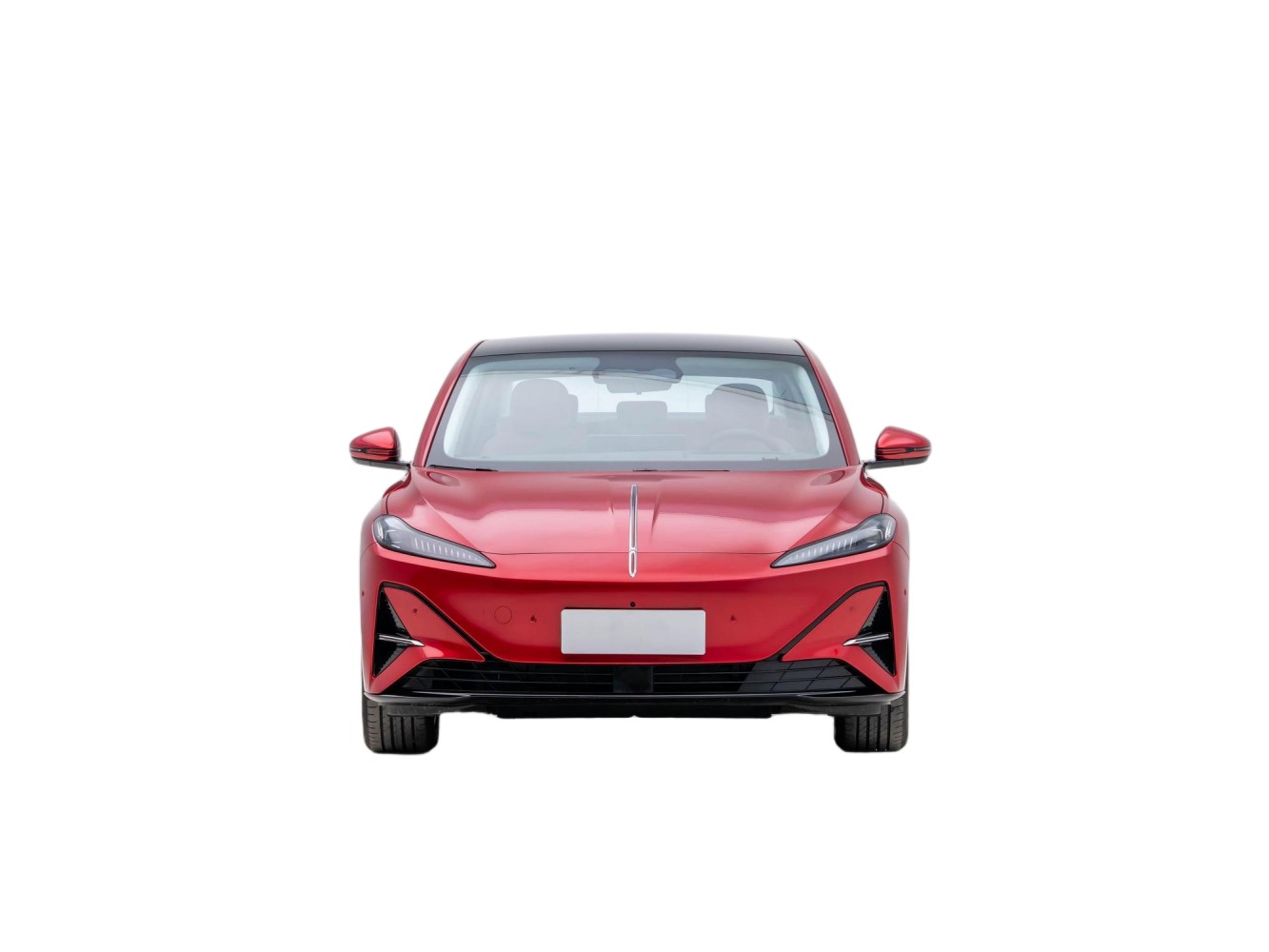

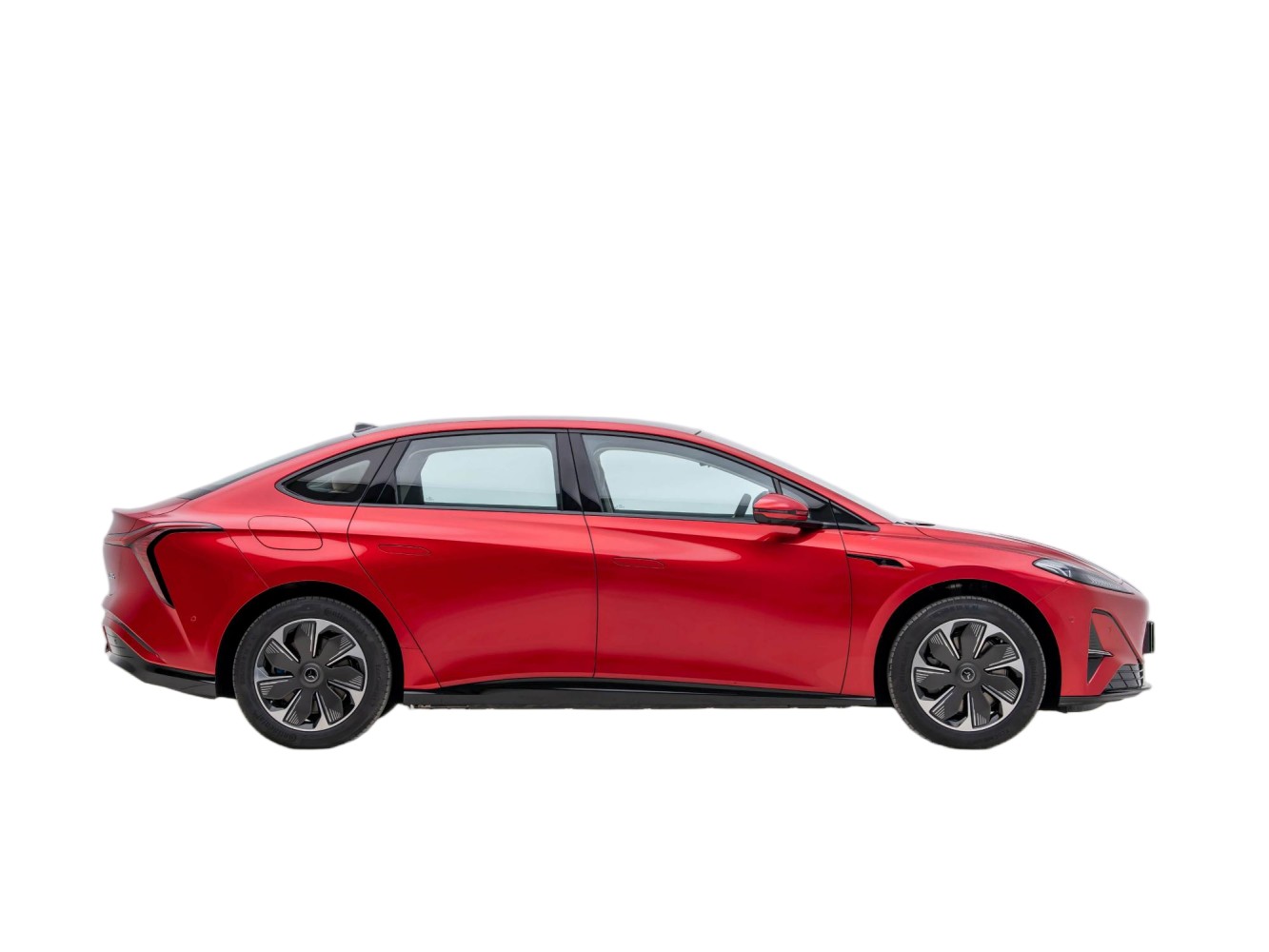

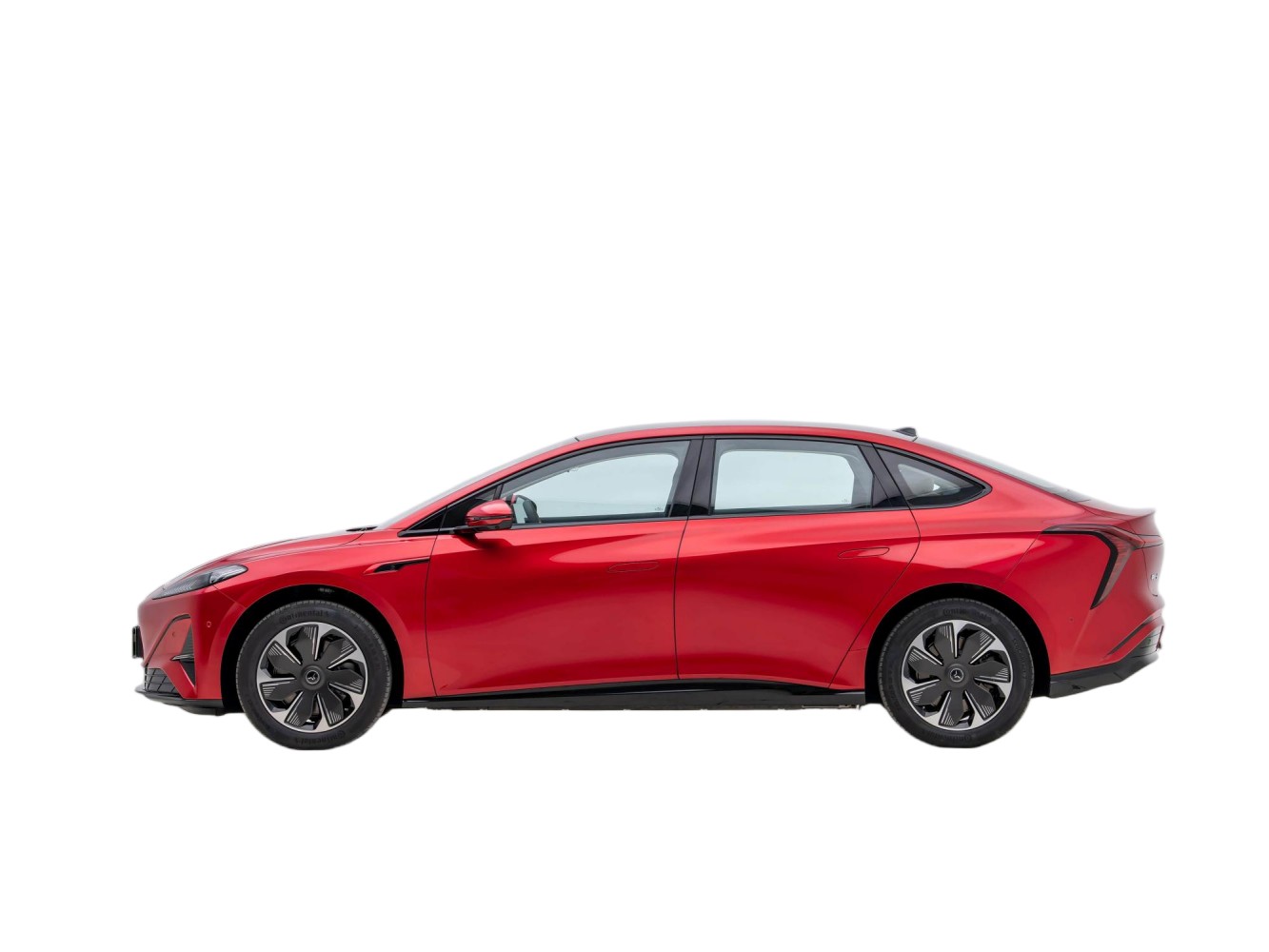

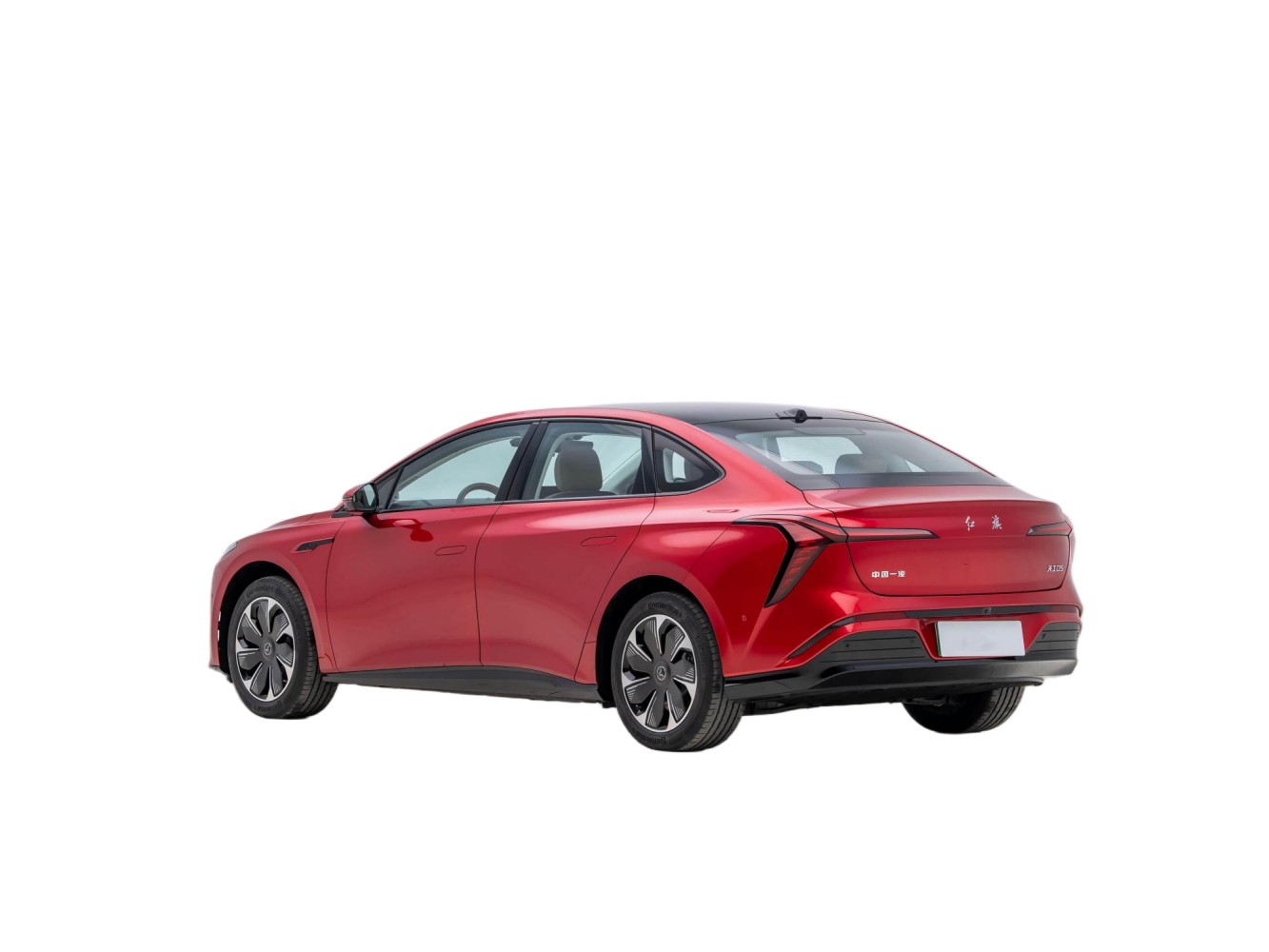

Exterior Design
The Hongqi Tiangong 05 is a mid-size pure electric sedan, equipped with a closed front grille and full LED headlight groups. The vehicle is fitted with LED taillight groups and rear bumper trim. Multiple body color options are available. The vehicle adopts 18-inch and 19-inch wheel configurations for different versions. Hidden door handles are equipped as standard. A panoramic sunroof is equipped for partial versions.
The vehicle adopts a 4-door 5-seater sedan layout. The body dimensions are 4820 mm in length, 1915 mm in width and 1480 mm in height, with a wheelbase of 2930 mm. Electrically adjustable exterior mirrors with heating and automatic folding functions are equipped for different versions. An electric charging port cover is equipped as standard.
Interior Design
The vehicle is equipped with a full LCD digital instrument cluster and central control touchscreen. Multiple interior color schemes are available, matched with leather upholstery and metallic decorative trim. The vehicle supports multi-color ambient lighting and automatic constant temperature air conditioning. An electronic gear shift lever is equipped as standard.
Standard configurations include front, side and curtain airbags, front and rear parking sensors, rearview camera and constant-speed cruise control. Keyless entry and one-key start functions are standard. High-spec versions are equipped with 360-degree panoramic camera system, head-up display system, adaptive cruise control, lane keeping assist and active braking system. The vehicle supports vehicle network connection, wireless phone charging, V2L external discharge and OTA upgrade functions.
Powertrain
The Hongqi Tiangong 05 adopts rear-wheel drive and four-wheel drive layouts, matched with single-speed fixed gear electric drive assembly. The single motor version is equipped with rear permanent magnet synchronous motor with maximum power of 210 kW and peak torque of 317 Nm. The dual motor four-wheel drive version has a comprehensive maximum power of 340 kW and a comprehensive peak torque of 450 Nm.
The vehicle is equipped with 62kWh, 75kWh, 85kWh and 98kWh battery packs for different versions. The CLTC pure electric cruising range covers 550 km, 650 km, 750 km and 850 km for different versions. The vehicle supports DC fast charging and AC slow charging functions with 900V high-voltage fast charging system. The vehicle is equipped with energy recovery system and battery constant temperature management system. The vehicle adopts front MacPherson independent suspension and rear multi-link independent suspension system.
| 2025 Hongqi Tiangong 05 550 Edition | 2025 Hongqi Tiangong 05 550 High-end Intelligent Driving Preferred Edition | 2025 Hongqi Tiangong 05 750 Edition | 2025 Hongqi Tiangong 05 750 High-end Intelligent Driving Preferred Edition | |
|---|---|---|---|---|
| Basic Information | ||||
| Availability | 2025.02 | 2025.02 | 2025.02 | 2025.02 |
| vehicle class | Mid-size trim | Mid-size trim | Mid-size trim | Mid-size trim |
| Length*Width*Height(mm) | 4820*1915*1480 | 4820*1915*1480 | 4820*1915*1480 | 4820*1915*1480 |
| Type of energy | all-electric | all-electric | all-electric | all-electric |
| CLTC pure electric range (km) | 550 | 550 | 750 | 750 |
| Total motor power (kW) | 210 | 210 | 210 | 210 |
| Total motor torque (N-m) | 317 | 317 | 317 | 317 |
| Maximum speed (km/h) | 200 | 200 | 200 | 200 |
| 0-100km/h acceleration(s) | 6.9 | 6.9 | 6.8 | 6.8 |
| Battery Type | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery |
| Battery capacity (kWh) | 62 | 62 | 85 | 85 |
| Fast charging time (h) | 0.33 | 0.33 | 0.33 | 0.33 |
| Fast charging capacity (%) | 10-80 | 10-80 | 10-80 | 10-80 |
| Warranty Policy | Four years or 100,000 kilometers | Four years or 100,000 kilometers | Four years or 100,000 kilometers | Four years or 100,000 kilometers |
| body of automobile | ||||
| Length (mm) | 4820 | 4820 | 4820 | 4820 |
| Width (mm) | 1915 | 1915 | 1915 | 1915 |
| Height (mm) | 1480 | 1480 | 1480 | 1480 |
| Wheelbase (mm) | 2900 | 2900 | 2900 | 2900 |
| Front wheelbase(mm) | 1652 | 1652 | 1652 | 1652 |
| Rear wheelbase(mm) | 1652 | 1652 | 1652 | 1652 |
| Weight (kg) | 1890 | 1890 | 2018 | 2018 |
| Maximum full load mass (kg) | 2340 | 2340 | 2468 | 2468 |
| Luggage compartment volume (L) | 433 | 433 | 433 | 433 |
| Number of doors (pcs) | 4 | 4 | 4 | 4 |
| Number of seats (pcs) | 5 | 5 | 5 | 5 |
| Approach angle (°) | 15 | 15 | 15 | 15 |
| Departure angle (°) | 20 | 20 | 20 | 20 |
| electric motor | ||||
| Total motor power (kW) | 210 | 210 | 210 | 210 |
| Total motor torque (N-m) | 317 | 317 | 317 | 317 |
| Maximum power of rear electric motor (kW) | 210 | 210 | 210 | 210 |
| Rear motor maximum torque (N-m) | 317 | 317 | 317 | 317 |
| CLTC pure electric range (km) | 550 | 550 | 750 | 750 |
| Battery capacity (kWh) | 62 | 62 | 85 | 85 |
| 100km power consumption (kWh/100km) | 12.1 | 12.1 | 12.5 | 12.5 |
| Fast charging time (h) | 0.33 | 0.33 | 0.33 | 0.33 |
| Motor structure | permanent magnetism | permanent magnetism | permanent magnetism | permanent magnetism |
| Principle of motor operation | synchronization | synchronization | synchronization | synchronization |
| Number of drive motors | single motor | single motor | single motor | single motor |
| Motor Layout | place after (e.g. in grammar) | place after (e.g. in grammar) | place after (e.g. in grammar) | place after (e.g. in grammar) |
| Battery Type | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery |
| Battery Cell Brands | FAW | FAW | FAW | FAW |
| Battery cooling method | liquid cooling | liquid cooling | liquid cooling | liquid cooling |
| fast charging function | be in favor of | be in favor of | be in favor of | be in favor of |
| Fast charging capacity (%) | 10-80 | 10-80 | 10-80 | 10-80 |
| energy recovery | 1 | 1 | 1 | 1 |
| Battery preheating | ● | ● | ● | ● |
| external discharge | ● | ● | ● | ● |
| Chassis/steering | ||||
| Driving form | rear drive | rear drive | rear drive | rear drive |
| Front suspension type | double wishbone independent suspension | double wishbone independent suspension | double wishbone independent suspension | double wishbone independent suspension |
| Rear suspension type | Five-link independent suspension | Five-link independent suspension | Five-link independent suspension | Five-link independent suspension |
| Steering assist form | electric power assist | electric power assist | electric power assist | electric power assist |
| Wheels/Brakes | ||||
| Front/Rear Brake Type | Ventilated Disc Type / Disc Type | Ventilated Disc Type / Disc Type | Ventilated Disc Type / Disc Type | Ventilated Disc Type / Disc Type |
| Parking brake type | electronic parking | electronic parking | electronic parking | electronic parking |
| Front Tire Specification | 235/50 R18 | 235/50 R18 | 235/50 R18 | 235/50 R18 |
| Rear Tire Specification | 235/50 R18 | 235/50 R18 | 235/50 R18 | 235/50 R18 |
| Wheel Material | aluminum | aluminum | aluminum | aluminum |
| Active/passive safety features | ||||
| ABS anti-lock | ● | ● | ● | ● |
| Brake force distribution (EBD/CBC etc.) | ● | ● | ● | ● |
| Brake Assist (BA/EBA/BAS etc.) | ● | ● | ● | ● |
| Traction control (ASR/TCS/TRC etc.) | ● | ● | ● | ● |
| Stability Control (ESC/ESP/DSC etc.) | ● | ● | ● | ● |
| Active braking/safety systems | ● | ● | ● | ● |
| merging aid | ● | ● | ● | ● |
| lane keeping assist system | ● | ● | ● | ● |
| lane departure warning | ● | ● | ● | ● |
| Automatic Lane Change Assist | - | ● | - | ● |
| Road traffic signage recognition | ● | ● | ● | ● |
| Low Speed Warning | ● | ● | ● | ● |
| Fatigue Driving Alerts | - | ● | - | ● |
| DOW Open Door Alert | ● | ● | ● | ● |
| front exhaust airbag | :: Driver's airbag | :: Driver's airbag | :: Driver's airbag | :: Driver's airbag |
| ●Passenger airbag | ●Passenger airbag | ●Passenger airbag | ●Passenger airbag | |
| :: Intermediate airbags | :: Intermediate airbags | :: Intermediate airbags | :: Intermediate airbags | |
| ●Side airbags | ●Side airbags | ●Side airbags | ●Side airbags | |
| ●Head airbags (air curtains) | ●Head airbags (air curtains) | ●Head airbags (air curtains) | ●Head airbags (air curtains) | |
| Rear airbags | ●Side airbags | ●Side airbags | ●Side airbags | ●Side airbags |
| ●Head airbags (air curtains) | ●Head airbags (air curtains) | ●Head airbags (air curtains) | ●Head airbags (air curtains) | |
| Tire Pressure Detection Device | ●Display | ●Display | ●Display | ●Display |
| Seat Belt Reminder | ● | ● | ● | ● |
| ISOFIX child restraints | ● | ● | ● | ● |
| Forward Collision Warning | ● | ● | ● | ● |
| Rear Collision Warning | ● | ● | ● | ● |
| Sentinel mode/clairvoyance | - | ● | - | ● |
| Auxiliary/Manipulation Configurations | ||||
| parking radar | ●Forward | ●Forward | ●Forward | ●Forward |
| ● Post | ● Post | ● Post | ● Post | |
| Driver Assistance Video | ●360-degree panoramic image | ●360-degree panoramic image | ●360-degree panoramic image | ●360-degree panoramic image |
| Transparent chassis/540 degree image | ● | ● | ● | ● |
| Reverse vehicle side warning system | ● | ● | ● | ● |
| cruise control | ●Adaptive cruise at all speeds | ●Adaptive cruise at all speeds | ●Adaptive cruise at all speeds | ●Adaptive cruise at all speeds |
| Driving Mode Switching | :: Campaigns | :: Campaigns | :: Campaigns | :: Campaigns |
| :: Economy | :: Economy | :: Economy | :: Economy | |
| :: Standard/comfort | :: Standard/comfort | :: Standard/comfort | :: Standard/comfort | |
| ● Customization/Personalization | ● Customization/Personalization | ● Customization/Personalization | ● Customization/Personalization | |
| steep incline and slow descent | ● | ● | ● | ● |
| hill-holding aid | ● | ● | ● | ● |
| automatic parking | ● | ● | ● | ● |
| automatic parking | - | ● | - | ● |
| remote control | - | ● | - | ● |
| memory parking | - | ● | - | ● |
| follow the track and reverse | - | ● | - | ● |
| Assisted driving level | ●L2 | ●L2 | ●L2 | ●L2 |
| External/anti-theft configurations | ||||
| skylights | ● Non-opening panoramic sunroof | ● Non-opening panoramic sunroof | ● Non-opening panoramic sunroof | ● Non-opening panoramic sunroof |
| Active Closed Grille | ● | ● | ● | ● |
| Concealed power door handles | ● | ● | ● | ● |
| Trunk opening method | ○Motorized | ○Motorized | ○Motorized | ○Motorized |
| Key Type | ● Bluetooth key | ● Bluetooth key | ● Bluetooth key | ● Bluetooth key |
| ●NFC/RFID key | ●NFC/RFID key | ●NFC/RFID key | ●NFC/RFID key | |
| ● UWB digital key | ● UWB digital key | ● UWB digital key | ● UWB digital key | |
| Keyless entry | ● | ● | ● | ● |
| Remote start function | ● | ● | ● | ● |
| Central locking in the car | ● | ● | ● | ● |
| Internal Configuration | ||||
| Steering wheel material | ● Leather | ● Leather | ● Leather | ● Leather |
| Steering Wheel Adjustment | ● Manual | ● Manual | ● Manual | ● Manual |
| Adjustable up and down | Adjustable up and down | Adjustable up and down | Adjustable up and down | |
| Steering wheel functions | :: Multifunctionality | :: Multifunctionality | :: Multifunctionality | :: Multifunctionality |
| ○Shift paddles | ○Shift paddles | ○Shift paddles | ○Shift paddles | |
| center armrest | ●Forward | ●Front | ●Forward | ●Front |
| ● Post | ● Post | ● Post | ● Post | |
| Gear Shift Form | ●Electronic pocket shifter | ●Electronic pocket shifter | ●Electronic pocket shifter | ●Electronic pocket shifter |
| Sun visor vanity mirror | ● | ● | ● | ● |
| AR-HUD Augmented Reality Heads Up Display | ○ | ● | ○ | ● |
| HUD Heads Up Size | ○65 inches | ●65 inches | ○65 inches | ●65 inches |
| Built-in car recorder | - | ● | - | ● |
| Wireless charging function for cell phones | ● Front row | ● Front row | ● Front row | ● Front row |
| Intelligent Hardware | ||||
| Forward Sensing Camera | :: Monocular | ●Three eyes | :: Monocular | ●Three eyes |
| Number of cameras | ● 5 | ● 10 | ● 5 | ● 10 |
| Number of in-vehicle cameras | - | :: 2 | - | :: 2 |
| Number of ultrasonic radars | :: 12 | :: 12 | :: 12 | :: 12 |
| Number of millimeter-wave radars | :: 2 | :: 1 | :: 2 | :: 1 |
| Wake-on-Speech Recognition | :: Region IV | :: Region IV | :: Region IV | :: Region IV |
| seating | ||||
| Seat Material | :: Imitation leather | :: Imitation leather | :: Imitation leather | :: Imitation leather |
| Front Seat Function | ○Heating | ○Heating | ○Heating | ○Heating |
| ○Ventilation | ○Ventilation | ○Ventilation | ○Ventilation | |
| ○Massage (driver's seat only) | ○Massage (driver's seat only) | ○Massage (driver's seat only) | ○Massage (driver's seat only) | |
| Second row seat function | ○Heating | ○Heating | ○Heating | ○Heating |
| Seat electric adjustment | ●Principal Driver | ●Principal Driver | ●Principal Driver | ●Principal Driver |
| ●Passenger | ●Passenger | ●Passenger | ●Passenger | |
| Main seat adjustment | ●Forward and backward adjustment | ●Forward and backward adjustment | ●Forward and backward adjustment | ●Forward and backward adjustment |
| Backrest adjustment | Backrest adjustment | Backrest adjustment | Backrest adjustment | |
| ●High/low adjustment (4-way) | ●High/low adjustment (4-way) | ●High/low adjustment (4-way) | ●High/low adjustment (4-way) | |
| ●Lumbar support (4-way) | ●Lumbar support (4-way) | ●Lumbar support (4-way) | ●Lumbar support (4-way) | |
| Adjustment of passenger seat | ●Forward and backward adjustment | ●Forward and backward adjustment | ●Forward and backward adjustment | ●Forward and backward adjustment |
| Backrest adjustment | Backrest adjustment | Backrest adjustment | Backrest adjustment | |
| ○Height adjustment (4-way) | ○Height adjustment (4-way) | ○Height adjustment (4-way) | ○Height adjustment (4-way) | |
| ○Leg Rest Adjustment | ○Leg Rest Adjustment | ○Leg Rest Adjustment | ○Leg Rest Adjustment | |
| ○Lumbar support (4-way) | ○Lumbar support (4-way) | ○Lumbar support (4-way) | ○Lumbar support (4-way) | |
| Second row seat adjustment | ●Proportional lowering | ●Proportional lowering | ●Proportional lowering | ●Proportional lowering |
| Rear Cup Holder | ● | ● | ● | ● |
| multimedia | ||||
| Large color screen in the center console | ●Touch LCD | ●Touch LCD | ●Touch LCD | ●Touch LCD |
| AR Live Navigation | ○ | ● | ○ | ● |
| satellite navigation system | ● | ● | ● | ● |
| Navigating the road information display | ● | ● | ● | ● |
| Map Branding | ●Gold | ●Gold | ●Gold | ●Gold |
| Roadside assistance calls | ● | ● | ● | ● |
| Bluetooth/Car Phone | ● | ● | ● | ● |
| Cell phone connectivity/mapping | ● | ● | ● | ● |
| Audio Brand Name | Dynaudio Tanner Option | Dynaudio Tanner Option | Dynaudio Tanner Option | Dynaudio Tanner Option |
| Number of audio speakers | 8 (optional 12) | 8 (optional 12) | 8 (optional 12) | 8 (optional 12) |
| Voice Recognition Control System | :: Multimedia systems | :: Multimedia systems | :: Multimedia systems | :: Multimedia systems |
| :: Navigation | :: Navigation | :: Navigation | :: Navigation | |
| :: Telephone | :: Telephone | :: Telephone | :: Telephone | |
| :: Air conditioning | :: Air conditioning | :: Air conditioning | :: Air conditioning | |
| ● Window | ● Window | ● Window | ● Window | |
| ○Heated seats | ○Heated seats | ○Heated seats | ○Heated seats | |
| ○Seat ventilation | ○Seat ventilation | ○Seat ventilation | ○Seat ventilation | |
| ○Seat Massage | ○Seat Massage | ○Seat Massage | ○Seat Massage | |
| Center screen size | ●15.6 inches | ●15.6 inches | ●15.6 inches | ●15.6 inches |
| Center screen resolution | ●2K | ●2K | ●2K | ●2K |
| speech-free waking word | ● | ● | ● | ● |
| Voice assistant wake words | Hey, Red Flag. | Hey, Red Flag. | Hey, Red Flag. | Hey, Red Flag. |
| speech recognition | ● | ● | ● | ● |
| arguably | ● | ● | ● | ● |
| gesture control | - | ● | - | ● |
| In-vehicle biomonitoring system | - | ● | - | ● |
| 4G/5G networks | ●4G | ●4G | ●4G | ●4G |
| ○5G | ○5G | ○5G | ○5G | |
| Wi-Fi hotspot | ● | ● | ● | ● |
| Telematics | ● | ● | ● | ● |
| OTA upgrade | ● | ● | ● | ● |
| Interface Support | ●Type-C port | ●Type-C port | ●Type-C port | ●Type-C port |
| Number of USB/Type-C ports | :: 2 front/2 rear | :: 2 front/2 rear | :: 2 front/2 rear | :: 2 front/2 rear |
| USB/Type-C Maximum Charging Power | ●60W | ●60W | ●60W | ●60W |
| Wireless charging power for cell phones | ●40W | ●40W | ●40W | ●40W |
| app store | ● | ● | ● | ● |
| illumination | ||||
| low beam (headlights) | ●LED | ●LED | ●LED | ●LED |
| high beam (headlights) | ●LED | ●LED | ●LED | ●LED |
| LED daytime running lights | ● | ● | ● | ● |
| Adaptive high and low beam | ● | ● | ● | ● |
| Adjustable headlights | ● | ● | ● | ● |
| Automatic headlights | ● | ● | ● | ● |
| Delayed headlight off | ● | ● | ● | ● |
| Interior ambient lighting | ● | ● | ● | ● |
| Glass/Mirror | ||||
| power window | ●Forward | ●Forward | ●Forward | ●Forward |
| ● Post | ● Post | ● Post | ● Post | |
| One-touch window lifting | ● Full vehicle | ● Full vehicle | ● Full vehicle | ● Full vehicle |
| Anti Window Pinch Handle | ● | ● | ● | ● |
| outside rearview mirror | ●Motorized adjustment | ●Motorized adjustment | ●Motorized adjustment | ●Motorized adjustment |
| :: Electric folding | :: Electric folding | :: Electric folding | :: Electric folding | |
| :: Memory | :: Memory | :: Memory | :: Memory | |
| ●Heating | ●Heating | ●Heating | ●Heating | |
| ●Automatic folding for locking the car | ●Automatic folding for locking the car | ●Automatic folding for locking the car | ●Automatic folding for locking the car | |
| ●Automatic reversing down | ●Automatic reversing down | ●Automatic reversing down | ●Automatic reversing down | |
| rearview mirror | ●Manual anti-glare | ●Manual anti-glare | ●Manual anti-glare | ●Manual anti-glare |
| Glass Functions | :: Multi-layer soundproofing | :: Multi-layer soundproofing | :: Multi-layer soundproofing | :: Multi-layer soundproofing |
| Multi-layer acoustic glazing for side windows | ● Front row | ● Front row | ● Front row | ● Front row |
| inductive wiper | ● | ● | ● | ● |
| Air conditioners/refrigerators | ||||
| Air conditioning control method | ● Automatic control | ● Automatic control | ● Automatic control | ● Automatic control |
| heat pump air conditioner | ● | ● | ● | ● |
| rear air vent | ● | ● | ● | ● |
| Temperature zone control | ● | ● | ● | ● |
Reviews
There are no reviews yet.
