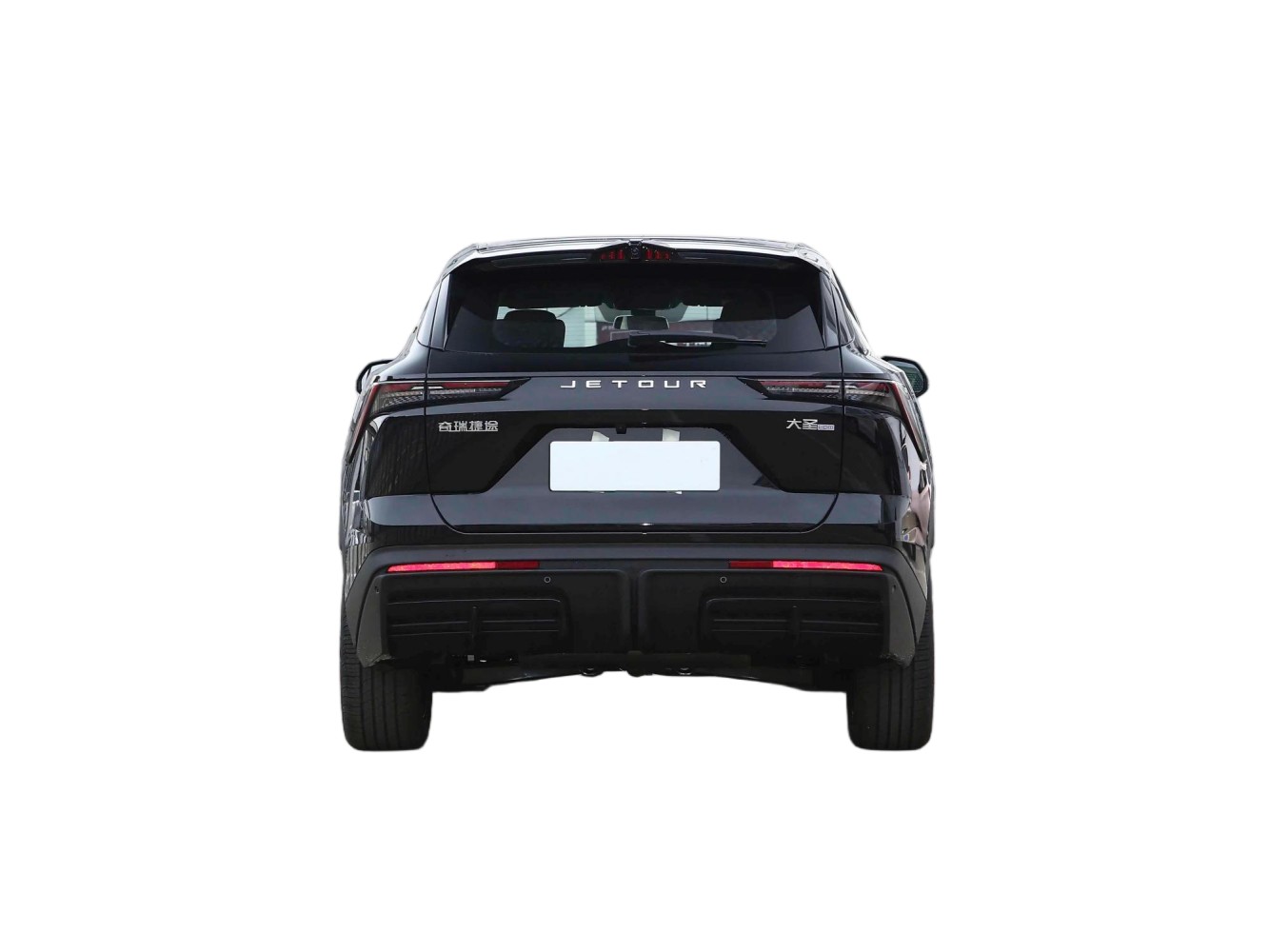

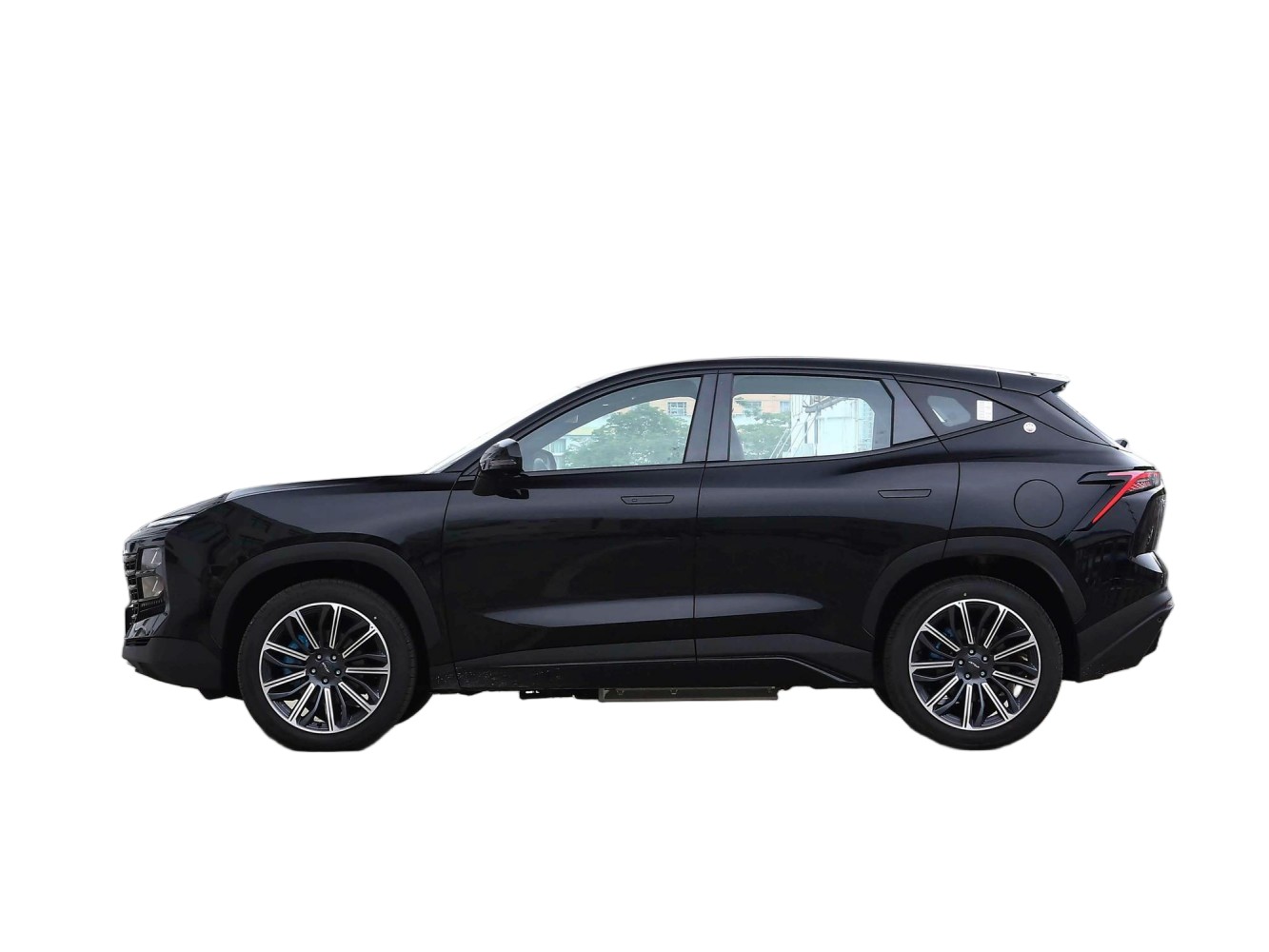

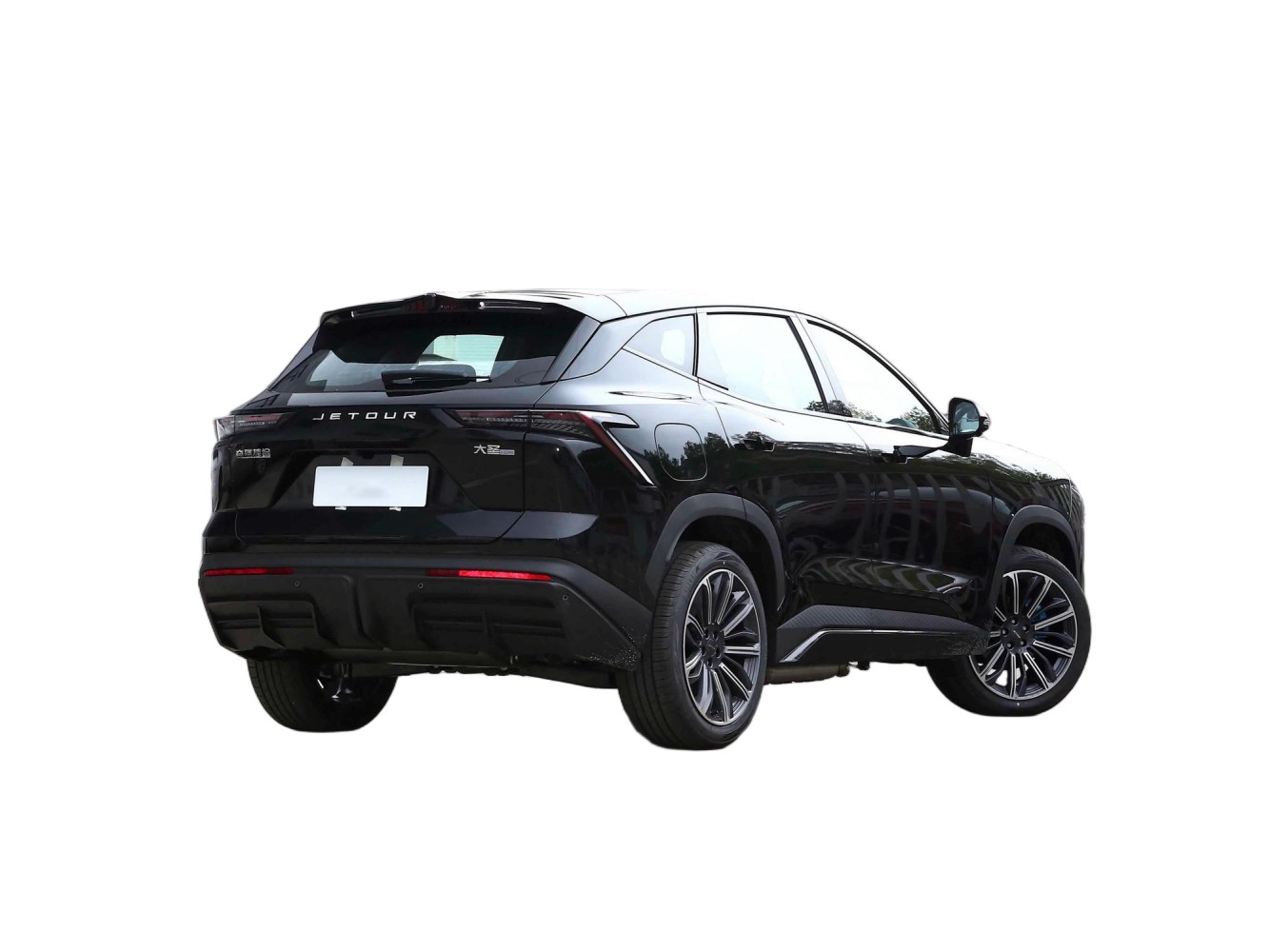

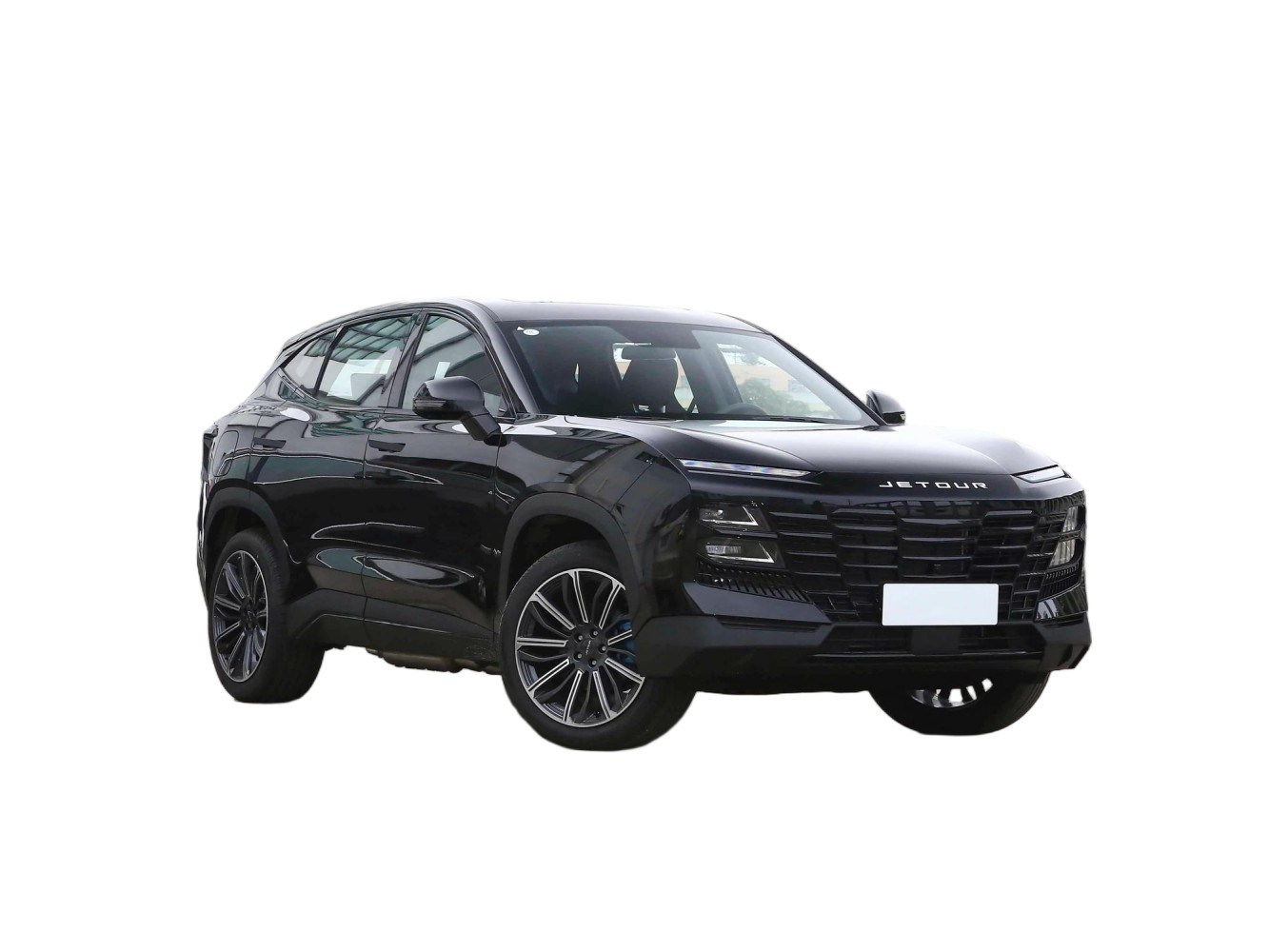

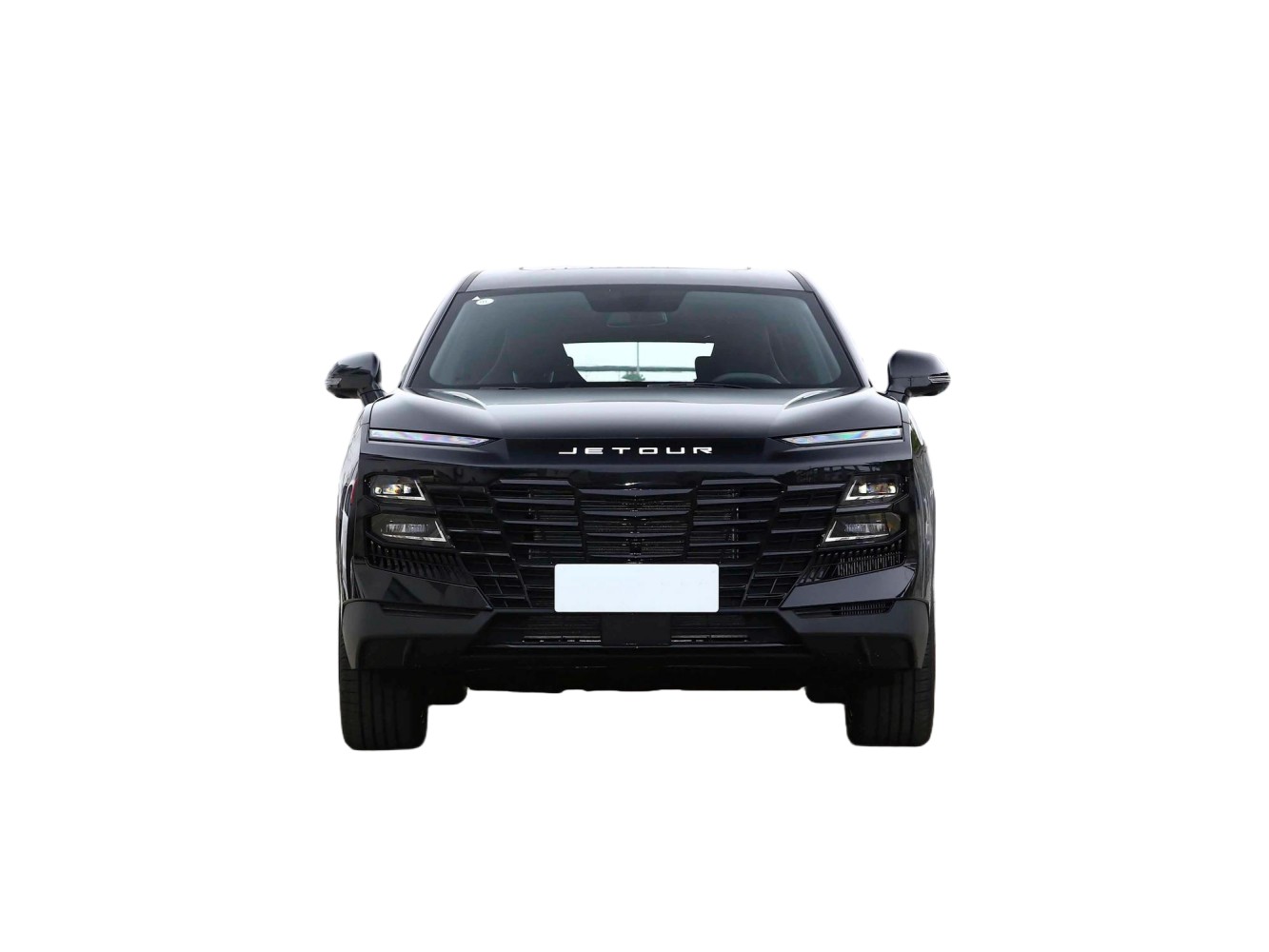

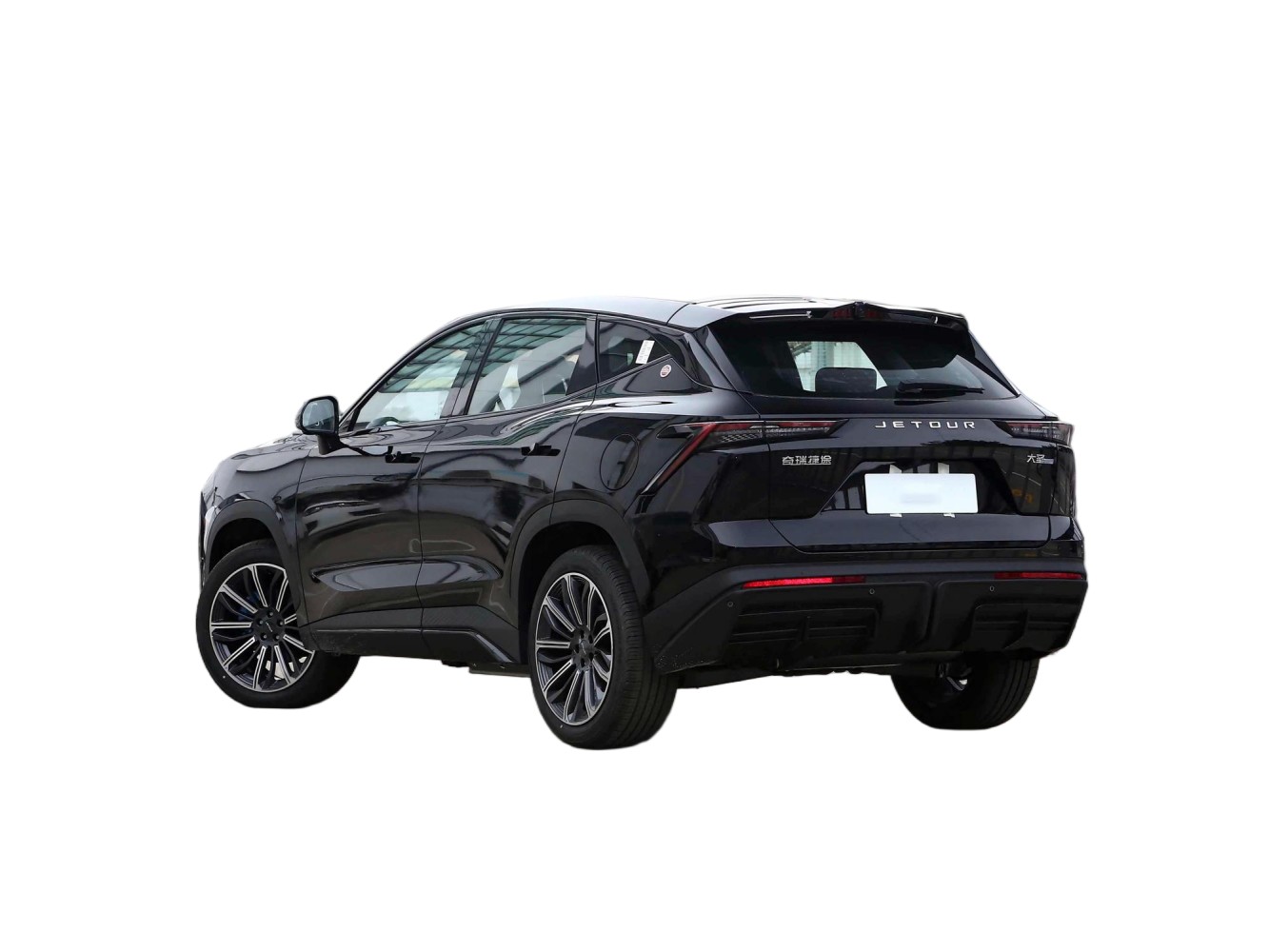

Exterior Design
The Jetour Dashing i-DM is a compact plug-in hybrid SUV, equipped with a borderless front grille and full LED headlight groups. The vehicle is fitted with through-type LED taillight groups and rear bumper trim. Multiple body color options are available. The vehicle adopts 18-inch and 19-inch wheel configurations for different versions. Conventional door handles are equipped as standard. A panoramic sunroof is equipped as standard.
The vehicle adopts a 5-door 5-seater SUV layout. The body dimensions are 4590 mm in length, 1900 mm in width and 1690 mm in height, with a wheelbase of 2720 mm. Electrically adjustable exterior mirrors with heating and automatic folding functions and electric tailgate are standard configurations. An electric charging port cover is equipped as standard.
Interior Design
The vehicle is equipped with a full LCD digital instrument cluster and 15.6-inch central control touchscreen. Multiple interior color schemes are available, matched with leather upholstery and metallic decorative trim. The vehicle supports multi-color ambient lighting and dual-zone automatic constant temperature air conditioning. An electronic gear shift lever is equipped as standard.
Standard configurations include front, side and curtain airbags, front and rear parking sensors, rearview camera and constant-speed cruise control. Keyless entry and one-key start functions are standard. High-spec versions are equipped with 360-degree panoramic camera system, adaptive cruise control, lane keeping assist and active braking system. The vehicle supports wireless phone charging, V2L external discharge and OTA upgrade functions.
Powertrain
The Jetour Dashing i-DM adopts front-wheel drive layout, matched with 3-speed dedicated hybrid DHT transmission. The vehicle is equipped with a 1.5T inline four-cylinder turbocharged hybrid-specific gasoline engine with a maximum power of 115 kW and a peak torque of 230 Nm. The vehicle is matched with dual permanent magnet synchronous motors, with a comprehensive system maximum power of 240 kW and a comprehensive system peak torque of 545 Nm.
The vehicle is equipped with ternary lithium battery packs. The CLTC pure electric cruising range covers 80 km and 100 km for different versions. The vehicle supports AC slow charging and DC fast charging functions. The vehicle is equipped with energy recovery system. The vehicle adopts front MacPherson independent suspension and rear multi-link independent suspension system.
| 1.5T DHT Lightning | 1.5T DHT Lightning 01 | 1.5T DHT Lightning 02 | |
|---|---|---|---|
| Basic vehicle parameters | 1.6T DCT Kirin Edition x | Zi Long 2.0T DCT Tiger Edition x | Zi Long 2.0T DCT Everlasting Edition x |
| Level: | compact car model | compact car model | compact car model |
| Body form: | 5-door, 5-seat SUV/Crossover | 5-door, 5-seat SUV/Crossover | 5-door, 5-seat SUV/Crossover |
| L x W x H (mm): | 4590x1900x1690 | 4590x1900x1690 | 4590x1900x1690 |
| Wheelbase (mm): | 2720 | 2720 | 2720 |
| Power Type: | gasoline engine | gasoline engine | gasoline engine |
| Maximum power of the whole vehicle (kW): | 115 | 115 | 115 |
| Maximum torque of the whole vehicle (N-m): | 230 | 230 | 230 |
| Engine: | 1.5T 156hp L4 | 1.5T 156hp L4 | 1.5T 156hp L4 |
| Transmission: | 3-speed DHT | 3-speed DHT | 3-speed DHT |
| Fuel Consumption(L/100km) | --/-/1.8 | --/-/1.8 | --/-/1.8 |
| (urban/suburban/integrated): | |||
| MITI pure electric range (km): | 100 | 100 | 100 |
| body of automobile | 20 | 20 | 20 |
| Fuel tank volume (L): | 60 | 60 | 60 |
| Overall mass (kg): | 1795 | 1795 | 1805 |
| motor | SQRE4T15C | SQRE4T15C | SQRF4J16C |
| Displacement (L): | 1.5 | 1.5 | 1.5 |
| Cylinder volume (cc): | 1498 | 1498 | 1498 |
| Intake form: | turbocharged | turbocharged | turbocharged |
| Number of cylinders (pcs): | 4 | 4 | 4 |
| Cylinder arrangement: | inline | inline | inline |
| Number of valves per cylinder (pcs): | 4 | 4 | 4 |
| Valve Structure: | double overhead | double overhead | double overhead |
| Maximum horsepower (ps): | 156 | 156 | 156 |
| Maximum power (kW/rpm): | 115 | 115 | 115 |
| Maximum torque (N-m/rpm): | 230.0/1750-4000 | 230.0/1750-4000 | 230.0/1750-4000 |
| Fuel: | Gasoline 92 | Gasoline 92 | Gasoline 92 |
| Oil supply method: | awaiting investigation | awaiting investigation | awaiting investigation |
| Cylinder head material: | aluminum | aluminum | aluminum |
| Cylinder material: | aluminum | aluminum | aluminum |
| Emission standards: | Country VI | Country VI | Country VI |
| electric motor | Country VI | Country VI | Country VI |
| MITI pure electric range (km): | 100 | 100 | 100 |
| Motor Type: | Permanent magnet/synchronous | Permanent magnet/synchronous | Permanent magnet/synchronous |
| Total motor power (kW): | 125 | 125 | 125 |
| Total motor torque (N-m): | 315 | 315 | 315 |
| Number of motors: | 2 | 2 | 2 |
| Motor Layout: | preamplifier | preamplifier | preamplifier |
| Maximum power of front electric motor (kW): | 125 | 125 | 125 |
| Maximum torque of front motor (N-m): | 315 | 315 | 315 |
| Battery type: | Ternary lithium battery | Ternary lithium battery | Ternary lithium battery |
| Battery capacity (kWh): | 19.27 | 19.27 | 19.27 |
| Charging method: | Fast charging + slow charging | Fast charging + slow charging | Fast charging + slow charging |
| transmission | disk | disk | disk |
| Number of gears: | 3 | 3 | 3 |
| Transmission Type: | DHT | DHT | DHT |
| Chassis steering | 235/60 R18 | 235/60 R18 | 235/60 R18 |
| Drive method: | front drive | front drive | front drive |
| Body Structure: | Load-bearing body | Load-bearing body | Load-bearing body |
| Steering Assist: | electric power assist | electric power assist | electric power assist |
| Front suspension type: | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension |
| Rear suspension type: | Multi-link independent suspension | Multi-link independent suspension | Multi-link independent suspension |
| Wheel brakes | - | - | - |
| Front brake type: | Ventilated tray type | Ventilated tray type | Ventilated tray type |
| Rear brake type: | disk | disk | disk |
| Parking brake type: | electronic handbrake | electronic handbrake | electronic handbrake |
| Front Tire Specifications: | 235/55 R19 | 255/45 R20 | 255/45 R20 |
| Rear Tire Specifications: | 235/55 R19 | 255/45 R20 | 255/45 R20 |
| Wheel material: | aluminum | aluminum | aluminum |
| Spare tire specification: | Tire Repair Tool Only | Tire Repair Tool Only | Tire Repair Tool Only |
| safety equipment | - | ● | ● |
| Primary/passenger airbags: | Main ●/Sub ● | Main ●/Sub ● | Main ●/Sub ● |
| Front/rear side airbags: | Front ● / Back - | Front ● / Back - | Front ● / Back - |
| Front/rear head air curtains: | Front ●/Rear ● | Front ●/Rear ● | Front ●/Rear ● |
| Seatbelt not fastened tip: | ● | ● | ● |
| ISO FIX child seat interface: | ● | ● | ● |
| Tire pressure monitoring device: | Tire Pressure Display | Tire Pressure Display | Tire Pressure Display |
| Keep driving with zero tire pressure: | - | - | - |
| Automatic anti-lock (ABS, etc.): | ● | ● | ● |
| Brake force distribution | ● | ● | ● |
| (EBD/CBC, etc.): | |||
| Brake Assist | ● | ● | ● |
| (EBA/BAS/BA, etc.): | |||
| traction control | ● | ● | ● |
| (ASR/TCS/TRC, etc.): | |||
| stability control | ● | ● | ● |
| (ESP/DSC/VSC, etc.): | |||
| Lane Departure Warning System: | - | - | ● |
| Lane Keeping Assist: | - | - | ● |
| Road traffic signage identification: | - | - | ● |
| Active braking/active safety systems: | - | - | ● |
| Auto Park: | ● | ● | ● |
| Uphill Assist: | ● | ● | ● |
| Steep slopes slow down: | ● | ● | ● |
| Electronic engine immobilization: | ● | ● | ● |
| Center lock in the car: | ● | ● | ● |
| Remote key: | ● | ● | ● |
| Keyless start system: | ● | ● | ● |
| Keyless entry system: | ● | ● | ● |
| Fatigue Driving Alerts: | - | - | ● |
| Body Features/Configurations | ● Backup camera | ● Backup camera | ● Backup camera |
| Skylight type: | ● Non-opening panoramic sunroof | ● Non-opening panoramic sunroof | ●Openable panoramic sunroof |
| Power trunk: | ● | ● | ● |
| Remote start function: | ● | ● | ● |
| Other body features: | 3kW Mobile Power Station | 3kW Mobile Power Station | 3kW Mobile Power Station |
| Interior Features/Configurations | ●12V | ●12V | ●12V |
| Steering wheel material: | ● Leather | ● Leather | ● Leather |
| Steering wheel position adjustment: | :: Up and down | :: Up and down | :: Up and down |
| ●Before and after | ●Before and after | ●Before and after | |
| Multi-function steering wheel: | ● | ● | ● |
| Heated steering wheel: | - | - | ● |
| Front/rear back-up radar: | Front -/back ● | Front -/back ● | Front ●/Rear ● |
| Driver Assistance Imaging: | ●360-degree panoramic image | ●360-degree panoramic image | ●360-degree panoramic image |
| Cruise control: | ●Cruise control | ●Cruise control | ●Adaptive cruise at all speeds |
| ● Assisted driving class L2 | |||
| Driving mode switching: | :: Standard/comfort | :: Standard/comfort | :: Standard/comfort |
| :: Campaigns | :: Campaigns | :: Campaigns | |
| :: Economy | :: Economy | :: Economy | |
| Separate power connector in the car: | ●12V | ●12V | ●220/230V |
| ●12V | |||
| The trip computer display: | ● | ● | ● |
| HUD heads-up digital display: | - | - | ● |
| Wireless charging function for cell phones: | - | ● Front row | - |
| Seat Configuration | not have | not have | not have |
| Seat Material: | :: Imitation leather | :: Imitation leather | :: Imitation leather |
| Sport seats: | ● | ● | ● |
| Main driver's seat adjustment direction: | ●Forward and backward adjustment | ●Forward and backward adjustment | ●Forward and backward adjustment |
| Backrest adjustment | Backrest adjustment | Backrest adjustment | |
| ●High and low adjustment | ●High and low adjustment | ●High and low adjustment | |
| ●Lumbar support | ●Lumbar support | ||
| Passenger seat adjustment direction: | ●Forward and backward adjustment | ●Forward and backward adjustment | ●Forward and backward adjustment |
| Backrest adjustment | Backrest adjustment | Backrest adjustment | |
| ●Leg rest adjustment | |||
| Power-adjustable driver's/passenger's seat: | Main ●/Sub- | Main ●/Sub ● | Main ●/Sub ● |
| Front Seat Features: | - | ●Heating | ●Heating |
| :: Ventilation | :: Ventilation | ||
| :: Massage (driver's seat only) | |||
| Power seat memory: | - | - | ●Main driver's seat |
| ●Passenger seat | |||
| Second row seat adjustment direction: | - | - | Backrest adjustment |
| Third row of seats: | not have | not have | not have |
| The way the rear seats are lowered: | ● Proportionally lowerable | ● Proportionally lowerable | ● Proportionally lowerable |
| Front/rear seat center armrests: | Front ● / Back - | Front ● / Back - | Front ●/Rear ● |
| Multimedia Configuration | ●Touch LCD | ●Touch LCD | ●Touch LCD |
| GPS navigation system: | ● | ● | ● |
| In-vehicle information services: | ● | ● | ● |
| Navigate the road information display: | ● | ● | ● |
| Center console LCD: | ●Touch LCD | ●Touch LCD | ●Touch LCD |
| Center console LCD screen size: | ●15.6 inches | ●15.6 inches | ●15.6 inches |
| Bluetooth/car phone: | ● | ● | ● |
| Cell phone connectivity/mapping: | ●Huawei Hicar | ●Huawei Hicar | ●Huawei Hicar |
| ● OTA upgrade | ● OTA upgrade | ● OTA upgrade | |
| Voice Control: | ● Controllable multimedia systems | ● Controllable multimedia systems | ● Controllable multimedia systems |
| ● Controlled navigation | ● Controlled navigation | ● Controlled navigation | |
| :: Controllable telephones | :: Controllable telephones | :: Controllable telephones | |
| ●Controllable air conditioning | ●Controllable air conditioning | ●Controllable air conditioning | |
| ●Controllable sunroof | |||
| Telematics: | ● | ● | ● |
| External audio interface: | ●USB | ●USB | ●USB |
| ●Type-C | ●Type-C | ●Type-C | |
| USB/Type-C port: | :: 2 front/1 rear | :: 2 front/1 rear | :: 2 front/1 rear |
| Number of speaker horns (pcs): | ●4 speakers | ●8 speakers | ●8 speakers |
| Lighting Configuration | - | ● | ● |
| Low beam light source: | ●LED | ●LED | ●LED |
| High beam light source: | ●LED | ●LED | ●LED |
| Daytime running lights: | ● | ● | ● |
| Adaptive high and low beams: | - | - | ● |
| Headlights turn on and off automatically: | ● | ● | ● |
| Height adjustable headlights: | ● | ● | ● |
| Interior ambient lighting: | - | - | ●Multi-color |
| Windows and mirrors | |||
| Front/rear power windows: | Front ●/Rear ● | Front ●/Rear ● | Front ●/Rear ● |
| One-touch window up/down function: | ● Full vehicle | ● Full vehicle | ● Full vehicle |
| Window anti-pinch feature: | ● | ● | ● |
| Multi-layer acoustic glass: | - | - | ● Front row |
| Outside rearview mirror function: | ●Motorized adjustment | ●Motorized adjustment | ●Motorized adjustment |
| :: Electric folding | :: Electric folding | ||
| ●Heated mirrors | ●Heated mirrors | ||
| ●Automatic folding for locking the car | |||
| Inside rearview mirror function: | ●Manual anti-glare | ●Manual anti-glare | ●Manual anti-glare |
| Interior vanity mirrors: | ●Main driver's seat | ●Main driver's seat | ●Main driver's seat + lighting |
| ●Passenger seat | ●Passenger seat | ●Passenger seat + lighting | |
| Front sensing wipers: | ● | ● | ● |
| Rear wiper: | ● | ● | ● |
| Air conditioners/refrigerators | |||
| Air conditioning temperature control method: | ●Automatic air conditioning | ●Automatic air conditioning | ●Automatic air conditioning |
| Temperature zoned control: | ● | ● | ● |
| Rear air vents: | ● | ● | ● |
| Car Air Purifier: | - | - | ● |
| PM2.5 filter or pollen filter: | - | - | ● |
| Negative ion generator: | - | - | ● |
