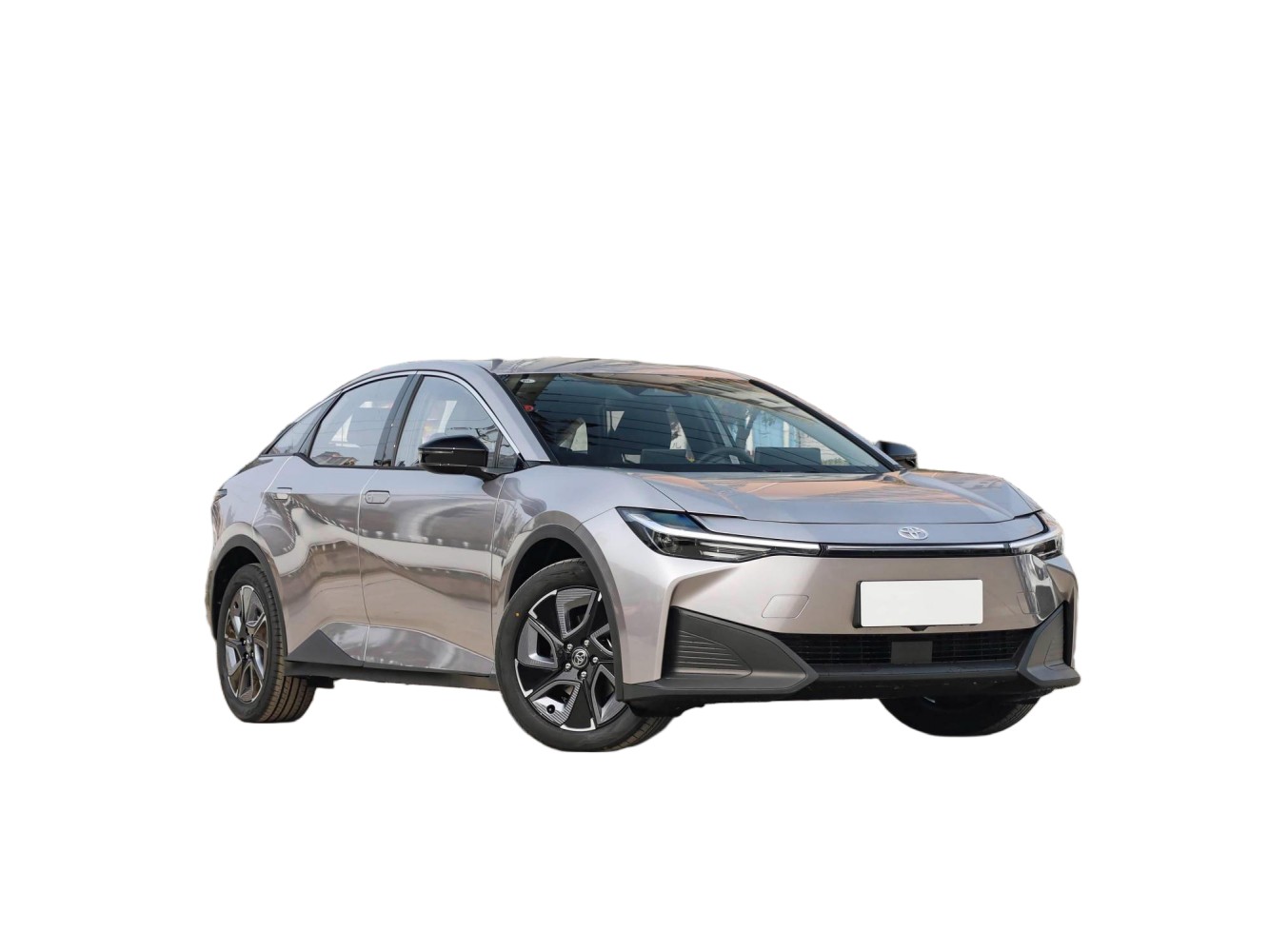

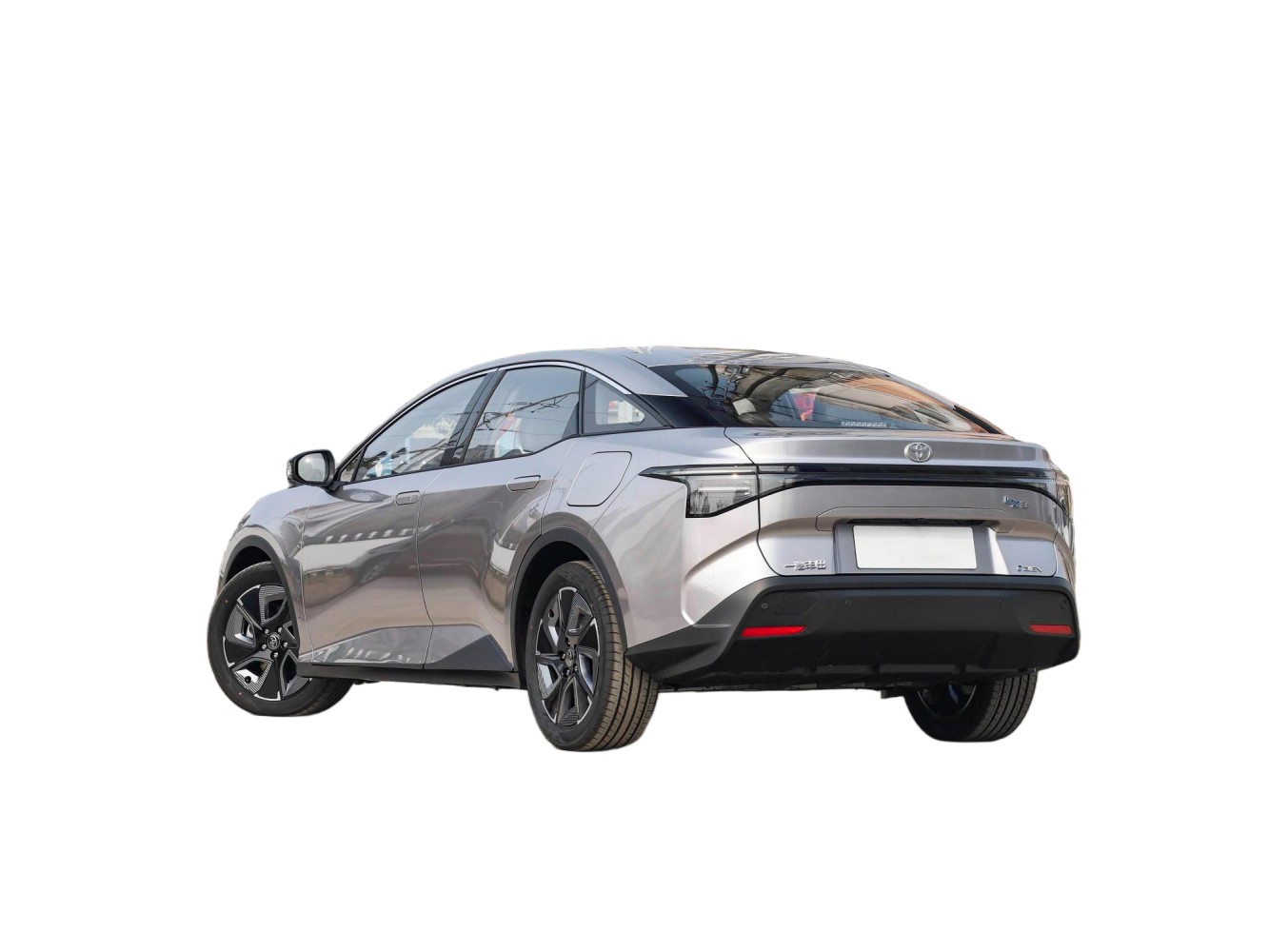

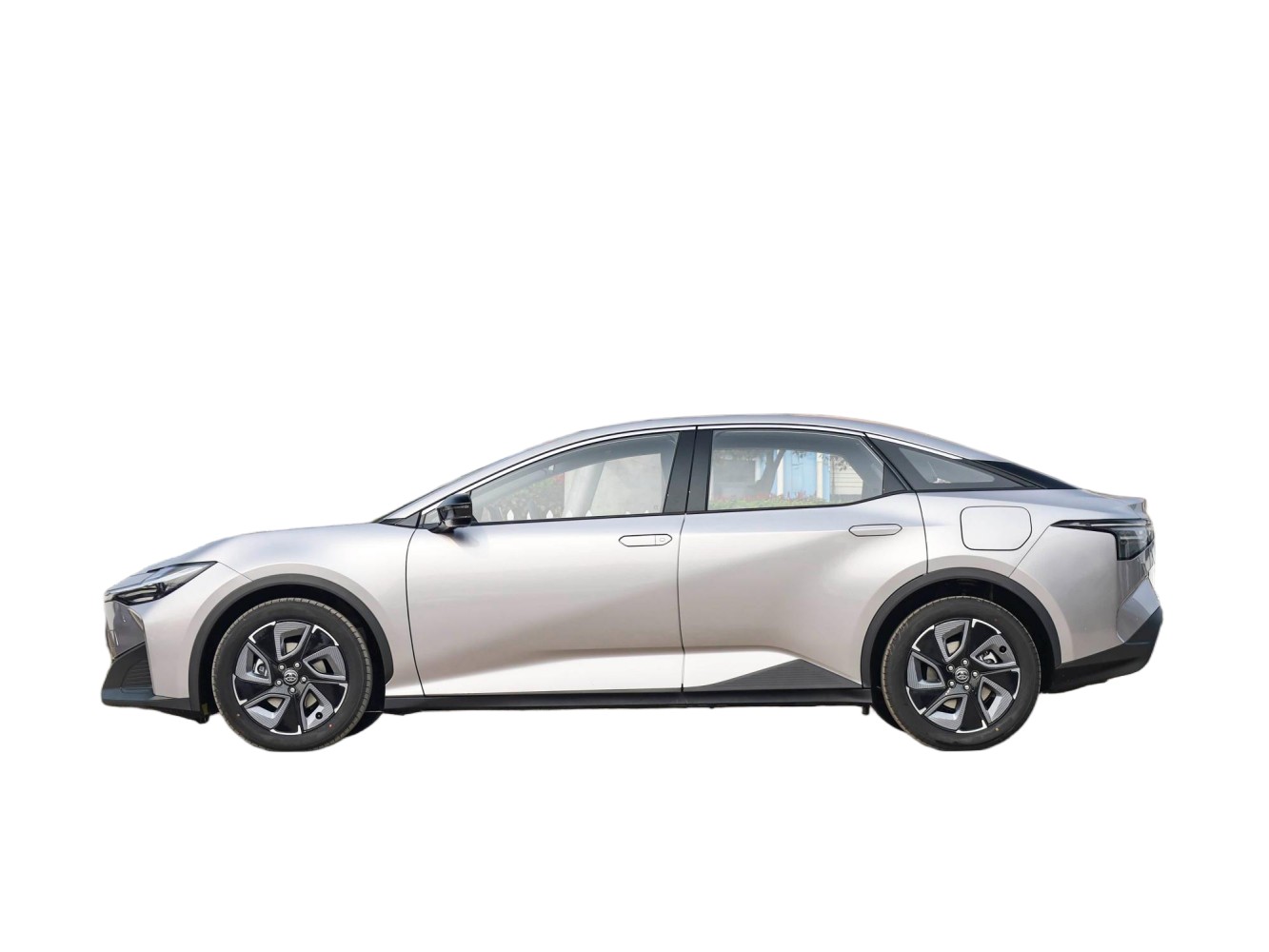

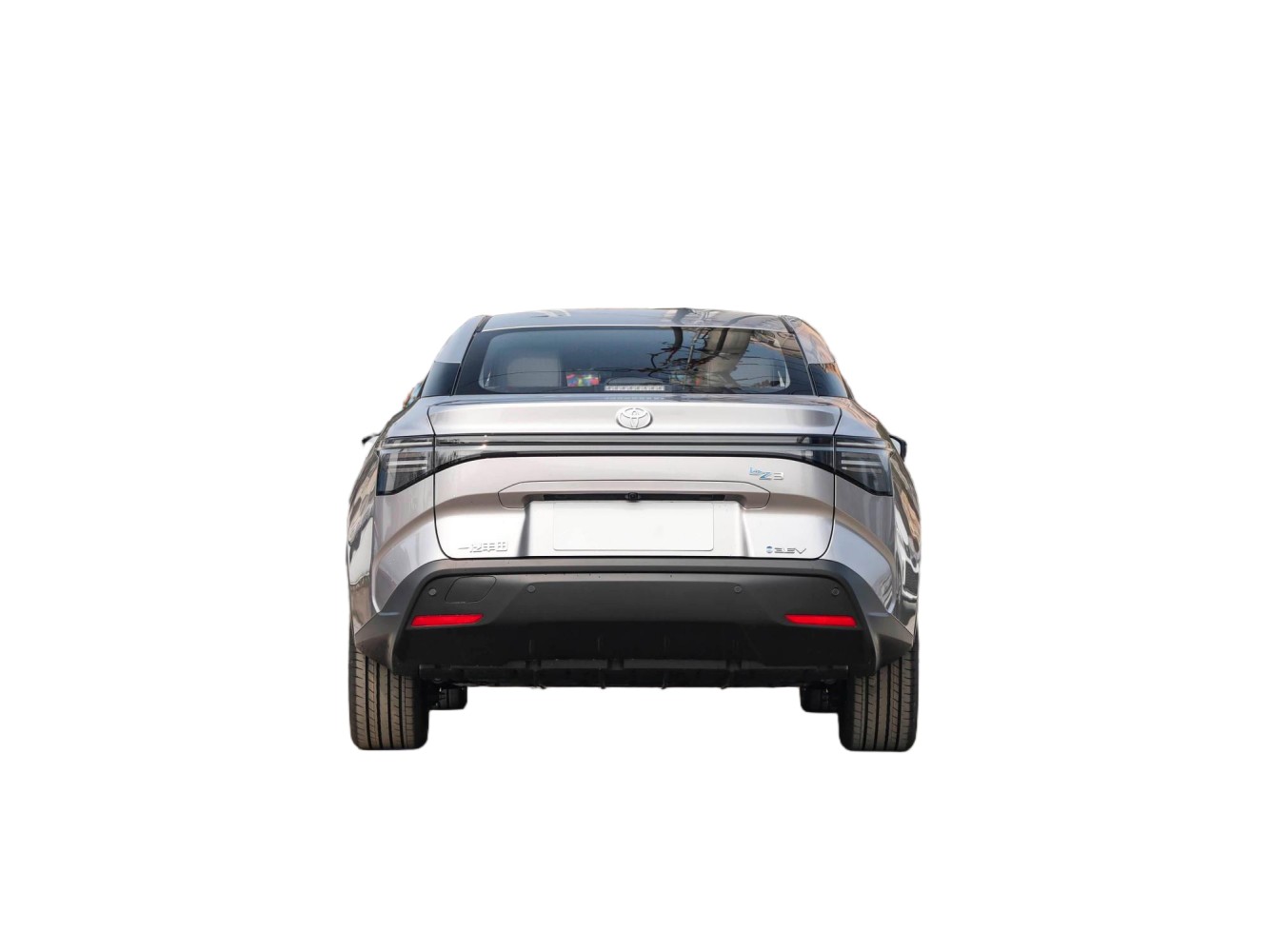

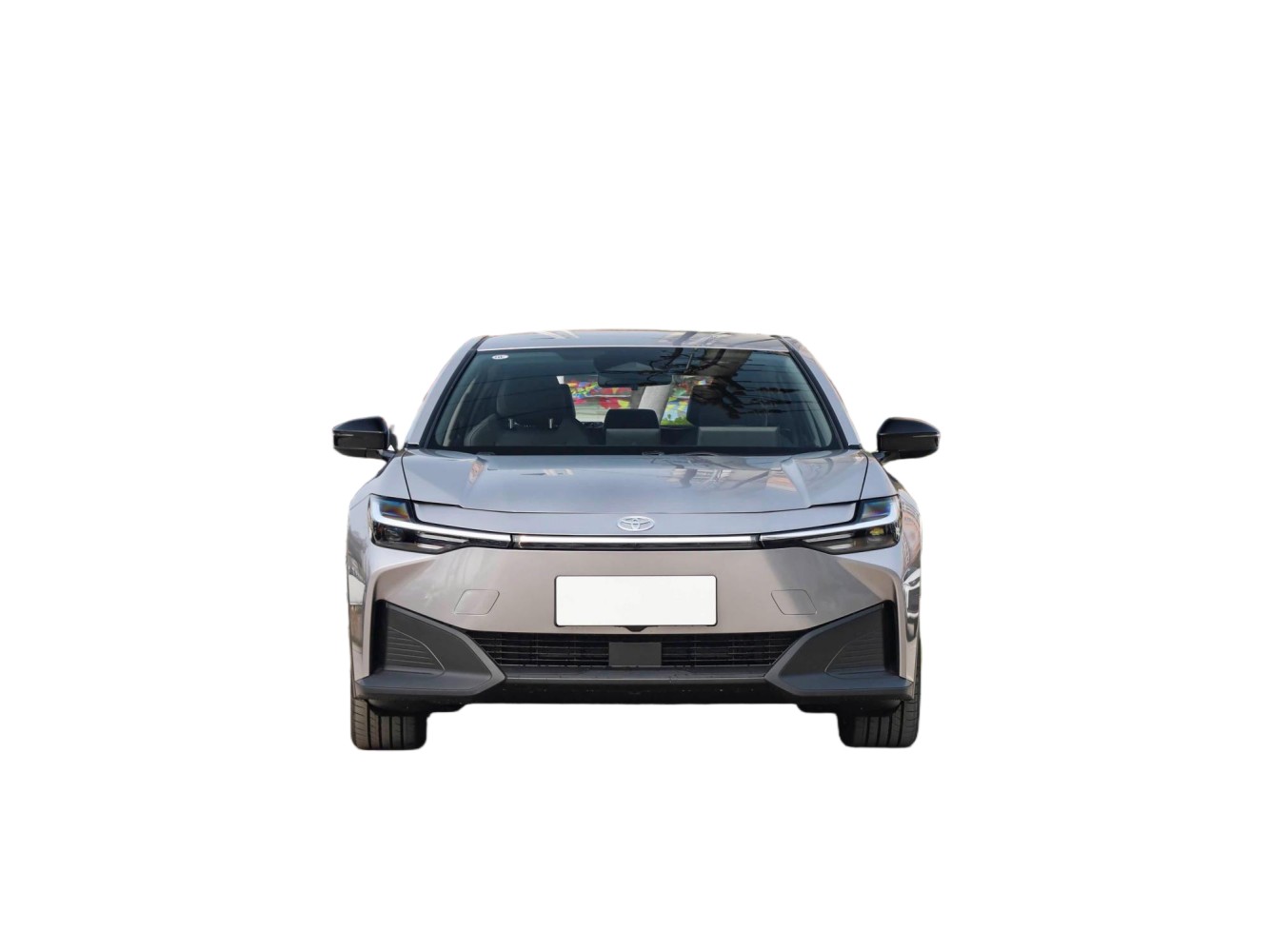

Exterior Design
The Toyota bZ3 adopts a mid-size pure electric sedan body design with a closed front grille and LED headlight sets. It is equipped with LED daytime running lights and full LED taillight assembly. The vehicle is fitted with hidden door handles and an electric trunk lid. Available exterior body colors include Super White, Midnight Black Metallic, Precious Silver, Dark Blue Metallic and Gray Metallic.
In terms of dimensions, the vehicle measures 4,725 mm in length, 1,835 mm in width, and 1,475 mm in height, with a wheelbase of 2,880 mm. The car is equipped with 18-inch alloy wheels as standard. Standard exterior configurations include automatic headlights and aerodynamic exterior components.
Interior Design
The Toyota bZ3 features a full LCD digital instrument cluster and a 15.6-inch central touchscreen. The interior adopts fabric and leather upholstery materials, with optional interior color schemes including all-black and black-gray dual tone. Standard configurations include front, side and curtain airbags, front and rear parking sensors, panoramic camera system, and cruise control.
Higher-spec versions are equipped with L2-level intelligent driver-assistance systems, active braking and lane keeping assist. Additional practical configurations include multi-way power-adjustable front seats with heating functions, dual-zone automatic climate control and interior ambient lighting. The vehicle adopts a 5-seat layout.
Powertrain
The Toyota bZ3 adopts a front-mounted single-motor front-wheel-drive layout, matched with a single-speed electric transmission. It offers two power versions. The low-power version delivers a maximum power of 135 kW. The high-power version delivers a maximum power of 180 kW and a peak torque of 303 Nm.
The vehicle is equipped with lithium iron phosphate blade battery packs. The CLTC pure electric cruising range includes 517 km, 616 km and 620 km versions. The vehicle supports DC fast charging and AC slow charging. The vehicle adopts front MacPherson independent suspension and rear multi-link independent suspension.
| 517km Elite PRO | 616km Long Range PRO | 616km Long Range Premium | |
|---|---|---|---|
| Basic vehicle parameters | |||
| Level: | medium-sized vehicle | medium-sized vehicle | medium-sized vehicle |
| Body form: | 4-door, 5-seat sedan | 4-door, 5-seat sedan | 4-door, 5-seat sedan |
| L x W x H (mm): | 4725x1835x1480 | 4725x1835x1475 | 4725x1835x1475 |
| Wheelbase (mm): | 2880 | 2880 | 2880 |
| Power Type: | all-electric | all-electric | all-electric |
| Maximum power of the whole vehicle (kW): | 135 | 180 | 180 |
| Maximum torque of the whole vehicle (N-m): | 303 | 303 | 303 |
| Official top speed (km/h): | 160 | 160 | 160 |
| Fast charging time (hours): | 0.45 | 0.45 | 0.45 |
| Slow charging time (hours): | 7 | 9.5 | 9.5 |
| MITI pure electric range (km): | 517 | 616 | 616 |
| body of automobile | 0.67 | 0.67 | 0.67 |
| Luggage compartment volume (L): | 439 | 439 | 439 |
| Overall mass (kg): | 1710 | 1835 | 1840 |
| Approach angle (°): | 13 | 13 | 13 |
| Departure angle (°): | 23 | 23 | 23 |
| motor | 1790 | 1790 | 1790 |
| electric motor | 1560 | 1560 | 1560 |
| MITI pure electric range (km): | 517 | 616 | 616 |
| Motor Type: | Permanent magnet/synchronous | Permanent magnet/synchronous | Permanent magnet/synchronous |
| Total motor power (kW): | 135 | 180 | 180 |
| Total motor torque (N-m): | 303 | 303 | 303 |
| Number of motors: | 1 | 1 | 1 |
| Motor Layout: | preamplifier | preamplifier | preamplifier |
| Rear motor max power (kW): | 135 | 180 | 180 |
| Maximum torque of rear motor (N-m): | 303 | 303 | 303 |
| Battery type: | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery |
| Battery capacity (kWh): | 49.92 | 65.28 | 65.28 |
| 100km power consumption (kWh/100km): | 11 | 12 | 12 |
| Battery Pack Warranty: | 10 years/200,000 kilometers | 10 years/200,000 kilometers | 10 years/200,000 kilometers |
| Charging compatibility: | Dedicated charging post + public charging post | Dedicated charging post + public charging post | Dedicated charging post + public charging post |
| Charging method: | Fast charging + slow charging | Fast charging + slow charging | Fast charging + slow charging |
| Fast charging time (hours): | 0.45 | 0.45 | 0.45 |
| Slow charging time (hours): | 7 | 9.5 | 9.5 |
| Fast charging volume (%): | 80 | 80 | 80 |
| transmission | synchronization | synchronization | synchronization |
| Number of gears: | 1 | 1 | 1 |
| Transmission Type: | Electric Vehicle Single Speed | Electric Vehicle Single Speed | Electric Vehicle Single Speed |
| Chassis steering | Ternary lithium battery | Ternary lithium battery | Ternary lithium battery |
| Drive method: | front drive | front drive | front drive |
| Body Structure: | Load-bearing body | Load-bearing body | Load-bearing body |
| Steering Assist: | electric power assist | electric power assist | electric power assist |
| Front suspension type: | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension |
| Rear suspension type: | Double-link independent suspension | Double-link independent suspension | Double-link independent suspension |
| Wheel brakes | 80 | 80 | 80 |
| Front brake type: | Ventilated tray type | Ventilated tray type | Ventilated tray type |
| Rear brake type: | disk | disk | disk |
| Parking brake type: | electronic handbrake | electronic handbrake | electronic handbrake |
| Front Tire Specifications: | 225/50 R18 | 225/50 R18 | 225/50 R18 |
| Rear Tire Specifications: | 225/50 R18 | 225/50 R18 | 225/50 R18 |
| Wheel material: | aluminum | aluminum | aluminum |
| Spare tire specification: | Tire Repair Tool Only | Tire Repair Tool Only | Tire Repair Tool Only |
| safety equipment | |||
| Primary/passenger airbags: | Main ●/Sub ● | Main ●/Sub ● | Main ●/Sub ● |
| Front/rear side airbags: | Front ● / Back - | Front ● / Back - | Front ● / Back - |
| Front/rear head air curtains: | Front ●/Rear ● | Front ●/Rear ● | Front ●/Rear ● |
| Knee airbags: | ● | ● | ● |
| Seatbelt not fastened tip: | ● | ● | ● |
| Tire pressure monitoring device: | Tire Pressure Display | Tire Pressure Display | Tire Pressure Display |
| Automatic anti-lock (ABS, etc.): | ● | ● | ● |
| Brake force distribution | ● | ● | ● |
| (EBD/CBC, etc.): | |||
| Brake Assist | ● | ● | ● |
| (EBA/BAS/BA, etc.): | |||
| traction control | ● | ● | ● |
| (ASR/TCS/TRC, etc.): | |||
| stability control | ● | ● | ● |
| (ESP/DSC/VSC, etc.): | |||
| Parallel Assist: | character used in Taiwan as a substitute for a real name (like "X" in English) | character used in Taiwan as a substitute for a real name (like "X" in English) | ● |
| Lane Departure Warning System: | ● | ● | ● |
| Lane Keeping Assist: | ● | ● | ● |
| Road traffic signage identification: | ● | ● | ● |
| Active braking/active safety systems: | ● | ● | ● |
| Auto Park: | ● | ● | ● |
| Uphill Assist: | ● | ● | ● |
| Center lock in the car: | ● | ● | ● |
| Remote key: | ● | ● | ● |
| Keyless start system: | ● | ● | ● |
| Keyless entry system: | ● | ● | ● |
| Fatigue Driving Alerts: | character used in Taiwan as a substitute for a real name (like "X" in English) | character used in Taiwan as a substitute for a real name (like "X" in English) | ● |
| Body Features/Configurations | ● Post | ● Post | ● Post |
| Skylight type: | ●Electric sunroof | ●Electric sunroof | ●Electric sunroof |
| Interior Features/Configurations | ● Backup camera | ● Backup camera | ● Backup camera |
| Steering wheel material: | :: Plastics | :: Plastics | ● Leather |
| Leather | Leather | ||
| Steering wheel position adjustment: | :: Up and down | :: Up and down | :: Up and down |
| ●Before and after | ●Before and after | ●Before and after | |
| The steering wheel is electrically adjustable: | - | - | - |
| Multi-function steering wheel: | ● | ● | ● |
| Steering wheel shift: | - | - | - |
| Heated steering wheel: | character used in Taiwan as a substitute for a real name (like "X" in English) | character used in Taiwan as a substitute for a real name (like "X" in English) | ● |
| Front/rear back-up radar: | Front ●/Rear ● | Front ●/Rear ● | Front ●/Rear ● |
| Driver Assistance Imaging: | ● Backup camera | ● Backup camera | ●360-degree panoramic image |
| ○360-degree panoramic image | ○360-degree panoramic image | ||
| Reverse vehicle side warning system: | character used in Taiwan as a substitute for a real name (like "X" in English) | character used in Taiwan as a substitute for a real name (like "X" in English) | ● |
| Cruise control: | ●Adaptive cruise at all speeds | ●Adaptive cruise at all speeds | ●Adaptive cruise at all speeds |
| ● Assisted driving class L2 | ● Assisted driving class L2 | ● Assisted driving class L2 | |
| Driving mode switching: | :: Standard/comfort | :: Standard/comfort | :: Standard/comfort |
| :: Campaigns | :: Campaigns | :: Campaigns | |
| :: Snow | :: Snow | :: Snow | |
| :: Economy | :: Economy | :: Economy | |
| Separate power connector in the car: | ●12V | ●12V | ●12V |
| The trip computer display: | ● | ● | ● |
| Full LCD instrument cluster: | ● | ● | ● |
| Wireless charging feature for cell phones: | - | - | ● Front row |
| Seat Configuration | Adjustable up and down | Adjustable up and down | Adjustable up and down |
| Seat Material: | :: Imitation leather | :: Imitation leather | :: Imitation leather |
| Main driver's seat adjustment direction: | ●Forward and backward adjustment | ●Forward and backward adjustment | ●Forward and backward adjustment |
| Backrest adjustment | Backrest adjustment | Backrest adjustment | |
| ●High and low adjustment | ●High and low adjustment | ●High and low adjustment | |
| Passenger seat adjustment direction: | ●Forward and backward adjustment | ●Forward and backward adjustment | ●Forward and backward adjustment |
| Backrest adjustment | Backrest adjustment | Backrest adjustment | |
| Power-adjustable driver's/passenger's seat: | Main ●/Sub ○ | Main ●/Sub ○ | Main ●/Sub ● |
| Front Seat Features: | ○Heating | ○Heating | ●Heating |
| Second Row Seating Features: | ○Heating | ○Heating | ●Heating |
| Front/rear seat center armrests: | Front ● / Back - | Front ● / Back - | Front ●/Rear ● |
| Multimedia Configuration | :: 1 | :: 2 | ● 3 |
| GPS navigation system: | ● | ● | ● |
| In-vehicle information services: | ● | ● | ● |
| Navigate the road information display: | ● | ● | ● |
| Center console LCD: | ●Touch LCD | ●Touch LCD | ●Touch LCD |
| Center console LCD screen size: | ●12.8 inches | ●12.8 inches | ●12.8 inches |
| Bluetooth/car phone: | ● | ● | ● |
| Cell phone connectivity/mapping: | ● OTA upgrade | ● OTA upgrade | ● OTA upgrade |
| Voice Control: | ● Controllable multimedia systems | ● Controllable multimedia systems | ● Controllable multimedia systems |
| ● Controlled navigation | ● Controlled navigation | ● Controlled navigation | |
| :: Controllable telephones | :: Controllable telephones | :: Controllable telephones | |
| ●Controllable air conditioning | ●Controllable air conditioning | ●Controllable air conditioning | |
| :: Controllable sunroof | ●Controllable sunroof | ●Controllable sunroof | |
| Telematics: | ● | ● | ● |
| External audio interface: | ●USB | ●USB | ●USB |
| ●Type-C | ●Type-C | ●Type-C | |
| USB/Type-C port: | :: 3 front/2 rear | :: 3 front/2 rear | :: 3 front/2 rear |
| Number of speaker horns (pcs): | ●6 Horns | ●6 Horns | ●7 Horns |
| Lighting Configuration | ● | ● | ● |
| Low beam light source: | ● Halogen | ●LED | ●LED |
| ○LED | |||
| High beam light source: | ● Halogen | ●LED | ●LED |
| ○LED | |||
| Daytime running lights: | ● | ● | ● |
| Adaptive high and low beams: | ● | ● | ● |
| Headlights turn on and off automatically: | ● | ● | ● |
| Height adjustable headlights: | ● | ● | ● |
| Interior ambient lighting: | ○31 colors | ○31 colors | ●31 colors |
| Windows and mirrors | ● Owner services (find charging stations, gas stations, parking lots, etc.) | ||
| Front/rear power windows: | Front ●/Rear ● | Front ●/Rear ● | Front ●/Rear ● |
| One-touch window up/down function: | ● Full vehicle | ● Full vehicle | ● Full vehicle |
| Window anti-pinch feature: | ● | ● | ● |
| Outside rearview mirror function: | ●Motorized adjustment | ●Motorized adjustment | ●Motorized adjustment |
| :: Electric folding | :: Electric folding | :: Electric folding | |
| ●Heated mirrors | ●Heated mirrors | ●Heated mirrors | |
| Inside rearview mirror function: | ●Manual anti-glare | ●Manual anti-glare | ●Automatic anti-glare |
| ○Automatic anti-glare | ○Automatic anti-glare | ||
| Interior vanity mirrors: | ●Main driver's seat + lighting | ●Main driver's seat + lighting | ●Main driver's seat + lighting |
| ●Passenger seat + lighting | ●Passenger seat + lighting | ●Passenger seat + lighting | |
| Front sensing wipers: | ● | ● | ● |
| Air conditioners/refrigerators | ●Type-C port | ●Type-C port | ●Type-C port |
| Air conditioning temperature control method: | ●Automatic air conditioning | ●Automatic air conditioning | ●Automatic air conditioning |
| Temperature zoned control: | ● | ● | ● |
| Rear air vents: | ● | ● | ● |
| Car Air Purifier: | - | - | ● |
| PM2.5 filter or pollen filter: | ● | ● | ● |
| Negative ion generator: | - | - | ● |
