Exterior Design

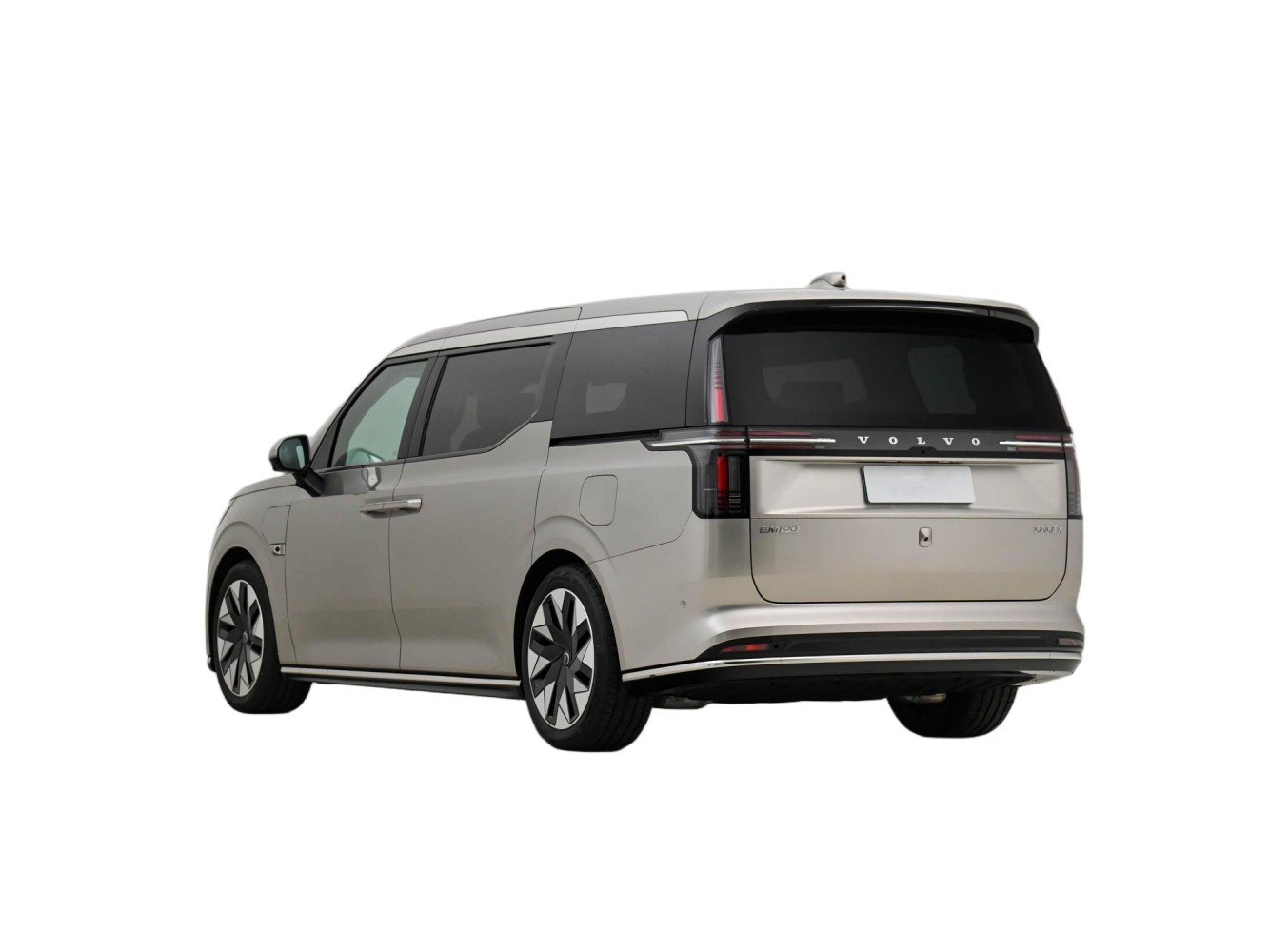

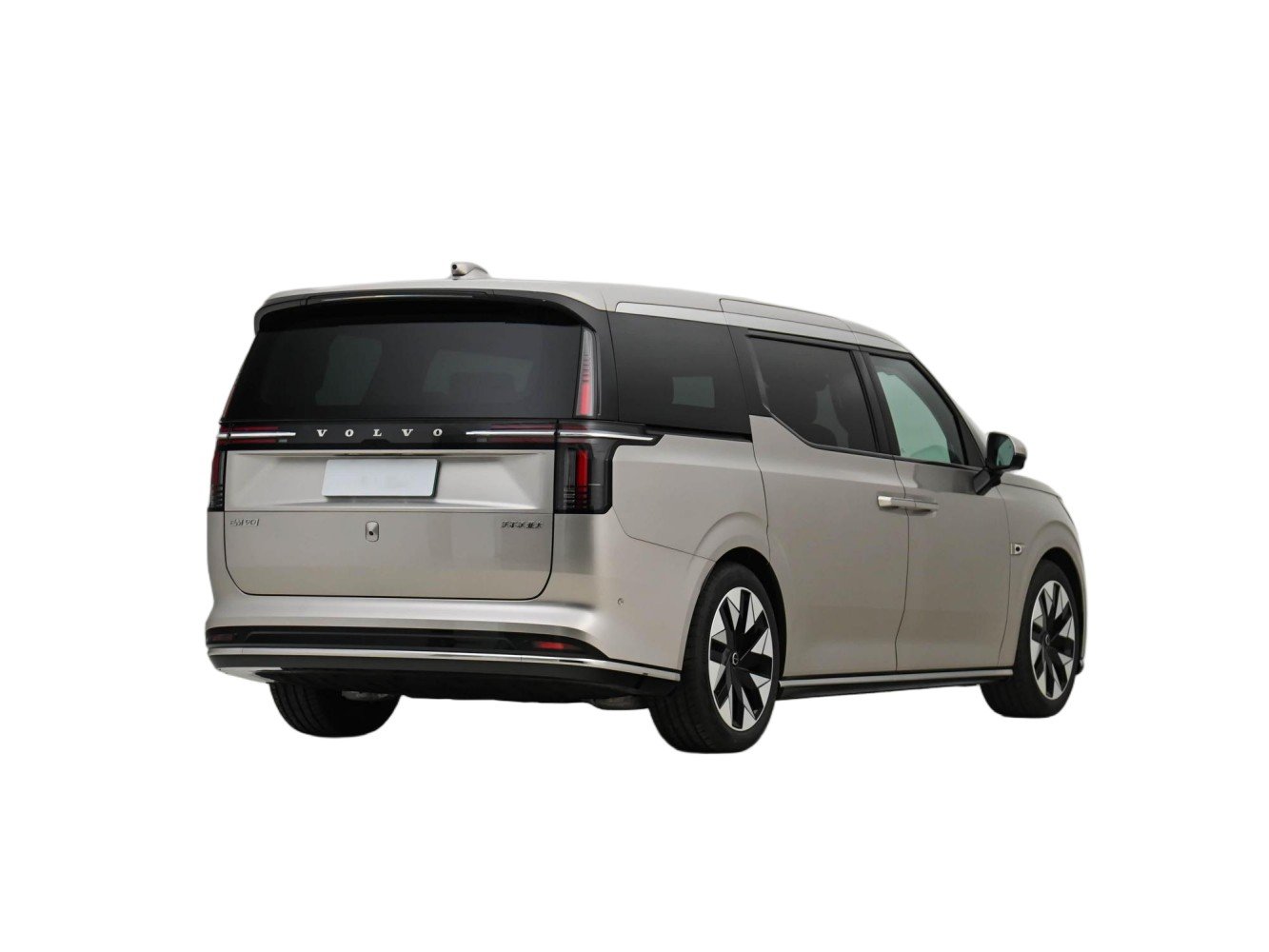

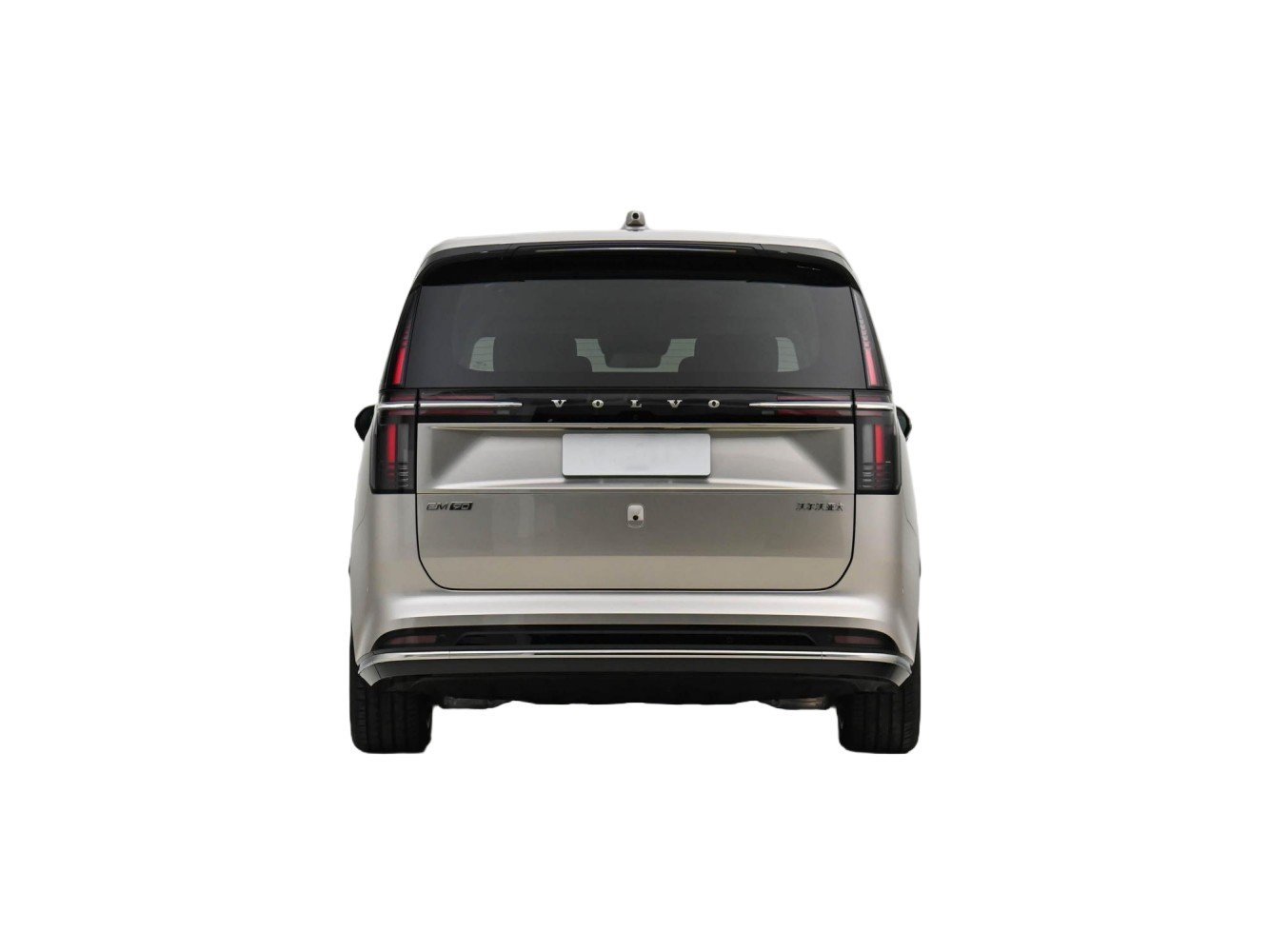

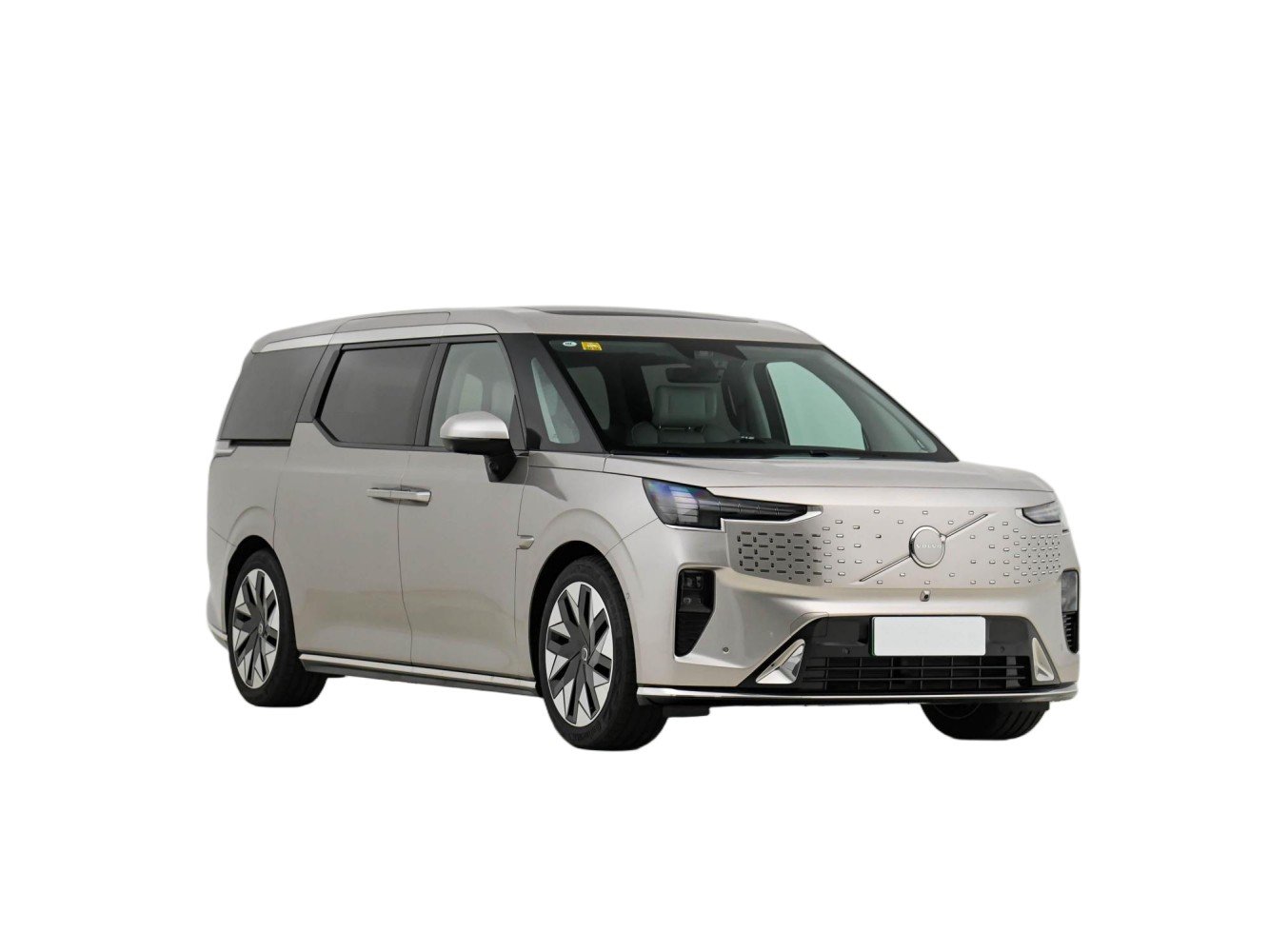

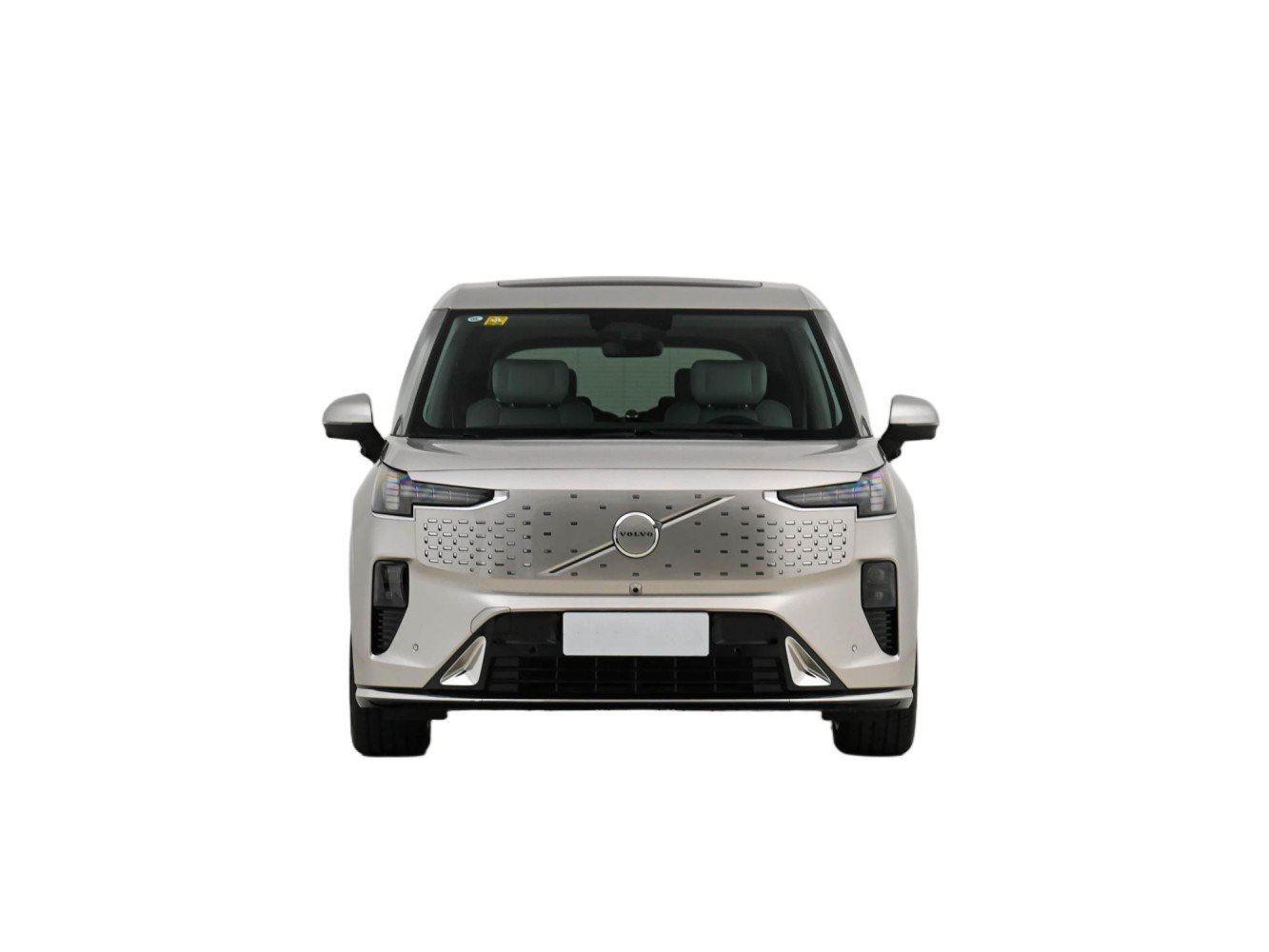

The Volvo EM90 adopts the brand’s latest pure electric design language, featuring a closed front grille and iconic Thor’s Hammer LED daytime running lights. The vehicle is equipped with through-type taillights and a streamlined body shape. It supports multiple body color options including Crystal White, Onyx Black and Aurora Gray.

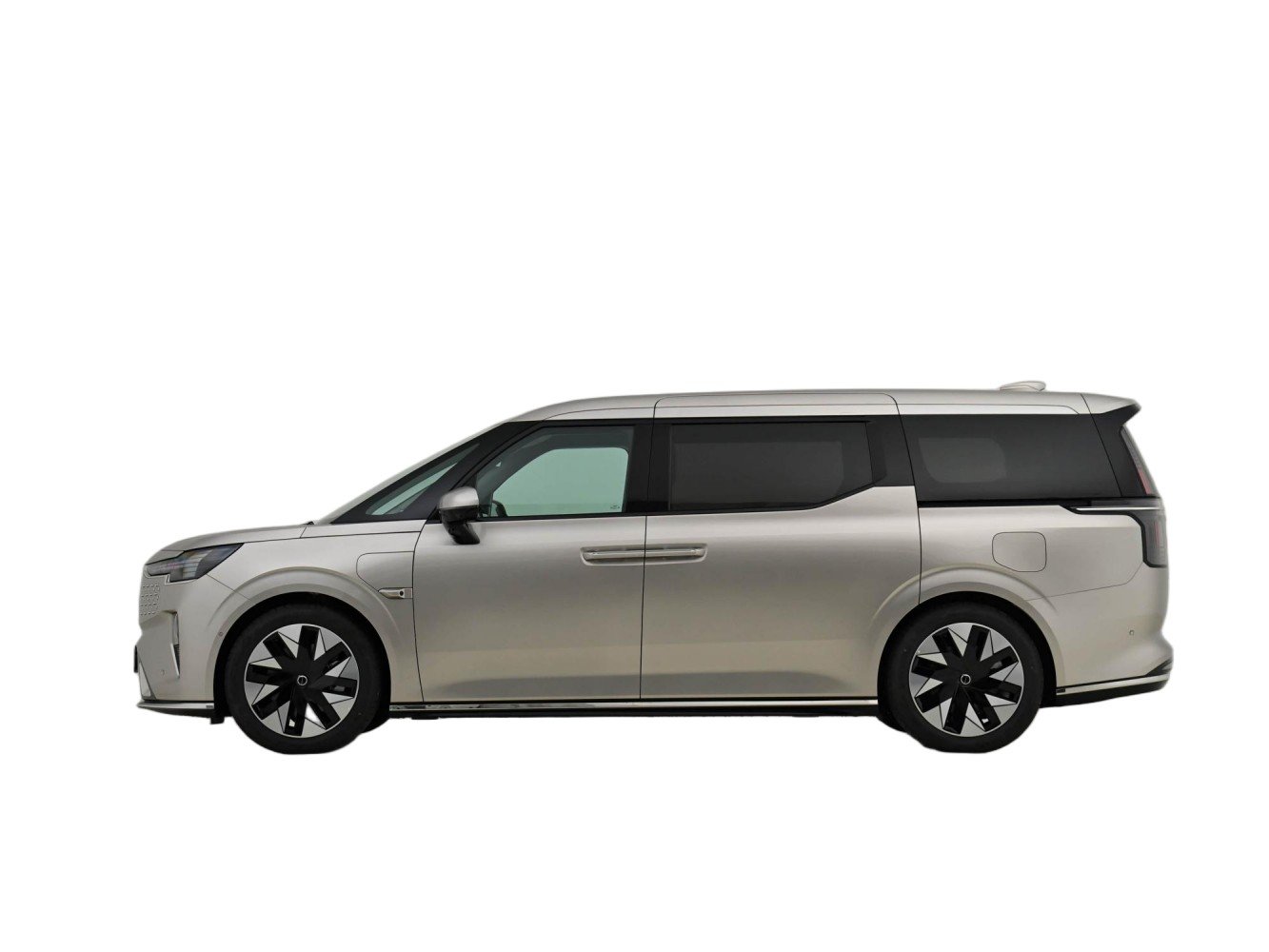

In terms of dimensions, the vehicle measures 5,250 mm in length, 2,031 mm in width, and 1,839 mm in height, with a wheelbase of 3,205 mm. The model adopts a 6-seater layout with independent second-row seats, and supports adjustable seat angles and sliding functions. The vehicle is fitted with 19-inch or 20-inch wheel options depending on configurations.
Interior Design
The Volvo EM90 is equipped with a 10.2-inch full LCD digital instrument cluster and a 15.4-inch central floating touchscreen. It features a 21-inch overhead panoramic screen for rear passengers. The interior color schemes include Nordic Light Gray and Dark Charcoal, matched with premium leather and wood grain decorative materials.
In terms of configurations, the vehicle is equipped with a panoramic sunroof, 360-degree panoramic camera system, rear parking sensors, and adaptive cruise control as standard. It is fitted with Bowers & Wilkins audio system, multiple airbags, and active noise cancellation system. The high-spec version adds Level 2+ intelligent driving assistance system and active braking function.
Powertrain
The Volvo EM90 is equipped with a rear-mounted single electric motor, delivering a maximum power output of 200 kW and peak torque of 343 Nm. It is matched with a single-speed electric transmission, with an official 0-100 km/h acceleration time of 8.3 seconds and a top speed of 180 km/h.
The vehicle is equipped with a 116 kWh CATL ternary lithium battery pack, with a CLTC-rated cruising range of 738 km. It supports fast charging function, which can charge the battery from 10% to 80% in approximately 28 minutes. The model also supports 3.3 kW external power output function.
| 2027 Volvo EM90 Ultra 6-seater | |
|---|---|
| Basic Information | |
| Launch date | 2026.04 |
| Body level | Mid-to-large MPV |
| Length * Width * Height (mm) | 5206*2024*1859 |
| Energy type | pure electric |
| CLTC pure electric range (km) | 738 |
| Total power of electric motors (kW) | 200 |
| Total torque of the electric motor (N·m) | 343 |
| Maximum speed (km/h) | 180 |
| 0-100km/h acceleration (s) | 8.3 |
| Battery Type | ternary lithium battery |
| Battery capacity (kWh) | 116 |
| Fast charging time (h) | 0.47 |
| Fast charging capacity (%) | 10-80 |
| Warranty Policy | Six years unlimited mileage |
| Body | |
| Length (mm) | 5206 |
| Width (mm) | 2024 |
| Height(mm) | 1859 |
| Wheelbase (mm) | 3205 |
| Front track width (mm) | 1702 |
| Rear track width (mm) | 1714 |
| Curb weight (kg) | 2763 |
| Maximum load capacity (kg) | 3245 |
| Luggage capacity (L) | 342-1826 |
| Number of car doors | 5 |
| Number of seats | 6 |
| Approach angle (°) | 14 |
| Departure angle (°) | 18 |
| electric motor | |
| Total power of electric motors (kW) | 200 |
| Total torque of the electric motor (N·m) | 343 |
| Maximum power of the rear motor (kW) | 200 |
| Maximum torque of the rear motor (N·m) | 343 |
| CLTC pure electric range (km) | 738 |
| Battery capacity (kWh) | 116 |
| Energy consumption per 100 kilometers (kWh/100km) | 17.2 |
| Electricity-equivalent fuel consumption (L/100km) | 2 |
| Fast charging time (h) | 0.47 |
| Motor structure | Permanent magnet |
| Motor working principle | synchronous |
| Number of drive motors | single motor |
| Motor layout | Rear |
| Battery Type | ternary lithium battery |
| Battery cell brands | CATL |
| Battery cooling method | Liquid cooling |
| Fast charging function | support |
| Fast charging capacity (%) | 10-80 |
| Energy recovery | ● |
| Battery pack warranty | Eight years or 160,000 kilometers |
| Battery preheating | ● |
| External discharge | ● |
| Chassis/Steering | |
| Drive form | Rear-wheel drive |
| Front suspension type | Double wishbone independent suspension |
| Rear suspension type | Multi-link independent suspension |
| Adjustable suspension | ● |
| air suspension | ● |
| Steering power type | Electric Assist |
| Air suspension type | ●Dual chamber |
| Wheels/Brakes | |
| Front/Rear Brake Type | Ventilation disc |
| Parking brake type | Electronic parking brake |
| Front tire specifications | 255/50 R19 |
| Rear tire specifications | 255/50 R19 |
| Wheel material | aluminum alloy |
| Active/passive safety configuration | |
| ABS anti-lock braking system | ● |
| Brakeforce Distribution (EBD/CBC, etc.) | ● |
| Brake assist (BA/EBA/BAS, etc.) | ● |
| Traction control (ASR/TCS/TRC, etc.) | ● |
| Vehicle stability control (ESC/ESP/DSC, etc.) | ● |
| Active braking/safety system | ● |
| Lane change assist | ● |
| Lane Keeping Assist | ● |
| Lane centering | ● |
| Lane departure warning | ● |
| Road traffic sign recognition | ● |
| Low speed warning | ● |
| Fatigue driving warning | ● |
| DOW Door Opening Warning | ● |
| Front airbags | ●Driver's side airbag |
| ●Passenger's side airbag | |
| ●Side airbags | |
| ●Head airbags (curtain airbags) | |
| Rear airbags | ●Head airbags (air curtains) |
| Tire pressure monitoring device | ● Display |
| Seatbelt reminder | ●Full vehicle |
| ISOFIX child seat | ● |
| Forward Collision Warning | ● |
| Rear Collision Warning | ● |
| Assist/Control Configuration | |
| Parking radar | ●Before |
| ●After | |
| Driving assistance imaging | ●360-degree panoramic imaging |
| Transparent chassis/540-degree imaging | ● |
| Rear Cross Traffic Alert System | ● |
| Cruise system | ● Full-speed adaptive cruise control |
| Driving mode switching | ● Sporty |
| ● Economy | |
| ● Standard/Comfort | |
| ● Snow | |
| ● Custom/Personalized | |
| Steep slope descent | ● |
| Hill Start Assist | ● |
| Automatic parking | ● |
| Remote parking | ● |
| Electromagnetic induction suspension | ● |
| Single pedal mode | ● |
| Assistance Level | ●L2 |
| Assisted driving system | ●Pilot Assist |
| High-precision map | ● |
| Assisted parking | ● |
| Assisted lane change | ● |
| External/Anti-theft Configuration | |
| skylight | ●Segmented, non-opening sunroof |
| Active grille shutters | ● |
| Electric soft-close door | ● |
| Trunk opening method | ●Electric |
| ●Induction | |
| Electric tailgate position memory | ● |
| Key type | ●Remote key |
| ●UWB digital key | |
| ●NFC/RFID key | |
| Keyless entry | ● |
| Keyless start system | ● |
| Remote start function | ● |
| Central locking | ● |
| Side sliding door type | ●Dual-sided electric |
| Internal configuration | |
| Steering wheel material | ●Genuine leather |
| Steering wheel adjustment | ● Manually |
| adjustable (height up/down | |
| ) and (front/back) | |
| Steering wheel functions | ●Heating |
| ●Multifunctional | |
| Central handrail | ●Before |
| ●After | |
| Gear shifting | ● Electronic gear shift |
| Sun visor vanity mirror | ● |
| Full LCD instrument panel | ● |
| LCD instrument size | 10.25 inches |
| Built-in dashcam | ● |
| Active noise cancellation | ● |
| Wireless charging function for mobile phones | ●Front row |
| Smart hardware | |
| Assisted driving chip | ● 2 Mobileye EyeQ5H capsules |
| Forward sensing camera | ●Binoculars |
| Number of cameras | ●13 |
| Number of in-car cameras | ●1 |
| Number of ultrasonic radars | ●12 |
| Number of millimeter-wave radars | ●1 |
| Voice regional wake-up recognition | ●Six regions |
| Seats | |
| Seat material | ○ Fabric |
| ● Genuine Leather | |
| Front seat functions | ● Heating |
| ● Ventilation | |
| ● Massage (Driver's seat only) | |
| Second-row seat functions | ●Heating |
| ●Ventilation | |
| ●Massage | |
| Electric seat adjustment | ●Driver's seat |
| ●Passenger seat | |
| Driver's seat adjustment method | ● Fore-and-aft adjustment |
| ● Backrest adjustment | |
| ● Height adjustment (4-way) | |
| ● Lumbar support (4-way) | |
| Passenger seat adjustment method | ● Fore-and-aft adjustment |
| ● Backrest adjustment | |
| ● Height adjustment (4-way) | |
| Second row seat adjustment | ● Fore-and-aft adjustment |
| ● Backrest adjustment | |
| ● Leg rest adjustment | |
| Power-adjustable second-row seats | ● |
| Second row individual seats | ● |
| Adjustable buttons for the rear passenger seat | ● |
| Rear small table | ● |
| Rear cup holders | ● |
| Third row seats | ● |
| Third-row seat adjustment | ●Backrest adjustment |
| Seating layout | 2002-2-2 |
| multimedia | |
| Central control color screen | ● Touchscreen LCD |
| Satellite navigation system | ● |
| Navigation traffic information display | ● |
| Map Brands | ● Gaode Map |
| Roadside assistance call | ● |
| In-vehicle smart chip | ● Qualcomm Snapdragon 8155 |
| Mobile APP remote function | ● Door controls |
| ● Window controls | |
| ● Charging management | |
| ● Air conditioning controls | |
| ● Heated steering wheel | |
| ● Heated seats | |
| ● Vehicle status inquiry/diagnosis | |
| ● Vehicle location/find vehicle | |
| ● Owner services (finding charging stations, gas stations, parking lots, etc.) | |
| ● Schedule maintenance/repair | |
| Bluetooth/Car Phone | ● |
| Mobile phone interconnection/mapping | ● |
| Audio brand name | Bowers & Wilkins |
| Number of speakers | twenty one |
| Voice recognition control system | ●Multimedia system |
| ●Navigation | |
| ●Telephone | |
| ●Air conditioning | |
| ●Window | |
| Central control screen size | ●15.4 inches |
| Voice wake-up words | ● |
| Continuous speech recognition | ● |
| What is visible can be said | ● |
| Facial recognition | ● |
| 4G/5G networks | ●5G |
| Wi-Fi hotspot | ● |
| Connected Vehicles | ● |
| OTA upgrade | ● |
| Rear LCD screen | ● |
| Rear LCD screen size | ●15.6 inches |
| Rear-seat multimedia control | ● |
| Interface support | ●USB port |
| ●Type-C port | |
| ●HDMI port | |
| Number of USB/Type-C ports | ● 2 seats in the front row / 5 seats in the back row |
| Wireless charging power for mobile phones | ●15W |
| Power support | ●12V power supply in the luggage compartment |
| Touchscreen vibration feedback | ● |
| light | |
| low beam headlights | ●LED |
| High beams | ●LED |
| LED daytime running lights | ● |
| Adaptive high and low beam | ● |
| Headlights are adjustable | ● |
| Headlights with adaptive cornering | ● |
| Automatic headlights | ● |
| Headlights delayed shut-off | ● |
| Lighting features | ●Matrix |
| Interior ambient lighting | ● |
| Glass/Rearview Mirror | |
| Electric windows | ●Before |
| ●After | |
| One-touch window operation | ●Full vehicle |
| Anti-pinch function for car windows | ● |
| exterior rearview mirror | ●Electrically adjustable |
| ●Electrically folding | |
| ●Auto-dimming | |
| ●Memory | |
| ●Heating | |
| ●Auto-folding when locking | |
| ●Auto-tilting when reversing | |
| Interior rearview mirror | ●Automatic anti-glare |
| Glass function | ●Multi-layer sound insulation |
| ●Rear side privacy | |
| Multi-layered soundproof glass for side windows | ●Front row |
| ●Rear row | |
| Rain-sensing wipers | ● |
| Rear wiper | ● |
| Air conditioner/refrigerator | |
| Air conditioning control methods | ●Automatic control |
| Independent air conditioning in the rear | ● |
| heat pump air conditioner | ● |
| Rear air vent | ● |
| Temperature zone control | ● |
| air purification | ● |
| PM2.5 filtration | ● |
