Exterior Design

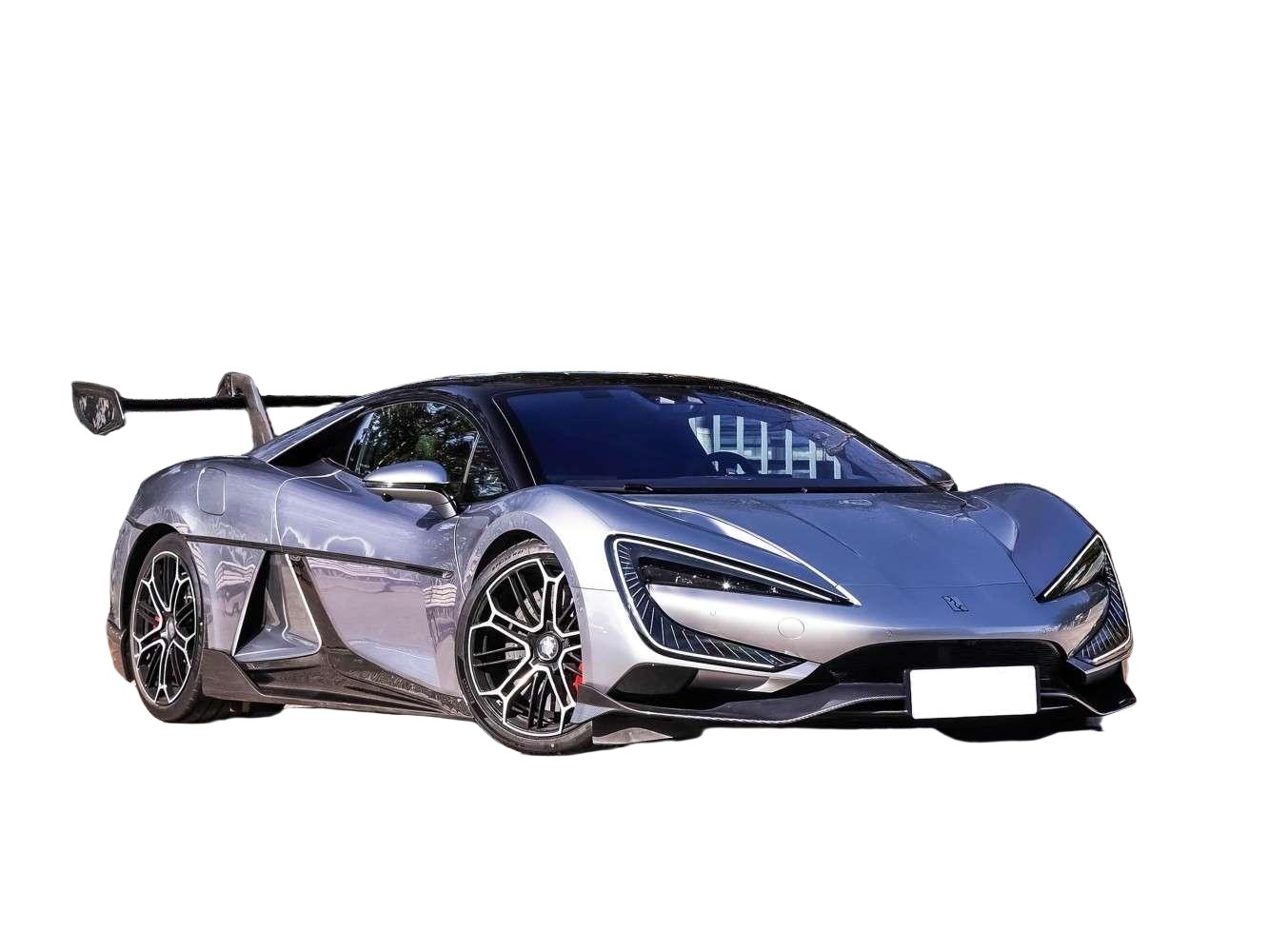

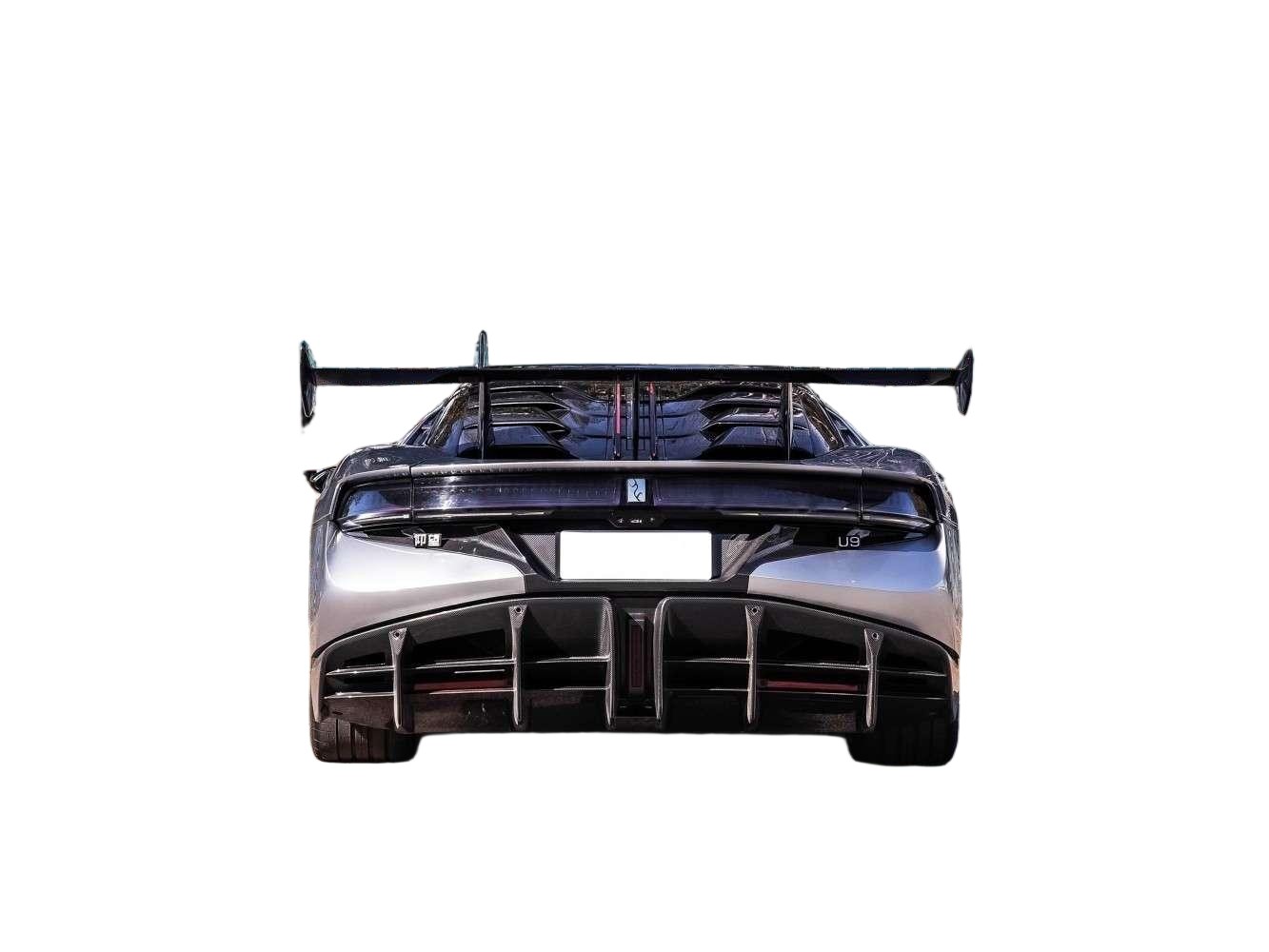

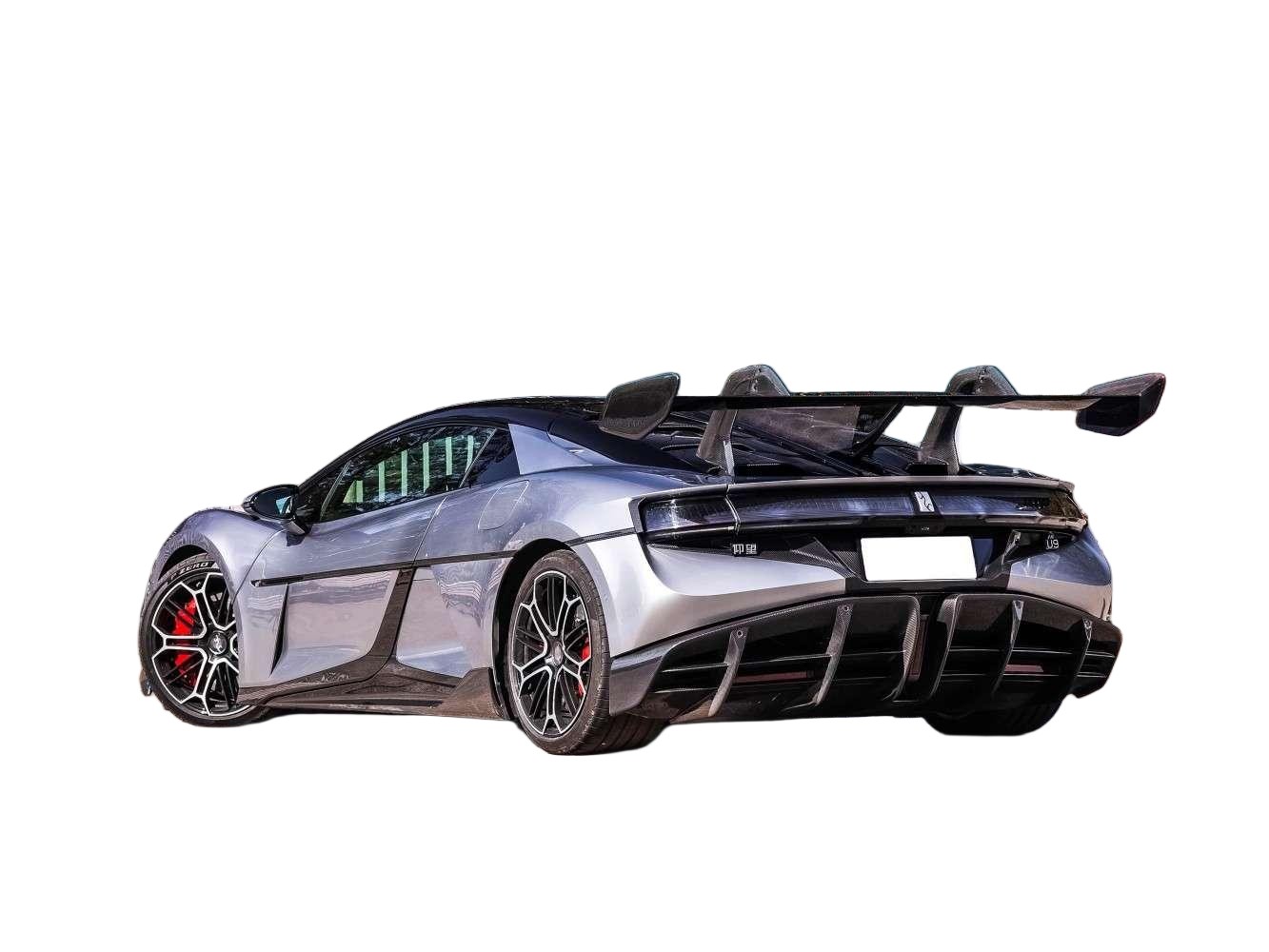

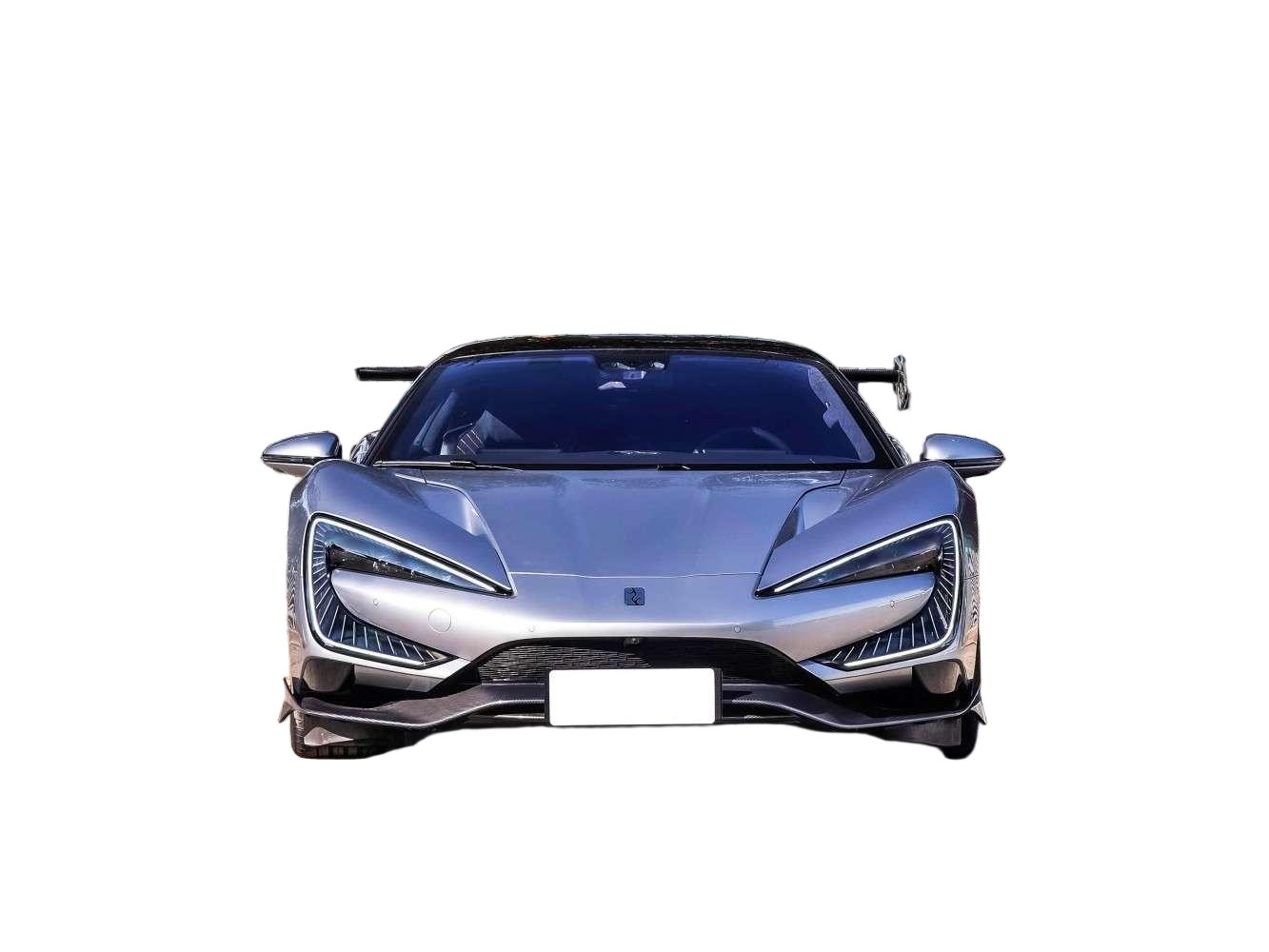

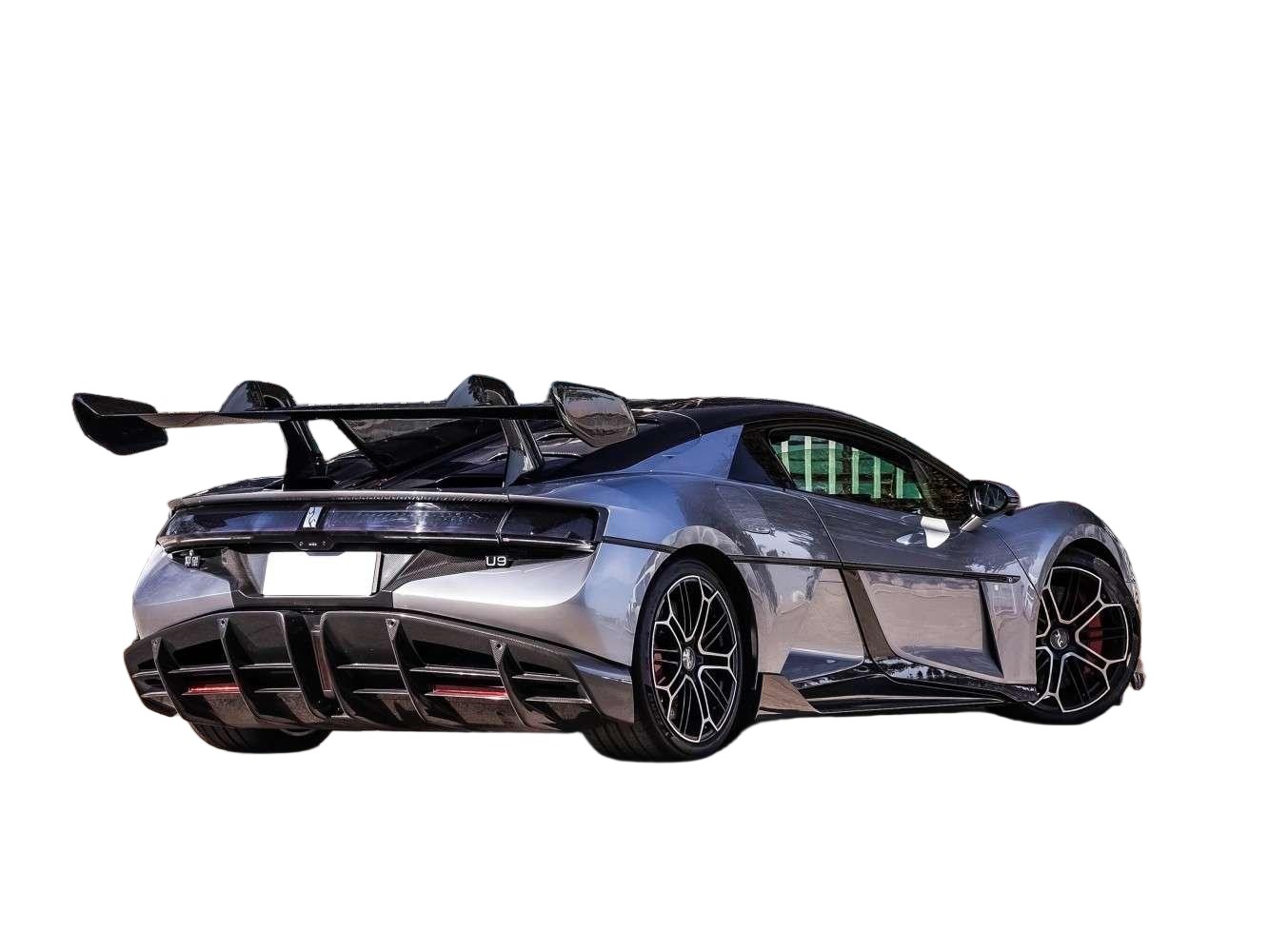

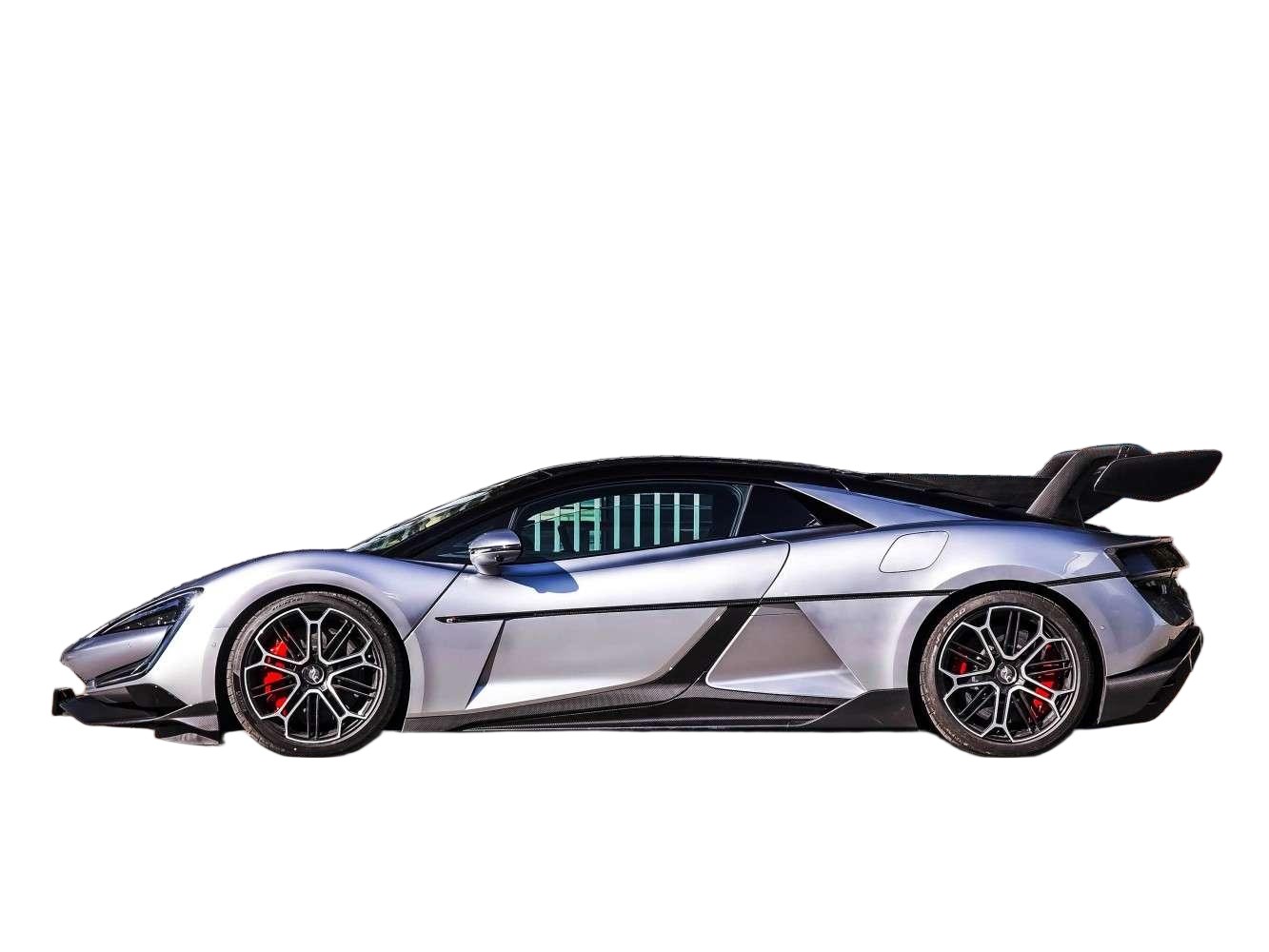

The Yangwang U9 is a two-door two-seater pure electric supercar, equipped with a closed front grille and full LED headlight groups. The vehicle is fitted with sport-style LED taillight groups and aerodynamic rear diffuser trim. Multiple body color options are available. The vehicle adopts 21-inch wheel configurations. Dihedral scissor doors are equipped as standard. A removable hardtop roof is available for optional configuration.
The vehicle adopts a 2-door 2-seater layout. The body dimensions are 4966 mm in length, 2029 mm in width and 1295 mm in height, with a wheelbase of 2900 mm. Electrically adjustable exterior mirrors are standard configurations.
Interior Design
The vehicle is equipped with a 10.25-inch full LCD digital instrument cluster and a 12.3-inch central control touchscreen. Multiple interior color schemes are available, matched with carbon fiber and suede upholstery and metallic decorative trim. The vehicle supports multi-color ambient lighting and automatic constant temperature air conditioning. A physical shift control module is equipped as standard.
Standard configurations include front airbags, front side airbags and head curtain airbags, front and rear parking sensors, panoramic rearview camera and constant-speed cruise control. Keyless entry and one-key start functions are standard. The vehicle is equipped with 360-degree panoramic camera system, adaptive cruise control, lane keeping assist and active braking system. The vehicle supports OTA upgrade functions and Dynaudio high-end audio system.
Powertrain
The Yangwang U9 adopts four independent permanent magnet synchronous electric motors and four-wheel independent drive layout, matched with single-speed electric transmission. The system comprehensive maximum power is 960 kW with a peak torque of 1680 Nm. The zero-hundred-kilometer acceleration time is 2.36 seconds, and the electronically limited top speed is 300 km/h.
The vehicle is equipped with an 80 kWh blade lithium iron phosphate battery pack. The CLTC comprehensive cruising range is 450 km. The vehicle adopts a 1200V high-voltage platform, supporting 500kW ultra-high power DC fast charging and AC slow charging functions, with 30%-80% fast charging completed in 10 minutes. The vehicle is equipped with energy recovery system and CTB battery body integration technology.
| 2024 Yangwang U9 Standard | |
|---|---|
| Basic Information | |
| Availability | 2024.02 |
| vehicle class | logging truck |
| Length*Width*Height(mm) | 4966*2029*1295 |
| Type of energy | all-electric |
| CLTC pure electric range (km) | 450 |
| Total motor power (kW) | 960 |
| Total motor torque (N-m) | 1680 |
| Maximum speed (km/h) | 300 |
| 0-100km/h acceleration(s) | 2.36 |
| Battery Type | lithium iron phosphate battery |
| Battery capacity (kWh) | 80 |
| Fast charging capacity (%) | 30-80 |
| Warranty Policy | Six years or 150,000 kilometers |
| body of automobile | |
| Length (mm) | 4966 |
| Width (mm) | 2029 |
| Height (mm) | 1295 |
| Wheelbase (mm) | 2900 |
| Front wheelbase(mm) | 1719 |
| Rear wheelbase(mm) | 1676 |
| Weight (kg) | 2475 |
| Number of doors (pcs) | 2 |
| Number of seats (pcs) | 2 |
| Sport Appearance Package | ● |
| electric motor | |
| Total motor power (kW) | 960 |
| Total motor torque (N-m) | 1680 |
| Maximum power of front electric motor (kW) | 480 |
| Maximum torque of front motor (N-m) | 840 |
| Maximum power of rear electric motor (kW) | 480 |
| Rear motor maximum torque (N-m) | 840 |
| CLTC pure electric range (km) | 450 |
| Battery capacity (kWh) | 80 |
| Motor structure | permanent magnetism |
| Principle of motor operation | synchronization |
| Motor Layout | front and rear |
| Battery Type | lithium iron phosphate battery |
| Battery Cell Brands | Ferdi (surname) |
| Battery cooling method | liquid cooling |
| Fast charging capacity (%) | 30-80 |
| Battery preheating | ● |
| Chassis/steering | |
| Driving form | four-wheel drive |
| Front suspension type | Double wishbone independent suspension |
| Rear suspension type | Multi-link independent suspension |
| Adjustable suspension | ● |
| air suspension | ● |
| Steering assist form | electric power assist |
| Wheels/Brakes | |
| Front/Rear Brake Type | Ceramic Ventilated Disc Type |
| Parking brake type | electronic parking |
| Front Tire Specification | 275/35 R21 |
| Rear Tire Specification | 325/30 R21 |
| Wheel Material | aluminum |
| Active/passive safety features | |
| ABS anti-lock | ● |
| Brake force distribution (EBD/CBC etc.) | ● |
| Brake Assist (BA/EBA/BAS etc.) | ● |
| Traction control (ASR/TCS/TRC etc.) | ● |
| Stability Control (ESC/ESP/DSC etc.) | ● |
| Active braking/safety systems | ● |
| merging aid | ● |
| lane keeping assist system | ● |
| lane departure warning | ● |
| Road traffic signage recognition | ● |
| Fatigue Driving Alerts | ● |
| DOW Open Door Alert | ● |
| front exhaust airbag | :: Driver's airbag |
| ●Passenger airbag | |
| ●Side airbags | |
| ●Head airbags (air curtains) | |
| Tire Pressure Detection Device | ●Display |
| Seat Belt Reminder | ●Principal Driver |
| ●Passenger | |
| Forward Collision Warning | ● |
| Rear Collision Warning | ● |
| Auxiliary/Manipulation Configurations | |
| parking radar | ●Forward |
| ● Post | |
| Driver Assistance Video | ●360-degree panoramic image |
| cruise control | ●Adaptive cruise at all speeds |
| Driving Mode Switching | :: Campaigns |
| :: Economy | |
| :: Standard/comfort | |
| :: Snow | |
| hill-holding aid | ● |
| automatic parking | ● |
| automatic parking | ● |
| Assisted driving level | ●L2 |
| External/anti-theft configurations | |
| Active Closed Grille | ● |
| Electric Suction Door | ● |
| Trunk opening method | ● Electric |
| Motorized Spoiler | ● |
| Key Type | ● UWB digital key |
| ●Remote key | |
| ● Bluetooth key | |
| ●NFC/RFID key | |
| Keyless entry | ● |
| Keyless Start System | ● |
| Remote start function | ● |
| Central locking in the car | ● |
| Internal Configuration | |
| Steering wheel material | ● Leather |
| Steering Wheel Adjustment | ● Electric |
| Adjustable up and down | |
| Adjustable front and rear | |
| Steering wheel functions | ●Heating |
| :: Memory | |
| :: Multifunctionality | |
| center armrest | ●Forward |
| Sun visor vanity mirror | ● |
| Liquid crystal instrument size | 10.25 in. |
| Built-in car recorder | ● |
| active noise reduction | ● |
| Wireless charging function for cell phones | ● Front row |
| Intelligent Hardware | |
| Number of cameras | ● 6 |
| Number of ultrasonic radars | :: 12 |
| Number of millimeter-wave radars | :: 4 |
| seating | |
| Seat Material | ●Other materials |
| sports seat | ● |
| Main Driver's Seat Function | :: Memory |
| :: Ventilation | |
| :: Massage | |
| ●Heating | |
| Passenger seat function | :: Memory |
| :: Ventilation | |
| :: Massage | |
| ●Heating | |
| Seat electric adjustment | ●Principal Driver |
| ●Passenger | |
| Integral adjustment of the main driver's seat | ●Before and after |
| ●Backrests | |
| :: High and low | |
| Partial adjustment of the main driver's seat | ● Waist |
| Passenger seat overall adjustment | ●Before and after |
| ●Backrests | |
| :: High and low | |
| Partial adjustment of the passenger seat | ● Waist |
| multimedia | |
| Large color screen in the center console | ● |
| satellite navigation system | ● |
| Navigating the road information display | ● |
| Map Branding | ●Gold |
| Roadside assistance calls | ● |
| Mobile APP Remote Function | ●Door control |
| ● Vehicle start-up | |
| ● Air conditioning control | |
| :: Vehicle condition check/diagnosis | |
| :: Vehicle location/search | |
| Bluetooth/Car Phone | ● |
| Audio Brand Name | Dynaudio Tanner |
| Number of audio speakers | 12 |
| Voice Recognition Control System | :: Multimedia systems |
| :: Navigation | |
| :: Telephone | |
| :: Air conditioning | |
| facial recognition | ● |
| Telematics | ● |
| OTA upgrade | ● |
| Interface Support | ● USB port |
| (stage) lighting | ●Type-C port |
| low beam (headlights) | ●LED |
| high beam (headlights) | ●LED |
| LED daytime running lights | ● |
| Adaptive high and low beam | ● |
| Adjustable headlights | ● |
| Automatic headlights | ● |
| Delayed headlight off | ● |
| auxiliary steering light | ● |
| Interior Ambient Lighting | ● |
| Glass/Mirror | |
| power window | ●Forward |
| One-touch window lifting | ● Full vehicle |
| Anti Window Pinch Handle | ● |
| rearview mirror | ●Motorized adjustment |
| :: Electric folding | |
| ●Automatic anti-glare | |
| :: Memory | |
| ●Heating | |
| ●Automatic folding for locking the car | |
| ●Automatic reversing down | |
| rearview mirror | ●Automatic anti-glare |
| ●Streaming rearview mirror | |
| inductive wiper | ● |
| Air conditioners/refrigerators | |
| Air conditioning control method | ● Automatic control |
| Temperature zone control | ● |
| PM2.5 filtration | ● |
| Negative Ion Generator | ● |
| In-car scenting devices | ● |
