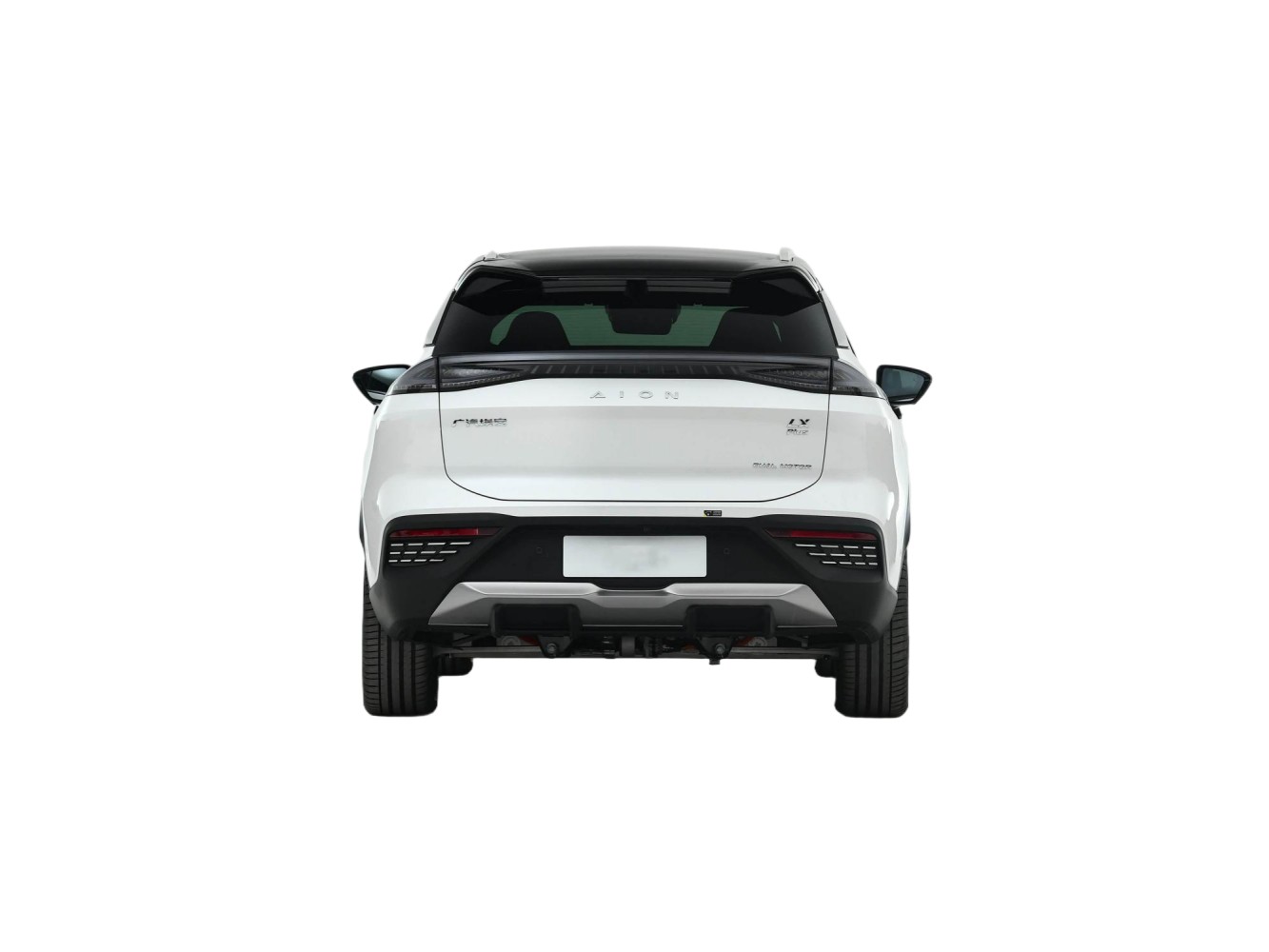

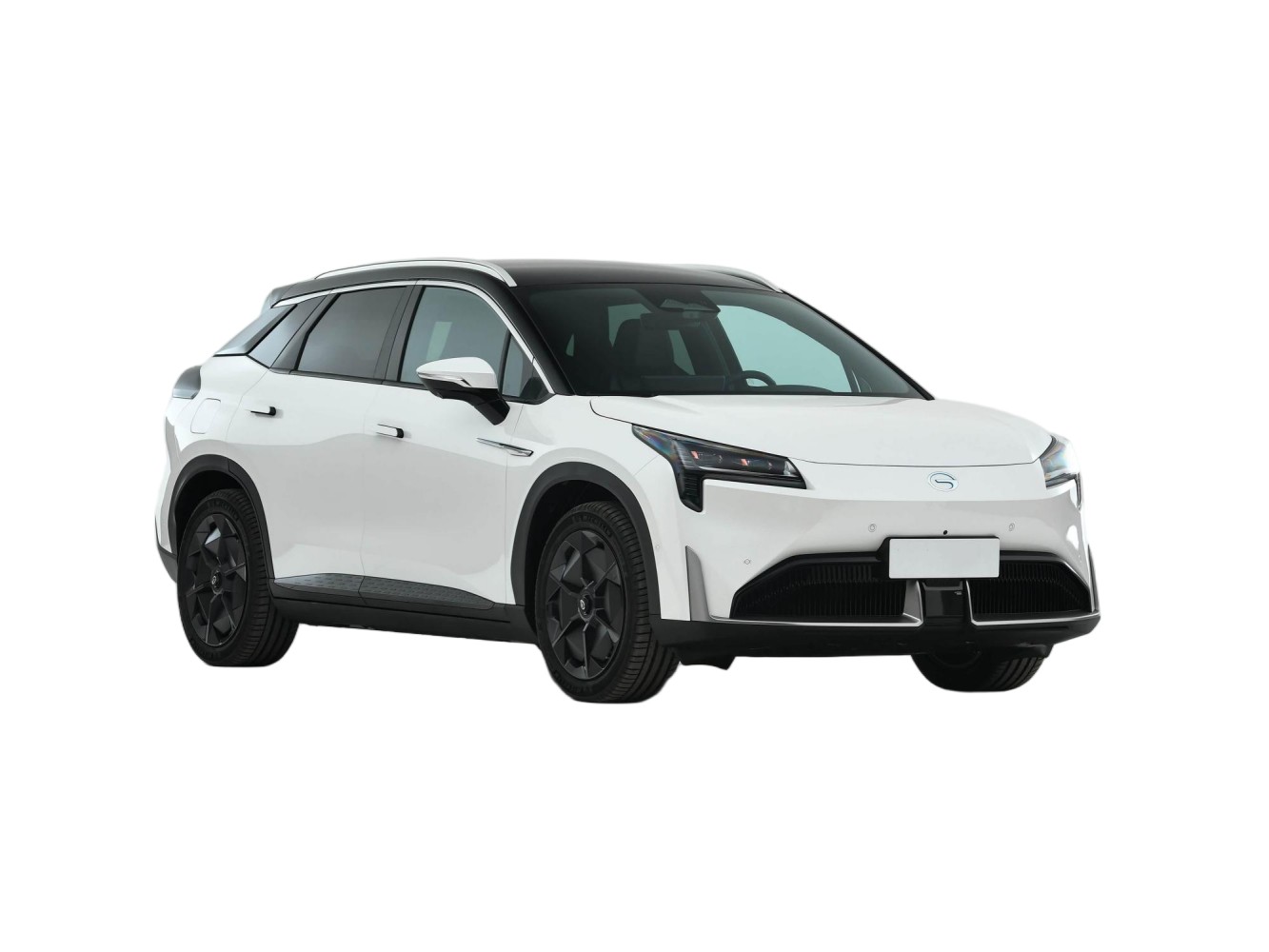

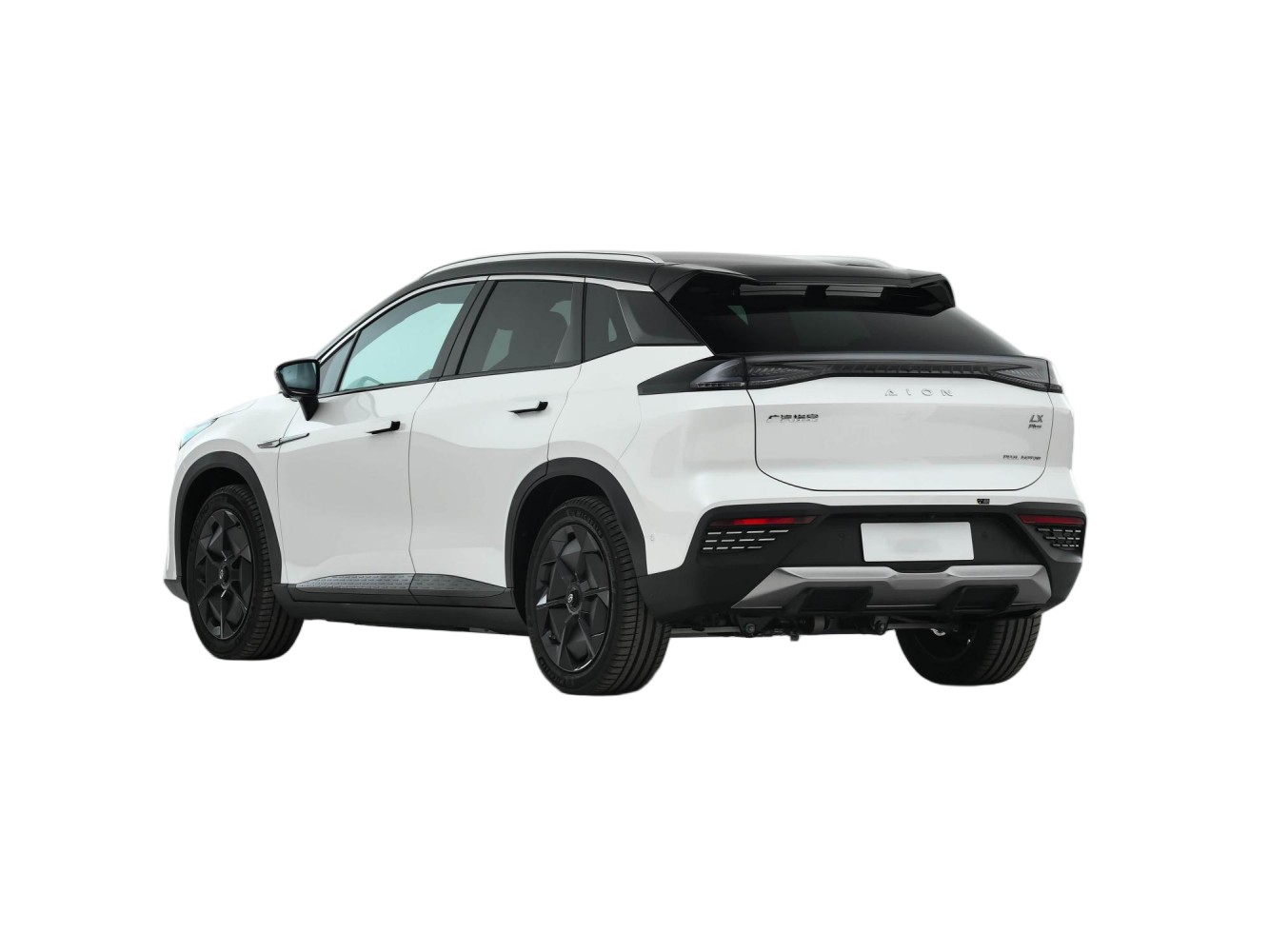

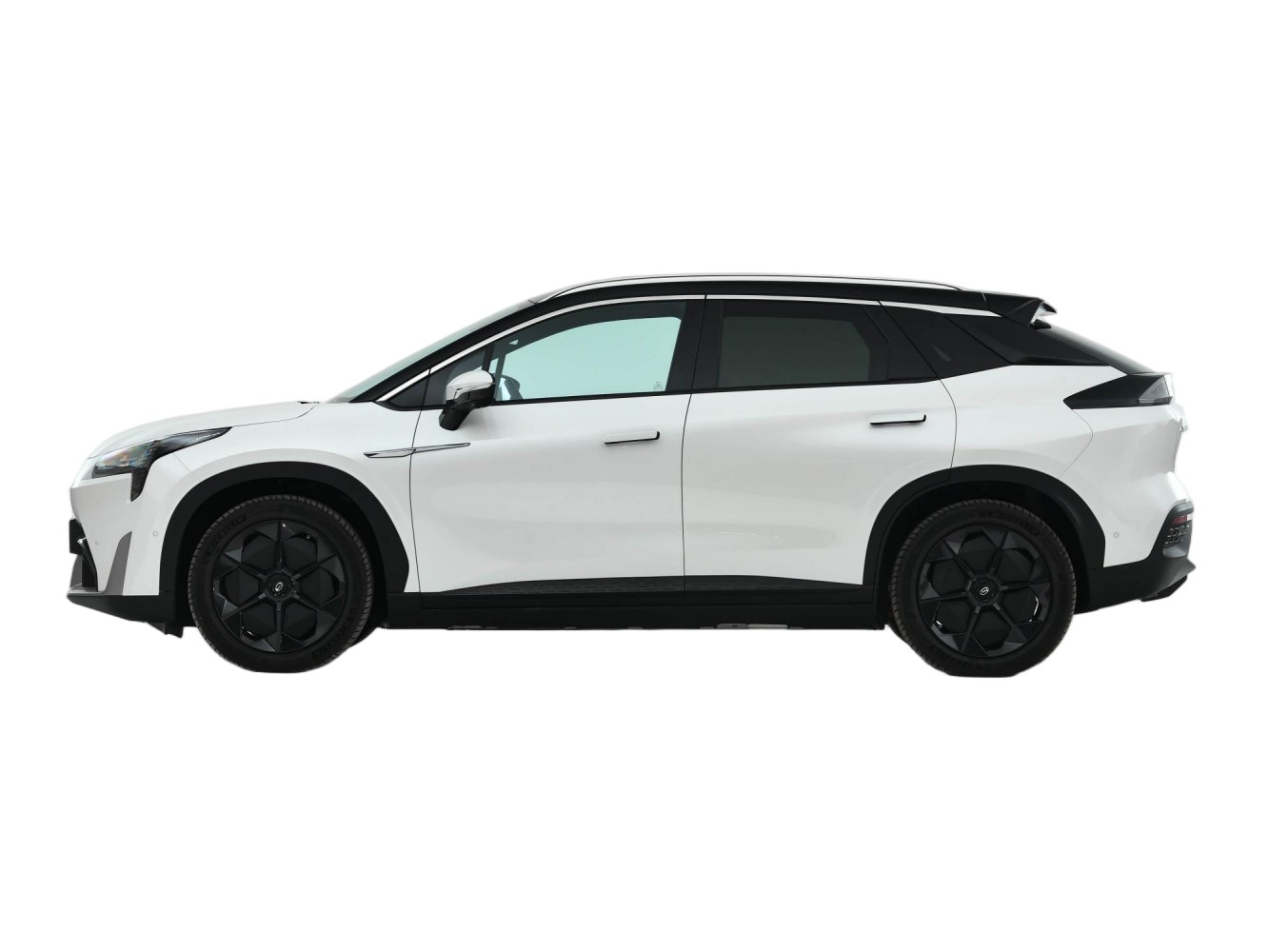

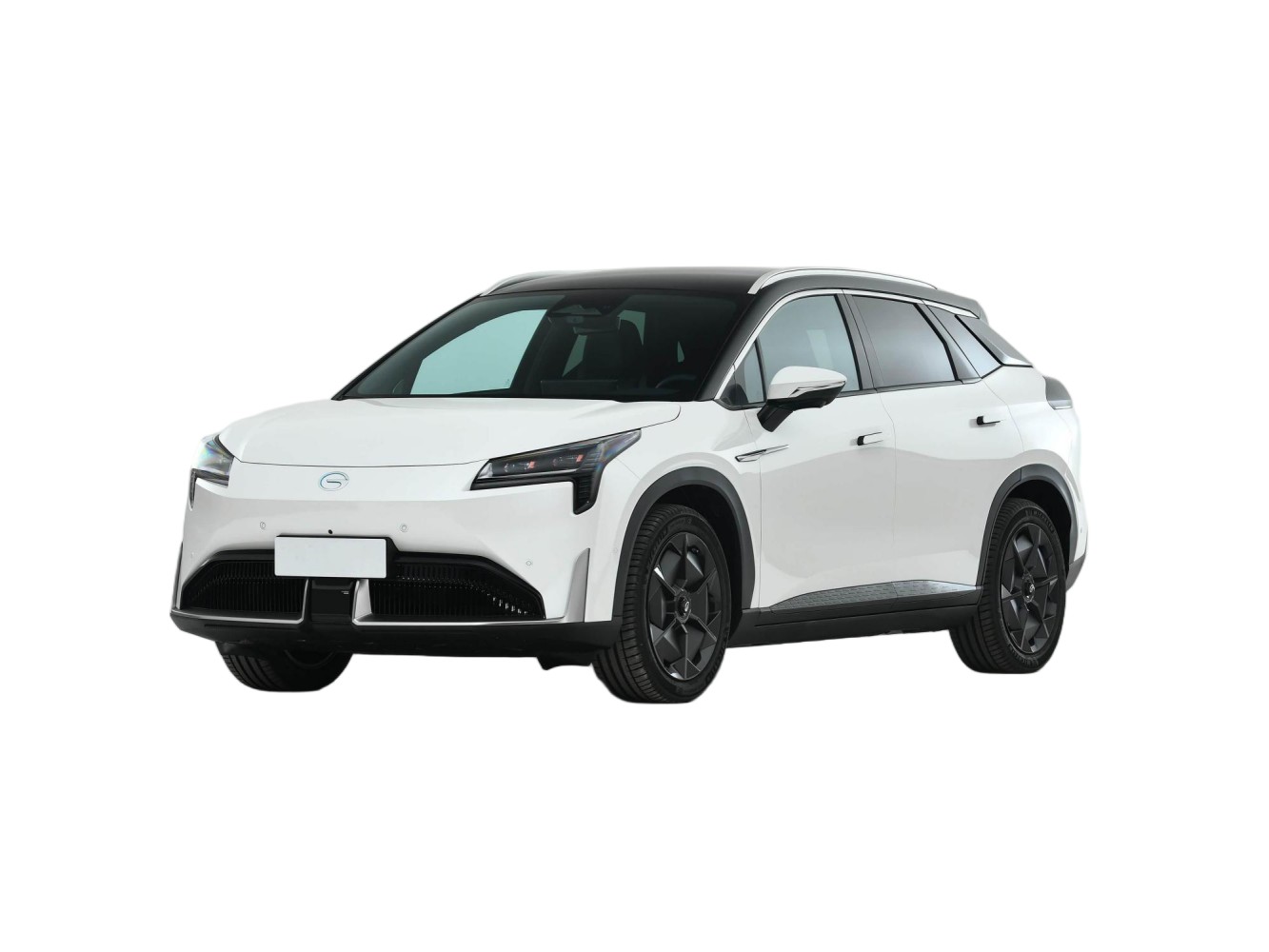

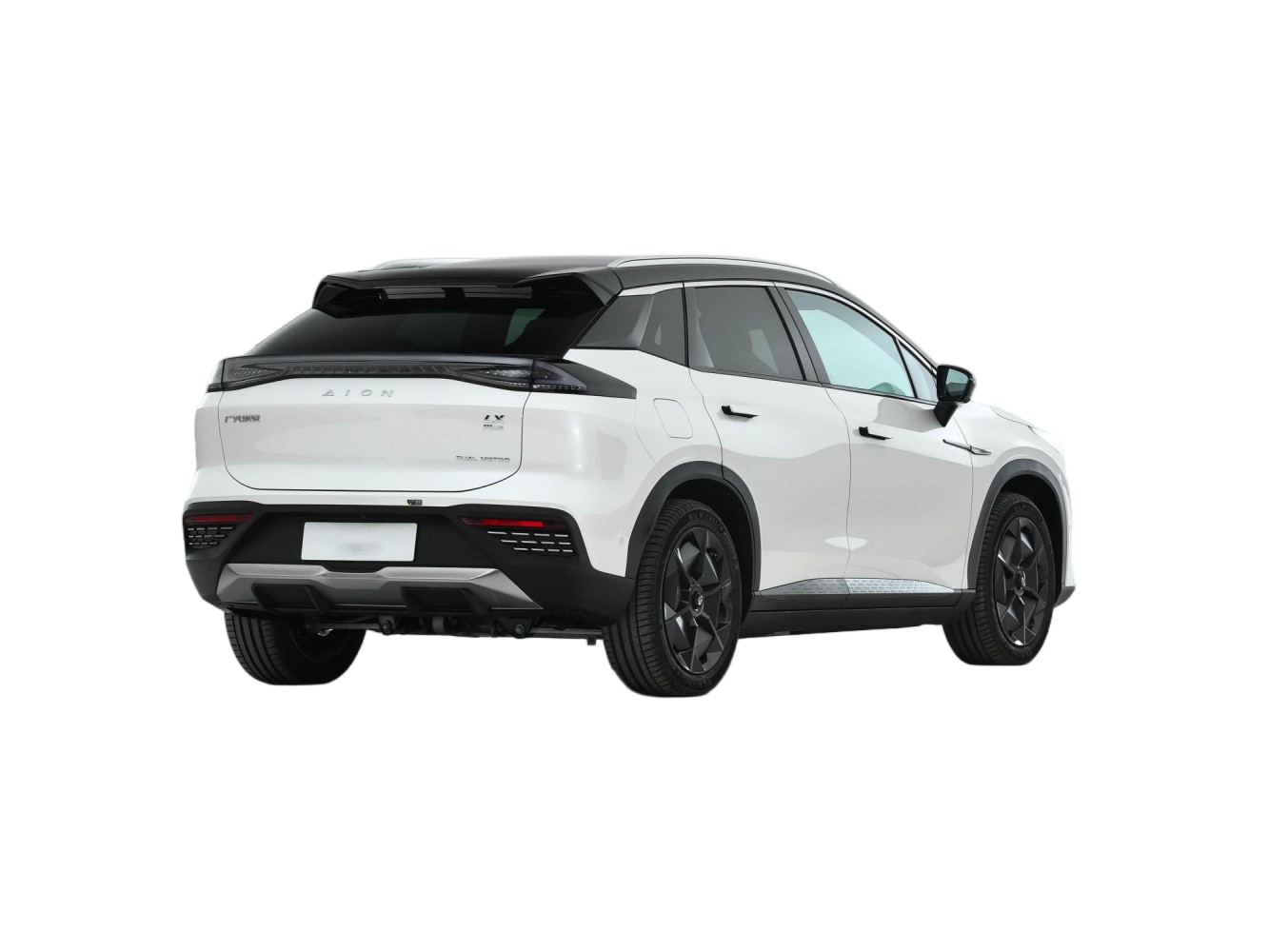

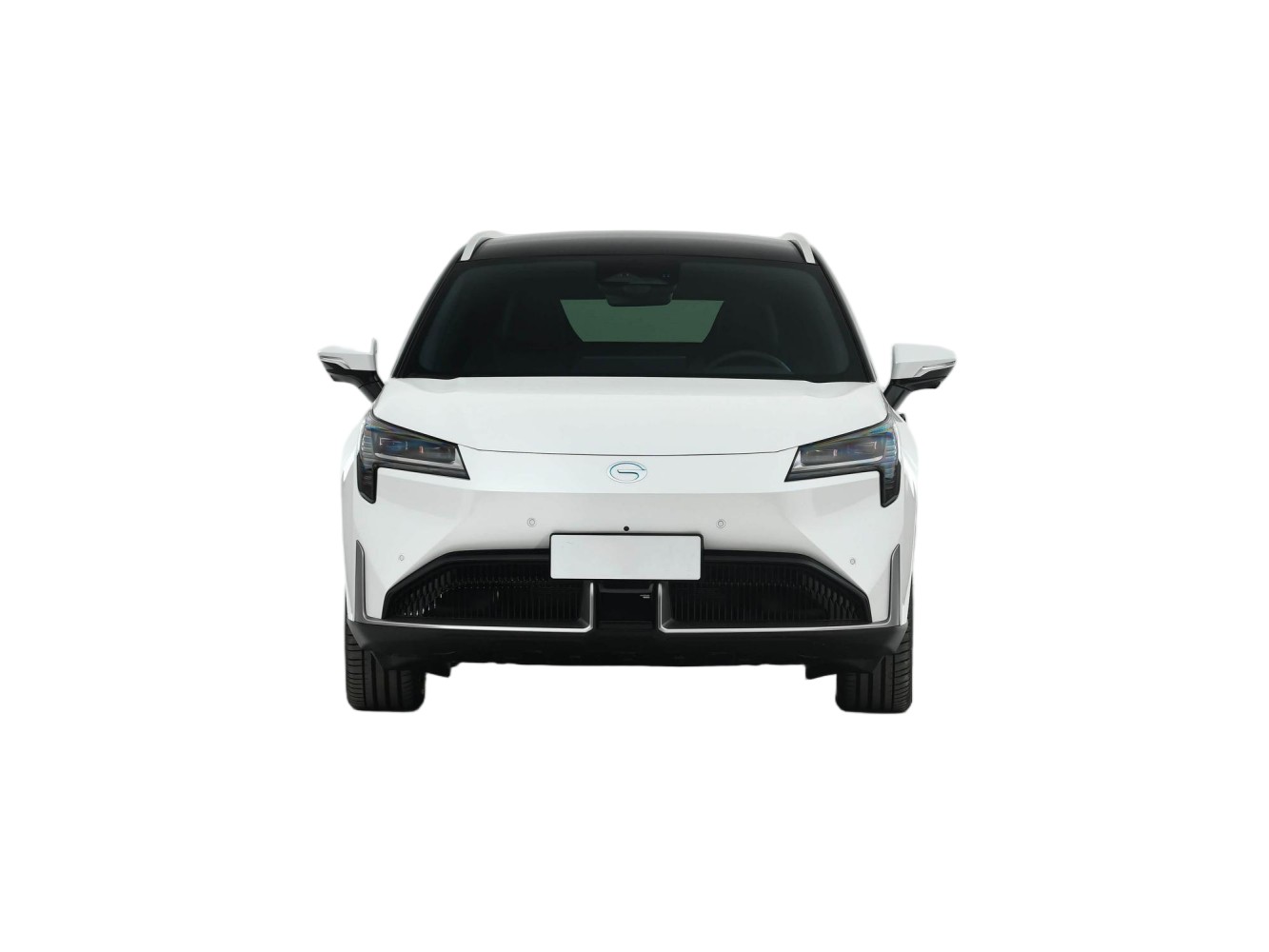

Exterior Design
The AION LX is a mid-size pure electric SUV, equipped with a closed front grille and full LED headlight groups. The vehicle is fitted with full-width LED taillight groups and rear bumper trim. Multiple body color options are available. The vehicle adopts 19-inch wheel configurations for different versions. Conventional door handles are equipped as standard. A panoramic sunroof is equipped for partial versions.
The vehicle adopts a 5-door 5-seater SUV layout. The body dimensions are 4835 mm in length, 1935 mm in width and 1685 mm in height, with a wheelbase of 2920 mm. Electrically adjustable exterior mirrors with heating and automatic folding functions are equipped for different versions. An electric charging port cover is equipped as standard.
Interior Design
The vehicle is equipped with a full LCD digital instrument cluster and 15.6-inch central control touchscreen. Multiple interior color schemes are available, matched with leather upholstery and metallic decorative trim. The vehicle supports multi-color ambient lighting and automatic constant temperature air conditioning. An electronic gear shift lever is equipped as standard.
Standard configurations include front, side and curtain airbags, front and rear parking sensors, rearview camera and constant-speed cruise control. Keyless entry and one-key start functions are standard. High-spec versions are equipped with lidar sensors, 540-degree panoramic camera system, adaptive cruise control, lane keeping assist and active braking system. The vehicle supports vehicle network connection, wireless phone charging, V2L external discharge and OTA upgrade functions. Partial versions are equipped with multi-directional adjustable rear seats with electric adjustment functions.
Powertrain
The AION LX adopts front-wheel drive and four-wheel drive layouts, matched with single-speed fixed gear electric drive assembly. The single motor front-wheel drive version is equipped with front permanent magnet synchronous motor with a maximum power of 180 kW and a peak torque of 350 Nm. The dual motor four-wheel drive version has a comprehensive maximum power of 360 kW and a comprehensive peak torque of 700 Nm.
The vehicle is equipped with 73.3kWh lithium battery packs for different versions. The CLTC pure electric cruising range covers 520 km and 652 km for different versions. The vehicle supports DC fast charging and AC slow charging functions. The vehicle is equipped with energy recovery system and battery constant temperature management system. The vehicle adopts front MacPherson independent suspension and rear five-link independent suspension system.
| 2022 AION LX PLUS 80 Intelligent Edition | 2022 AION LX PLUS 80D Signature Edition | 2022 AION LX PLUS 80D Max Edition | 2022 AION LX PLUS Millennium Edition | |
|---|---|---|---|---|
| Basic Information | ||||
| Post-subsidy price | 286,600 | - | - | - |
| Availability | 2022.01 | 2022.01 | 2022.01 | 2022.01 |
| vehicle class | Medium SUV | Medium SUV | Medium SUV | Medium SUV |
| Length*Width*Height(mm) | 4835*1935*1685 | 4835*1935*1685 | 4835*1935*1685 | 4835*1935*1685 |
| Type of energy | all-electric | all-electric | all-electric | all-electric |
| NEDC pure electric range (km) | 650 | 600 | 600 | 1008 |
| Total motor power (kW) | 180 | 360 | 360 | 180 |
| Total motor torque (N-m) | 350 | 700 | 700 | 350 |
| Maximum speed (km/h) | 170 | 180 | 180 | 170 |
| 0-100km/h acceleration(s) | 7.8 | 3.9 | 3.9 | 7.9 |
| Battery Type | Ternary lithium battery | Ternary lithium battery | Ternary lithium battery | Ternary lithium battery |
| Battery capacity (kWh) | 93.3 | 93.3 | 93.3 | 144.4 |
| Warranty Policy | Four years or 150,000 kilometers | Four years or 150,000 kilometers | Four years or 150,000 kilometers | Four years or 150,000 kilometers |
| body of automobile | ||||
| Length (mm) | 4835 | 4835 | 4835 | 4835 |
| Width (mm) | 1935 | 1935 | 1935 | 1935 |
| Height (mm) | 1685 | 1685 | 1685 | 1685 |
| Wheelbase (mm) | 2920 | 2920 | 2920 | 2920 |
| Front wheelbase(mm) | 1650 | 1650 | 1650 | 1650 |
| Rear wheelbase(mm) | 1660 | 1660 | 1660 | 1660 |
| Weight (kg) | 2070 | 2220 | 2220 | 2220 |
| Number of doors (pcs) | 5 | 5 | 5 | 5 |
| Number of seats (pcs) | 5 | 5 | 5 | 5 |
| electric motor | ||||
| Total motor power (kW) | 180 | 360 | 360 | 180 |
| Total motor torque (N-m) | 350 | 700 | 700 | 350 |
| Maximum power of front electric motor (kW) | 180 | 180 | 180 | 180 |
| Maximum torque of front motor (N-m) | 350 | 350 | 350 | 350 |
| Maximum power of rear electric motor (kW) | - | 180 | 180 | - |
| Rear motor maximum torque (N-m) | - | 350 | 350 | - |
| NEDC pure electric range (km) | 650 | 600 | 600 | 1008 |
| Battery capacity (kWh) | 93.3 | 93.3 | 93.3 | 144.4 |
| 100km power consumption (kWh/100km) | 15.5 | 16 | 16 | 15.8 |
| Motor structure | permanent magnetism | permanent magnetism | permanent magnetism | permanent magnetism |
| Principle of motor operation | synchronization | synchronization | synchronization | synchronization |
| Number of drive motors | single motor | Dual Motor | Dual Motor | single motor |
| Motor Layout | preamplifier | front and rear | front and rear | preamplifier |
| Battery Type | Ternary lithium battery | Ternary lithium battery | Ternary lithium battery | Ternary lithium battery |
| Battery Cell Brands | China Aviation Lithium Corporation (CATIC) | China Aviation Lithium Corporation (CATIC) | China Aviation Lithium Corporation (CATIC) | Guangzhou Automobile Works (GAW) |
| Battery cooling method | liquid cooling | liquid cooling | liquid cooling | liquid cooling |
| power exchange | unsupported | unsupported | unsupported | unsupported |
| Battery Energy Density(Wh/kg) | 180 | 175 | 175 | 205 |
| Battery Pack Warranty | Unlimited years/mileage for first owner (liability waivers are subject to official terms) | Unlimited years/mileage for first owner (liability waivers are subject to official terms) | Unlimited years/mileage for first owner (liability waivers are subject to official terms) | Ten years of unlimited kilometers for the first owner (liability exclusions are subject to official terms) |
| Battery preheating | ● | ● | ● | ● |
| Chassis/steering | ||||
| Driving form | front drive | four-wheel drive | four-wheel drive | front drive |
| Front suspension type | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension |
| Rear suspension type | Five-link independent suspension | Five-link independent suspension | Five-link independent suspension | Five-link independent suspension |
| Steering assist form | electric power assist | electric power assist | electric power assist | electric power assist |
| Wheels/Brakes | ||||
| Front/Rear Brake Type | Ventilated Disc Type / Disc Type | Ventilated Disc Type / Disc Type | Ventilated Disc Type / Disc Type | Ventilated Disc Type / Disc Type |
| Parking brake type | electronic parking | electronic parking | electronic parking | electronic parking |
| Front Tire Specification | 245/55 R19 | 245/50 R20 | 245/50 R20 | 245/50 R20 |
| Rear Tire Specification | 245/55 R19 | 245/50 R20 | 245/50 R20 | 245/50 R20 |
| Wheel Material | aluminum | aluminum | aluminum | aluminum |
| Spare tire specification | - | Non-full size | Non-full size | - |
| Active/passive safety features | ||||
| ABS anti-lock | ● | ● | ● | ● |
| Brake force distribution (EBD/CBC etc.) | ● | ● | ● | ● |
| Brake Assist (BA/EBA/BAS etc.) | ● | ● | ● | ● |
| Traction control (ASR/TCS/TRC etc.) | ● | ● | ● | ● |
| Stability Control (ESC/ESP/DSC etc.) | ● | ● | ● | ● |
| Active braking/safety systems | ● | ● | ● | - |
| merging aid | ● | ● | ● | - |
| lane keeping assist system | ● | ● | ● | - |
| lane departure warning | ● | ● | ● | - |
| Road traffic signage recognition | ● | ● | ● | - |
| Fatigue Driving Alerts | ● | ● | ● | ● |
| front exhaust airbag | :: Driver's airbag | :: Driver's airbag | :: Driver's airbag | :: Driver's airbag |
| ●Passenger airbag | ●Passenger airbag | ●Passenger airbag | ●Passenger airbag | |
| ●Side airbags | ●Side airbags | ●Side airbags | ●Side airbags | |
| ●Head airbags (air curtains) | ●Head airbags (air curtains) | ●Head airbags (air curtains) | ●Head airbags (air curtains) | |
| Rear airbags | ●Head airbags (air curtains) | ●Head airbags (air curtains) | ●Head airbags (air curtains) | ●Head airbags (air curtains) |
| Tire Pressure Detection Device | ●Display | ●Display | ●Display | ●Display |
| Seat Belt Reminder | ● Full vehicle | ● Full vehicle | ● Full vehicle | ● Full vehicle |
| ISOFIX child restraints | ● | ● | ● | ● |
| Rear Collision Warning | ● | ● | ● | - |
| Auxiliary/Manipulation Configurations | ||||
| parking radar | ●Forward | ●Forward | ●Forward | ●Forward |
| ● Post | ● Post | ● Post | ● Post | |
| Driver Assistance Video | ●360-degree panoramic image | ●360-degree panoramic image | ●360-degree panoramic image | ●360-degree panoramic image |
| cruise control | ●Adaptive cruise at all speeds | ●Adaptive cruise at all speeds | ●Adaptive cruise at all speeds | ●Cruise control |
| Driving Mode Switching | :: Campaigns | :: Campaigns | :: Campaigns | :: Campaigns |
| :: Economy | :: Economy | :: Economy | :: Economy | |
| :: Standard/comfort | :: Standard/comfort | :: Standard/comfort | :: Standard/comfort | |
| :: Snow | :: Snow | |||
| steep incline and slow descent | ● | ● | ● | ● |
| hill-holding aid | ● | ● | ● | ● |
| automatic parking | ● | ● | ● | ● |
| automatic parking | ● | ● | ● | - |
| Assisted driving level | ●L2 | ●L2 | ●L2 | - |
| External/anti-theft configurations | ||||
| skylights | ● Non-opening panoramic sunroof | ● Non-opening panoramic sunroof | ● Non-opening panoramic sunroof | ● Non-opening panoramic sunroof |
| roof rack | ● | ● | ● | ● |
| Concealed power door handles | ● | ● | ● | ● |
| Trunk opening method | ● Electric | ● Electric | ● Electric | ● Electric |
| ●Induction | ●Induction | ●Induction | ●Induction | |
| Power trunk position memory | ● | ● | ● | ● |
| Key Type | ●Remote key | ●Remote key | ●Remote key | ●Remote key |
| ● Bluetooth key | ● Bluetooth key | ● Bluetooth key | ● Bluetooth key | |
| Keyless entry | ● | ● | ● | ● |
| Keyless Start System | ● | ● | ● | ● |
| Remote start function | ● | ● | ● | ● |
| Central locking in the car | ● | ● | ● | ● |
| Internal Configuration | ||||
| Steering wheel material | ● Leather | ● Leather | ● Leather | ● Leather |
| Steering Wheel Adjustment | ● Electric | ● Electric | ● Electric | ● Electric |
| Adjustable up and down | Adjustable up and down | Adjustable up and down | Adjustable up and down | |
| Adjustable front and rear | Adjustable front and rear | Adjustable front and rear | Adjustable front and rear | |
| Steering wheel functions | :: Multifunctionality | :: Multifunctionality | :: Multifunctionality | :: Multifunctionality |
| center armrest | ●Forward | ●Forward | ●Forward | ●Forward |
| ● Post | ● Post | ● Post | ● Post | |
| Sun visor vanity mirror | ● | ● | ● | ● |
| Liquid crystal instrument size | 12.3 in. | 12.3 in. | 12.3 in. | 12.3 in. |
| Wireless charging function for cell phones | ● Front row | ● Front row | ● Front row | ● Front row |
| Intelligent Hardware | ||||
| Assisted Driving Chips | - | - | :: Huawei MDC 610 | - |
| total chip power | - | - | ●200 TOPS | - |
| Number of cameras | ● 5 | ● 5 | :: 12 | :: 4 |
| Number of ultrasonic radars | :: 12 | :: 12 | :: 12 | :: 12 |
| Number of millimeter-wave radars | ● 5 | ● 5 | ● 6 | - |
| Number of LiDAR | - | - | ● 3 | - |
| seating | ||||
| Seat Material | ● Leather | ● Leather | ● Leather | ● Leather |
| Main Driver's Seat Function | :: Memory | :: Memory | :: Memory | :: Memory |
| :: Ventilation | :: Ventilation | :: Ventilation | :: Ventilation | |
| ●Heating | ●Heating | ●Heating | ●Heating | |
| Passenger seat function | :: Ventilation | :: Ventilation | :: Ventilation | :: Ventilation |
| ●Heating | ●Heating | ●Heating | ●Heating | |
| Seat electric adjustment | ●Principal Driver | ●Principal Driver | ●Principal Driver | ●Principal Driver |
| ●Passenger | ●Passenger | ●Passenger | ●Passenger | |
| Integral adjustment of the main driver's seat | ●Before and after | ●Before and after | ●Before and after | ●Before and after |
| ●Backrests | ●Backrests | ●Backrests | ●Backrests | |
| :: High and low | :: High and low | :: High and low | :: High and low | |
| Partial adjustment of the main driver's seat | ● Waist | ● Waist | ● Waist | ● Waist |
| ●Leg rests | ●Leg rests | ●Leg rests | ●Leg rests | |
| Passenger seat overall adjustment | ●Before and after | ●Before and after | ●Before and after | ●Before and after |
| ●Backrests | ●Backrests | ●Backrests | ●Backrests | |
| Partial adjustment of the passenger seat | - | ●Leg rests | ●Leg rests | ●Leg rests |
| Second row seat adjustment | ●Angle adjustable | ●Angle adjustable | ●Angle adjustable | ●Angle adjustable |
| ●Proportional lowering | ●Proportional lowering | ●Proportional lowering | ●Proportional lowering | |
| ●Leg rest adjustment | ●Leg rest adjustment | ●Leg rest adjustment | ||
| Passenger seat rear adjustable buttons | - | ● | ● | ● |
| Rear Cup Holder | ● | ● | ● | ● |
| multimedia | ||||
| Large color screen in the center console | ● | ● | ● | ● |
| satellite navigation system | ● | ● | ● | ● |
| Navigating the road information display | ● | ● | ● | ● |
| Map Branding | Baidu | Baidu | Baidu | Baidu |
| Roadside assistance calls | ● | ● | ● | ● |
| Mobile APP Remote Function | ●Door control | ●Door control | ●Door control | ●Door control |
| ● Vehicle start-up | ● Vehicle start-up | ● Vehicle start-up | ● Vehicle start-up | |
| ● Charge management | ● Charge management | ● Charge management | ● Charge management | |
| ● Air conditioning control | ● Air conditioning control | ● Air conditioning control | ● Air conditioning control | |
| :: Vehicle condition check/diagnosis | :: Vehicle condition check/diagnosis | :: Vehicle condition check/diagnosis | :: Vehicle condition check/diagnosis | |
| :: Vehicle location/search | :: Vehicle location/search | :: Vehicle location/search | :: Vehicle location/search | |
| Bluetooth/Car Phone | ● | ● | ● | ● |
| Audio Brand Name | ALPINE | ALPINE | ALPINE | ALPINE |
| Number of audio speakers | 10 | 10 | 10 | 10 |
| Voice Recognition Control System | :: Multimedia systems | :: Multimedia systems | :: Multimedia systems | :: Multimedia systems |
| :: Navigation | :: Navigation | :: Navigation | :: Navigation | |
| :: Telephone | :: Telephone | :: Telephone | :: Telephone | |
| :: Air conditioning | :: Air conditioning | :: Air conditioning | :: Air conditioning | |
| facial recognition | ● | ● | ● | ● |
| Telematics | ● | ● | ● | ● |
| OTA upgrade | ● | ● | ● | ● |
| Interface Support | ●USB port | ●USB port | ●USB port | ●USB port |
| illumination | ||||
| low beam (headlights) | ●LED | ●LED | ●LED | ●LED |
| high beam (headlights) | ●LED | ●LED | ●LED | ●LED |
| LED daytime running lights | ● | ● | ● | ● |
| Adaptive high and low beam | ● | ● | ● | - |
| Adjustable headlights | ● | ● | ● | ● |
| Automatic headlights | ● | ● | ● | ● |
| Delayed headlight off | ● | ● | ● | ● |
| Interior ambient lighting | ● | ● | ● | ● |
| Glass/Mirror | ||||
| power window | ●Forward | ●Forward | ●Forward | ●Forward |
| ● Post | ● Post | ● Post | ● Post | |
| One-touch window lifting | ● Full vehicle | ● Full vehicle | ● Full vehicle | ● Full vehicle |
| Anti Window Pinch Handle | ● | ● | ● | ● |
| outside rearview mirror | ●Motorized adjustment | ●Motorized adjustment | ●Motorized adjustment | ●Motorized adjustment |
| :: Electric folding | :: Electric folding | :: Electric folding | :: Electric folding | |
| :: Memory | :: Memory | :: Memory | :: Memory | |
| ●Heating | ●Heating | ●Heating | ●Heating | |
| ●Automatic folding for locking the car | ●Automatic folding for locking the car | ●Automatic folding for locking the car | ●Automatic folding for locking the car | |
| ●Automatic reversing down | ●Automatic reversing down | ●Automatic reversing down | ●Automatic reversing down | |
| rearview mirror | ●Automatic anti-glare | ●Automatic anti-glare | ●Automatic anti-glare | ●Automatic anti-glare |
| Glass Functions | :: Multi-layer soundproofing | :: Multi-layer soundproofing | :: Multi-layer soundproofing | :: Multi-layer soundproofing |
| ● Rear side privacy | ● Rear side privacy | ● Rear side privacy | ● Rear side privacy | |
| inductive wiper | ● | ● | ● | ● |
| Air conditioners/refrigerators | ||||
| Air conditioning control method | ● Automatic control | ● Automatic control | ● Automatic control | ● Automatic control |
| rear air vent | ● | ● | ● | ● |
| Temperature zone control | ● | ● | ● | ● |
| PM2.5 filtration | ● | ● | ● | ● |
| Negative Ion Generator | ● | ● | ● | ● |
| In-car scenting devices | ● | ● | ● | ● |
Reviews
There are no reviews yet.
