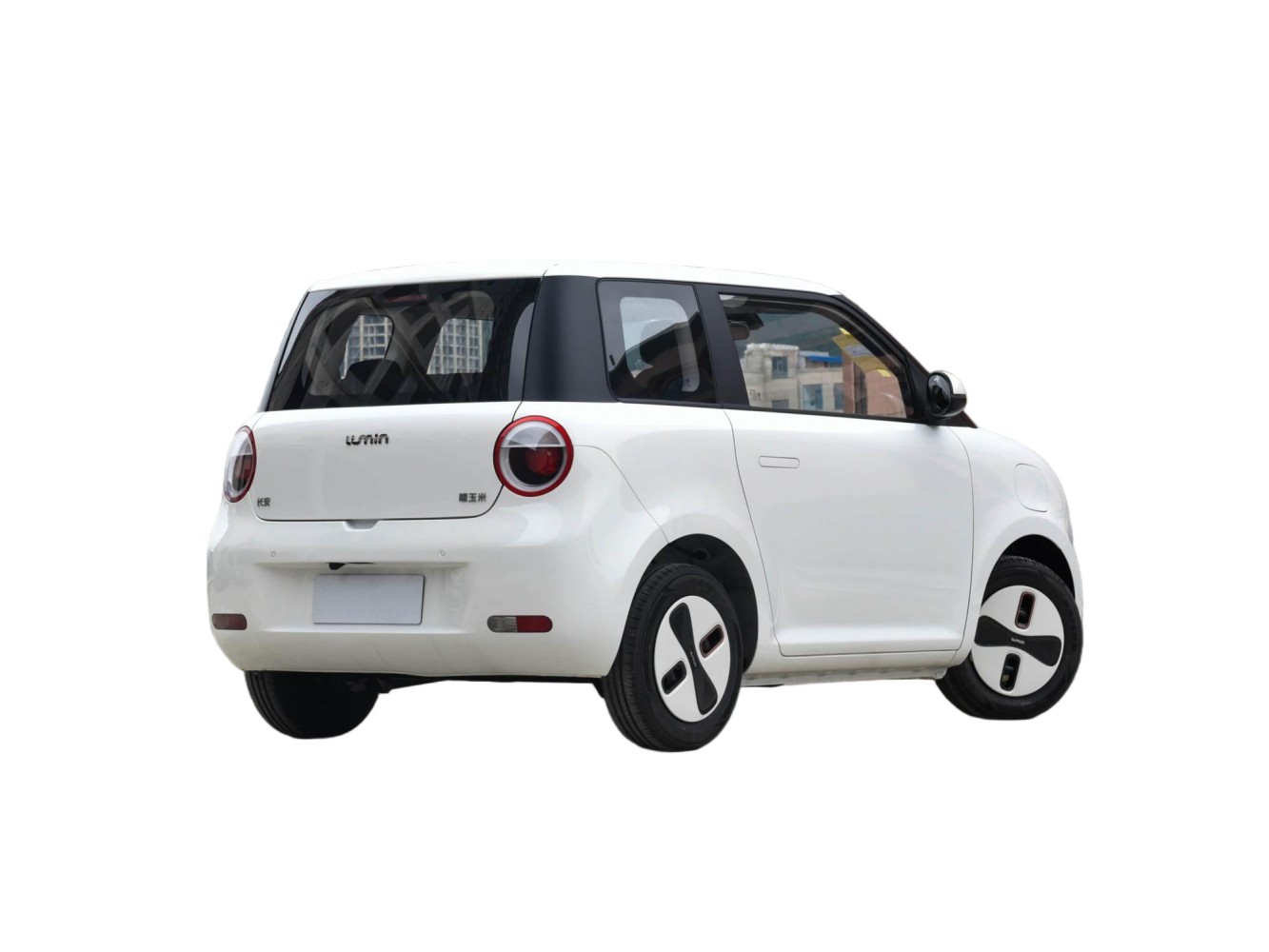

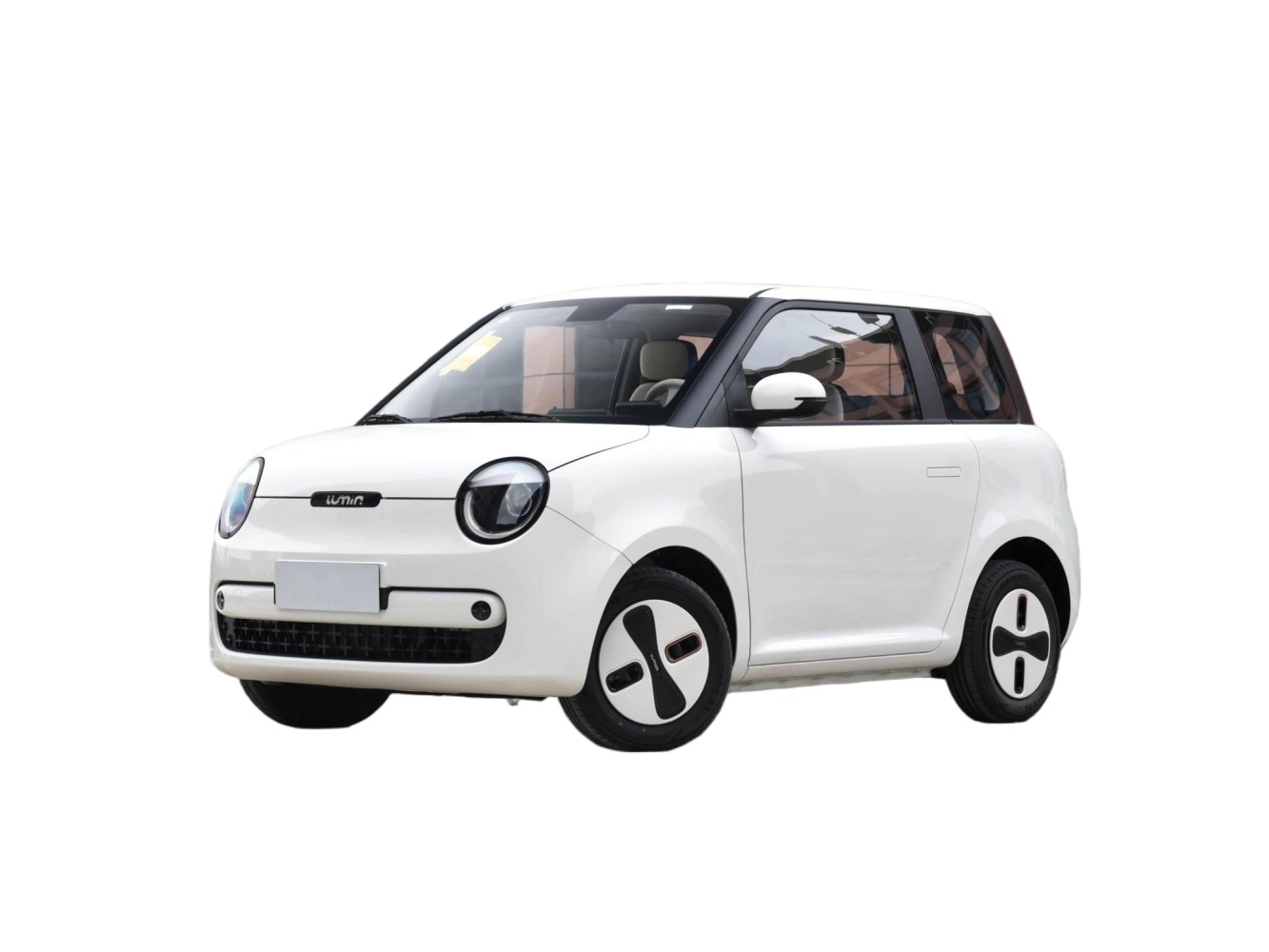

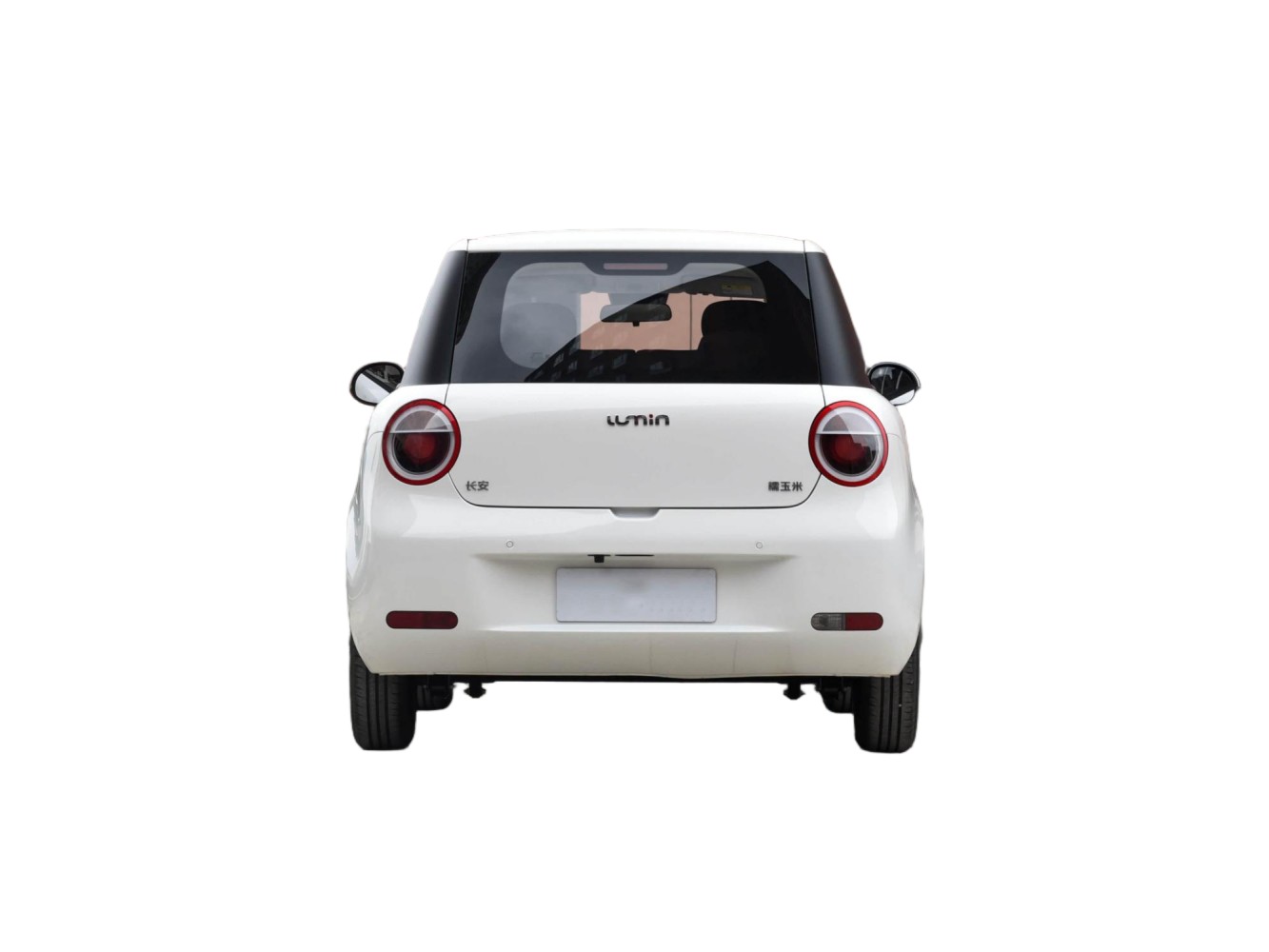

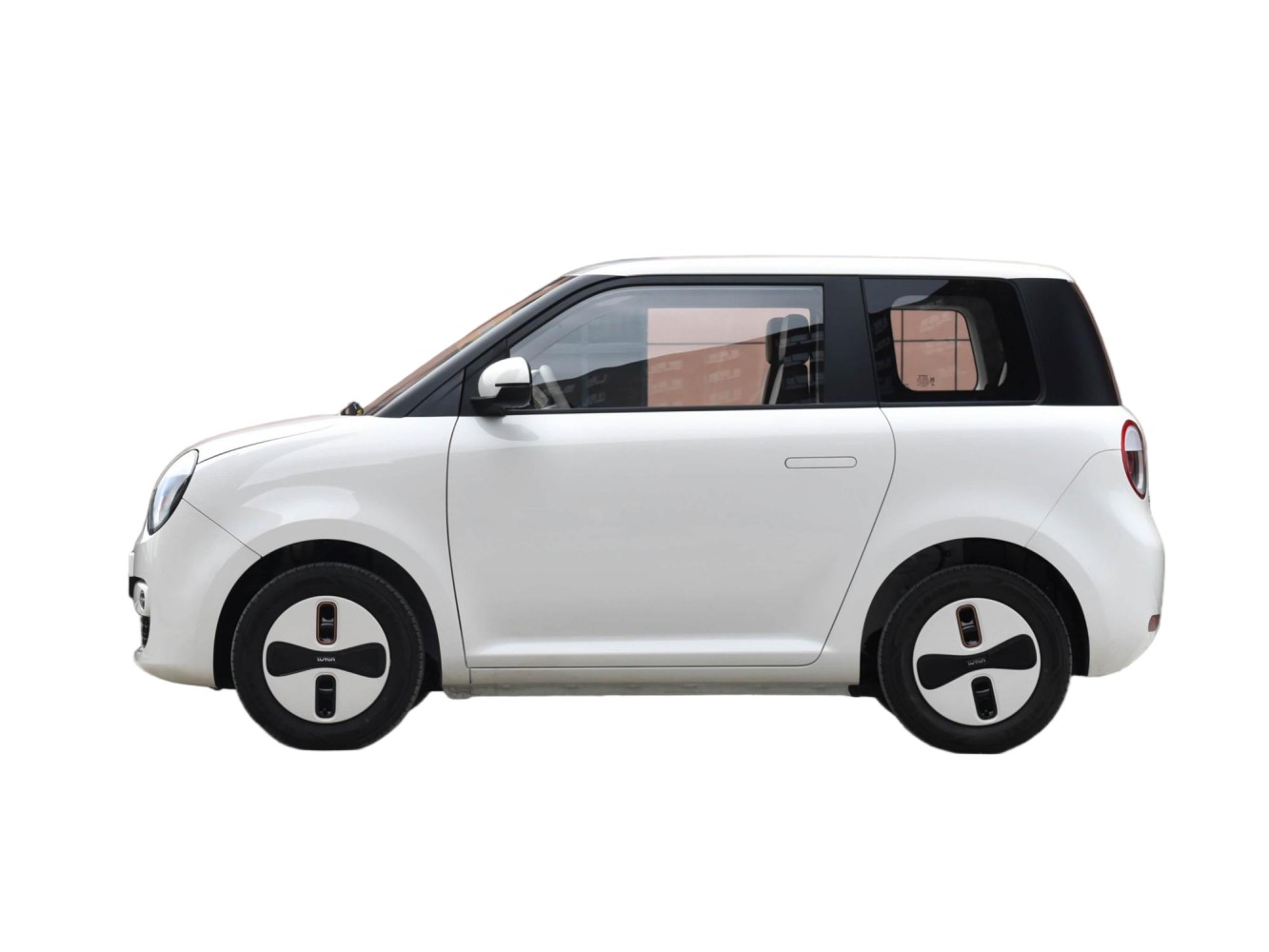

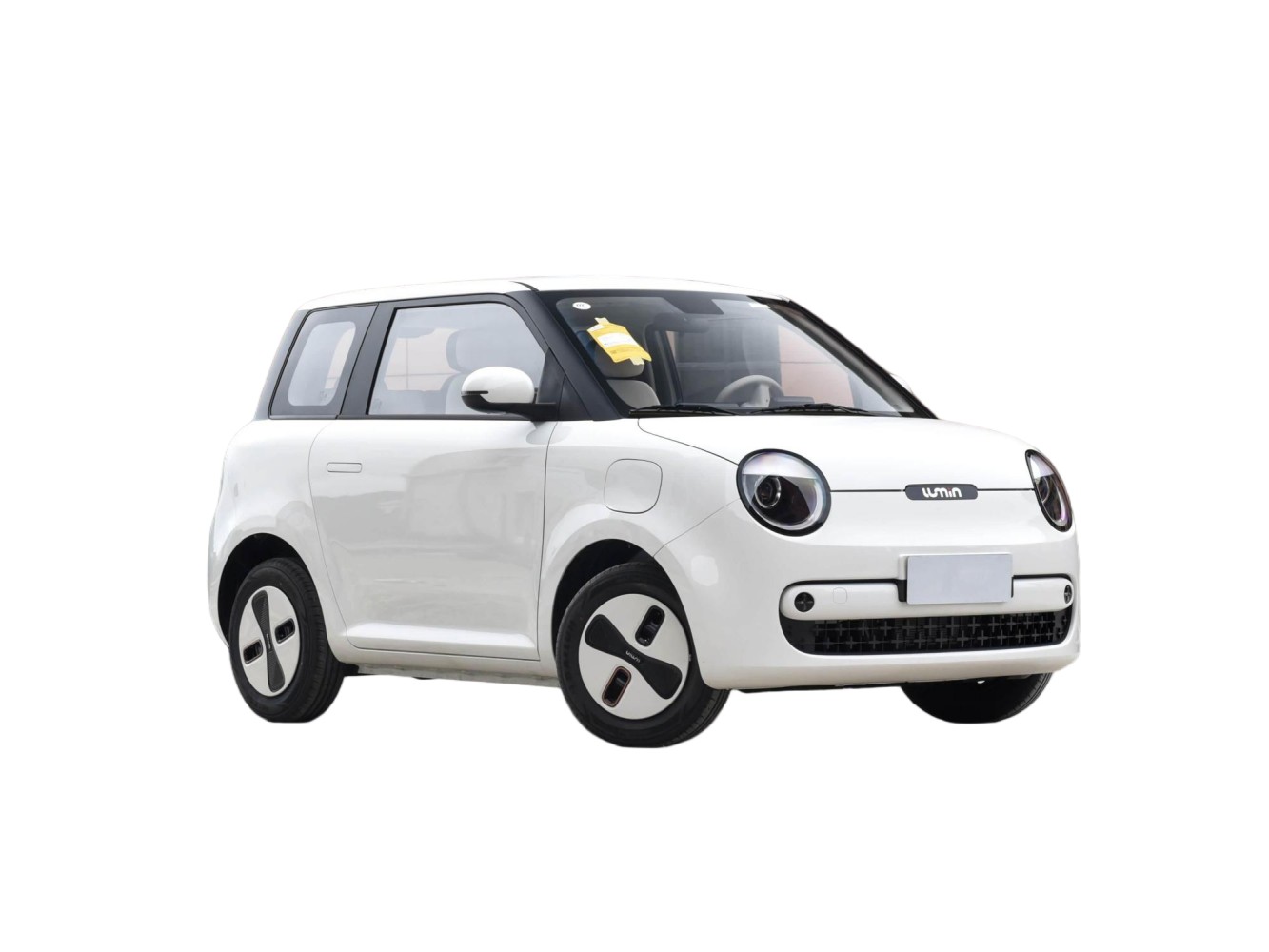

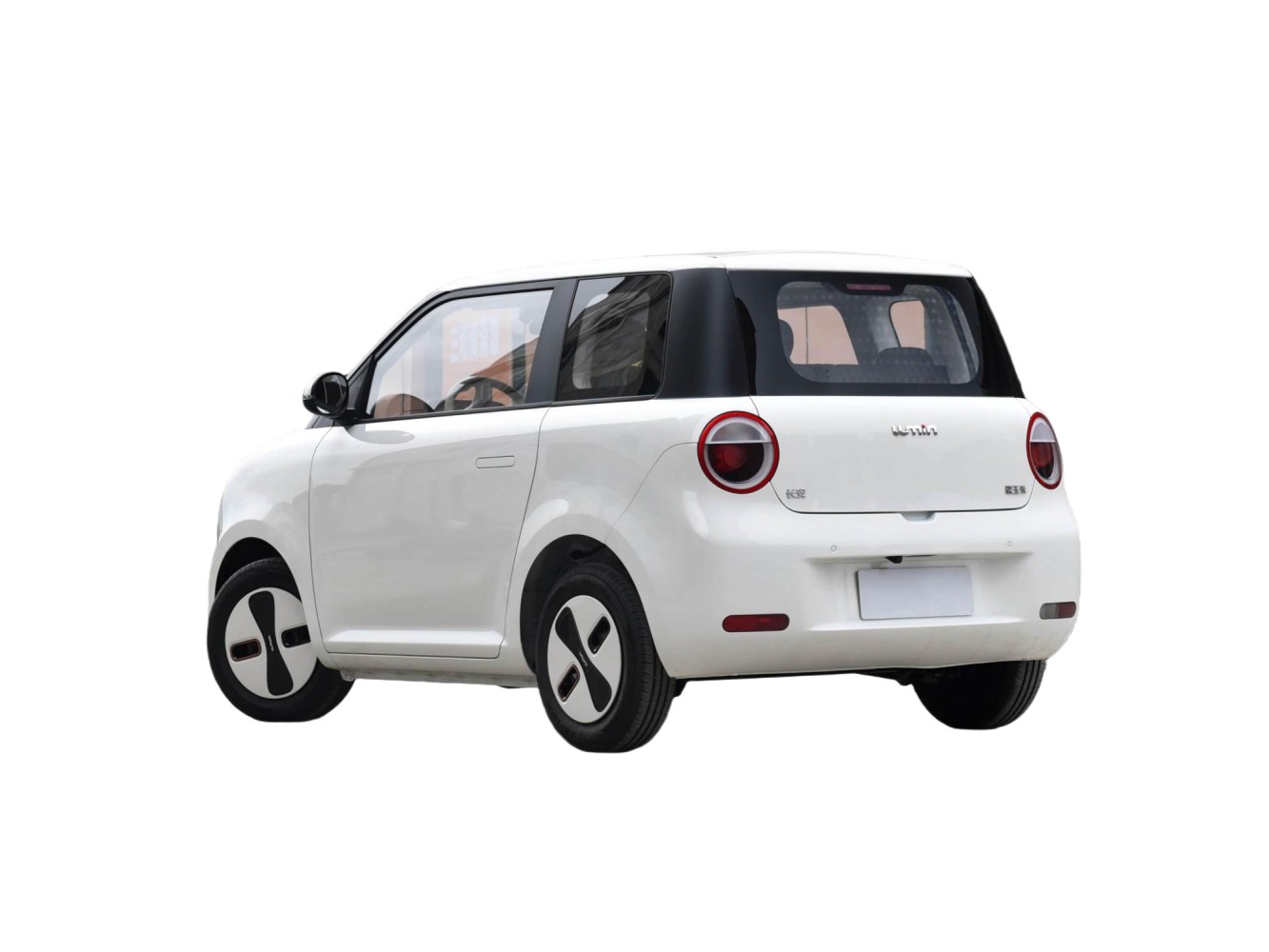

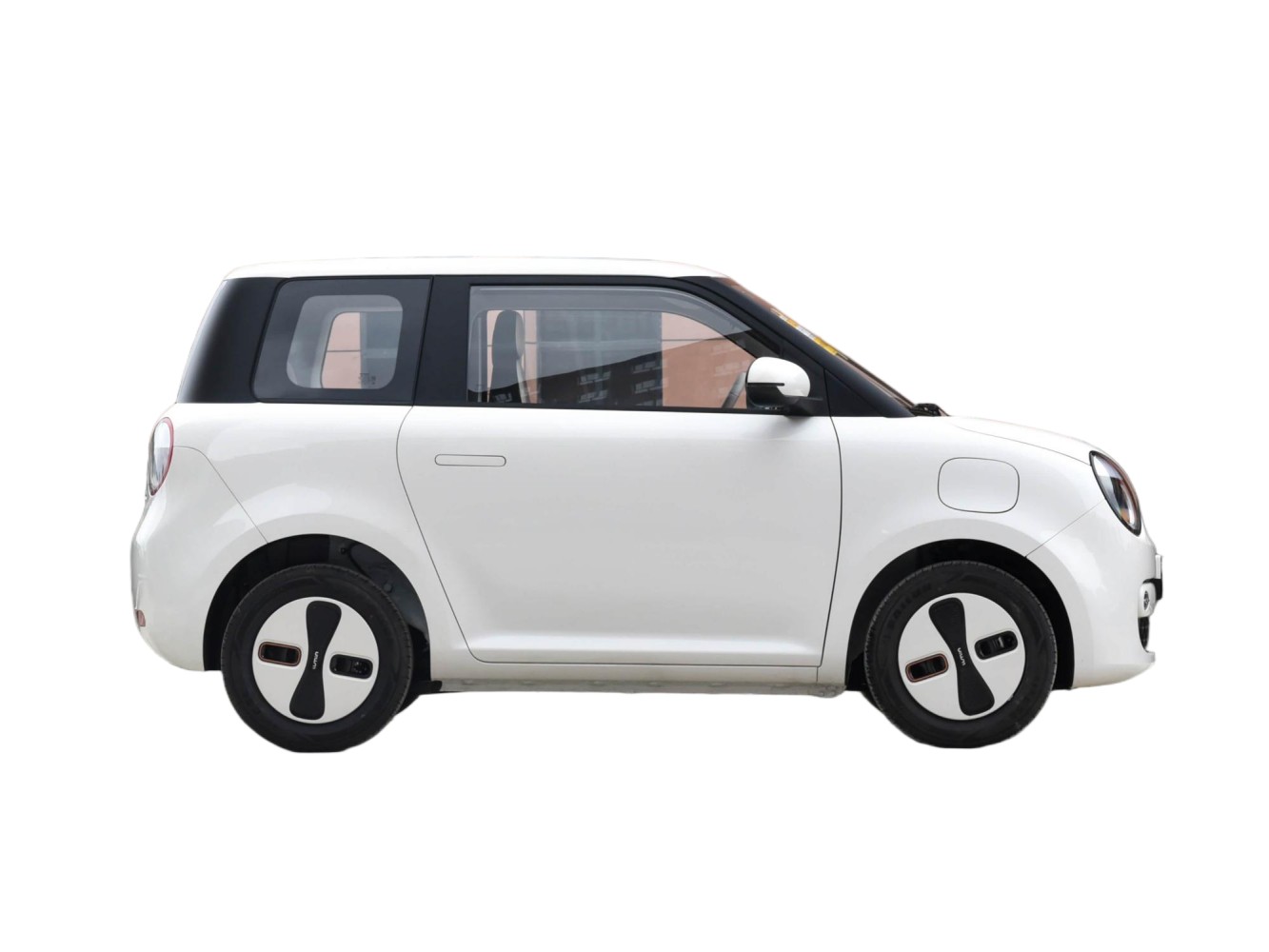

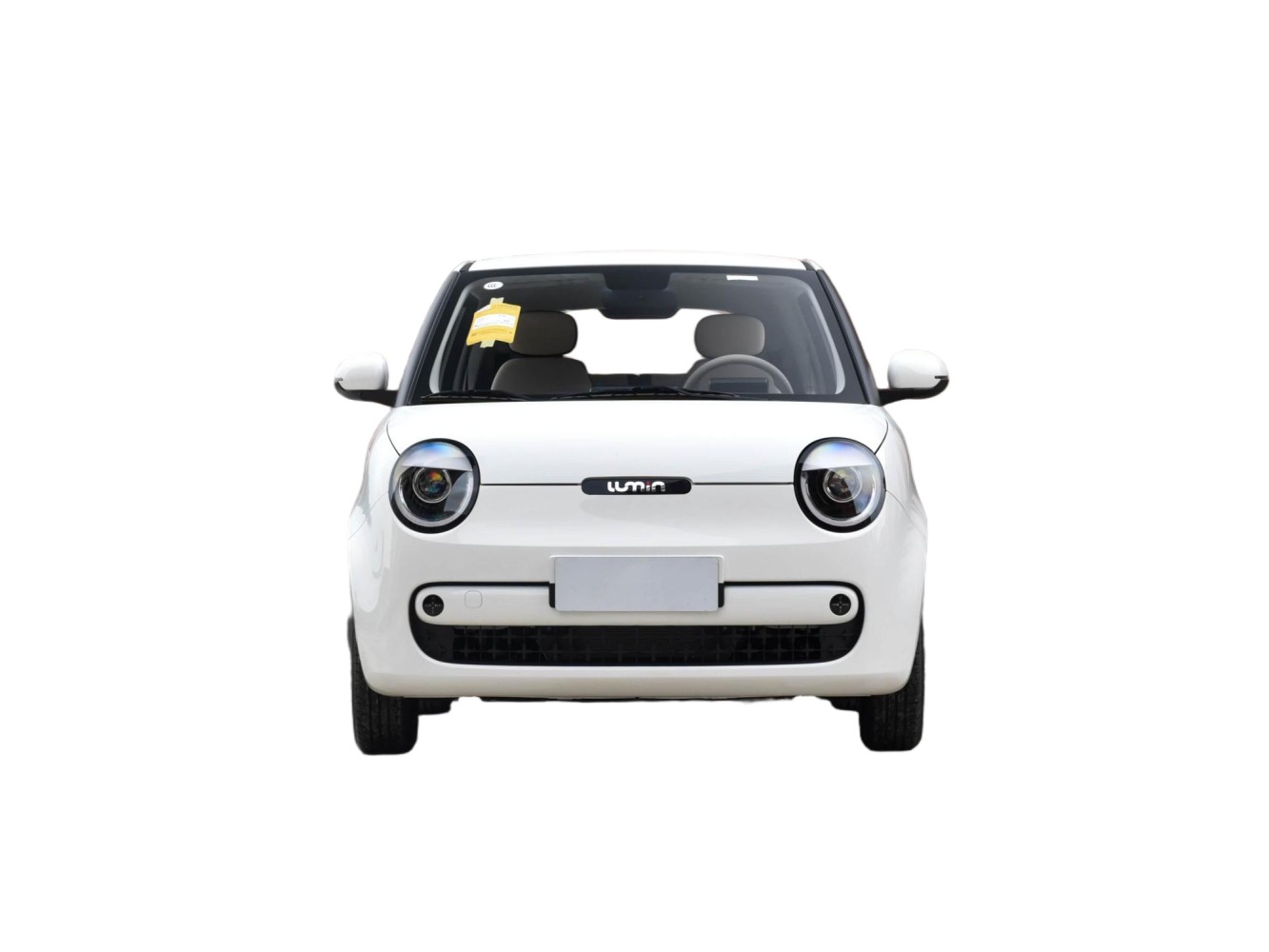

Exterior Design
The Changan Lumin is a mini pure electric vehicle, equipped with closed front grille and halogen headlight groups. The vehicle is fitted with horizontal taillight groups and rear bumper trim. Multiple body color options are available. The vehicle adopts 14-inch wheel configurations for different versions. Conventional door handles are equipped as standard.
The vehicle adopts a 3-door 4-seater layout. The body dimensions are 3270 mm in length, 1700 mm in width and 1545 mm in height, with a wheelbase of 2100 mm. Manually adjustable exterior mirrors are standard configurations.
Interior Design
The vehicle is equipped with a mechanical instrument panel and central control touchscreen. Multiple interior color schemes are available, matched with fabric upholstery and plastic decorative trim. The vehicle supports manual air conditioning system. A mechanical gear shift lever is equipped as standard.
Standard configurations include front single airbag, rear parking sensors and rearview camera. Manual door locks and manual window lifts are standard. High-spec versions are equipped with constant-speed cruise control, keyless entry and one-key start functions. The vehicle supports mobile phone interconnection and USB interface functions.
Powertrain
The Changan Lumin adopts front-wheel drive layout, matched with single-speed electric transmission. The vehicle is equipped with a front-mounted permanent magnet synchronous motor. The motor has maximum power of 30 kW and 35 kW for different versions, with a peak torque of 90 Nm and 110 Nm respectively.
The vehicle is equipped with lithium iron phosphate battery packs. The CLTC cruising range includes 155 km, 210 km and 301 km versions. The vehicle supports AC slow charging function. The vehicle adopts front MacPherson independent suspension and rear trailing arm non-independent suspension system. The vehicle is equipped with electric braking system.
| 2024 Changan Lumin 205km Enlightenment Edition | 2024 Changan Lumin 205km Orange Breeze Edition | 2024 Longacre Lumin 301km Launch Edition | 2024 Lumin 301km Orange Breeze Edition | |
|---|---|---|---|---|
| Basic Information | ||||
| Availability | 2024.06 | 2024.06 | 2024.06 | 2024.06 |
| vehicle class | Miniature two-car | Miniature two-car | Miniature two-car | Miniature two-car |
| Length*Width*Height(mm) | 3270*1700*1545 | 3270*1700*1545 | 3270*1700*1545 | 3270*1700*1545 |
| Type of energy | all-electric | all-electric | all-electric | all-electric |
| CLTC pure electric range (km) | 205 | 205 | 301 | 301 |
| Total motor power (kW) | 35 | 35 | 35 | 35 |
| Maximum speed (km/h) | 101 | 101 | 101 | 101 |
| Battery Type | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery |
| Battery capacity (kWh) | 17.65 | 17.65 | 28.08 | 28.08 |
| Fast charging time (h) | 0.58 | 0.58 | 0.58 | 0.58 |
| Fast charging capacity (%) | 30-80 | 30-80 | 30-80 | 30-80 |
| Warranty Policy | Three years or 120,000 kilometers | Three years or 120,000 kilometers | Three years or 120,000 kilometers | Three years or 120,000 kilometers |
| body of automobile | ||||
| Length (mm) | 3270 | 3270 | 3270 | 3270 |
| Width (mm) | 1700 | 1700 | 1700 | 1700 |
| Height (mm) | 1545 | 1545 | 1545 | 1545 |
| Wheelbase (mm) | 1980 | 1980 | 1980 | 1980 |
| Front wheelbase(mm) | 1470 | 1470 | 1470 | 1470 |
| Rear wheelbase(mm) | 1476 | 1476 | 1476 | 1476 |
| Weight (kg) | 870 | 870 | 930 | 930 |
| Luggage compartment volume (L) | 104 | 104 | 104 | 104 |
| Number of doors (pcs) | 3 | 3 | 3 | 3 |
| Number of seats (pcs) | 4 | 4 | 4 | 4 |
| electric motor | ||||
| Total motor power (kW) | 35 | 35 | 35 | 35 |
| Maximum power of front electric motor (kW) | 35 | 35 | 35 | 35 |
| CLTC pure electric range (km) | 205 | 205 | 301 | 301 |
| Battery capacity (kWh) | 17.65 | 17.65 | 28.08 | 28.08 |
| 100km power consumption (kWh/100km) | 9.9 | 9.9 | 10.7 | 10.7 |
| Slow charging time (h) | 6.5 | 6.5 | 10 | 10 |
| Fast charging time (h) | 0.58 | 0.58 | 0.58 | 0.58 |
| Motor structure | permanent magnetism | permanent magnetism | permanent magnetism | permanent magnetism |
| Principle of motor operation | synchronization | synchronization | synchronization | synchronization |
| Number of drive motors | single motor | single motor | single motor | single motor |
| Motor Layout | preamplifier | preamplifier | preamplifier | preamplifier |
| Battery Type | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery |
| Battery Cell Brands | GXN Hi-Tech (Chinese company) | GXN Hi-Tech (Chinese company) | Ningde Times | Ningde Times |
| Battery cooling method | air cooling | air cooling | air cooling | air cooling |
| Battery Energy Density(Wh/kg) | 125 | 125 | 130 | 130 |
| fast charging function | be in favor of | be in favor of | be in favor of | be in favor of |
| Fast charging capacity (%) | 30-80 | 30-80 | 30-80 | 30-80 |
| Battery Pack Warranty | Eight years or 120,000 kilometers | Eight years or 120,000 kilometers | Eight years or 120,000 kilometers | Eight years or 120,000 kilometers |
| Battery preheating | ● | ● | ● | ● |
| Chassis/steering | ||||
| Driving form | front drive | front drive | front drive | front drive |
| Front suspension type | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension |
| Rear suspension type | Trailing Arm Non-Independent Suspension | Trailing Arm Non-Independent Suspension | Trailing Arm Non-Independent Suspension | Trailing Arm Non-Independent Suspension |
| Steering assist form | electric power assist | electric power assist | electric power assist | electric power assist |
| Wheels/Brakes | ||||
| Front/Rear Brake Type | Disc / Drum | disk | Disc / Drum | disk |
| Parking brake type | handbrake | electronic parking | handbrake | electronic parking |
| Front Tire Specification | 165/70 R14 | 165/70 R14 | 165/70 R14 | 165/70 R14 |
| Rear Tire Specification | 165/70 R14 | 165/70 R14 | 165/70 R14 | 165/70 R14 |
| Wheel Material | steel (chemistry) | steel (chemistry) | steel (chemistry) | steel (chemistry) |
| Active/passive safety features | ||||
| ABS anti-lock | ● | ● | ● | ● |
| Brake force distribution (EBD/CBC etc.) | ● | ● | ● | ● |
| front exhaust airbag | :: Driver's airbag | :: Driver's airbag | :: Driver's airbag | :: Driver's airbag |
| ●Passenger airbag | ●Passenger airbag | ●Passenger airbag | ●Passenger airbag | |
| Tire Pressure Detection Device | ● Alarms | ● Alarms | ● Alarms | ● Alarms |
| Seat Belt Reminder | ●Principal Driver | ●Principal Driver | ●Principal Driver | ●Principal Driver |
| ISOFIX child fixed seats | ● | ● | ● | ● |
| Auxiliary/Manipulation Configurations | ||||
| parking radar | ● Post | ● Post | ● Post | ● Post |
| Driver Assistance Video | ● Backup camera | ● Backup camera | ● Backup camera | ● Backup camera |
| Driving Mode Switching | :: Campaigns | :: Campaigns | :: Campaigns | :: Campaigns |
| :: Economy | :: Economy | :: Economy | :: Economy | |
| hill-holding aid | ● | ● | ● | ● |
| External/anti-theft configurations | ||||
| Concealed power door handles | ● | - | ● | - |
| Key Type | ●Remote key | ●Remote key | ●Remote key | ●Remote key |
| Keyless entry | ● | - | ● | - |
| Keyless Start System | ● | - | ● | - |
| Remote start function | ● | ● | ● | ● |
| Central locking in the car | ● | ● | ● | ● |
| Internal Configuration | ||||
| Steering wheel material | :: Plastics | :: Plastics | :: Plastics | :: Plastics |
| Steering wheel functions | :: Multifunctionality | :: Multifunctionality | :: Multifunctionality | :: Multifunctionality |
| center armrest | - | ●Forward | - | ●Forward |
| Sun visor vanity mirror | ● | ● | ● | ● |
| Liquid crystal instrument size | 7 inches. | 7 inches. | 7 inches. | 7 inches. |
| Intelligent Hardware | ||||
| Number of cameras | :: 1 | :: 1 | :: 1 | :: 1 |
| Number of ultrasonic radars | :: 2 | :: 2 | :: 2 | :: 2 |
| seating | ||||
| Seat Material | :: Fabrics | ●Other materials | :: Fabrics | ●Other materials |
| Integral adjustment of the main driver's seat | ●Before and after | ●Before and after | ●Before and after | ●Before and after |
| ●Backrests | ●Backrests | ●Backrests | ●Backrests | |
| Passenger seat overall adjustment | ●Before and after | ●Before and after | ●Before and after | ●Before and after |
| ●Backrests | ●Backrests | ●Backrests | ●Backrests | |
| Second row seat adjustment | ●Proportional lowering | ●Proportional lowering | ●Proportional lowering | ●Proportional lowering |
| multimedia | ||||
| Large color screen in the center console | ● | ● | ● | ● |
| Mobile APP Remote Function | ●Door control | ●Door control | ●Door control | ●Door control |
| ● Vehicle start-up | ● Vehicle start-up | ● Vehicle start-up | ● Vehicle start-up | |
| ● Charge management | ● Charge management | ● Charge management | ● Charge management | |
| ● Air conditioning control | ● Air conditioning control | ● Air conditioning control | ● Air conditioning control | |
| :: Vehicle condition check/diagnosis | :: Vehicle condition check/diagnosis | :: Vehicle condition check/diagnosis | :: Vehicle condition check/diagnosis | |
| :: Vehicle location/search | :: Vehicle location/search | :: Vehicle location/search | :: Vehicle location/search | |
| Bluetooth/Car Phone | ● | ● | ● | ● |
| Cell phone connectivity/mapping | ●Factory connectivity/mapping | ●Factory connectivity/mapping | ●Factory connectivity/mapping | ●Factory connectivity/mapping |
| Number of audio speakers | 2 | 2 | 2 | 2 |
| Center screen size | ● 10.25 inches | ● 10.25 inches | ● 10.25 inches | ● 10.25 inches |
| 4G/5G networks | ●4G | ●4G | ●4G | ●4G |
| Telematics | ● | ● | ● | ● |
| Interface Support | ●USB port | ●USB port | ●USB port | ●USB port |
| illumination | ||||
| low beam (headlights) | ● Halogen | ● Halogen | ● Halogen | ● Halogen |
| high beam (headlights) | ● Halogen | ● Halogen | ● Halogen | ● Halogen |
| LED daytime running lights | - | - | - | - |
| Adjustable headlights | ● | ● | ● | ● |
| Delayed headlight off | ● | ● | ● | ● |
| Glass/Mirror | ||||
| power window | ●Forward | ●Forward | ●Forward | ●Forward |
| rearview mirror | ●Motorized adjustment | - | ●Motorized adjustment | - |
| rearview mirror | ●Manual anti-glare | ●Manual anti-glare | ●Manual anti-glare | ●Manual anti-glare |
| Air conditioners/refrigerators | ||||
| Air conditioning control method | ●Manual control | ●Manual control | ●Manual control | ●Manual control |
