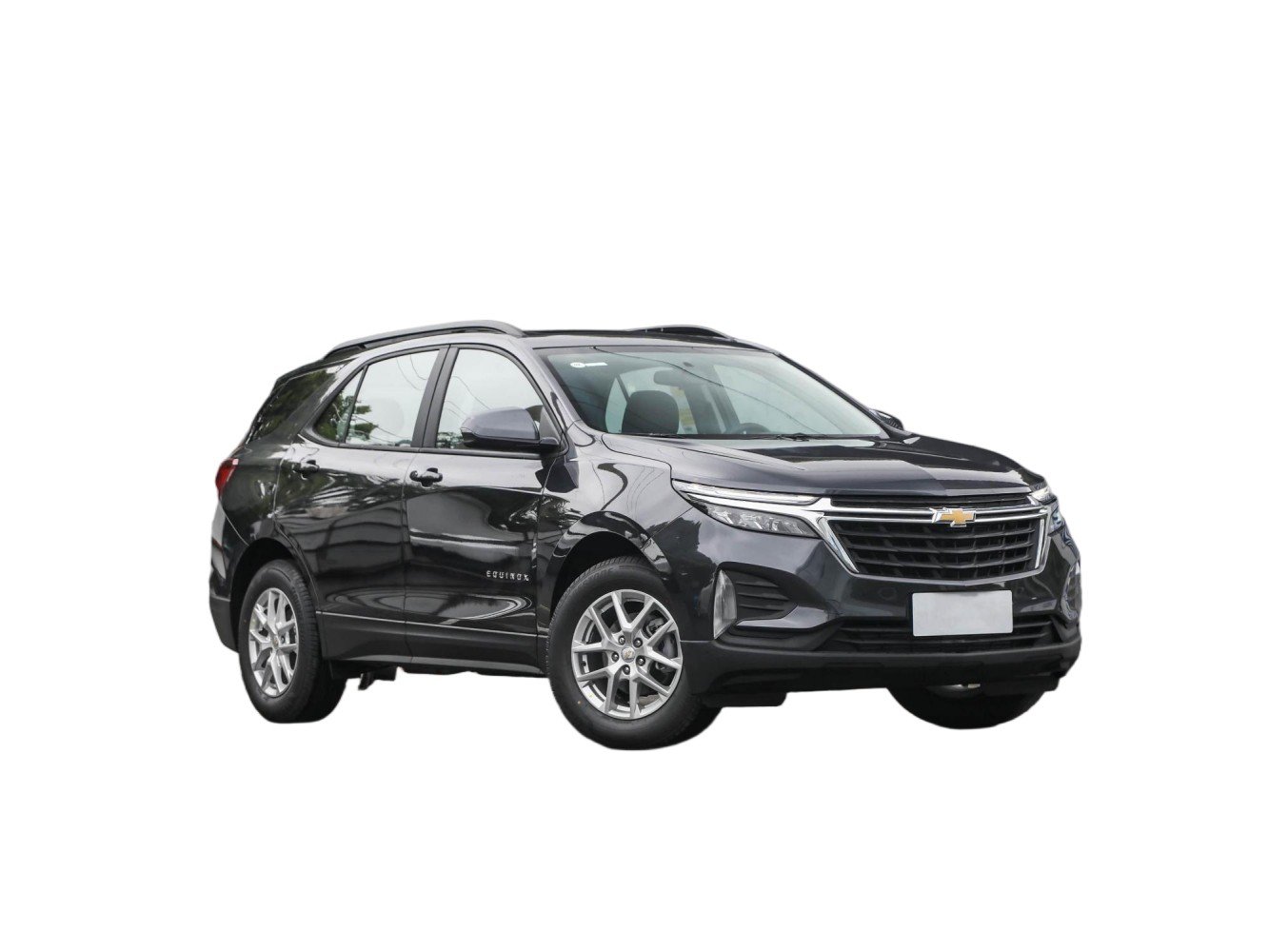

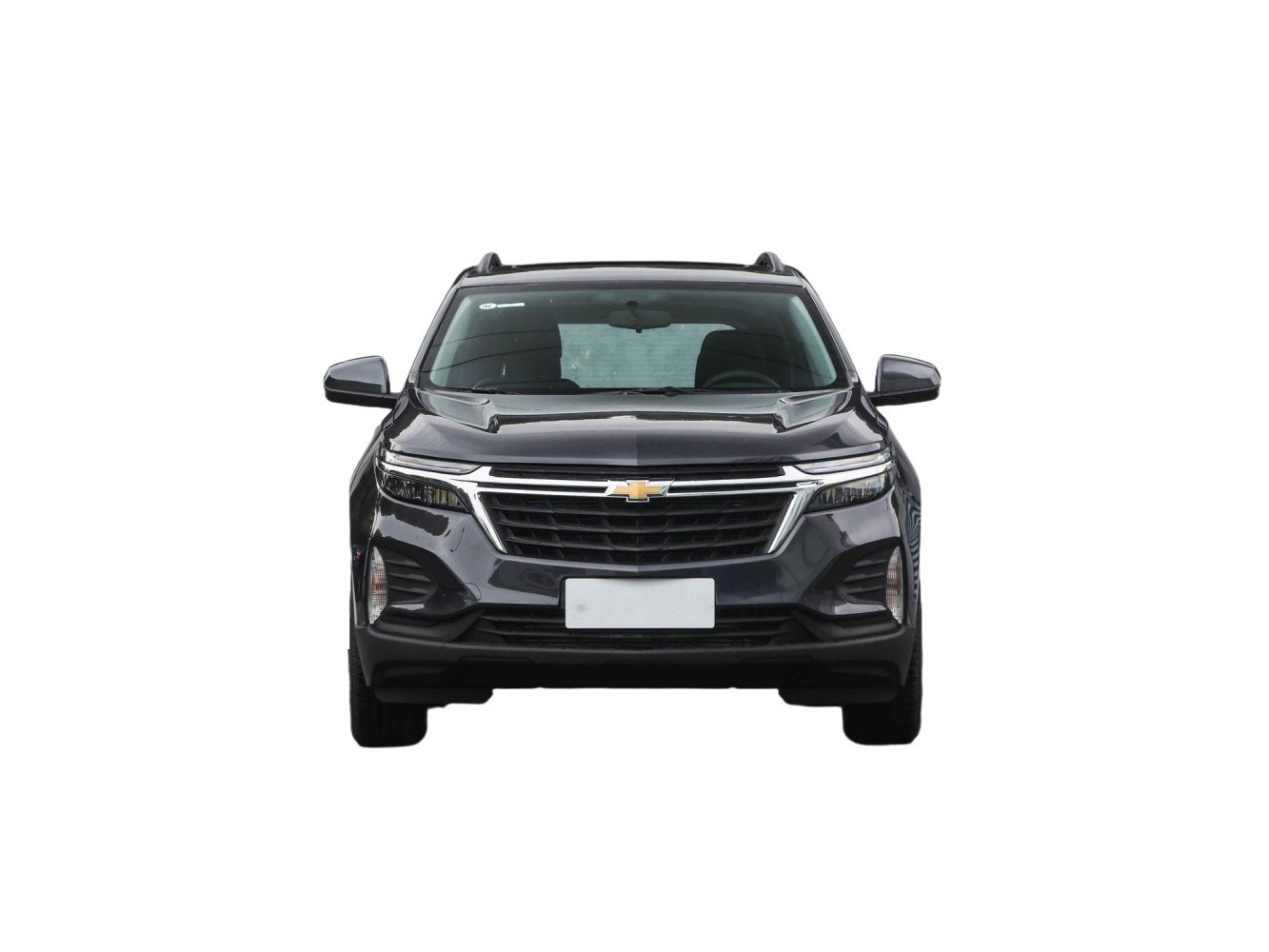

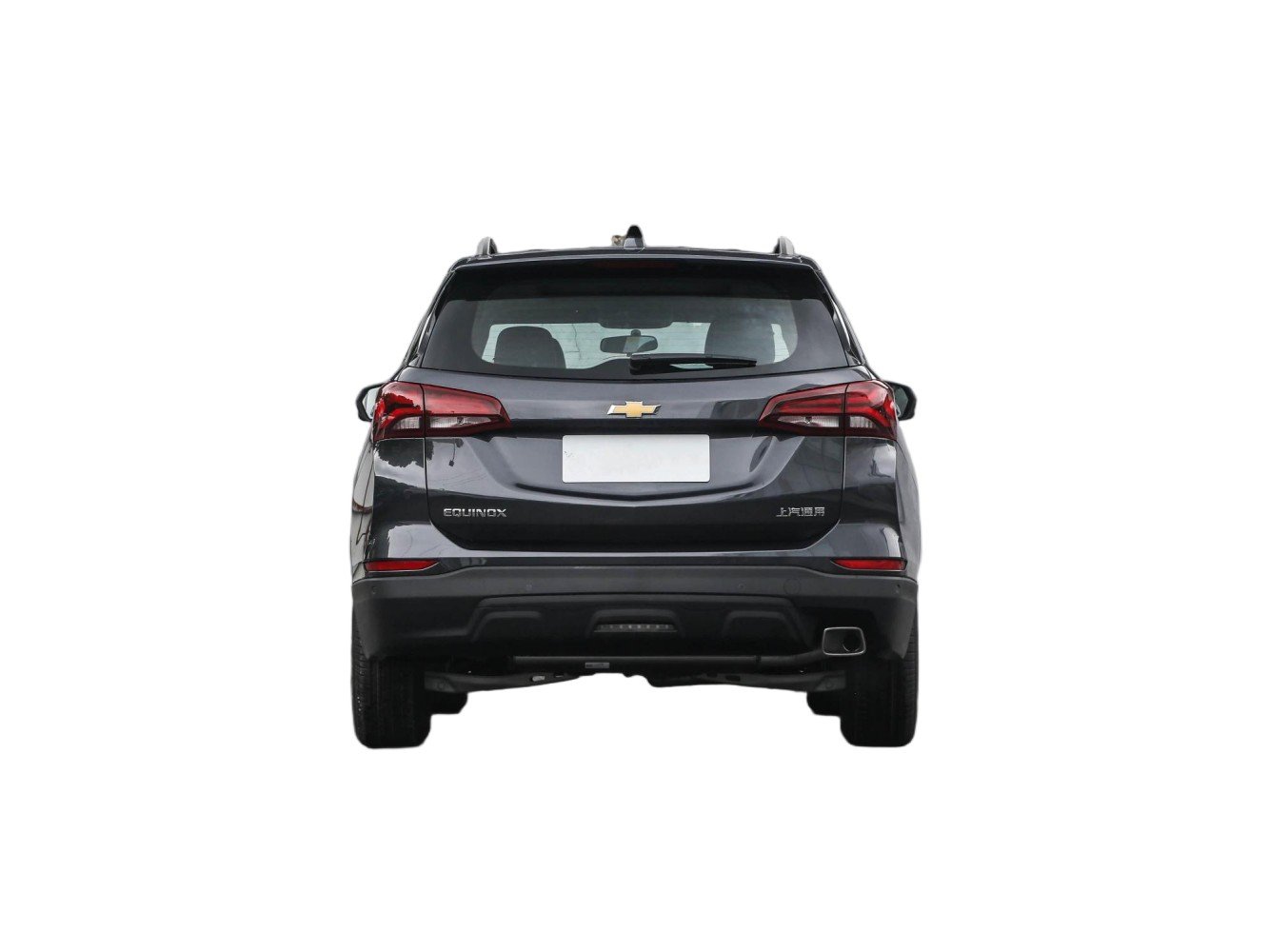

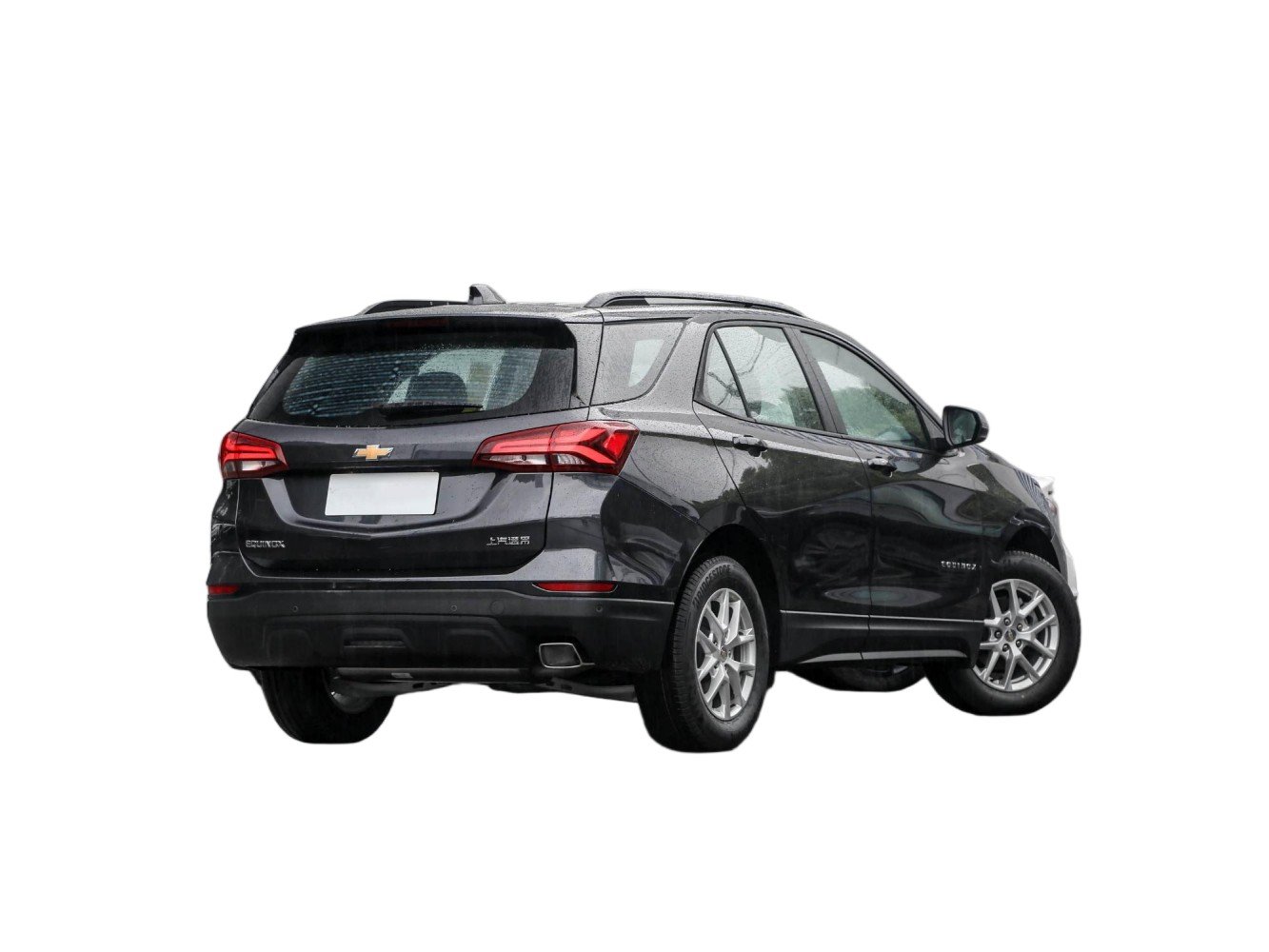

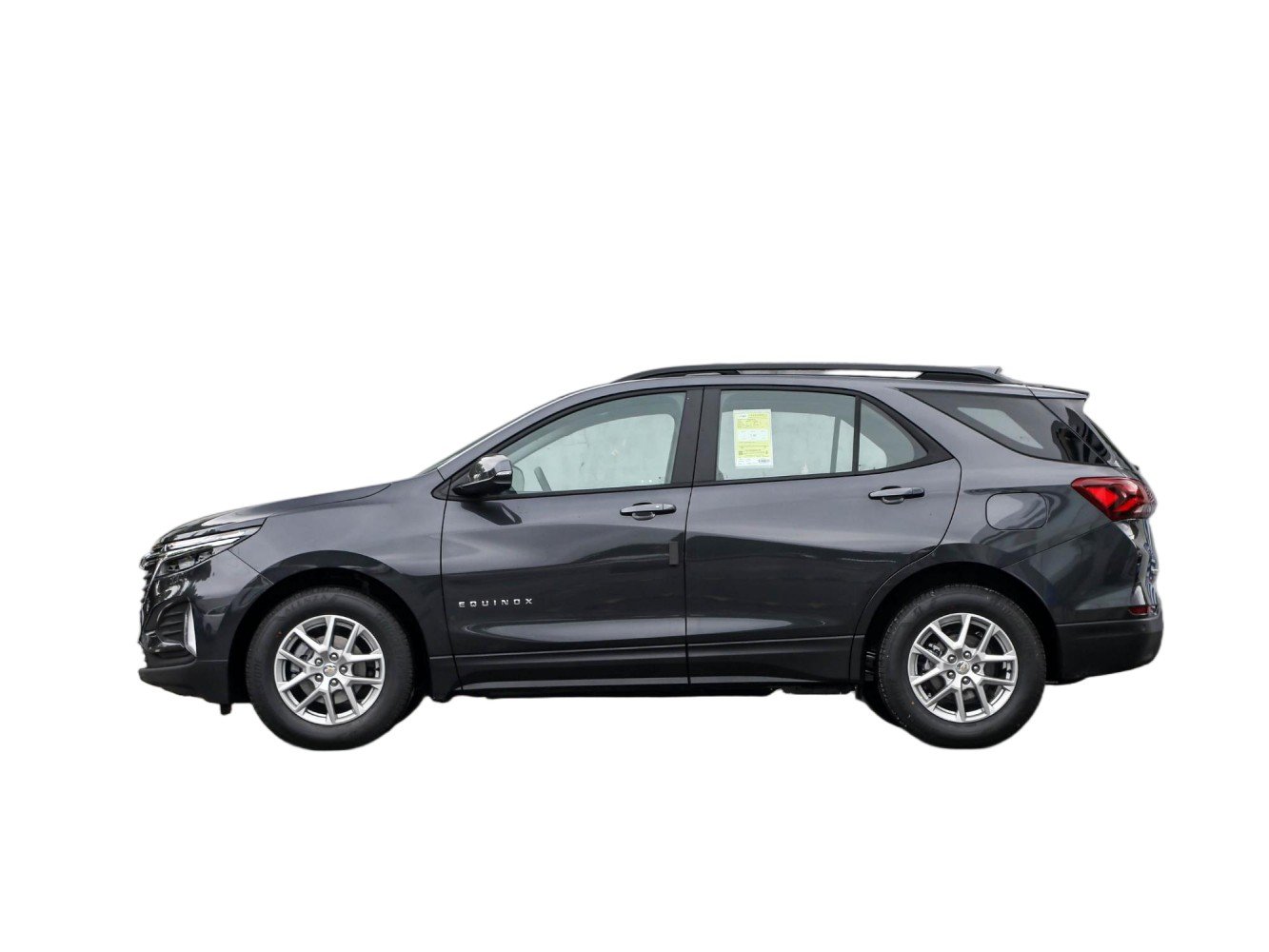

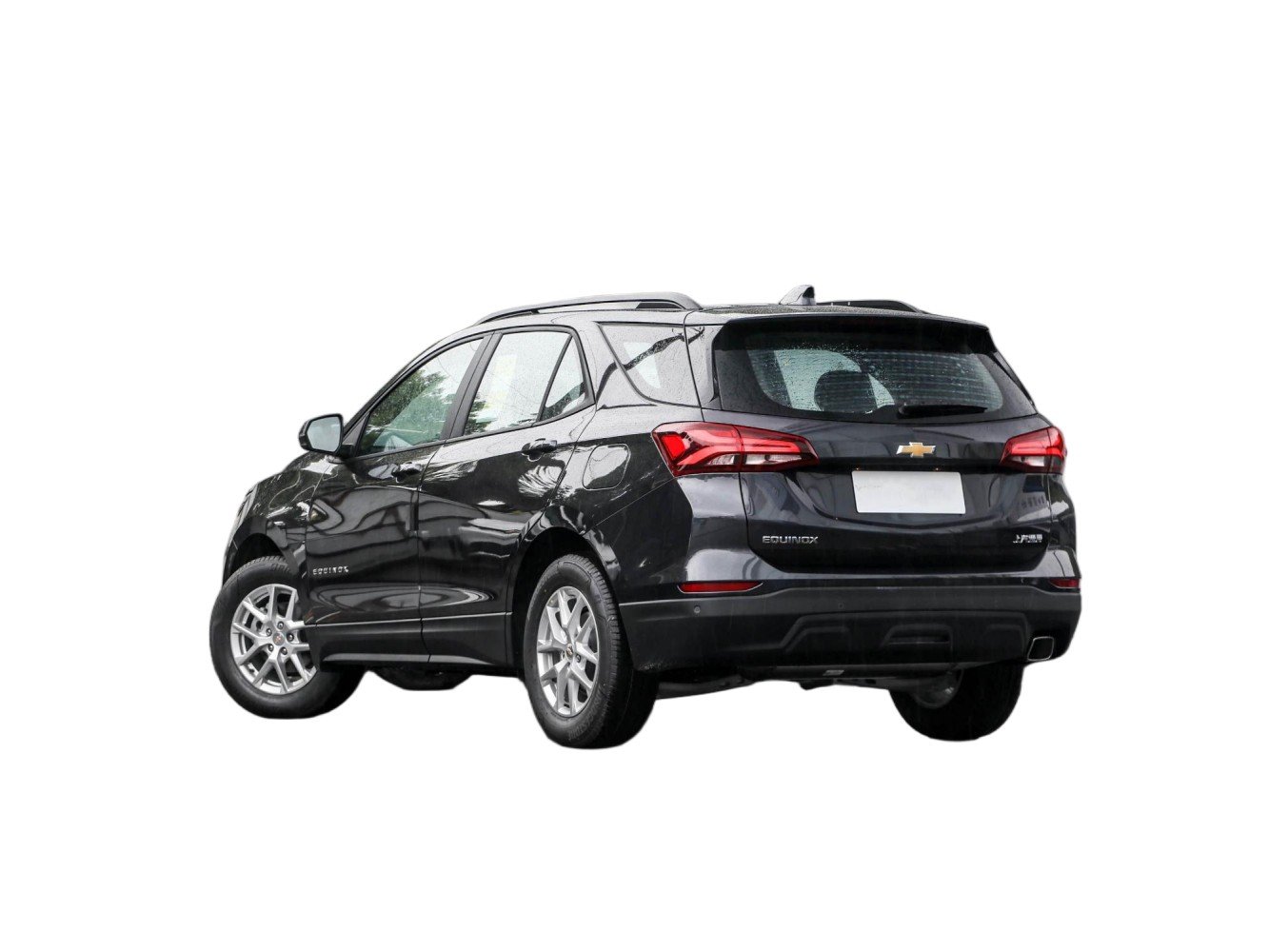

Exterior Design
The Chevrolet Equinox is a compact gasoline SUV, equipped with a polygonal front grille and split full LED headlight groups. The vehicle is fitted with LED taillight groups and rear bumper trim. Multiple body color options are available. The vehicle adopts 17-inch, 18-inch and 19-inch wheel configurations for different versions. Conventional door handles are equipped as standard. A panoramic sunroof is equipped for partial versions.
The vehicle adopts a 5-door 5-seater SUV layout. The body dimensions are 4646 mm in length, 1843 mm in width, 1688 mm and 1695 mm in height for different versions, with a wheelbase of 2725 mm. Electrically adjustable exterior mirrors with heating and automatic folding functions are equipped for different versions. Electric tailgate is equipped for high-spec versions.
Interior Design
The vehicle is equipped with a full LCD digital instrument cluster and central control touchscreen. Multiple interior color schemes are available, matched with fabric and leather upholstery and metallic decorative trim. The vehicle supports multi-color ambient lighting and dual-zone automatic constant temperature air conditioning. An electronic gear shift lever is equipped as standard.
Standard configurations include front, side and curtain airbags, front and rear parking sensors, rearview camera and constant-speed cruise control. Keyless entry and one-key start functions are standard. High-spec versions are equipped with 360-degree panoramic camera system, adaptive cruise control, lane keeping assist and active braking system. The vehicle supports wireless phone charging and OTA upgrade functions.
Powertrain
The Chevrolet Equinox adopts front-wheel drive and four-wheel drive layouts, matched with 6-speed automatic transmission and 9-speed automatic transmission for different versions. The vehicle is equipped with 1.5T and 2.0T inline four-cylinder turbocharged gasoline engines, and partial versions are equipped with 48V mild hybrid system. The 1.5T engine has a maximum power of 124 kW and a peak torque of 250 Nm. The 2.0T engine has a maximum power of 174 kW and a peak torque of 350 Nm.
The vehicle is fueled with gasoline and meets China VI emission standards. The vehicle adopts front MacPherson independent suspension and rear multi-link independent suspension system.
| 2023 Chevrolet Equinox 1.5T Cross Edition | 2023 Chevrolet Equinox 1.5T Master Edition | 2023 Chevrolet Equinox Mild Hybrid 2.0T RS Intelligent Edition | 2023 Chevrolet Equinox Mild Hybrid 2.0T RS AWD Intelligent Crossover Edition | 2023 Chevrolet Equinox Mild Hybrid 2.0T RS AWD Intelligent Defender Edition | |
|---|---|---|---|---|---|
| Basic Information | |||||
| Launch date | 2023.05 | 2023.05 | 2023.05 | 2023.05 | 2023.05 |
| Body level | Mid-size SUV | Mid-size SUV | Mid-size SUV | Mid-size SUV | Mid-size SUV |
| Length * Width * Height (mm) | 4646*1843*1688 | 4646*1843*1688 | 4646*1843*1688 | 4646*1843*1695 | 4646*1843*1695 |
| Energy type | gasoline | gasoline | Gasoline + 48V mild hybrid system | Gasoline + 48V mild hybrid system | Gasoline + 48V mild hybrid system |
| Environmental standards | National 6 | National 6 | National 6 | National 6 | National 6 |
| engine | 1.5T / 169hp / Inline 4-cylinder | 1.5T / 169hp / Inline 4-cylinder | 2.0T / 237 hp / Inline 4-cylinder | 2.0T / 237 hp / Inline 4-cylinder | 2.0T / 237 hp / Inline 4-cylinder |
| Maximum power (kW) | 124 | 124 | 174 | 174 | 174 |
| Maximum torque (N·m) | 250 | 250 | 350 | 350 | 350 |
| Number of gears | 6 | 6 | 9 | 9 | 9 |
| gearbox | Hand-in-hand | Hand-in-hand | Hand-in-hand | Hand-in-hand | Hand-in-hand |
| Maximum speed (km/h) | 190 | 190 | 210 | 210 | 210 |
| 0-100km/h acceleration (s) | 10.2 | 10.2 | 7.9 | 8.1 | 8.1 |
| WLTC combined fuel consumption (L/100km) | 7.4 | 7.4 | 7.01 | 7.39 | 7.39 |
| Warranty Policy | Three years or 100,000 kilometers | Three years or 100,000 kilometers | Three years or 100,000 kilometers | Three years or 100,000 kilometers | Three years or 100,000 kilometers |
| Body | |||||
| Length (mm) | 4646 | 4646 | 4646 | 4646 | 4646 |
| Width (mm) | 1843 | 1843 | 1843 | 1843 | 1843 |
| Height(mm) | 1688 | 1688 | 1688 | 1695 | 1695 |
| Wheelbase (mm) | 2725 | 2725 | 2725 | 2725 | 2725 |
| Front track width (mm) | 1581 | 1581 | 1576 | 1581 | 1581 |
| Rear track width (mm) | 1589 | 1589 | 1588 | 1589 | 1589 |
| Curb weight (kg) | 1535 | 1535 | 1645 | 1735 | 1735 |
| Maximum load capacity (kg) | 1970 | 1970 | 2090 | 2185 | 2185 |
| Luggage capacity (L) | 431-1505 | 431-1505 | 431-1505 | 431-1505 | 431-1505 |
| Fuel tank capacity (L) | 56 | 56 | 56 | 59 | 59 |
| Number of car doors | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 |
| Approach angle (°) | 17 | 17 | 17 | 18 | 18 |
| Departure angle (°) | 19 | 19 | 19 | 20 | 20 |
| Sport appearance kit | - | - | ● | ● | ● |
| engine | |||||
| Displacement (mL) | 1490 | 1490 | 1998 | 1998 | 1998 |
| Engine Model | LFV | LFV | LXH | LXH | LXH |
| Compression ratio | 10 | 10 | 10 | 10 | 10 |
| Maximum horsepower (Ps) | 169 | 169 | 237 | 237 | 237 |
| Maximum power (kW) | 124 | 124 | 174 | 174 | 174 |
| Maximum net power (kW) | 119 | 119 | 169 | 169 | 169 |
| Maximum power speed (rpm) | 5600 | 5600 | 5000 | 5000 | 5000 |
| Maximum torque (N·m) | 250 | 250 | 350 | 350 | 350 |
| Maximum torque speed (rpm) | 1700-4400 | 1700-4400 | 1500-4000 | 1500-4000 | 1500-4000 |
| cylinder | Inline 4-cylinder | Inline 4-cylinder | Inline 4-cylinder | Inline 4-cylinder | Inline 4-cylinder |
| Automatic engine start-stop | ● | ● | ● | ● | ● |
| Engine-specific technology | - | - | Variable cylinder technology | Variable cylinder technology | Variable cylinder technology |
| Engine position | Front | Front | Front | Front | Front |
| Intake form | Turbocharged | Turbocharged | Turbocharged | Turbocharged | Turbocharged |
| Valve structure | Double overhead camshaft | Double overhead camshaft | Double overhead camshaft | Double overhead camshaft | Double overhead camshaft |
| fuel supply method | Direct Injection | Direct Injection | Direct Injection | Direct Injection | Direct Injection |
| Cylinder block material | aluminum alloy | aluminum alloy | aluminum alloy | aluminum alloy | aluminum alloy |
| fuel grade | 92# | 92# | 95# | 95# | 95# |
| Environmental standards | National 6 | National 6 | National 6 | National 6 | National 6 |
| Chassis/Steering | |||||
| Drive form | front-wheel drive | front-wheel drive | front-wheel drive | Four-wheel drive | Four-wheel drive |
| Front suspension type | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension |
| Rear suspension type | Multi-link independent suspension | Multi-link independent suspension | Multi-link independent suspension | Multi-link independent suspension | Multi-link independent suspension |
| Steering power type | Electric Assist | Electric Assist | Electric Assist | Electric Assist | Electric Assist |
| Wheels/Brakes | |||||
| Front/Rear Brake Type | Ventilation disc type / disc type | Ventilation disc type / disc type | Ventilation disc type / disc type | Ventilation disc type / disc type | Ventilation disc type / disc type |
| Parking brake type | Electronic parking brake | Electronic parking brake | Electronic parking brake | Electronic parking brake | Electronic parking brake |
| Front tire specifications | 225/65 R17 | 225/65 R17 | 225/60 R18 | 235/50 R19 | 235/50 R19 |
| Rear tire specifications | 225/65 R17 | 225/65 R17 | 225/60 R18 | 235/50 R19 | 235/50 R19 |
| Wheel material | aluminum alloy | aluminum alloy | aluminum alloy | aluminum alloy | aluminum alloy |
| Spare tire specifications | Non-full size | Non-full size | Non-full size | Non-full size | Non-full size |
| Active/passive safety configuration | |||||
| ABS anti-lock braking system | ● | ● | ● | ● | ● |
| Brakeforce Distribution (EBD/CBC, etc.) | ● | ● | ● | ● | ● |
| Brake assist (BA/EBA/BAS, etc.) | ● | ● | ● | ● | ● |
| Traction control (ASR/TCS/TRC, etc.) | ● | ● | ● | ● | ● |
| Vehicle stability control (ESC/ESP/DSC, etc.) | ● | ● | ● | ● | ● |
| Active braking/safety system | - | - | ● | ● | ● |
| Lane change assist | - | ● | ● | ● | ● |
| Lane Keeping Assist | - | - | ● | ● | ● |
| Lane departure warning | - | - | ● | ● | ● |
| Front airbags | ●Driver's side airbag | ●Driver's side airbag | ●Driver's side airbag | ●Driver's side airbag | ●Driver's side airbag |
| ●Passenger's side airbag | ●Passenger's side airbag | ●Passenger's side airbag | ●Passenger's side airbag | ●Passenger's side airbag | |
| ●Side airbags | ●Side airbags | ●Side airbags | ●Side airbags | ●Side airbags | |
| ●Head airbags (curtain airbags) | ●Head airbags (curtain airbags) | ●Head airbags (curtain airbags) | ●Head airbags (curtain airbags) | ●Head airbags (curtain airbags) | |
| Rear airbags | ●Head airbags (air curtains) | ●Head airbags (air curtains) | ●Head airbags (air curtains) | ●Head airbags (air curtains) | ●Head airbags (air curtains) |
| Tire pressure monitoring device | ● Display | ● Display | ● Display | ● Display | ● Display |
| Seatbelt reminder | ●Full vehicle | ●Full vehicle | ●Full vehicle | ●Full vehicle | ●Full vehicle |
| ISOFIX child seat | ● | ● | ● | ● | ● |
| Forward Collision Warning | - | - | ● | ● | ● |
| Assist/Control Configuration | |||||
| Parking radar | ●After | ●After | ●After | ●After | ●Before |
| ●After | |||||
| Driving assistance imaging | - | ● Reversing camera | ● Reversing camera | ● Reversing camera | ● Reversing camera |
| Rear Cross Traffic Alert System | - | ● | ● | ● | ● |
| Cruise system | ● Cruise Control | ● Cruise Control | ●Adaptive cruise control | ●Adaptive cruise control | ●Adaptive cruise control |
| Steep slope descent | - | - | - | ● | ● |
| Hill Start Assist | ● | ● | ● | ● | ● |
| Automatic parking | - | - | - | - | ● |
| Assistance Level | - | ●L2 | ●L2 | ●L2 | ●L2 |
| Assisted parking | - | - | - | - | ● |
| External/Anti-theft Configuration | |||||
| skylight | ●Openable panoramic sunroof | ●Openable panoramic sunroof | ●Openable panoramic sunroof | ●Openable panoramic sunroof | ●Openable panoramic sunroof |
| Roof rack | ● | ● | ● | ● | ● |
| Active grille shutters | ● | ● | ● | ● | ● |
| Trunk opening method | - | ●Electric | ●Electric | ●Electric | ●Electric |
| Electric tailgate position memory | - | ● | ● | ● | ● |
| Key type | ●Remote key | ●Remote key | ●Remote key | ●Remote key | ●Remote key |
| Keyless entry | ● | ● | ● | ● | ● |
| Keyless start system | ● | ● | ● | ● | ● |
| Remote start function | ● | ● | ● | ● | ● |
| Central locking | ● | ● | ● | ● | ● |
| Engine electronic anti-theft | ● | ● | ● | ● | ● |
| Internal configuration | |||||
| Steering wheel material | ●Genuine leather | ●Genuine leather | ●Genuine leather | ●Genuine leather | ●Genuine leather |
| Steering wheel adjustment | ● Manually | ● Manually | ● Manually | ● Manually | ● Manually |
| adjustable (height up/ | adjustable (height up/ | adjustable (height up/ | adjustable (height up/ | adjustable (height up/ | |
| down) and (forward/backward) | down) and (forward/backward) | down) and (forward/backward) | down) and (forward/backward) | down) and (forward/backward) | |
| Steering wheel functions | ●Multifunctional | ●Multifunctional | ●Multifunctional | ●Multifunctional | ●Multifunctional |
| Central handrail | ●Before | ●Before | ●Before | ●Before | ●Before |
| ●After | ●After | ●After | ●After | ●After | |
| Gear shifting | ●Mechanical gear shift lever | ●Mechanical gear shift lever | ●Mechanical gear shift lever | ●Mechanical gear shift lever | ●Mechanical gear shift lever |
| Sun visor vanity mirror | ● | ● | ● | ● | ● |
| LCD instrument size | 3.5 inches | 4.2 inches | 4.2 inches | 4.2 inches | 4.2 inches |
| Built-in dashcam | ○ | ○ | ○ | ○ | ○ |
| Active noise cancellation | ● | ● | ● | ● | ● |
| Wireless charging function for mobile phones | Front row | ●Front row | ●Front row | ●Front row | ●Front row |
| Smart hardware | |||||
| Forward sensing camera | - | - | ● Monocular | ● Monocular | ● Monocular |
| Number of cameras | - | ●1 | ●2 | ●2 | ●2 |
| Number of ultrasonic radars | ●4 | ●4 | ●4 | ●4 | ●12 |
| Voice regional wake-up recognition | ●Single area | ●Single area | ●Single area | ●Single area | ●Single area |
| Seats | |||||
| Seat material | ● Faux leather | ● Faux leather | ● Faux leather | ● Faux leather | ● Faux leather |
| Front seat functions | - | ●Heating | ●Heating | ●Heating | ●Heating |
| ●Ventilation | |||||
| Electric seat adjustment | ●Driver's seat | ●Driver's seat | ●Driver's seat | ●Driver's seat | ●Driver's seat |
| ●Passenger seat | |||||
| Driver's seat adjustment method | ● Fore-and-aft adjustment | ● Fore-and-aft adjustment | ● Fore-and-aft adjustment | ● Fore-and-aft adjustment | ● Fore-and-aft adjustment |
| ● Backrest adjustment | ● Backrest adjustment | ● Backrest adjustment | ● Backrest adjustment | ● Backrest adjustment | |
| ● Height adjustment (4-way) | ● Height adjustment (4-way) | ● Height adjustment (4-way) | ● Height adjustment (4-way) | ● Height adjustment (4-way) | |
| ● Lumbar support (2-way) | |||||
| Passenger seat adjustment method | ●Fore-and-aft adjustment | ●Fore-and-aft adjustment | ●Fore-and-aft adjustment | ●Fore-and-aft adjustment | ● Fore-and-aft adjustment |
| ●Backrest adjustment | ●Backrest adjustment | ●Backrest adjustment | ●Backrest adjustment | ● Backrest adjustment | |
| ● Height adjustment (4-way) | |||||
| ● Lumbar support (2-way) | |||||
| Second row seat adjustment | ●Backrest adjustment | ●Backrest adjustment | ●Backrest adjustment | ●Backrest adjustment | ●Backrest adjustment |
| Rear cup holders | ● | ● | ● | ● | ● |
| multimedia | |||||
| Central control color screen | ● Touchscreen LCD | ● Touchscreen LCD | ● Touchscreen LCD | ● Touchscreen LCD | ● Touchscreen LCD |
| Satellite navigation system | ● | ● | ● | ● | ● |
| Navigation traffic information display | ● | ● | ● | ● | ● |
| Map Brands | ● Gaode Map | ● Gaode Map | ● Gaode Map | ● Gaode Map | ● Gaode Map |
| Roadside assistance call | ● | ● | ● | ● | ● |
| Mobile APP remote function | ● Door control | ● Door control | ● Door control | ● Door control | ● Door control |
| ● Vehicle start | ● Vehicle start | ● Vehicle start | ● Vehicle start | ● Vehicle start | |
| ● Vehicle status check/diagnosis | ● Vehicle status check/diagnosis | ● Vehicle status check/diagnosis | ● Vehicle status check/diagnosis | ● Vehicle status check/diagnosis | |
| ● Vehicle location/find vehicle | ● Vehicle location/find vehicle | ● Vehicle location/find vehicle | ● Vehicle location/find vehicle | ● Vehicle location/find vehicle | |
| Bluetooth/Car Phone | ● | ● | ● | ● | ● |
| Mobile phone interconnection/mapping | ●Supports CarPlay | ●Supports CarPlay | ●Supports CarPlay | ●Supports CarPlay | ●Supports CarPlay |
| ●Supports CarLife | ●Supports CarLife | ●Supports CarLife | ●Supports CarLife | ●Supports CarLife | |
| Audio brand name | - | - | - | - | BOSE |
| Number of speakers | 6 | 6 | 6 | 6 | 7 |
| Voice recognition control system | ●Multimedia system | ●Multimedia system | ●Multimedia system | ●Multimedia system | ●Multimedia system |
| ●Navigation | ●Navigation | ●Navigation | ●Navigation | ●Navigation | |
| ●Telephone | ●Telephone | ●Telephone | ●Telephone | ●Telephone | |
| ●Air conditioning | ●Air conditioning | ●Air conditioning | ●Air conditioning | ||
| Central control screen size | ●8 inches | ●10 inches | ●10 inches | ●10 inches | ●10 inches |
| 4G/5G networks | ●4G | ●4G | ●4G | ●4G | ●4G |
| Wi-Fi hotspot | ● | ● | ● | ● | ● |
| Connected Vehicles | ● | ● | ● | ● | ● |
| OTA upgrade | ● | ● | ● | ● | ● |
| Interface support | ●AUX interface | ●AUX interface | ●AUX interface | ●AUX interface | ●AUX interface |
| ●USB interface | ●USB interface | ●USB interface | ●USB interface | ●USB interface | |
| ●Type-C interface | ●Type-C interface | ●Type-C interface | ●Type-C interface | ●Type-C interface | |
| ●SD interface | ●SD interface | ●SD interface | ●SD interface | ●SD interface | |
| Number of USB/Type-C ports | ● 2 in the front row / 2 in the back row | ● 2 in the front row / 2 in the back row | ● 2 in the front row / 2 in the back row | ● 2 in the front row / 2 in the back row | ● 2 in the front row / 2 in the back row |
| Power support | - | ●12V power supply in the luggage compartment | ●12V power supply in the luggage compartment | ●12V power supply in the luggage compartment | ●12V power supply in the luggage compartment |
| light | ●220V/230V power supply | ||||
| low beam headlights | ●LED | ●LED | ●LED | ●LED | ●LED |
| High beams | ●LED | ●LED | ●LED | ●LED | ●LED |
| LED daytime running lights | ● | ● | ● | ● | ● |
| Adaptive high and low beam | - | - | ● | ● | ● |
| Headlights are adjustable | ● | ● | ● | ● | ● |
| Automatic headlights | ● | ● | ● | ● | ● |
| Headlights delayed shut-off | ● | ● | ● | ● | ● |
| Interior ambient lighting | - | - | - | - | ● |
| Glass/Rearview Mirror | |||||
| Electric windows | ●Before | ●Before | ●Before | ●Before | ●Before |
| ●After | ●After | ●After | ●After | ●After | |
| One-touch window operation | ●Driver's seat | ●Driver's seat | ●Driver's seat | ●Driver's seat | ●Driver's seat |
| Anti-pinch function for car windows | ● | ● | ● | ● | ● |
| exterior rearview mirror | ●Electrically adjustable | ●Electrically adjustable | ●Electrically adjustable | ●Electrically adjustable | ●Electrically adjustable |
| ●Electrically foldable | ●Electrically foldable | ●Electrically foldable | ●Electrically foldable | ●Electrically foldable | |
| ●Heating | ●Heating | ●Heating | ●Heating | ●Heating | |
| Interior rearview mirror | ●Manual anti-glare | ●Manual anti-glare | ●Manual anti-glare | ●Manual anti-glare | ●Automatic anti-glare |
| ○Streaming rearview mirror | ○Streaming rearview mirror | ○Streaming rearview mirror | ○Streaming rearview mirror | ●Streaming rearview mirror | |
| Rain-sensing wipers | - | - | ● | ● | ● |
| Rear wiper | ● | ● | ● | ● | ● |
| Air conditioner/refrigerator | |||||
| Air conditioning control methods | ●Manual control | ●Automatic control | ●Automatic control | ●Automatic control | ●Automatic control |
| Rear air vent | ● | ● | ● | ● | ● |
| PM2.5 filtration | ● | ● | ● | ● | ● |
Reviews
There are no reviews yet.
