Geely Geometry E
Geely Geometry E - Image 2
Geely Geometry E - Image 3
Geely Geometry E - Image 4
Geely Geometry E - Image 5
Geely Geometry E - Image 6
Geely Geometry E - Image 7

Geely Geometry E

$8,900.00

*Guide Price



The Geely Geometry E is a compact all-electric SUV launched by Geometry for the youth market. It was first unveiled in March 2022 and officially went on sale in June of the same year, initially offering versions with ranges of 320 km and 401 km. The vehicle features split headlights and a full-width daytime running light design.

If you want to stay up-to-date with the latest automotive news, please subscribe. We offer comprehensive information on all kinds of cars, auto news, blogs, and more.

Category: Tags: ,









Exterior Design

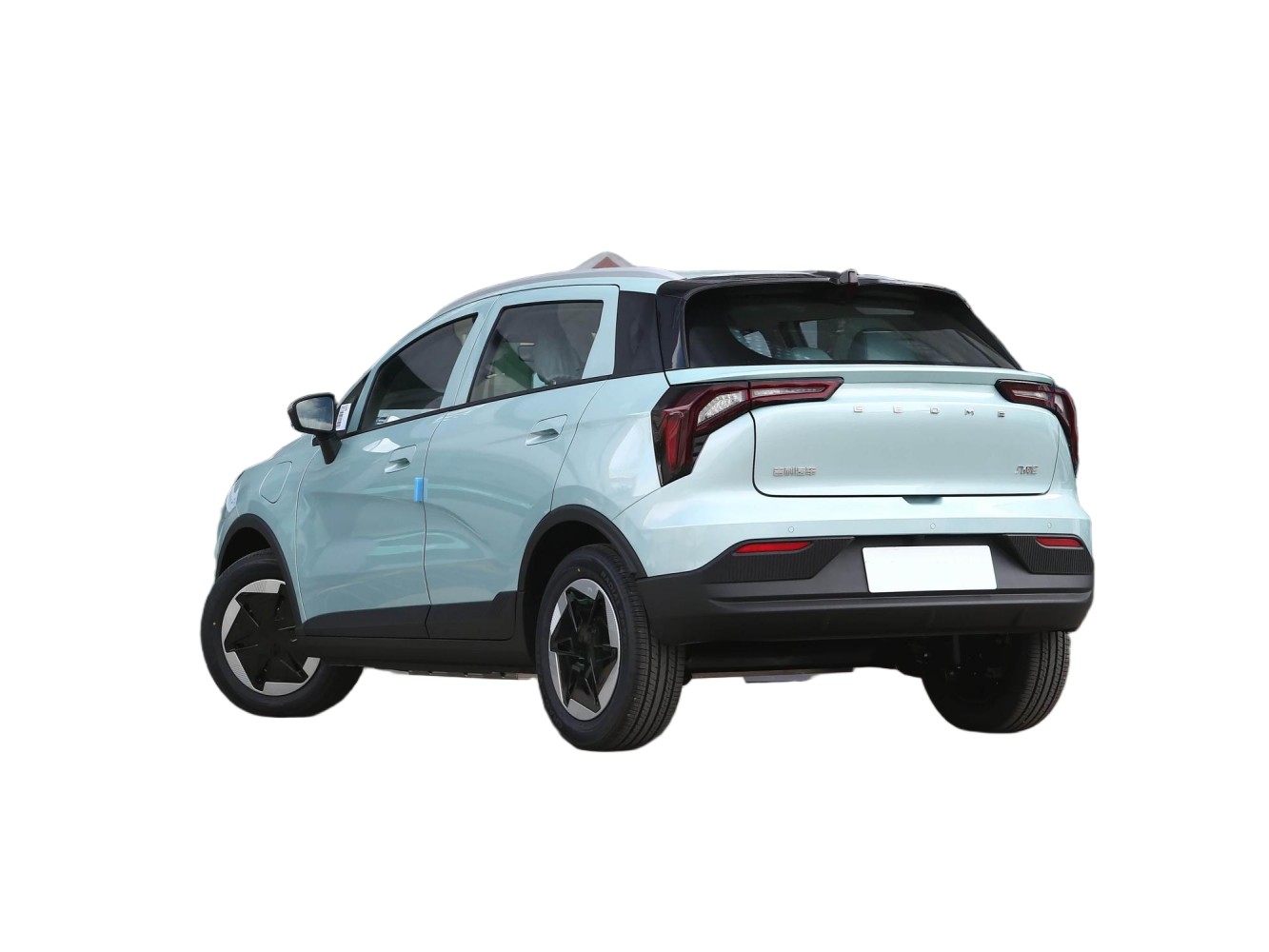

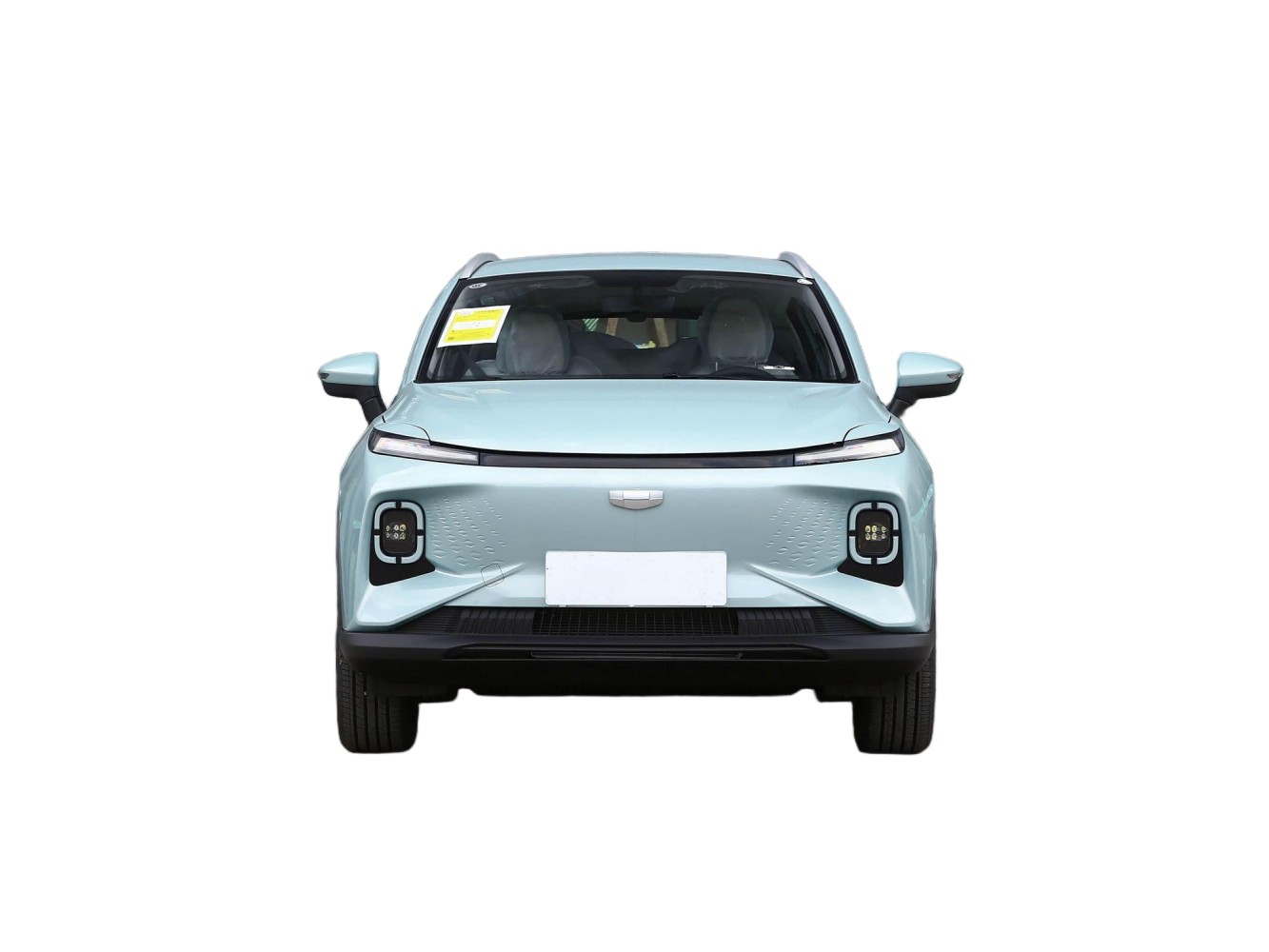

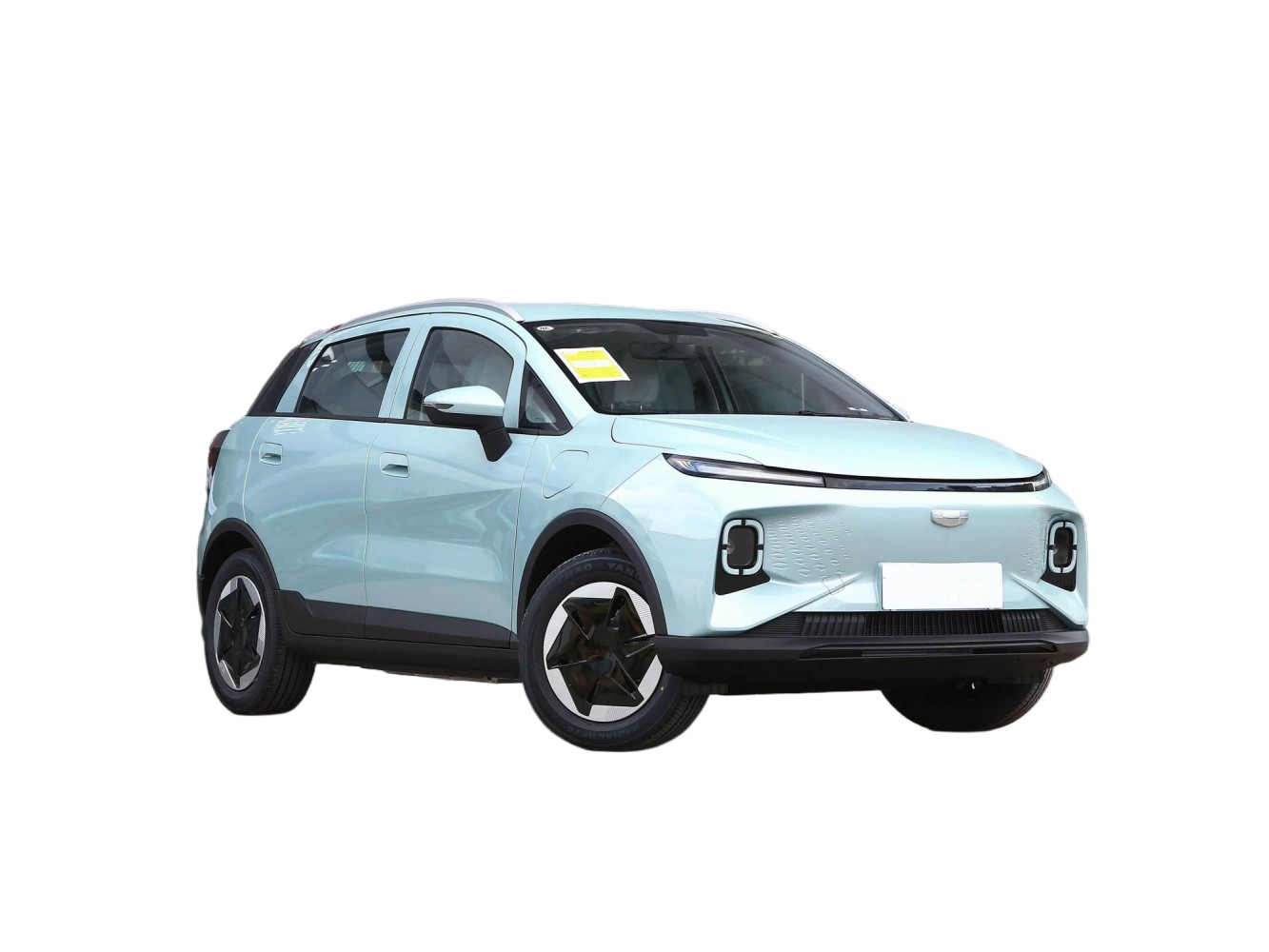

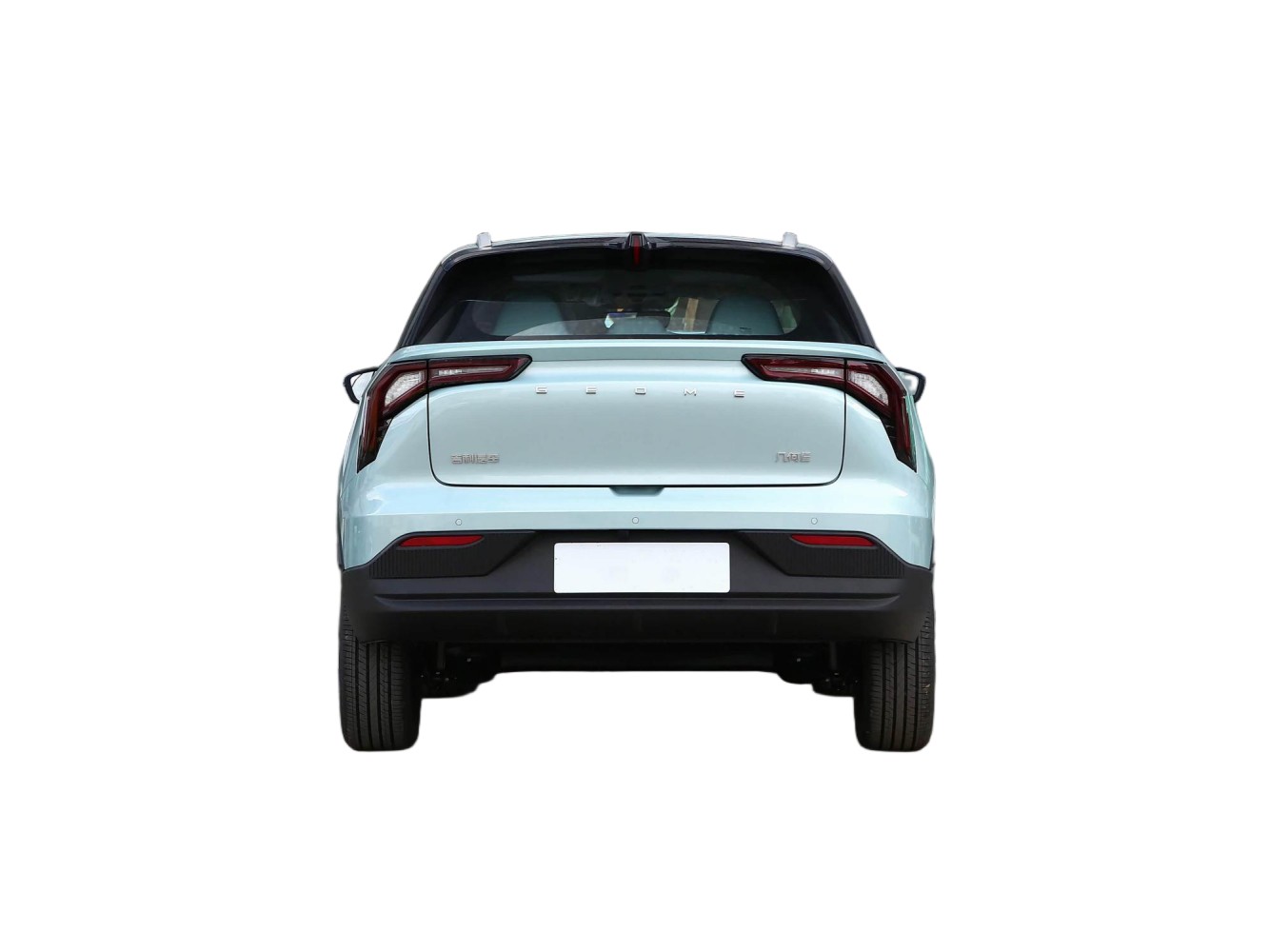

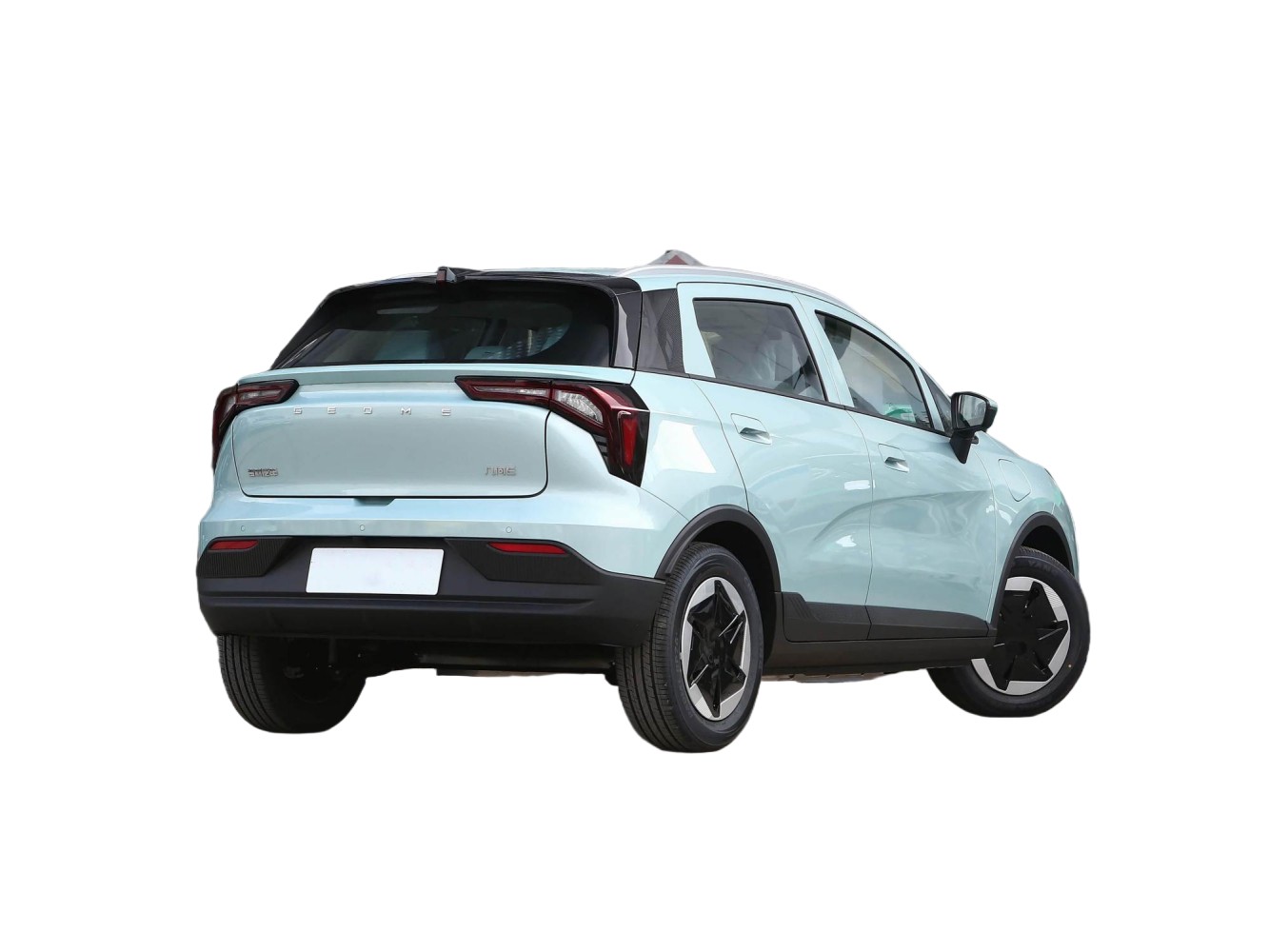

The GEELY Geometry E is a small pure electric SUV, equipped with a closed front grille and full LED headlight groups. The vehicle is fitted with LED taillight groups and rear bumper trim. Multiple body color options are available. The vehicle adopts 16-inch and 17-inch wheel configurations for different versions. Conventional door handles are equipped as standard. A sunroof is equipped for partial versions.

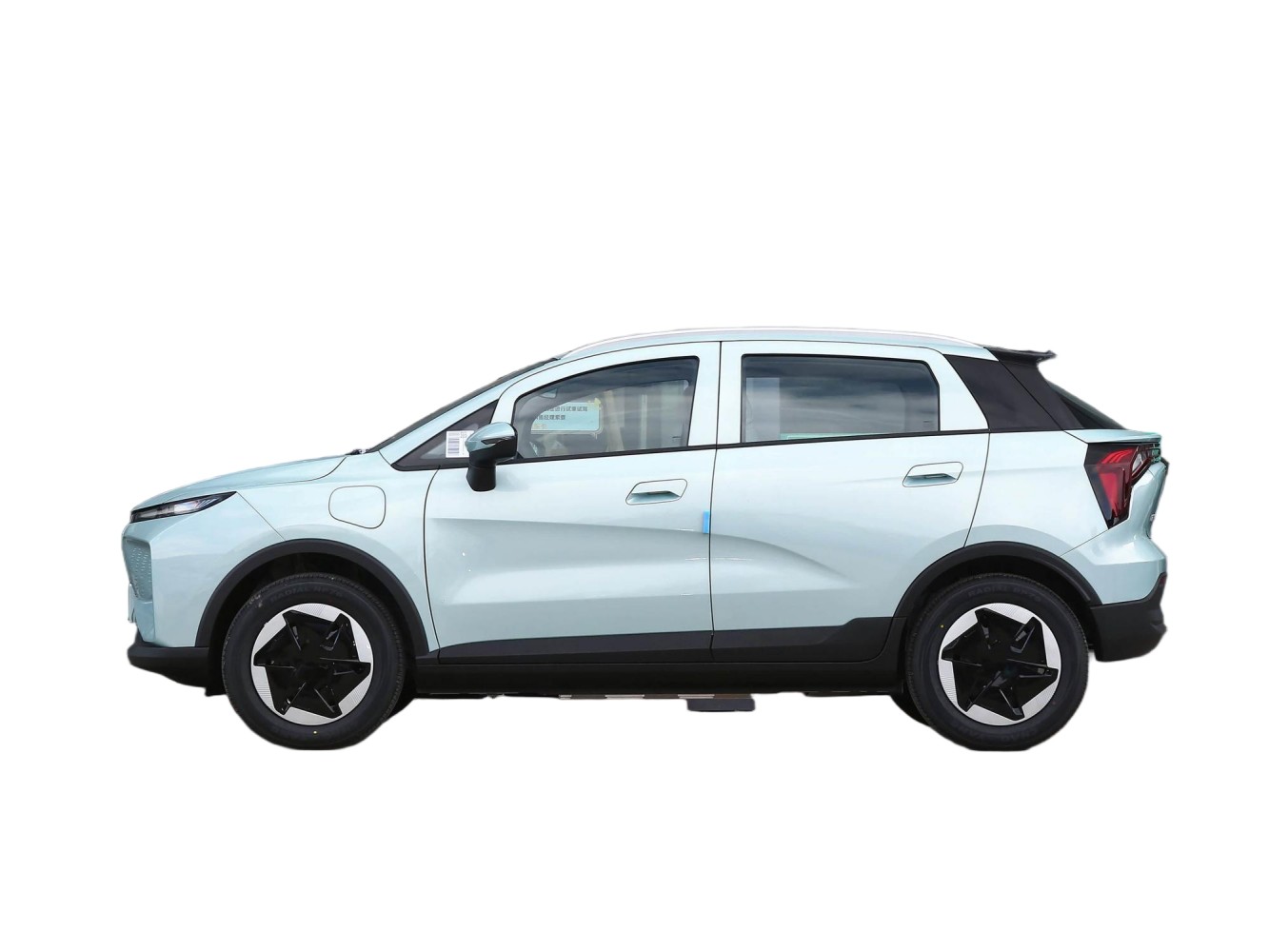

The vehicle adopts a 5-door 5-seater SUV layout. The body dimensions are 4006 mm in length, 1765 mm in width and 1550 mm in height, with a wheelbase of 2615 mm. Electrically adjustable exterior mirrors with heating functions are equipped for different versions. An electric charging port cover is equipped as standard.

Interior Design

The vehicle is equipped with a full LCD digital instrument cluster and central control touchscreen. Multiple interior color schemes are available, matched with fabric and faux leather upholstery and metallic decorative trim. The vehicle supports multi-color ambient lighting and automatic constant temperature air conditioning system. An electronic gear shift lever is equipped as standard.
Standard configurations include front and side airbags, front and rear parking sensors, rearview camera and constant-speed cruise control. Keyless entry and one-key start functions are standard. Partial versions are equipped with 540-degree panoramic camera system, adaptive cruise control, lane keeping assist and active braking system. The vehicle supports vehicle network connection, V2L external discharge and OTA upgrade functions. Partial versions are equipped with multi-adjustable seats and multi-speaker audio system.

Powertrain

The GEELY Geometry E adopts front-wheel drive layout, matched with single-speed fixed gear electric drive assembly. The vehicle is equipped with a front permanent magnet synchronous motor with a maximum power of 60 kW and a peak torque of 130 Nm.
The vehicle is equipped with 29.67kWh and 39.4kWh lithium iron phosphate battery packs for different versions. The CLTC pure electric cruising range covers 301 km and 401 km for different versions. The vehicle supports DC fast charging and AC slow charging functions. The vehicle is equipped with adjustable energy recovery system and multiple driving mode adjustment functions. The vehicle adopts front MacPherson independent suspension and rear torsion beam non-independent suspension system.







2024 Geometry E Firefly 301km Dragon Edition2024 Geometry E Firefly 301KM Streamlight2024 Geometry E Firefly 301KM Starlight2024 Geometry E Firefly 401km Starlight2024 Geometry E Glow 401KM Glow
Basic Information
Availability2024.032023.082023.082023.112023.08
vehicle classcompact SUVcompact SUVcompact SUVcompact SUVcompact SUV
Length*Width*Height(mm)4006*1765*15504006*1765*15504006*1765*15504006*1765*15504006*1765*1550
Type of energyall-electricall-electricall-electricall-electricall-electric
CLTC pure electric range (km)301301301401401
Total motor power (kW)6060606060
Total motor torque (N-m)130130130130130
Maximum speed (km/h)102102102102102
Battery Typelithium iron phosphate batterylithium iron phosphate batterylithium iron phosphate batterylithium iron phosphate batterylithium iron phosphate battery
Battery capacity (kWh)29.6729.6729.6739.339.3
Fast charging time (h)-0.50.5-0.5
Fast charging capacity (%)30-8030-8030-8030-8030-80
Warranty PolicyFour years or 100,000 kilometersFour years or 100,000 kilometersFour years or 100,000 kilometersFour years or 100,000 kilometersFour years or 100,000 kilometers
body of automobile
Length (mm)40064006400640064006
Width (mm)17651765176517651765
Height (mm)15501550155015501550
Wheelbase (mm)24852485248524852485
Front wheelbase(mm)14701470147014701470
Rear wheelbase(mm)14831483148314831483
Weight (kg)12401240124013251325
Luggage compartment volume (L)356-1000356-1000356-1000356-1000356-1000
Number of doors (pcs)55555
Number of seats (pcs)55555
electric motor
Total motor power (kW)6060606060
Total motor torque (N-m)130130130130130
Maximum power of front electric motor (kW)6060606060
Maximum torque of front motor (N-m)130130130130130
CLTC pure electric range (km)301301301401401
Battery capacity (kWh)29.6729.6729.6739.339.3
Slow charging time (h)-4.54.5-6
Fast charging time (h)-0.50.5-0.5
Motor structurepermanent magnetismpermanent magnetismpermanent magnetismpermanent magnetismpermanent magnetism
Principle of motor operationsynchronizationsynchronizationsynchronizationsynchronizationsynchronization
Number of drive motorssingle motorsingle motorsingle motorsingle motorsingle motor
Motor Layoutpreamplifierpreamplifierpreamplifierpreamplifierpreamplifier
Battery Typelithium iron phosphate batterylithium iron phosphate batterylithium iron phosphate batterylithium iron phosphate batterylithium iron phosphate battery
Battery Cell BrandsGXN Hi-Tech (Chinese company)GXN Hi-Tech (Chinese company)GXN Hi-Tech (Chinese company)GXN Hi-Tech (Chinese company)GXN Hi-Tech (Chinese company)
Battery cooling methodair coolingair coolingair coolingair coolingair cooling
fast charging function-be in favor ofbe in favor of-be in favor of
Fast charging capacity (%)30-8030-8030-8030-8030-80
Battery Pack Warranty-Eight years or 150,000 kilometersEight years or 150,000 kilometers-Eight years or 150,000 kilometers
Battery preheating●●●●●
external discharge●●●●●
Chassis/steering
Driving formfront drivefront drivefront drivefront drivefront drive
Front suspension typeMacPherson independent suspensionMacPherson independent suspensionMacPherson independent suspensionMacPherson independent suspensionMacPherson independent suspension
Rear suspension typeTorsion beam non-independent suspensionTorsion beam non-independent suspensionTorsion beam non-independent suspensionTorsion beam non-independent suspensionTorsion beam non-independent suspension
Steering assist formelectric power assistelectric power assistelectric power assistelectric power assistelectric power assist
Wheels/Brakes
Front/Rear Brake TypeVentilated Disc Type / Disc TypeVentilated Disc Type / Disc TypeVentilated Disc Type / Disc TypeVentilated Disc Type / Disc TypeVentilated Disc Type / Disc Type
Parking brake typehandbrakehandbrakeelectronic parkingelectronic parkingelectronic parking
Front Tire Specification205/60 R16205/60 R16205/60 R16205/60 R16205/60 R16
Rear Tire Specification205/60 R16205/60 R16205/60 R16205/60 R16205/60 R16
Wheel Materialsteel (chemistry)steel (chemistry)Aluminum optionAluminum optionaluminum
Active/passive safety features
ABS anti-lock●●●●●
Brake force distribution (EBD/CBC etc.)●●●●●
Brake Assist (BA/EBA/BAS etc.)--●●●
Traction control (ASR/TCS/TRC etc.)--●●●
Stability Control (ESC/ESP/DSC etc.)--●●●
Active braking/safety systems----o
lane keeping assist system----o
lane departure warning----o
Road traffic signage recognition----o
front exhaust airbag:: Driver's airbag:: Driver's airbag:: Driver's airbag:: Driver's airbag:: Driver's airbag
●Passenger airbag●Passenger airbag●Passenger airbag●Passenger airbag●Passenger airbag
Tire Pressure Detection Device●Display●Display●Display●Display●Display
ISOFIX child restraints●●●●●
Forward Collision Warning----o
Auxiliary/Manipulation Configurations
parking radar--● Post● Post● Post
Driver Assistance Video● Backup camera● Backup camera● Backup camera● Backup camera● Backup camera
cruise control--●Cruise control●Cruise control●Cruise control
○Adaptive cruise at all speeds
Driving Mode Switching:: Campaigns:: Campaigns:: Campaigns:: Campaigns:: Campaigns
:: Economy:: Economy:: Economy:: Economy:: Economy
hill-holding aid--●●●
automatic parking--●●●
Assisted driving level----○L2
External/anti-theft configurations
skylights--○Power sunroof○Power sunroof○Power sunroof
roof rack●●●●●
Key Type●Remote key●Remote key●Remote key●Remote key●Remote key
● Bluetooth key● Bluetooth key● Bluetooth key
Keyless Start System●●●●●
Central locking in the car●●●●●
Internal Configuration
Steering wheel material:: Plastics:: PlasticsCortexCortex● Leather
:: Plastics:: Plastics
Steering Wheel Adjustment● Manual● Manual● Manual● Manual● Manual
Adjustable up and downAdjustable up and downAdjustable up and downAdjustable up and downAdjustable up and down
Steering wheel functions:: Multifunctionality:: Multifunctionality:: Multifunctionality:: Multifunctionality:: Multifunctionality
center armrest--●Forward●Forward●Forward
Sun visor vanity mirror●●●●●
Liquid crystal instrument size9.8 in.9.8 in.9.8 in.9.8 in.10.25 in.
Built-in car recorder----●
Intelligent Hardware
Number of cameras:: 1:: 1:: 1:: 1:: 1
Number of ultrasonic radars--● 3● 3● 3
seating
Seat Material:: Fabrics:: Fabrics:: Imitation leather:: Imitation leather:: Imitation leather
Integral adjustment of the main driver's seat●Before and after●Before and after●Before and after●Before and after●Before and after
●Backrests●Backrests●Backrests●Backrests●Backrests
●High/Low (2-way)●High/Low (2-way)●High/Low (2-way)●High/Low (2-way)●High/Low (2-way)
Passenger seat overall adjustment●Before and after●Before and after●Before and after●Before and after●Before and after
●Backrests●Backrests●Backrests●Backrests●Backrests
Second row seat adjustment● Integral lowering● Integral lowering● Integral lowering● Integral lowering● Integral lowering
multimedia
Large color screen in the center console●●●●●
satellite navigation systemo●●●●
Navigating the road information displayo●●●●
Map Branding○Gold●Gold●Gold●Gold●Gold
Bluetooth/Car Phoneo●●●●
Number of audio speakers44446
Voice Recognition Control System-:: Multimedia systems:: Multimedia systems:: Multimedia systems:: Multimedia systems
:: Navigation:: Navigation:: Navigation:: Navigation
:: Telephone:: Telephone:: Telephone:: Telephone
:: Air conditioning:: Air conditioning:: Air conditioning:: Air conditioning
Center screen size●8 inches● 10.25 inches● 10.25 inches● 10.25 inches● 10.25 inches
○10.25 inches
Voice assistant wake wordsHello, Geometry.Hello, Geometry.Hello, Geometry.Hello, Geometry.Hello, Geometry.
4G/5G networks○4G●4G●4G●4G●4G
Telematicso●●●●
OTA upgradeo●●●●
Interface Support●USB port●USB port●USB port●USB port●USB port
illumination
low beam (headlights)○LED●LED●LED●LED●LED
● Halogen
high beam (headlights)○LED●LED●LED●LED●LED
● Halogen
Adaptive high and low beam----o
Adjustable headlights●●●●●
Automatic headlights--●●●
Delayed headlight off●●●●●
Glass/Mirror
power window●Forward●Forward●Forward●Forward●Forward
● Post● Post● Post● Post● Post
One-touch window lifting----● Full vehicle
Anti Window Pinch Handle----●
outside rearview mirror●Motorized adjustment●Motorized adjustment●Motorized adjustment●Motorized adjustment●Motorized adjustment
●Heating●Heating●Heating●Heating●Heating
rearview mirror●Manual anti-glare●Manual anti-glare●Manual anti-glare●Manual anti-glare●Manual anti-glare
Air conditioners/refrigerators
Air conditioning control method●Manual control●Manual control●Manual control●Manual control●Manual control
PM2.5 filtration●●●●●
