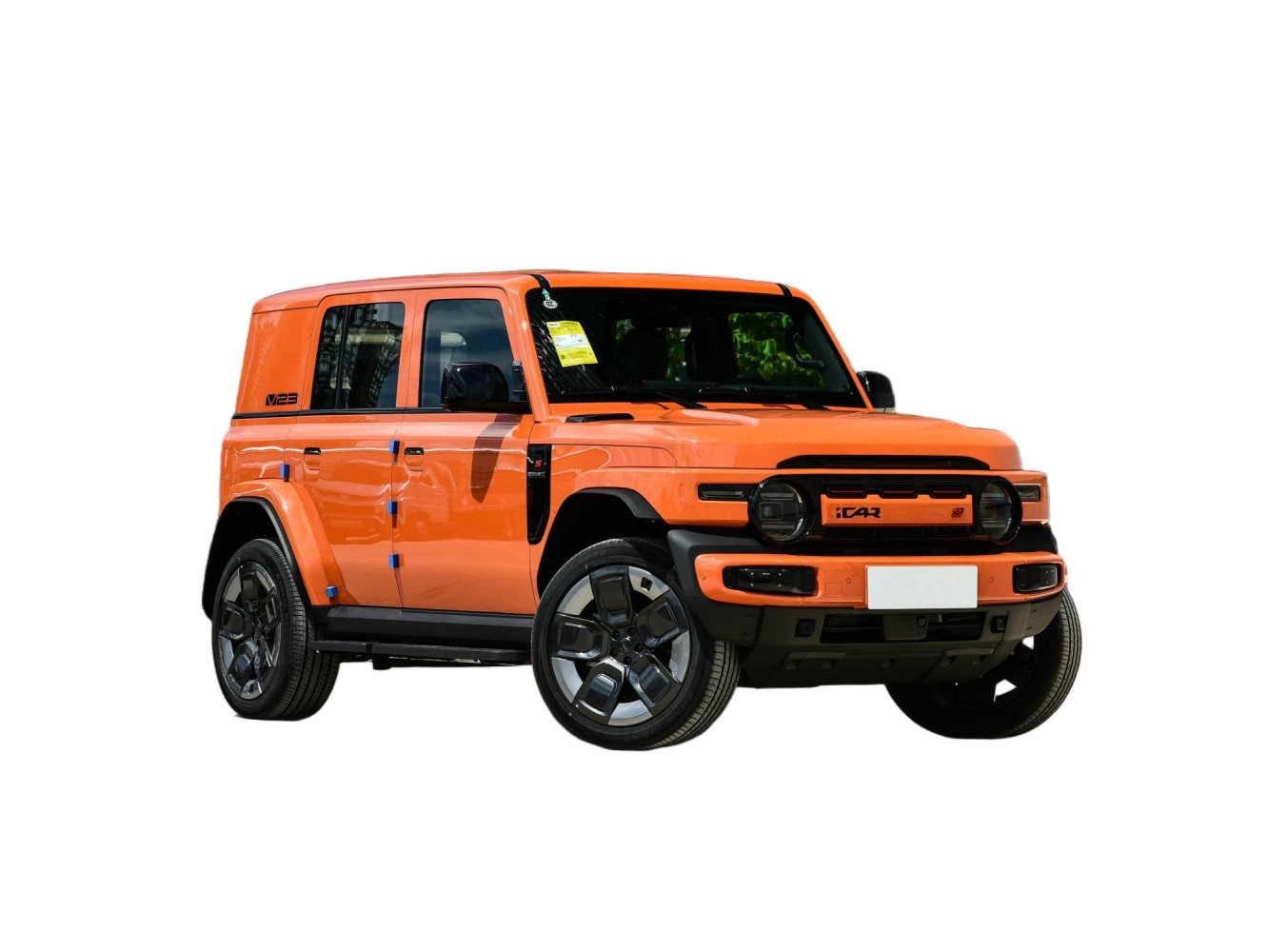

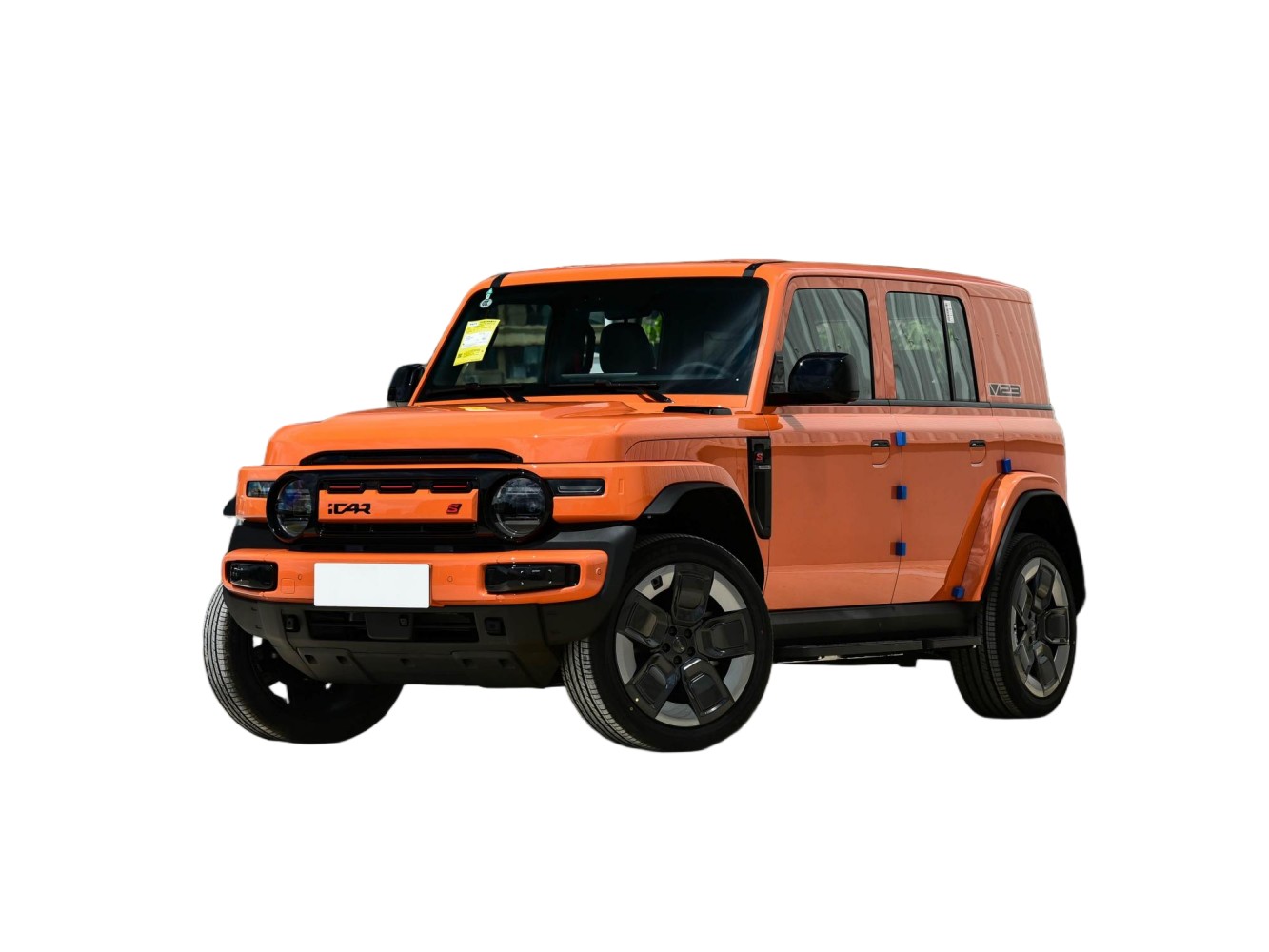

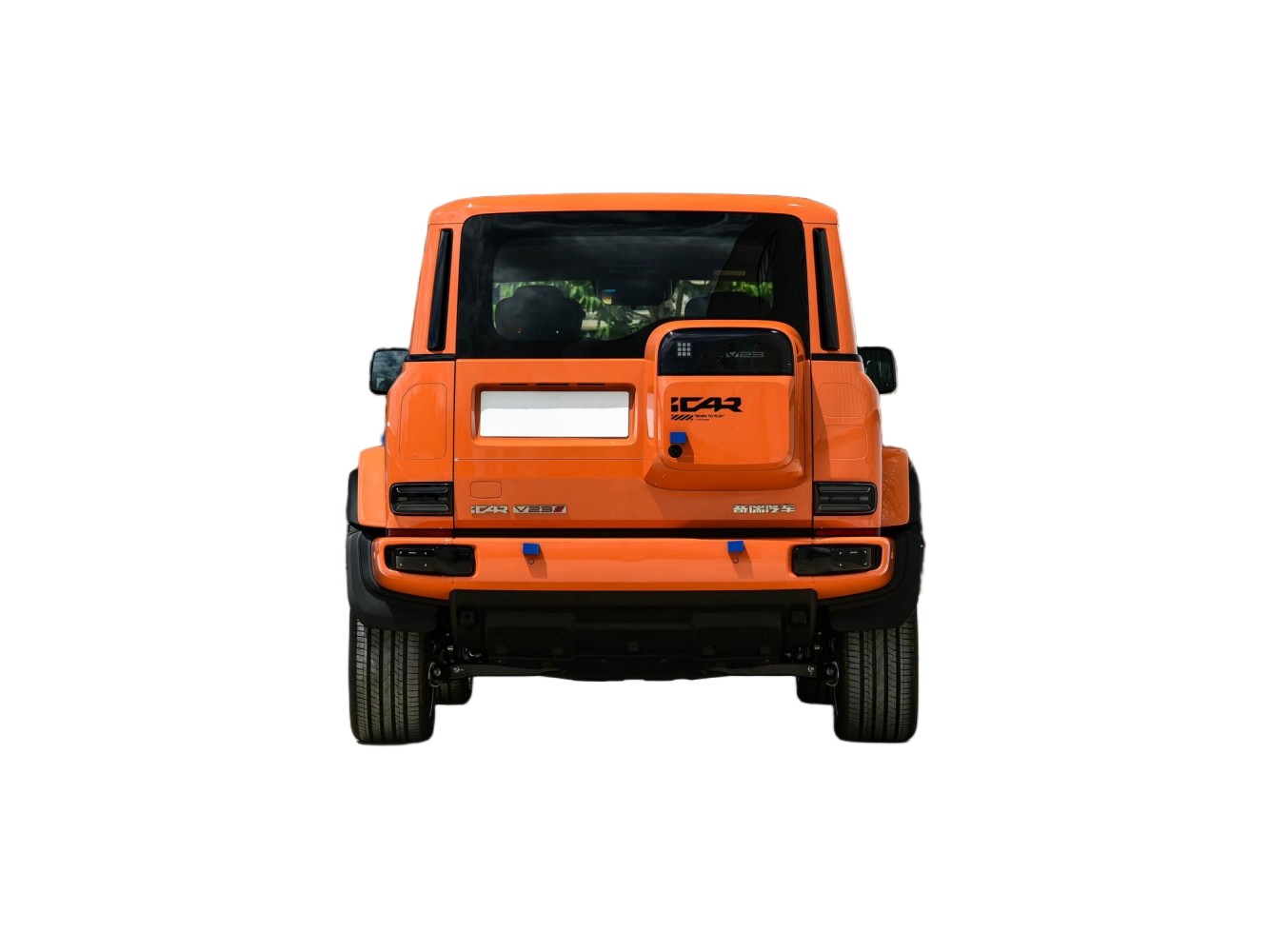

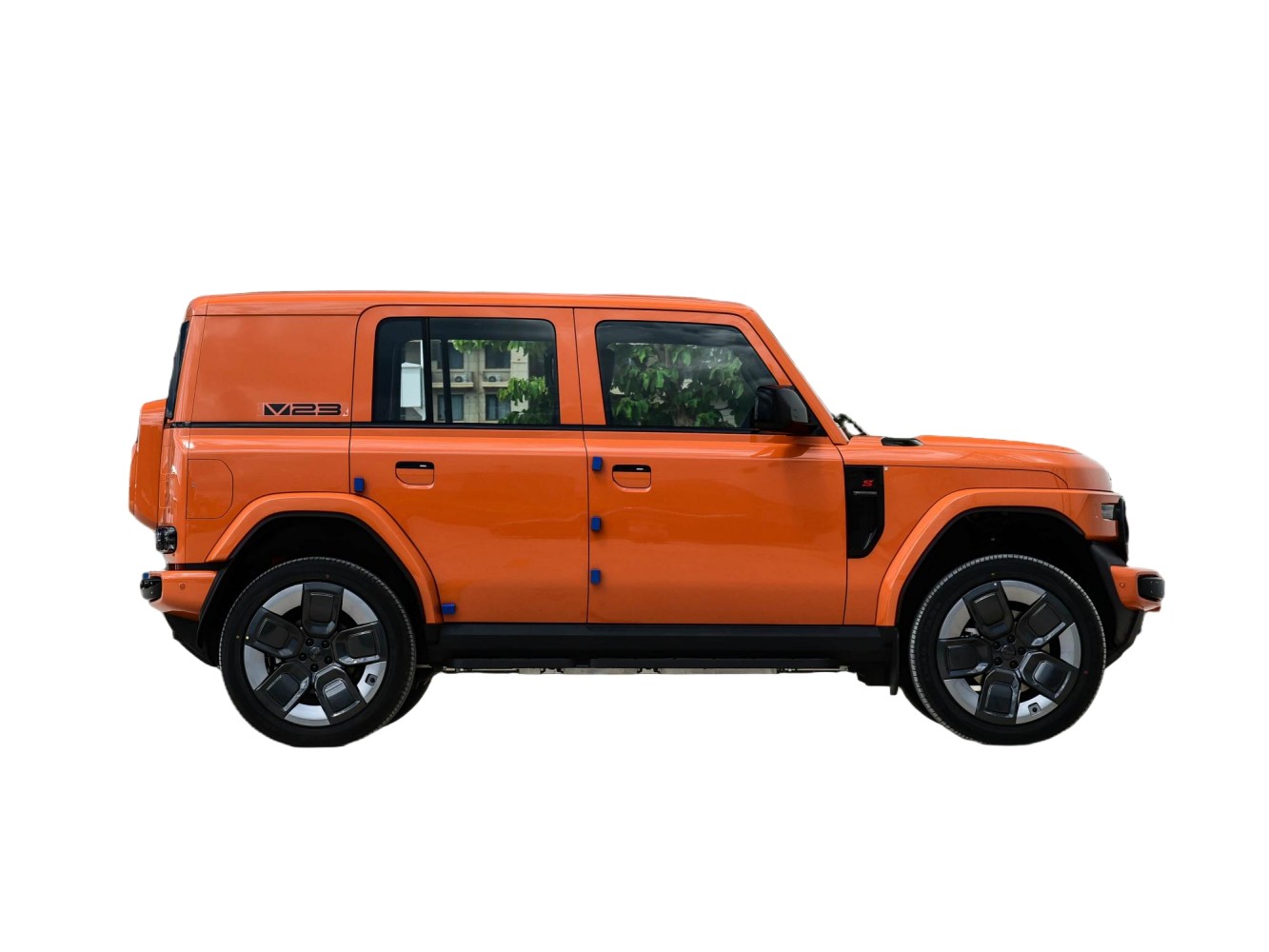

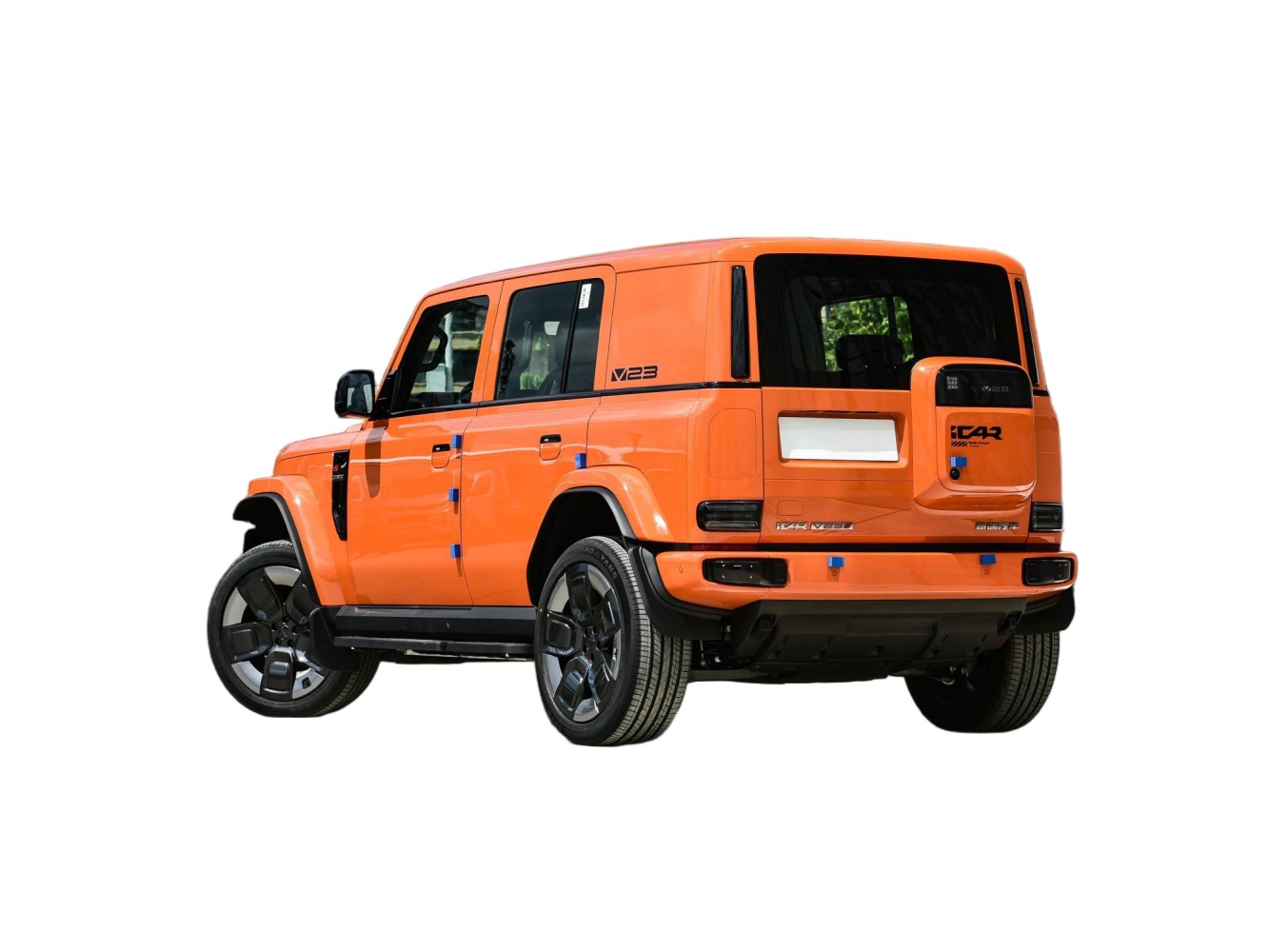

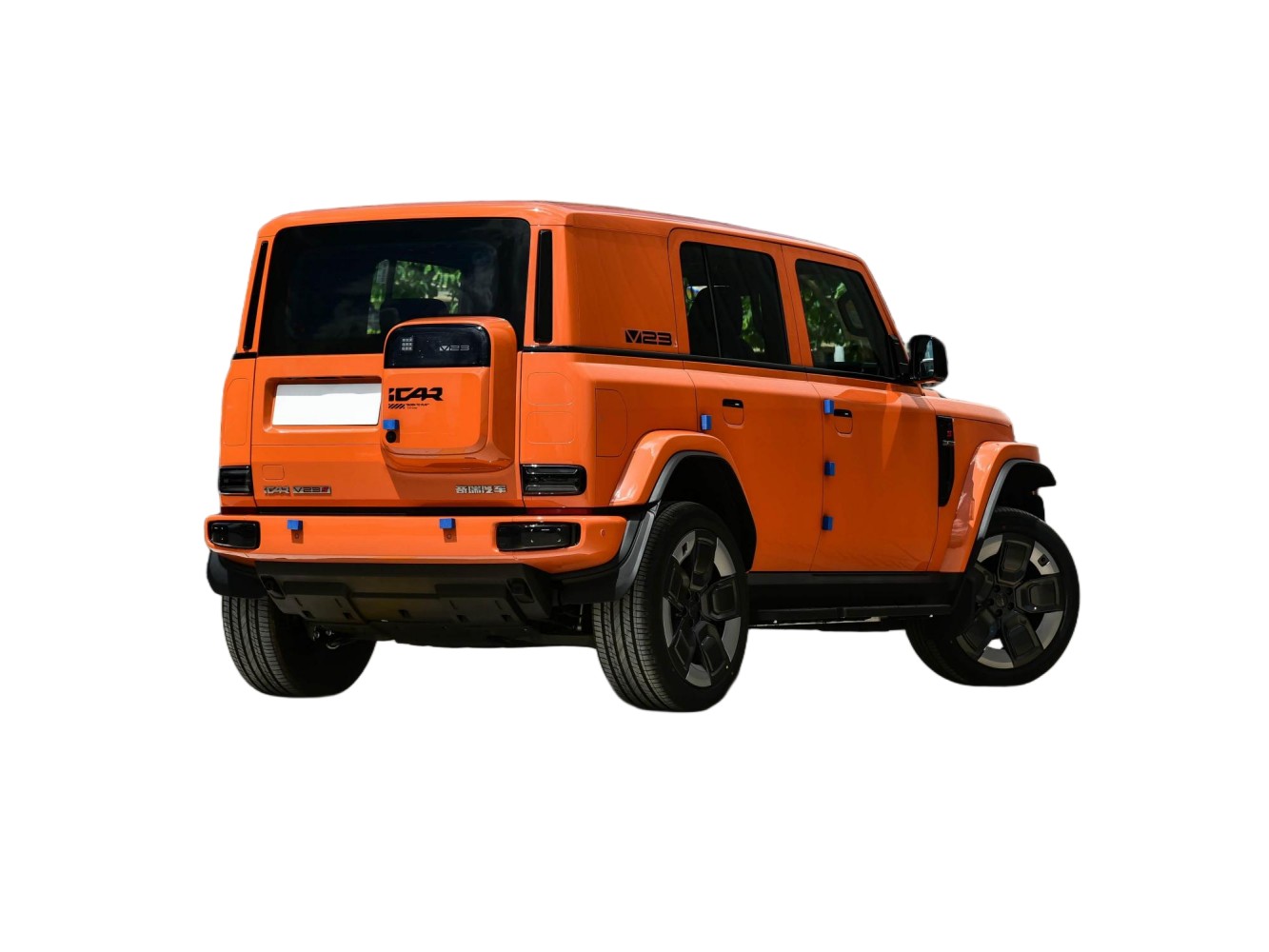

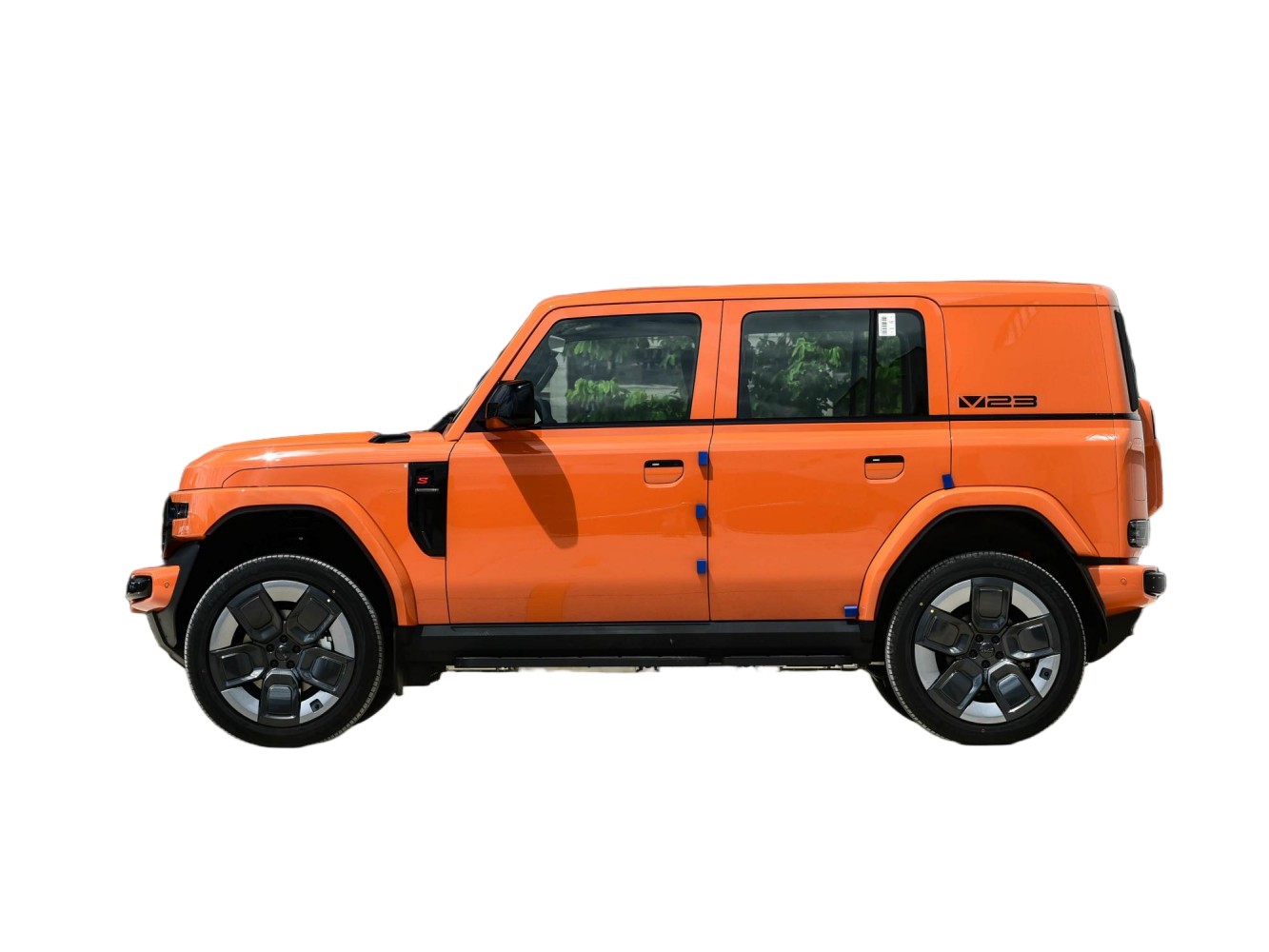

Exterior Design
The iCAR V23 is a compact pure electric SUV, equipped with a closed front grille and round LED headlight groups. The vehicle is fitted with block-style LED taillight groups and rear bumper trim. Multiple body color options are available. The vehicle adopts 18-inch and 19-inch wheel configurations for different versions. Concealed door handles are equipped as standard. A panoramic sunroof is equipped as standard. External spare tire configuration is optional for partial versions.
The vehicle adopts a 5-door 5-seater SUV layout. The short-axis version has body dimensions of 4220 mm in length, 1915 mm in width and 1845 mm in height, with a wheelbase of 2735 mm. The standard version has body dimensions of 4580 mm in length, 1910 mm in width and 1850 mm in height, with a wheelbase of 2820 mm. Electrically adjustable exterior mirrors with heating and automatic folding functions and electric tailgate are standard configurations. Electric charging port cover is equipped as standard.
Interior Design
The vehicle is equipped with a full LCD digital instrument cluster and integrated central control touchscreen. Multiple interior color schemes are available, matched with leather upholstery and metallic decorative trim. The vehicle supports multi-color ambient lighting and dual-zone automatic constant temperature air conditioning. An electronic gear shift lever is equipped as standard.
Standard configurations include front, side and curtain airbags, front and rear parking sensors, rearview camera and constant-speed cruise control. Keyless entry and one-key start functions are standard. High-spec versions are equipped with 360-degree panoramic camera system, adaptive cruise control, lane keeping assist and active braking system. The vehicle supports wireless phone charging, V2L external discharge and OTA upgrade functions.
Powertrain
The iCAR V23 provides rear-wheel drive and four-wheel drive layouts, matched with single-speed electric transmission. The rear-wheel drive version is equipped with a single permanent magnet synchronous motor with a maximum power of 100 kW. The four-wheel drive version is equipped with dual permanent magnet synchronous motors with a comprehensive maximum power of 155 kW and a comprehensive peak torque of 490 Nm.
The vehicle is equipped with lithium iron phosphate battery packs of different capacities. The CLTC pure electric cruising range covers 401 km and 501 km for different versions. The vehicle supports DC fast charging and AC slow charging functions. The vehicle is equipped with energy recovery system. The vehicle adopts front MacPherson independent suspension and rear multi-link independent suspension system.
| 2025 iCAR V23 301 2WD Youth Edition | 2025 iCAR V23 401 2WD Advanced | 2025 iCAR V23 501 4WD Advanced | |
|---|---|---|---|
| Basic Information | |||
| Availability | 2024.12 | 2024.12 | 2024.12 |
| vehicle class | Compact SUV | Compact SUV | Compact SUV |
| Length*Width*Height(mm) | 4220*1915*1845 | 4220*1915*1845 | 4220*1915*1845 |
| Type of energy | all-electric | all-electric | all-electric |
| CLTC pure electric range (km) | 301 | 401 | 501 |
| Total motor power (kW) | 100 | 100 | 155 |
| Total motor torque (N-m) | 180 | 180 | 292 |
| Maximum speed (km/h) | 140 | 140 | 140 |
| Battery Type | lithium iron phosphate battery | lithium iron phosphate battery | Ternary lithium battery |
| Battery capacity (kWh) | 47.28 | 59.93 | 81.76 |
| Fast charging time (h) | 0.5 | 0.5 | 0.5 |
| Fast charging capacity (%) | 30-80 | 30-80 | 30-80 |
| body of automobile | |||
| Length (mm) | 4220 | 4220 | 4220 |
| Width (mm) | 1915 | 1915 | 1915 |
| Height (mm) | 1845 | 1845 | 1845 |
| Wheelbase (mm) | 2735 | 2735 | 2735 |
| Front wheelbase(mm) | 1613 | 1613 | 1613 |
| Rear wheelbase(mm) | 1641 | 1641 | 1641 |
| No-load minimum ground clearance (mm) | 200 | 200 | 210 |
| Weight (kg) | 1630 | 1710 | 1825 |
| Maximum full load mass (kg) | 2005 | 2085 | 2200 |
| Luggage compartment volume (L) | 234-744 | 234-744 | 234-744 |
| Number of doors (pcs) | 5 | 5 | 5 |
| Number of seats (pcs) | 5 | 5 | 5 |
| Approach angle (°) | 39 | 39 | 41 |
| Departure angle (°) | 35 | 35 | 35 |
| electric motor | |||
| Total motor power (kW) | 100 | 100 | 155 |
| Total motor torque (N-m) | 180 | 180 | 292 |
| Maximum power of front electric motor (kW) | - | - | 55 |
| Maximum torque of front motor (N-m) | - | - | 112 |
| Maximum power of rear electric motor (kW) | 100 | 100 | 100 |
| Rear motor maximum torque (N-m) | 180 | 180 | 180 |
| CLTC pure electric range (km) | 301 | 401 | 501 |
| Battery capacity (kWh) | 47.28 | 59.93 | 81.76 |
| 100km power consumption (kWh/100km) | 16.4 | 16.8 | 17.3 |
| Electricity-equivalent fuel consumption (L/100km) | - | 1.95 | 2.01 |
| Slow charging time (h) | - | 10.5 | 14 |
| Fast charging time (h) | 0.5 | 0.5 | 0.5 |
| Motor structure | permanent magnetism | permanent magnetism | exchanges |
| Principle of motor operation | synchronization | synchronization | synchronous |
| Second motor structure | - | - | permanent magnetism |
| Second motor working principle | - | - | synchronization |
| Number of drive motors | single motor | single motor | Dual Motor |
| Motor Layout | place after (e.g. in grammar) | place after (e.g. in grammar) | front and rear |
| Battery Type | lithium iron phosphate battery | lithium iron phosphate battery | Ternary lithium battery |
| Battery Cell Brands | - | Ningde Times (Jiangsu) | Ningde Times (Jiangsu) |
| Battery cooling method | liquid cooling | liquid cooling | liquid cooling |
| fast charging function | be in favor of | be in favor of | be in favor of |
| Fast charging capacity (%) | 30-80 | 30-80 | 30-80 |
| energy recovery | 1 | 1 | 1 |
| Battery preheating | ● | ● | ● |
| external discharge | ● | ● | ● |
| Chassis/steering | |||
| Driving form | rear drive | rear drive | four-wheel drive |
| Front suspension type | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension |
| Rear suspension type | Five-link independent suspension | Five-link independent suspension | Five-link independent suspension |
| Steering assist form | electric power assist | electric power assist | electric power assist |
| Wheels/Brakes | |||
| Front/Rear Brake Type | Ventilated Disc Type / Disc Type | Ventilated Disc Type / Disc Type | Ventilated Disc Type / Disc Type |
| Parking brake type | electronic parking | electronic parking | electronic parking |
| Front Tire Specification | 255/55 R19 | 255/55 R19 | 265/45 R21 |
| Rear Tire Specification | 255/55 R19 | 255/55 R19 | 265/45 R21 |
| Wheel Material | aluminum | aluminum | aluminum |
| Active/passive safety features | |||
| ABS anti-lock | ● | ● | ● |
| Brake force distribution (EBD/CBC etc.) | ● | ● | ● |
| Brake Assist (BA/EBA/BAS etc.) | ● | ● | ● |
| Traction control (ASR/TCS/TRC etc.) | ● | ● | ● |
| Stability Control (ESC/ESP/DSC etc.) | ● | ● | ● |
| Active braking/safety systems | - | ○ | ○ |
| merging aid | - | ○ | ○ |
| lane keeping assist system | - | ○ | ○ |
| lane departure warning | - | ○ | ○ |
| Automatic Lane Change Assist | - | ○ | ○ |
| Road traffic signage recognition | - | ○ | ○ |
| Low Speed Warning | ● | ● | ● |
| DOW Open Door Alert | - | ○ | ○ |
| front exhaust airbag | :: Driver's airbag | :: Driver's airbag | :: Driver's airbag |
| ●Passenger airbag | ●Passenger airbag | ●Passenger airbag | |
| ●Side airbags | ●Side airbags | ●Side airbags | |
| Tire Pressure Detection Device | ●Display | ●Display | ●Display |
| Seat Belt Reminder | ●Principal Driver | ●Principal Driver | ●Principal Driver |
| ●Passenger | ●Passenger | ||
| ISOFIX child restraints | ● | ● | ● |
| Forward Collision Warning | - | ○ | ○ |
| Rear Collision Warning | - | ○ | ○ |
| Auxiliary/Manipulation Configurations | |||
| parking radar | ●Forward | ●Forward | ●Forward |
| ● Post | ● Post | ● Post | |
| Driver Assistance Video | ● Backup camera | ● Backup camera | ● Backup camera |
| ○360-degree panoramic image | ○360-degree panoramic image | ||
| Transparent chassis/540 degree image | - | ○ | ○ |
| Reverse vehicle side warning system | - | ○ | ○ |
| cruise control | ●Cruise control | ●Cruise control | ●Cruise control |
| ○Adaptive cruise at all speeds | ○Adaptive cruise at all speeds | ||
| Driving Mode Switching | :: Campaigns | :: Campaigns | :: Campaigns |
| :: Economy | :: Economy | :: Economy | |
| :: Standard/comfort | :: Standard/comfort | :: Standard/comfort | |
| :: Snow | :: Snow | :: Snow | |
| ● Customization/Personalization | ● Customization/Personalization | ● Off-road | |
| ● Customization/Personalization | |||
| steep incline and slow descent | ● | ● | ● |
| hill-holding aid | ● | ● | ● |
| automatic parking | ● | ● | ● |
| automatic parking | - | ○ | ○ |
| remote control | - | ○ | ○ |
| memory parking | - | ○ | ○ |
| follow the trail and reverse | - | ○ | ○ |
| Assisted driving level | - | ○L2 | ○L2 |
| External/anti-theft configurations | |||
| Side footrests | ○Fixed | ● Fixed | ● Fixed |
| Key Type | ○Bluetooth Key | ● Bluetooth key | ● Bluetooth key |
| ●NFC/RFID key | ●NFC/RFID key | ●NFC/RFID key | |
| Keyless entry | ○ | ● | ● |
| Keyless Start System | ● | ● | ● |
| Central locking in the car | ● | ● | ● |
| Internal Configuration | |||
| Steering wheel material | ● Leather | ● Leather | ● Leather |
| Steering Wheel Adjustment | ● Manual | ● Manual | ● Manual |
| Adjustable up and down | Adjustable up and down | Adjustable up and down | |
| Steering wheel functions | :: Multifunctionality | :: Multifunctionality | :: Multifunctionality |
| center armrest | ●Forward | ●Forward | ●Forward |
| Gear Shift Form | ●Electronic pocket shifter | ●Electronic pocket shifter | ●Electronic pocket shifter |
| Sun visor vanity mirror | ● | ● | ● |
| Built-in car recorder | - | ○ | ○ |
| Intelligent Hardware | |||
| Number of cameras | :: 1 | :: 1 | :: 1 |
| ○5 | ○5 | ||
| Number of ultrasonic radars | :: 8 | - | - |
| Number of millimeter-wave radars | - | ○5 | ○5 |
| seating | |||
| Seat Material | :: Fabrics | :: Imitation leather | :: Imitation leather |
| Main Driver's Seat Function | - | ●Heating | ●Heating |
| Passenger seat function | - | ●Heating | ●Heating |
| Seat electric adjustment | - | ●Principal Driver | ●Principal Driver |
| ●Passenger | ●Passenger | ||
| Integral adjustment of the main driver's seat | ●Before and after | ●Before and after | ●Before and after |
| ●Backrests | ●Backrests | ●Backrests | |
| ●High/Low (2-way) | ●High/Low (2-way) | ●High/Low (2-way) | |
| Passenger seat overall adjustment | ●Before and after | ●Before and after | ●Before and after |
| ●Backrests | ●Backrests | ●Backrests | |
| Second row seat adjustment | ●Proportional lowering | ●Proportional lowering | ●Proportional lowering |
| multimedia | |||
| Large color screen in the center console | ●Touch LCD | ●Touch LCD | ●Touch LCD |
| satellite navigation system | ● | ● | ● |
| Navigating the road information display | ● | ● | ● |
| Map Branding | ●Tencent | ●Tencent | ●Tencent |
| Roadside assistance calls | ● | ● | ● |
| Automotive Intelligence Chip | Qualcomm Snapdragon 8155 | Qualcomm Snapdragon 8155 | Qualcomm Snapdragon 8155 |
| Bluetooth/Car Phone | ● | ● | ● |
| Cell phone connectivity/mapping | ●CarPlay support | ●CarPlay support | ●CarPlay support |
| Number of audio speakers | 7 | 7 | 7 |
| Voice Recognition Control System | :: Multimedia systems | - | - |
| :: Navigation | |||
| :: Telephone | |||
| :: Air conditioning | |||
| Center screen size | ●15.4 inches | ●15.4 inches | ●15.4 inches |
| Center screen resolution | ●2.5K | ●2.5K | ●2.5K |
| 4G/5G networks | ●4G | ●5G | ●5G |
| Wi-Fi hotspot | ● | ● | ● |
| Telematics | ● | ● | ● |
| OTA upgrade | ● | ● | ● |
| Interface Support | ●Type-C port | ●Type-C port | ●Type-C port |
| Number of USB/Type-C ports | :: 2 in the front row | :: 2 in the front row | :: 2 in the front row |
| USB/Type-C Maximum Charging Power | ●60W | ●60W | ●60W |
| (stage) lighting | |||
| low beam (headlights) | ●LED | ●LED | ●LED |
| high beam (headlights) | ●LED | ●LED | ●LED |
| LED daytime running lights | ● | ● | ● |
| Adaptive high and low beam | - | ○ | ○ |
| Adjustable headlights | ● | ● | ● |
| Automatic headlights | ● | ● | ● |
| Delayed headlight off | ● | ● | ● |
| Glass/Mirror | |||
| power window | ●Forward | ●Forward | ●Forward |
| ● Post | ● Post | ● Post | |
| One-touch window lifting | ● Full vehicle | ● Full vehicle | ● Full vehicle |
| Anti Window Pinch Handle | ● | ● | ● |
| rearview mirror | ●Motorized adjustment | ●Motorized adjustment | ●Motorized adjustment |
| ●Heating | ●Heating | ||
| rearview mirror | ●Manual anti-glare | ●Manual anti-glare | ●Manual anti-glare |
| Glass Functions | :: Multi-layer soundproofing | :: Multi-layer soundproofing | :: Multi-layer soundproofing |
| Multi-layer acoustic glazing for side windows | ● Front row | ● Front row | ● Front row |
| inductive wiper | ● | ● | ● |
| Air conditioners/refrigerators | |||
| Air conditioning control method | ● Automatic control | ● Automatic control | ● Automatic control |
| heat pump air conditioner | ○ | ● | ● |
| PM2.5 filtration | ○ | ● | ● |
